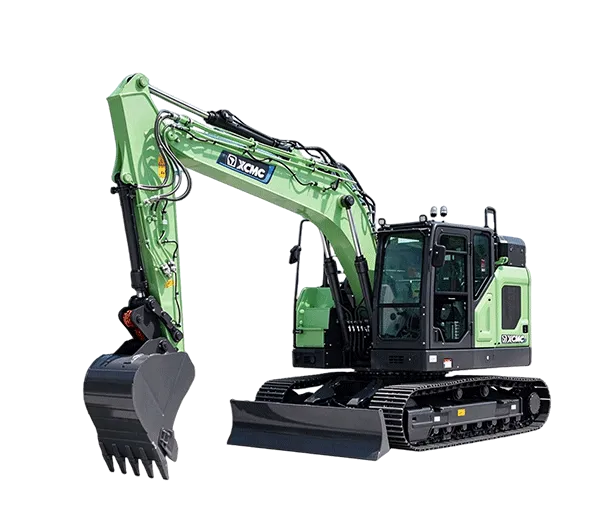

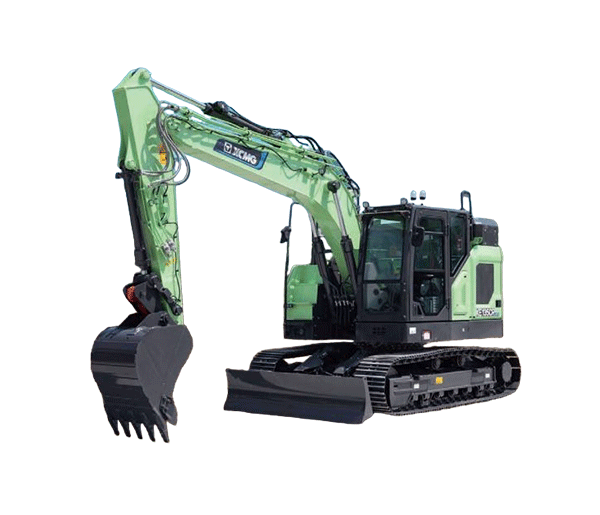

XE135CREV All-Electric Hydraulic Excavator for Efficient Construction Applications

When I talk with construction machinery buyers about electric Excavators, the first question is usually very simple: can an electric machine really handle serious excavation work? My answer is that the question should not only be about electric power. We need to look at the whole machine, including the battery, motor, hydraulic system, working attachment, structure, charging plan, operating environment and after-sales support.

That is exactly how I look at the XE135CREV All-electric Hydraulic Excavator. It is not simply a diesel Excavator with the engine removed and a battery installed. The idea is to build an excavator around an electric power system while keeping the hydraulic working principle that operators already understand. For a contractor, this matters because the machine still needs to dig, load, level, travel and work through long shifts without making operation unnecessarily complicated.

For this product page, I use the model name XE135CREV All-electric Hydraulic Excavator supplied for the market. XCMG's publicly available product information for the closely corresponding XE135CR EV lists an operating weight of 16,600 kg, electric motor power of 80 kW, battery capacity of 262 kWh and bucket capacity of 0.52 m³. The same official page lists a maximum digging radius of 8,590 mm. Actual equipment specifications can vary by market, attachment, configuration and production version, so I recommend confirming the final technical configuration before placing an order.

1. What Is the XE135CREV All-Electric Hydraulic Excavator?

From my point of view, the easiest way to understand the XE135CREV is to separate the machine into two parts: the power side and the working side.

The power side replaces the conventional diesel engine with an electric drive system. Instead of burning diesel to produce mechanical power, the machine uses stored electrical energy from its battery system. The electric motor then provides power for the machine's operating systems.

The working side remains familiar. Excavation is still performed through the hydraulic system, boom, arm and bucket. The operator still controls digging, lifting, loading and leveling through normal excavator controls. This combination is important because construction companies do not necessarily want to completely change their working habits when moving toward electric equipment.

The official XCMG information for the XE135CR EV identifies it as a short-tail electric product developed for relatively narrow construction environments such as municipal construction, commercial and residential projects, roads and bridges. The published configuration uses a lithium iron phosphate battery and an electric motor, together with a hydraulic system designed for excavation work.

In practical terms, I see this type of machine as a bridge between conventional hydraulic excavators and the next generation of electric construction equipment. It keeps the excavation functions that contractors already know while changing the energy source.

Source: XCMG official XE135CR EV product information. Final specifications should be confirmed against the actual quotation and product configuration.

2. How Does an All-Electric Hydraulic Excavator Work?

I often explain electric excavator operation in simple terms. A traditional hydraulic excavator uses a diesel engine as its main source of power. The engine drives the hydraulic system, and hydraulic pressure then moves the boom, arm and bucket.

An all-electric hydraulic excavator changes the first part of this process. Electrical energy is stored in the battery. The electric drive system converts this energy into mechanical power. The hydraulic system then delivers controlled power to the working equipment.

This sounds like a small change, but it affects the entire machine.

An electric motor can deliver power without the combustion process used by a diesel engine. That means there is no diesel exhaust produced directly at the machine during operation. It also means the machine no longer needs many of the engine-related components found on a conventional diesel excavator.

For the operator, however, the basic job remains recognizable. When the joystick is moved, the control system sends instructions to the hydraulic system. Hydraulic oil flows through the relevant valves and actuators, allowing the boom, arm, bucket or other attachment to move.

This is one reason why I consider the hydraulic-electric combination practical. Electric power changes how the machine gets its energy, but the working method remains close to what experienced excavator operators already know.

Electric Power Meets Hydraulic Control

The key is not simply having a large battery. The electric motor, hydraulic pump, control system and battery management system need to work together. If one part is poorly matched, the machine may not deliver the operating experience expected from a machine of this class.

XCMG's published information for the XE135CR EV describes a high-torque permanent magnet synchronous motor, a large-displacement main pump and electronically controlled hydraulic valves. The stated purpose is to improve response and working efficiency. The machine is also described as using a positive-flow hydraulic system with XCMG-developed hydraulic components.

For buyers, I suggest looking beyond a single battery number. Battery capacity is important, but the real question is how efficiently the complete powertrain uses that energy under the customer's actual working conditions.

3. Main Features I Focus on When Choosing the Machine

When I evaluate an electric excavator for a customer, I normally focus on five things: working performance, energy system, charging, structural reliability and operator environment.

Battery System

The battery is one of the most important parts of an electric excavator. According to the public XCMG data for the XE135CR EV, the machine uses a 262 kWh battery system. XCMG describes the battery as a lithium iron phosphate battery and highlights its long cycle life and safety characteristics.

For a fleet owner, battery capacity should always be considered together with the planned daily working hours. A machine working six hours a day under light conditions has a very different energy requirement from one performing continuous heavy digging.

I therefore recommend customers prepare a real working profile before purchasing. Record the expected working hours, average load, daily travel distance, ambient temperature, available charging power and planned shift schedule. This gives a much better picture than simply comparing battery capacity between two machines.

Electric Motor

The electric motor is the main source of drive power. Compared with a combustion engine, an electric motor has a different power delivery characteristic. It can provide strong torque from low speed and does not require the same combustion process as a diesel engine.

For the publicly listed XE135CR EV, XCMG gives an electric motor rating of 80 kW. The actual performance customers experience will also depend on hydraulic matching, control calibration, attachment selection and working conditions.

Hydraulic System

Excavation still depends heavily on hydraulics. A powerful electric motor alone does not make a good hydraulic excavator.

The XE135CR EV information describes a positive-flow hydraulic system combined with XCMG hydraulic components. The system is designed to respond quickly to operator commands while supplying the hydraulic power needed for digging and lifting.

In my experience, this is an area worth paying attention to when comparing electric excavators. Ask about the hydraulic pump, valve control, pressure management and service support rather than focusing only on battery size.

Structural Design

Electric power does not remove the need for a strong excavator structure. The boom, arm, bucket, upper platform, undercarriage and frame still face repeated loads every working day.

XCMG states that the XE135CR EV uses reinforced designs for major structural components including the undercarriage frame, upper platform, boom and arm. These are the areas that deserve attention because a construction machine is not working in a laboratory. It is working in soil, rock, mud, dust, uneven ground and changing weather.

Operator Environment

A machine can have excellent technical specifications and still be difficult to use if the operator environment is poor.

The published XE135CR EV configuration includes a reinforced cab, a 10-inch touchscreen instrument display and an ergonomically designed control area. XCMG also describes a pressurized cab intended to reduce dust entering the operator compartment.

For long working shifts, these details are not cosmetic. Visibility, control layout, seat comfort, display information and noise all affect how easily an operator can work throughout the day.

4. Electric Excavator vs. Conventional Diesel Excavator

I do not recommend treating electric equipment as a simple replacement for every diesel machine. The better approach is to compare the two according to the actual job.

A diesel excavator is flexible because diesel fuel is widely available and refueling is familiar. An electric excavator has different strengths. It can be particularly useful where local exhaust emissions, operating noise and energy management are important considerations.

Source: General equipment operating principles, combined with XCMG's published XE135CR EV product information. The table is a practical comparison rather than a laboratory performance test.

The biggest lesson here is simple: an electric excavator needs an energy plan. If charging is convenient and the machine works in a suitable environment, electric operation can make good practical sense. If a machine must move constantly between remote sites without reliable charging access, the purchasing calculation will be different.

5. Where Can I Use the XE135CREV?

I would consider the XE135CREV All-electric hydraulic excavator for construction projects where excavation performance is needed together with a cleaner local operating environment and planned electric energy supply.

Municipal Construction

Municipal projects often take place close to roads, buildings, pedestrians and existing infrastructure. Electric excavation equipment can be useful in locations where reducing direct exhaust emissions and operating noise is part of the project requirement.

Typical work may include road construction, drainage work, utility projects, site preparation and municipal infrastructure maintenance.

Commercial and Residential Construction

Construction sites in developed areas can have strict requirements concerning noise, emissions and working hours. An electric excavator can provide another equipment option when the site has suitable electrical infrastructure.

The short-tail design described in XCMG's official XE135CR EV information is particularly relevant to relatively restricted construction environments. However, the exact turning clearance and attachment configuration should always be checked against the site plan before ordering.

Road and Bridge Construction

Road and bridge projects require machines that can handle repeated excavation and material handling while working around established infrastructure. Electric equipment can be considered where charging access is available and local operating conditions support it.

Earthmoving and Site Preparation

Site preparation is another natural application. The excavator can be used for digging, loading, trenching, grading and other common earthmoving tasks with the appropriate attachment.

Low-Emission Construction Projects

Some projects are moving toward lower-emission construction equipment as part of their environmental requirements. An all-electric hydraulic excavator can fit into this type of equipment plan, especially when the electricity supply and project schedule are well organized.

Source: Application scenarios are based on XCMG's published positioning of the XE135CR EV for municipal construction, commercial/residential construction and road and bridge environments, together with common excavator applications.

6. How We Look at Manufacturing, Inspection and Delivery

At Ganglong Heavy Industry Technology, I believe that selling a construction machine is not simply a matter of sending a quotation and arranging shipment. A machine that works well on a customer's job site needs to be selected, checked, transported and supported as a complete package.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate within the construction machinery supply chain associated with China Construction Machinery (Group) Co., Ltd. Our business covers equipment R&D, manufacturing, testing, customization and global sales.

Our product range includes HKLOONG excavators, loaders, Backhoe loaders and swamp excavators. We also provide complete machine sales and leasing services involving brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL, depending on the customer's requirements and market.

For an electric excavator, I pay particular attention to configuration confirmation before delivery. Battery system, charging interface, working attachment, hydraulic configuration, safety equipment, regional electrical requirements and transportation conditions all need to be checked.

This is especially important for international buyers. A machine that is technically suitable may still need adjustments to match local regulations, charging standards, transport dimensions or working conditions.

Our Practical Pre-Delivery Process

First, I confirm the customer's application. I want to know what material the machine will excavate, how many hours it will work each day, what type of attachment is needed and whether the site is open or restricted.

Second, I check the required machine configuration. This includes working equipment, bucket requirements, charging arrangement and other optional equipment.

Third, I confirm the technical data against the actual product configuration. This is where buyers should avoid relying only on an old brochure or a third-party listing. Construction machinery models can have different configurations for different markets.

Fourth, we organize inspection and delivery preparation. The machine needs to be checked before shipment, with attention to the working equipment, electrical system, hydraulic system, controls, safety devices and external condition.

Finally, our international trade team handles the export side and communicates with the customer regarding transportation and delivery requirements.

7. Why Work With Ganglong for Construction Machinery?

When I work with an overseas customer, I know the customer is not only buying an excavator. They are also buying a supply chain.

If a customer is purchasing an XE135CREV All-electric hydraulic excavator, the important questions go beyond the machine itself. Can the supplier help confirm the correct configuration? Can they communicate clearly with the factory or brand? Can they support international shipping? Can they help with attachments? Can they explain what information needs to be prepared before delivery?

That is where our experience becomes useful.

Ganglong's business covers construction machinery, mining machinery, agricultural machinery and matching attachments. This gives us a broader view of machine applications rather than focusing on only one product category.

Our international trade arm, Hefei Ganglong International Trade Co., Ltd., has experience serving customers in Asia, Africa, America and other international markets. Different regions have different expectations for machine configuration, transportation, documentation and after-sales support, so communication before shipment is a major part of our work.

I also believe in giving customers practical information rather than simply listing advantages. For an electric excavator, that means discussing charging conditions, expected operating hours, working environment, attachments, transport arrangements and maintenance requirements before the order is finalized.

That approach helps reduce misunderstandings later.

8. XE135CREV All-Electric Hydraulic Excavator FAQ

Q1: What is the XE135CREV All-electric hydraulic excavator?

The XE135CREV All-electric hydraulic excavator is an electric-powered hydraulic excavator designed to perform conventional excavation tasks using an electric power system rather than a traditional diesel engine. The product name supplied for this page is XE135CREV; buyers should confirm the exact market model and configuration on the final quotation.

Q2: What battery does the corresponding XCMG electric excavator use?

XCMG's official public information for the XE135CR EV lists a 262 kWh battery and describes the battery as lithium iron phosphate. Battery specifications can change according to market and configuration, so I recommend confirming the battery specification for the exact machine being purchased.

Q3: How powerful is the XE135CR EV electric excavator?

The official XCMG product page lists an 80 kW electric motor for the XE135CR EV. Electric motor power is only one part of machine performance. Hydraulic system matching, control software, attachment selection and working conditions also affect actual excavation performance.

Q4: Is the XE135CREV suitable for construction sites in cities?

It can be considered for suitable urban construction applications. XCMG positions the corresponding XE135CR EV for municipal construction and relatively restricted environments such as commercial and residential projects and road and bridge work. Before purchase, the customer should check site dimensions, charging access, transport requirements and local regulations.

Q5: How long can an electric excavator work on one charge?

There is no single working-time figure that applies to every job. Battery duration depends on workload, hydraulic demand, ambient temperature, travel, attachment, operator habits and site conditions. Instead of promising a fixed number of hours, I recommend calculating energy demand from the customer's real daily work schedule.

Q6: Does an electric excavator need special maintenance?

Electric equipment still requires regular inspection and maintenance. Hydraulic oil, filters, structural components, pins, bushings, tracks, working equipment and safety systems all need attention. The electric drive system has different maintenance requirements from a diesel engine, but that does not mean the machine can simply be operated without a maintenance plan.

Q7: Can I order different buckets or attachments?

Attachment selection depends on the machine configuration and the job. Buckets for general excavation, rock work, trenching or other applications can have different designs and capacities. I recommend telling us the material, digging depth, working environment and required output before choosing the attachment.

Q8: What should I confirm before buying an XE135CREV?

I recommend confirming at least eight points: exact model designation, operating weight, motor power, battery capacity, charging system, bucket and attachment configuration, working conditions and delivery requirements. For overseas orders, I would also confirm local electrical requirements, transport dimensions, documentation and available technical support.

Conclusion: Choosing Electric Power With a Real Working Plan

I see the XE135CREV All-electric hydraulic excavator as part of a wider change in construction machinery. The move from diesel to electric power is not only about reducing fuel use. It changes how we plan energy, charging, maintenance and daily machine operation.

For the right project, an electric excavator can provide a useful combination of hydraulic excavation capability, electric drive, lower direct operating emissions and a different approach to machine energy management. But I would never recommend choosing an electric excavator simply because it has a large battery or because electric equipment is becoming popular.

The machine needs to match the job.

That means checking the daily working hours, digging conditions, attachment, charging infrastructure, ambient temperature, transport route and service plan before making a purchase. Once those points are clear, we can select a configuration based on actual operating needs rather than marketing language.

For customers looking for an XE135CREV All-electric hydraulic excavator, electric hydraulic excavator for construction, XCMG electric excavator, battery-powered excavator or medium-size all-electric excavator for municipal and infrastructure projects, Ganglong Heavy Industry Technology can help with product selection, configuration communication, international trade and complete construction machinery solutions.

Before ordering, please contact us with your working conditions and destination country. We can confirm the available XE135CREV configuration, technical specifications, attachments, charging requirements, delivery method and quotation based on your actual project.
