When I look at a Large Excavator, I do not judge it only by how big it looks or how many kilowatts are written on the specification sheet. For a machine working in a mine, quarry or large earthmoving project, I want to know something more practical: Can it dig hard material? Can it load trucks efficiently? Can the undercarriage handle long working hours? Is the machine easy enough to maintain? And, just as importantly, can the supplier deliver the correct configuration to the customer's jobsite?

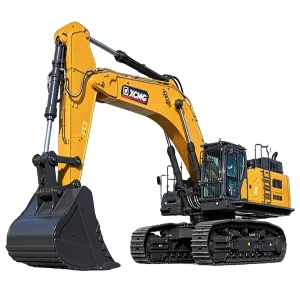

That is how I look at the XE750GK Hydraulic Excavator.

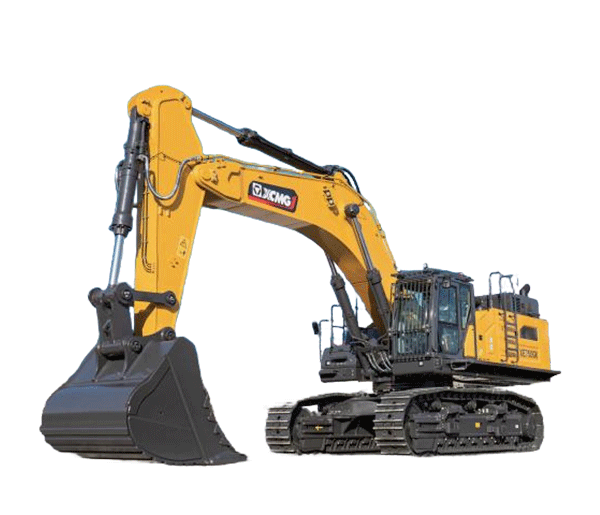

The XE750GK is a large crawler excavator developed by XCMG for demanding earthmoving, mining and stone-handling applications. XCMG's current official specifications list an operating weight of 76,500 kg, a 5.2 m³ bucket, and a 563 kW rated engine output. The same official information lists a bucket digging force of 405 kN.

Those numbers tell me immediately that this is not a general-purpose Excavator intended for small construction sites. It belongs to the large-machine class, where productivity, structural strength and long-term working stability matter more than simply keeping the machine compact.

At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we work with customers who need construction machinery for real projects rather than showroom display. Our group supplies construction machinery, mining machinery, agricultural machinery and matching attachments. Through Hefei Ganglong International Trade Co., Ltd., we also serve international customers across Asia, Africa, America and other regions.

For an overseas buyer, I believe the machine itself is only one part of the purchase. Configuration, inspection, documentation, shipping, spare parts and communication all matter. So in this article, I will look at the XE750GK from the point of view I would use when discussing the machine with an actual customer.

1. What Is the XE750GK Hydraulic Excavator?

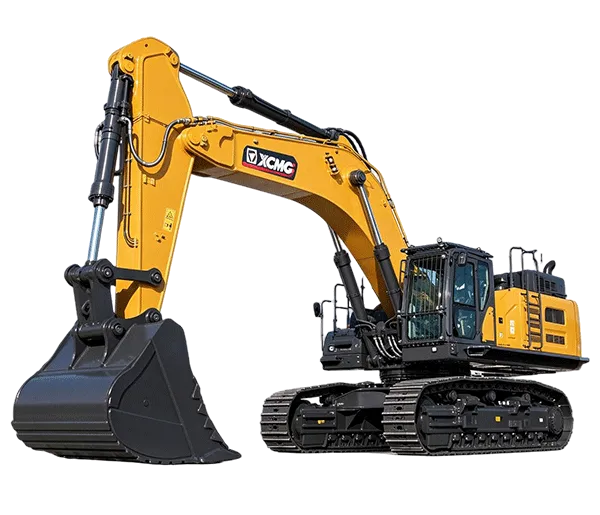

The XE750GK Hydraulic Excavator is a heavy-duty crawler excavator designed for large-scale excavation, mining, quarrying, stripping and material loading. Its size and power make it suitable for jobs where a smaller excavator would need too many working cycles to move the same amount of material.

The machine uses a diesel engine to provide the main power. That power is transferred through the hydraulic system to the boom, arm and bucket, while hydraulic motors are used for travel and upper-structure swing. The crawler undercarriage provides the foundation that allows the machine to work on rough and demanding ground.

According to XCMG, the XE750GK uses a customized Cummins QSM15 engine rated at 563 kW at 2,000 rpm. The official Indonesian XCMG page also lists a maximum torque of 2,900 N·m at 1,200 rpm.

For me, the engine specification is important, but it should always be read together with the hydraulic system and working equipment. A powerful engine alone does not make an excavator productive. The engine, hydraulic pumps, valves, cylinders, boom, arm and bucket must work as one system.

The XE750GK is also designed around a mining-grade working structure. XCMG describes its boom and arm as reinforced structures, while its official Chinese product page highlights a mining H-type working device, reinforced box-section design and a claimed working-equipment service life exceeding 12,000 hours under its stated conditions.

Source: XCMG official XE750GK product information and XCMG Indonesia published specifications.

I always recommend confirming the final machine configuration before ordering. Bucket type, attachments, regional specification and optional equipment can change the final machine details. The final quotation and technical documentation should therefore be treated as the purchasing reference.

2. How the XE750GK Works in Heavy-Duty Excavation

The working principle of a hydraulic excavator is actually quite easy to understand. The diesel engine produces power, the hydraulic pumps convert that power into hydraulic flow and pressure, and hydraulic cylinders or motors turn that hydraulic energy into movement.

When the operator moves the joystick to lower the boom, hydraulic oil is directed to the boom cylinder. When the operator curls the bucket, the oil moves through the corresponding circuit to operate the bucket cylinder. The same basic idea applies to the arm, swing and crawler systems.

On a large excavator such as the XE750GK, the challenge is managing all these movements while the machine is working under heavy load.

Imagine the excavator is loading a dump truck with hard material. The operator needs to push the bucket into the material, lift the loaded bucket, swing the upper structure, unload the material and return to the digging position. The machine repeats this cycle again and again.

If the hydraulic response is too slow, the cycle takes longer. If the system is poorly matched with the engine, fuel can be wasted. If the working equipment is not strong enough, repeated heavy loads can create unnecessary stress.

XCMG equips the XE750GK with its newer ISSA integrated control system. The company describes functions including swing virtual closed-loop control, intelligent feed-forward control, unidirectional instantaneous PLR and precision torque control. The purpose is to coordinate the engine and hydraulic system more accurately according to the actual working load.

From an operator's point of view, this should not feel like complicated computer technology. The useful result is simpler: the machine should respond properly when the operator asks it to dig, lift, swing and travel.

This is particularly important in mining and quarrying. A large excavator may work for long shifts, often under high load. Small differences in cycle efficiency can become significant when repeated hundreds of times each day.

3. Main Features I Look At on the XE750GK

3.1 563 kW Heavy-Duty Engine

The XE750GK uses a customized Cummins QSM15 engine with a published rated power of 563 kW at 2,000 rpm. XCMG describes the engine as having low-speed, high-torque characteristics and sufficient power reserve for heavy-duty applications.

For customers working at mines or large earthmoving sites, power reserve matters. The machine may encounter hard soil, rock, gravel or loaded buckets throughout the working day. A machine that is always operating at the edge of its capability can be difficult to manage efficiently.

3.2 5.2 m³ Bucket

The standard published bucket capacity is 5.2 m³. That is a substantial bucket for moving large volumes of material in a single cycle. XCMG's published application information includes stone excavation and loading, mining stripping, gravel operations and large-scale earthmoving.

However, I would not automatically recommend the biggest possible bucket for every project. Bucket selection should match the material density, working conditions and truck capacity. A bucket that is too large for the material or the machine's operating conditions can create a poor balance between cycle time, stability and fuel use.

3.3 405 kN Bucket Digging Force

The published bucket digging force is 405 kN, while the arm digging force is listed at 365 kN.

These figures matter when the excavator is working in compacted ground, rock-related conditions or other materials that require strong bucket penetration. In real operation, digging performance also depends on bucket teeth, material properties, working angle and operator technique.

3.4 90-Ton-Class Heavy-Duty Undercarriage

One of the details I pay close attention to on a large excavator is the undercarriage. The XE750GK uses a heavy-duty crawler structure, with XCMG describing the chassis as a 90-ton-class design. The official Chinese product page also states that the crawler shoe bolts were enlarged and that their strength was increased by 25% compared with the previous design.

This matters because the undercarriage carries the machine's weight while also dealing with movement, turning and uneven ground. In mining applications, undercarriage wear can become a major operating expense, so the design should be considered together with ground conditions and maintenance practices.

3.5 Reinforced H-Type Working Equipment

The boom and arm are not simply oversized versions of smaller excavator components. They need to withstand repeated high loads. XCMG describes the XE750GK's mining H-type working equipment as using reinforced box structures and optimized cross-sections at key connection areas.

That is the kind of engineering detail I want to see on a machine intended for mining and large-scale earthmoving. The excavator should be built around the actual loads it will face, not just made larger for appearance.

3.6 Operator Cab and Control System

The latest XE750GK information highlights a new-generation 10.1-inch touch screen with more than 100 integrated functions, together with a newer suspension seat and a strengthened cab door frame. XCMG also lists an optional fixed front window for dusty working conditions.

For an operator spending many hours inside the machine, practical details matter. A clear display, comfortable seat, good sealing and easy access to machine information can make daily work less tiring.

4. XE750GK Performance Compared with Other Large Excavators

When customers compare large excavators, I suggest putting the main figures next to each other. This does not tell us which machine is right for a particular project, but it makes the difference in machine class easier to understand.

Source: XCMG published product information. *Specifications for other models can vary by version and market and should be confirmed against the final technical documentation. XE750GK values are from XCMG's current published specifications.

The table shows the practical position of the XE750GK. It is considerably larger than a 50-ton-class excavator and is designed around large-volume material handling. At the same time, it remains below some of the biggest crawler excavators used in large mining operations.

This is why I would normally discuss the customer's full production chain before recommending it. If the customer is using 40-ton dump trucks, a 5.2 m³ bucket may create a different loading cycle from a site using very large mining trucks. Excavator and truck capacity should work together.

Source: Application and technical information published by XCMG.

5. Where the XE750GK Makes Practical Sense

5.1 Mining Operations

Mining is one of the clearest applications for the XE750GK. XCMG specifically lists mining stripping, metal ore, limestone, gravel yards and other hard-material conditions in its application information.

In a mining operation, the excavator is often part of a larger system. It may remove overburden, dig material, load haul trucks or prepare a working area. The excavator therefore needs to maintain a stable cycle rather than simply provide maximum digging force for a few minutes.

For mining customers, I also pay attention to the ground conditions. Rocky terrain, abrasive material and long travel distances can affect undercarriage wear. These factors should be included in the maintenance plan from the beginning.

5.2 Quarrying and Stone Loading

Quarries can place very different demands on machinery depending on the material. Limestone, gravel, weathered rock and harder stone do not behave exactly the same way.

The XE750GK's large bucket and high digging force make it suitable for large-volume stone excavation and loading. Where rock is especially hard, customers should also consider whether drilling and blasting or hydraulic breaking will be used before the excavator starts loading material.

5.3 Large Earthmoving Projects

Large land development and infrastructure projects can involve huge quantities of soil. Excavation for foundations, roads, water projects, embankments and site preparation can all require high-capacity equipment.

Here, production planning is important. The excavator should be matched with the number and size of dump trucks available. If the excavator can load faster than trucks can leave the site, part of that excavator capacity is wasted.

5.4 Water Conservancy and Infrastructure

XCMG's official XE750GK information lists large infrastructure and water-conservancy-related earthmoving among its applications.

Projects of this type can have long work cycles and changing ground conditions. A crawler excavator provides a useful combination of working stability and mobility, while the large bucket helps move material at a high rate when conditions allow.

5.5 Gravel and Aggregate Yards

In aggregate yards, the machine may be used for stockpile handling, excavation, loading and site preparation. The exact bucket and attachment should be selected according to the material density and handling method.

For customers who mainly load trucks rather than excavate, I would pay particular attention to the swing angle and truck positioning. Good site layout can sometimes improve production more than simply increasing machine size.

6. Manufacturing, Inspection and Export Delivery

Buying a XE750GK Excavator from another country involves more than selecting a model number. At Ganglong, we normally look at the project from the beginning: application, configuration, production schedule, inspection and transportation.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate across equipment R&D, manufacturing, testing, customization and international sales. Our equipment range covers construction machinery, mining machinery, agricultural machinery and matching attachments.

We also supply our own HKLOONG equipment and provide complete machine sales and leasing services for brands including Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL.

Production Schedule

For diesel-powered excavators, our normal production planning is around 15–30 days after order confirmation. The exact schedule depends on the model, configuration and quantity.

For a large machine such as the XE750GK, I would rather give a realistic production schedule than promise a very short lead time without checking the actual order. Configuration, attachment requirements and production availability all need to be considered.

Pre-Delivery Inspection

Before delivery, we check the main machine systems. This includes the engine, hydraulic system, crawler system, working equipment, electrical system, safety functions and overall operating performance.

For an overseas customer, documentation is also important. The machine should be matched with the agreed specification, manuals and technical documents before it is released for shipment.

Standard Delivery Package

Standard delivery normally includes the complete excavator, standard working equipment, basic tools, operation and maintenance manuals and necessary technical documents.

Additional buckets, breakers, attachments or spare parts can be discussed according to the customer's application. For mining customers, I often recommend discussing wear parts and commonly needed spare parts before shipment rather than waiting until the machine is already working overseas.

Payment Terms

For international orders, a common payment arrangement is 30% T/T deposit and 70% balance before shipment. L/C may be available for qualified international orders. The final payment terms should always be written clearly into the commercial contract.

Shipping Options

A 76.5-ton excavator needs careful shipping planning. Depending on the machine dimensions, destination and shipping route, transportation may use bulk vessel, Ro-Ro vessel, container or flat-rack container arrangements.

The correct choice depends on the actual machine configuration and destination. Inland transportation from the port also needs to be considered because road restrictions, bridge capacity and local transport equipment can affect the final delivery plan.

Export Packing

Before shipment, the excavator is normally cleaned and prepared for the journey. Exposed areas can be protected against moisture and rust, while the machine is secured firmly for transportation. Protective covers can be used where needed.

Spare parts are normally packed separately in wooden cases or strong export cartons. For long-distance ocean transport, I prefer to discuss the packing and securing method before loading rather than treating it as a last-minute detail.

7. Why I Work With Customers on the Complete Machine Solution

When a customer contacts me about a large hydraulic excavator, I do not think the first question should always be, “What is the price?” Price matters, of course, but the wrong machine at a low price can become expensive very quickly.

I prefer to understand the working condition first.

What material will the machine dig?

How hard is the material?

How many working hours are expected each day?

How far does the material need to travel?

What size trucks will the excavator load?

Is the machine working in a mine, quarry, road project or general construction site?

What attachments are required?

Where will the machine be delivered?

These questions help us determine whether the XE750GK is suitable and which configuration makes sense.

Our international trade team has experience serving customers across Asia, Africa, America and other markets. Different regions can have different requirements for emissions, documents, shipping, spare parts and operating conditions.

We also understand that a customer may need more than one machine. A mining project, for example, may require excavators, loaders, dump trucks and other supporting equipment. Because our business covers construction, mining and agricultural machinery, we can discuss the equipment package rather than looking at one machine in isolation.

For customers comparing the XE750GK with another mining hydraulic excavator, I can help organize the comparison using measurable information: operating weight, engine power, bucket capacity, digging force, working range, transport dimensions, attachments, delivery schedule and service requirements.

That makes the purchasing discussion much clearer.

8. XE750GK Hydraulic Excavator FAQ

Q1: What is the XE750GK?

The XE750GK is a large crawler hydraulic excavator developed for mining, quarrying, large-scale earthmoving, stone excavation and material loading. XCMG's current published specifications list an operating weight of 76,500 kg and a 5.2 m³ bucket.

Q2: What is the engine power of the XE750GK?

The published engine rated power is 563 kW at 2,000 rpm. XCMG identifies the engine as a customized Cummins QSM15 unit.

Q3: What is the bucket capacity?

The standard published bucket capacity is 5.2 m³. The final bucket type and configuration should be confirmed according to the material and working conditions before purchase.

Q4: What is the bucket digging force?

The published bucket digging force is 405 kN, while the arm digging force is 365 kN. These figures are useful when evaluating the machine for demanding excavation conditions.

Q5: Is the XE750GK suitable for mining?

Yes. XCMG specifically lists mining stripping, metal ore, limestone, gravel yards, stone excavation and loading among the applicable working conditions.

Q6: What is the maximum digging radius?

The XCMG Indonesia specification lists a maximum digging radius of 12,050 mm. The final working range should be checked against the selected configuration and technical documentation.

Q7: What is the travel speed?

The published high/low travel speeds are 4.5 km/h and 2.8 km/h. Large crawler excavators are primarily working machines rather than fast transport machines, so long-distance movement between sites normally requires suitable transport equipment.

Q8: How does the XE750GK handle hard materials?

The machine combines a high-power diesel engine, large hydraulic system, 405 kN bucket digging force and reinforced mining-oriented working equipment. Actual performance depends on material hardness, bucket type, working angle and operating technique.

Q9: Can I use attachments with the XE750GK?

Attachments can be discussed according to the application. Depending on the project, customers may consider specialized buckets or other working tools. The hydraulic flow, mounting dimensions and machine configuration should be checked before confirming an attachment.

Q10: How long is the production cycle?

Our general production planning for diesel excavators is approximately 15–30 days after order confirmation, depending on model, configuration and quantity. The exact delivery schedule is confirmed with the final order.

Q11: What is included in the standard delivery?

Standard delivery normally includes the complete excavator, standard working equipment, basic tools, operation and maintenance manuals and necessary technical documents. Additional attachments and spare parts can be added according to the order.

Q12: How can an XE750GK be shipped overseas?

Depending on the final dimensions and destination, the machine can be arranged for bulk vessel, Ro-Ro vessel, container or flat-rack transportation. The final shipping method should be selected after checking the machine configuration, port conditions and inland transportation requirements.

Q13: What payment terms can be used?

A common arrangement is 30% T/T deposit and 70% balance before shipment. L/C may be available for qualified international orders. The exact terms should be confirmed in the commercial contract.

Q14: Can you arrange inspection before shipment?

Yes. We can arrange pre-delivery checks covering the engine, hydraulic system, crawler system, working equipment, electrical functions, safety functions and overall operating condition. Customers can also confirm required technical documents before shipment.

Conclusion: Looking at the XE750GK as a Complete Working Machine

For me, the most useful way to understand the XE750GK Hydraulic Excavator is to look beyond the headline number.

Yes, it is a large machine. Its published 76,500 kg operating weight, 5.2 m³ bucket, 563 kW engine and 405 kN bucket digging force clearly place it in the heavy-duty crawler excavator category.

But the real question is what those specifications mean on the customer's jobsite.

For mining, quarrying, large earthmoving and stone loading, the combination of bucket capacity, digging force, engine output, crawler stability and reinforced working equipment can support high-volume work. The machine's control system and operator environment also matter because productivity is built from many repeated working cycles, not from one impressive specification.

At Ganglong, we look at the complete purchasing process. We help customers discuss machine configuration, application, inspection, production schedule, payment, export packing and transportation. Our international trade team has experience serving construction machinery and mining machinery customers in different regions, so we understand that delivery does not end when the excavator leaves the factory.

If you are considering an XE750GK Excavator for mining, quarrying, infrastructure construction or large-scale earthmoving, the best starting point is to share the actual working conditions with us. Once we know the material, working hours, expected production, attachments and destination, we can work through the machine configuration and delivery plan in a much more practical way.

Technical note: Specifications on this page are based primarily on current XCMG published product information. Configuration, dimensions, operating weight, attachments and other details may vary by market, production version or optional equipment. The final quotation, technical specification and manufacturer documentation should be used as the purchasing reference.
