Introduction to Amphibious Wetland Excavators (Pontoon Excavators)
Amphibious excavators—also known as swamp or Wetland excavators—are specialized pieces of heavy construction machinery.
Core Structural Features
The upper structure consists of a standard Hydraulic Excavator unit, while the undercarriage is replaced by sealed pontoon floats and widened tracks. The pontoons provide buoyancy, and the tracks allow the machine to traverse silt and shallow water without sinking like a conventional excavator; this enables seamless operation across land, swamps, and shallow water zones.
Key Functions
River Dredging and Desilting
Clearing silt and weeds from riverbeds and ditches, as well as widening and deepening waterways (e.g., excavating silt directly from the river channel); this is the most common application in inland waterway management.
Wetland and Tidal Flat Ecological Restoration
Wetland rehabilitation, swamp excavation, tidal flat development, and reed pond management, helping to preserve wetland water systems.
Hydraulic Embankment Construction
River levee reinforcement, cofferdam excavation, flood control and emergency response, and flood defense operations in low-lying areas.
Pond and Fish Farm Modification
Excavating fish ponds, desilting shrimp ponds, and removing sediment from reservoirs.
Soft-Ground Earthworks
Excavation in swamps and low-lying soft-soil areas; capable of operating on muddy terrain inaccessible to standard excavators.
Advantages
Moves freely through shallow water and silty swamps without the need for support vessels;
Versatile functionality; supports interchangeable attachments such as buckets and Hydraulic Breakers;
Suitable for operations in narrow rivers and wetlands where large dredging vessels cannot enter.
Applicable Scenarios
River management, wetland restoration, hydraulic engineering, tidal flat development, fish pond modification, and flood control/emergency response.
Amphibious wetland excavators utilize a pontoon-track undercarriage to operate in swamps, shallows, and silty river zones. They are primarily used for river dredging, wetland restoration, pond excavation, and embankment construction, making them ideal for soft, water-logged environments where standard excavators cannot operate.

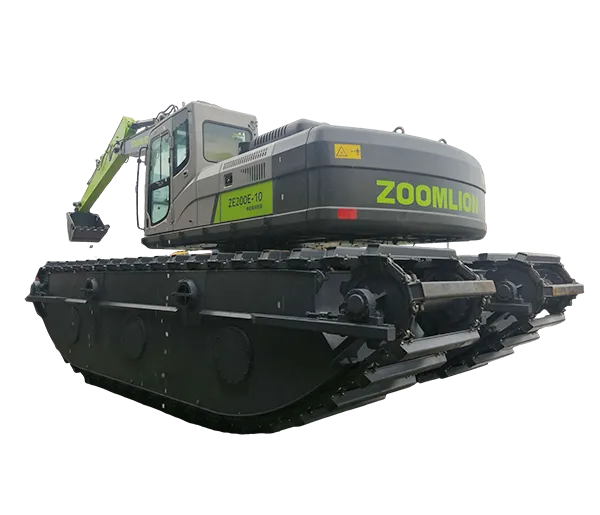

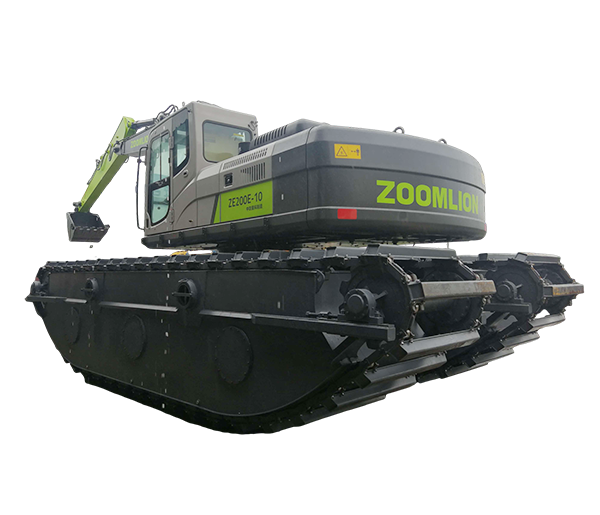

Zoomlion 220 Wetland excavator: A Practical Choice for Soft Ground Excavation
When I talk with customers about Excavators for wetlands, marshes, riverbanks, ponds, and other soft-ground jobs, one question comes up again and again: can a normal Excavator really work well in these places?
The answer is not simply yes or no. A standard crawler excavator may have enough digging power, but soft ground creates a different set of problems. The machine can sink, lose stability, become difficult to move, or spend too much time getting into position. This is where a properly configured Wetland excavator becomes useful.
The Zoomlion 220 Wetland excavator is the type of machine I would consider when a project needs the digging capability of a medium-to-heavy crawler excavator while also requiring better adaptability to soft, muddy, or waterlogged working conditions. The exact machine configuration should always be confirmed according to the customer's working environment, attachment requirements, transport conditions, and local regulations.
Our role at Ganglong Heavy Industry Technology (Hefei) Co., Ltd. is to supply and arrange construction machinery according to project requirements. We work with different equipment brands and configurations, and we also provide international trade, machine sales, leasing, inspection, delivery, and related support through our group and trading company. For Zoomlion equipment, we focus on matching the right machine and configuration to the actual job instead of simply quoting a machine by model name.
A wetland excavator is not just an ordinary excavator with a different name. The biggest difference is the working environment it is expected to handle.
On firm soil, an excavator can rely on the ground to support its weight. The crawler tracks spread the machine load over a larger area, allowing the excavator to travel and dig normally. Wetlands are different. The soil may contain a large amount of water, mud, peat, loose sediment, or soft clay. The surface may look strong enough from above but become much weaker when a heavy machine starts moving on it.
This is why ground pressure is an important consideration when selecting a wetland excavator. The machine needs enough stability for digging while reducing the risk of excessive sinking. Depending on the project, customers may require wider tracks, extended undercarriage arrangements, longer working equipment, additional flotation support, or other configuration changes.
For this reason, I normally recommend starting with the actual working site rather than starting with the excavator model. We need to understand the soil, water depth, working radius, required digging depth, material type, transportation route, and expected daily workload.
The Zoomlion 220 Wetland excavator keyword is often used by buyers looking for a roughly 22-ton-class machine for difficult ground applications. Zoomlion's official product range includes several excavators in this size class. For example, the official ZE215G specification lists an operating weight of 22,000 kg, rated power of 134 kW at 2,100 rpm, and a standard bucket capacity range of 1.0–1.1 m³. The ZE215GLC is also listed at 22,000 kg, with 129 kW rated power at 2,200 rpm and a 1.0–1.2 m³ bucket capacity range. These are reference models rather than a claim that every wetland configuration uses identical specifications.
| Reference Model | Operating Weight | Rated Power | Bucket Capacity | Max. Digging Radius | Max. Digging Depth |
|---|---|---|---|---|---|
| ZOOMLION ZE215G | 22,000 kg | 134 kW / 2,100 rpm | 1.0–1.1 m³ | 9,900 mm | 6,660 mm |
| ZOOMLION ZE215GLC | 22,000 kg | 129 kW / 2,200 rpm | 1.0–1.2 m³ | 9,920 mm | 6,680 mm |
Source: ZOOMLION official product pages for ZE215G and ZE215GLC. Actual wetland machine configuration and final specifications should be confirmed before order.
When I evaluate a wetland excavator for a customer, I do not look only at engine power. A machine can have plenty of horsepower and still be unsuitable for a marsh or waterlogged site if its ground-contact configuration is wrong.
The undercarriage is one of the most important parts of a wetland excavator. Wider tracks can distribute the machine's weight over a larger contact area. In simple terms, this helps the machine stay on top of soft ground instead of pushing too deeply into it.
The exact track width and undercarriage arrangement should be selected according to the project. A machine working beside a river may need a different setup from one working in a deep marsh. A wider configuration can improve flotation, but it can also affect transportation width, turning space, and shipping cost. This is why there is no single track configuration that is perfect for every wetland project.
Digging in soft ground is different from digging in compact soil. When the bucket enters the ground and the excavator starts lifting material, the machine needs a stable base. If the machine shifts too much, the operator may have difficulty maintaining accurate bucket movement.
A suitable wetland excavator should therefore combine a stable undercarriage with a hydraulic system capable of providing smooth working movements. The operator needs to control the boom, arm, and bucket without unnecessary shaking or sudden movement.
Hydraulics are the heart of an excavator's working equipment. The hydraulic system transfers engine power into movement at the boom, arm, and bucket. On dredging, drainage, and land reclamation projects, the excavator may work for long periods with repeated digging cycles.
For this reason, hydraulic response, cooling, filtration, maintenance access, and component quality all matter. A strong hydraulic system is useful, but I also pay attention to how easy it is to inspect and maintain. A machine that is difficult to service can become expensive when it works far away from a workshop.
Wetland sites often have uneven surfaces, hidden roots, mud, standing water, and loose material. Ground clearance and machine geometry can therefore affect mobility.
At the same time, customers should not assume that more ground clearance automatically means better wetland performance. The entire machine needs to work as a system. Track design, machine weight, balance, boom length, hydraulic performance, and attachment choice all have to match the site.
The main reason customers choose this type of excavator is versatility. Wetland projects are rarely limited to simple digging. One day the machine may remove sediment from a pond. The next day it may clear drainage channels or move soil along a riverbank.
Dredging is one of the most common applications. The excavator can be configured for removing mud, sediment, vegetation, and other materials from ponds, canals, drainage areas, and waterways.
The working method depends on water depth, bank conditions, material type, and required reach. For deeper or more difficult areas, customers may need a longer boom or arm, a suitable Dredging Bucket, or another specialized attachment.
Wetland construction projects often involve moving soil, shaping ground, preparing drainage systems, and creating access routes. The machine needs to work carefully because excessive ground disturbance can make the site even softer.
In these conditions, machine positioning becomes just as important as digging power. An experienced operator will normally plan travel routes and digging sequences to avoid repeatedly crossing the weakest areas.
Water conservancy work can include canal construction, riverbank maintenance, reservoir-related work, drainage improvement, and other earthmoving activities.
A wetland excavator is useful because it can handle both excavation and material handling tasks. With the right bucket or attachment, the same base machine can be adapted to different jobs instead of requiring a separate machine for every operation.
Large agricultural areas sometimes have drainage problems caused by heavy rainfall, poor water flow, or naturally soft soil. Excavators can help open drainage channels, remove accumulated sediment, maintain ditches, and prepare land for improved water management.
The machine configuration should be selected carefully because agricultural wetlands may have very limited access roads. Transportation and turning space can become a bigger issue than digging performance.
Wetland restoration, environmental maintenance, municipal drainage, river cleaning, and land improvement projects can all require excavation equipment capable of working around water and soft soil.
For environmental work, attachment selection and operating method are especially important. The goal is not simply to remove as much material as possible. Operators often need controlled digging to avoid unnecessary disturbance to surrounding areas.
One thing I always tell buyers is that the model name alone does not tell the whole story.
Two excavators in the same weight class can perform quite differently because of different undercarriage widths, boom and arm combinations, buckets, hydraulic options, engines, counterweights, and attachments. This is particularly true for wetland applications.
For example, Zoomlion's official ZE210GLC is listed at 22,700 kg with 129 kW rated power and a 1.0–1.2 m³ standard bucket capacity. Its official product description also highlights electronically controlled hydraulic technology, intelligent guidance options, and quick-change and multi-tool systems for different operations.
The official ZE215G, meanwhile, is listed at 22,000 kg with 134 kW rated power and a 1.0–1.1 m³ bucket capacity. Zoomlion also describes enhanced cooling for high-temperature environments and improvements to the main pump and key component design.
| Item | ZE215G | ZE215GLC | What It Means for Buyers |
|---|---|---|---|
| Operating weight | 22,000 kg | 22,000 kg | Both are around the 22-ton class |
| Rated power | 134 kW / 2,100 rpm | 129 kW / 2,200 rpm | Power should be considered together with hydraulic performance |
| Bucket capacity | 1.0–1.1 m³ | 1.0–1.2 m³ | Bucket choice affects digging cycle and material handling |
| Max. digging radius | 9,900 mm | 9,920 mm | Working reach is important for banks and channels |
| Max. digging depth | 6,660 mm | 6,680 mm | Actual required depth should be checked before selection |
Source: ZOOMLION official product specifications. Figures shown here are published specifications for the named reference models, not universal specifications for every Zoomlion 220 wetland configuration.
This is also why we ask customers for application details before confirming a machine. If you simply tell me, “I need a 220 wetland excavator,” I can understand the general machine class, but I still need more information before recommending a final configuration.
Our approach is quite practical. Before discussing the final machine, I usually look at several basic questions.
Is it mud, peat, soft clay, sand, shallow water, or mixed ground? How deep is the soft layer? Can a support road be built? Does the machine need to travel through the wetland or only work from a stable bank?
These details can completely change the equipment recommendation.
A standard excavator arm may be enough for shallow drainage work. A longer boom and arm may be required for riverbank dredging or work where the machine has to remain at a distance from the water.
However, a longer working attachment changes the machine's balance and lifting behavior. It should therefore be selected as a complete configuration rather than added casually after the machine arrives.
Soft mud and wet soil are relatively different from hard clay, gravel, rock, or mixed construction waste. Bucket teeth, bucket shape, capacity, and attachment strength should match the material.
A large bucket is not always better. If the ground is extremely soft or the material is heavy, a smaller and more controlled bucket can sometimes make the work easier and safer.
This point is often overlooked. A wetland excavator may perform perfectly on site but become difficult to transport if the selected configuration is too wide or too long.
Before shipment, we therefore check transportation dimensions, loading arrangements, destination port, local road restrictions, and unloading conditions. This can prevent unpleasant surprises after the machine has already been purchased.
When customers purchase construction machinery from overseas, they are not only buying the machine. They are also buying a delivery process.
At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we have been involved in construction machinery, mining machinery, agricultural machinery, and related equipment since our establishment in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we handle international trade requirements for customers in Asia, Africa, America, and other markets.
For a Zoomlion 220 Wetland excavator, production and delivery time depends on the selected model, current availability, configuration, attachments, order quantity, customization requirements, inspection arrangements, and shipping schedule. We do not use one fixed delivery period for every order because actual lead time can change according to the configuration and supply situation.
Before shipment, we can arrange inspection of the machine's general appearance, engine system, hydraulic system, undercarriage, working equipment, electrical functions, and basic operating performance. Accessories, manuals, spare parts, and required documents are prepared according to the confirmed order.
| Stage | What We Check or Arrange | Purpose |
|---|---|---|
| Requirement confirmation | Working conditions, application, reach, attachments, destination | Match the machine to the actual project |
| Configuration confirmation | Machine model, undercarriage, working equipment and accessories | Avoid configuration misunderstandings |
| Pre-shipment inspection | Appearance, engine, hydraulics, undercarriage and operating functions | Confirm basic machine condition |
| Document preparation | Manuals, spare parts list and required export documents | Support customs and machine operation |
| Loading | Machine securing and transport protection | Reduce movement and damage during transportation |
| International shipping | Usually sea freight for complete machines | Efficient long-distance transportation |
Payment is commonly arranged by T/T, with a deposit before production or order processing and the balance before shipment, subject to the final commercial contract.
For transportation, complete excavators are normally shipped by sea. Depending on the destination and machine configuration, shipping arrangements can include container loading, flat rack, or other suitable methods. Spare parts and smaller accessories may be shipped by air or express.
For packing, the excavator is protected according to transportation requirements. Exposed parts can be protected against dust, moisture, and handling damage. The machine is securely fixed, while loose accessories and spare parts are packed separately in cartons, wooden cases, or other suitable packaging.
There is a simple reason customers often need an experienced trading company when purchasing construction machinery internationally: the machine itself is only one part of the transaction.
Our company was founded in 2013, and our business covers equipment R&D, manufacturing-related activities, testing, customization coordination, sales, leasing, and international trade. Through Hefei Ganglong International Trade Co., Ltd., we support overseas customers looking for construction machinery, mining machinery, agricultural machinery, and attachments.
We can supply our own HKLOONG-branded excavators, loaders, Backhoe loaders, and swamp excavators. At the same time, we provide complete machine sales and leasing services involving domestic and international brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON, and LOVOL. For branded equipment such as Zoomlion, our role is to supply and arrange the equipment rather than claim that we manufacture the Zoomlion machine.
That distinction matters. When I prepare a quotation, I want the customer to know exactly what is being supplied, who the original equipment brand is, what configuration is included, and which items are optional.
For a wetland project, we also focus on the practical details that can affect the final cost: attachments, transportation dimensions, shipping method, spare parts, inspection requirements, destination port, customs documents, and after-sales support.
In other words, our job is not simply to send a product photo and a price. We help connect the equipment with the actual project.
The term generally refers to a Zoomlion excavator in the approximately 22-ton class configured or selected for wetland, marsh, soft-ground, dredging, drainage, or water-related applications. The exact Zoomlion model and wetland configuration should be confirmed before purchase because the public product range contains different models in this weight class.
It can be suitable when the machine is correctly configured for the working environment. Soft ground places special demands on the undercarriage, ground pressure, stability, working equipment, and operator technique. We recommend checking the actual soil and water conditions before confirming the configuration.
Typical applications include wetland construction, dredging, water conservancy, agricultural drainage, environmental projects, river and pond maintenance, land reclamation, municipal engineering, mining-related earthmoving, and infrastructure construction.
Configuration options depend on the selected model and supplier arrangement. Depending on the project, customers may discuss different track arrangements, working equipment, buckets, long-reach configurations, hydraulic attachments, and other application-related options. We confirm feasibility before including any customized item in the order.
I recommend providing the working location, soil condition, water depth if applicable, required digging depth, expected working radius, material type, working hours, preferred attachment, transportation destination, and whether the excavator needs to travel through soft ground. Photos or videos of the site can also be very useful.
There is no single delivery period for every order. Production or preparation time depends on machine availability, model, configuration, attachments, order quantity, customization, inspection requirements, and shipping arrangements. We confirm the expected delivery schedule before the order is finalized.
Complete wetland excavators are generally transported by sea for international orders. The exact shipping method depends on machine dimensions, destination port, container availability, and local transportation requirements. Smaller spare parts and accessories can normally be shipped by air or express.
T/T is a common payment method for international machinery orders. A deposit is normally arranged before production or order processing, with the remaining balance paid before shipment. The exact payment terms are confirmed in the commercial contract.
Yes. Before shipment, we can arrange inspection covering the machine appearance, engine, hydraulic system, undercarriage, working equipment, electrical functions, and basic operating performance. Required accessories, manuals, spare parts, and documents are also checked against the confirmed order.
No. Ganglong is a machinery supplier and international trade service company. We provide equipment from various brands and our own HKLOONG-branded machinery. When supplying Zoomlion equipment, we act as the supplier and trading partner rather than claiming to be the original Zoomlion manufacturer.
For me, choosing a wetland excavator is never just about looking at the largest engine or the biggest bucket. The real question is whether the complete machine configuration matches the ground, the working distance, the material, the transportation route, and the daily workload.
The Zoomlion 220 Wetland excavator is a useful search term for customers looking for a medium-heavy excavator solution for soft-ground and wetland applications. Zoomlion's official 22-ton-class excavators demonstrate the working capacity available in this machine class, while the final wetland configuration needs to be confirmed according to the actual project.
At Ganglong, we prefer to keep the process straightforward: understand the site, confirm the machine and configuration, arrange inspection, prepare the documents and accessories, organize transportation, and keep the commercial terms clear from the beginning.
If you are looking for a Zoomlion 220 excavator for wetland construction, 220 wetland excavator for dredging, wetland excavator for soft ground, or a similar crawler excavator solution, send us the basic working conditions and destination. We can then discuss the suitable machine configuration, attachments, delivery schedule, inspection requirements, and international shipping arrangement based on your project.
