When I talk with contractors about a 30-ton-class Excavator, the conversation usually comes back to three things: digging power, working stability, and the cost of keeping the machine running. A crawler excavator may look impressive from the outside, but that is not enough. What matters on a real job site is how steadily it works, how well the hydraulic system responds, how easily the operator can control the attachment, and how practical the machine is to transport and maintain.

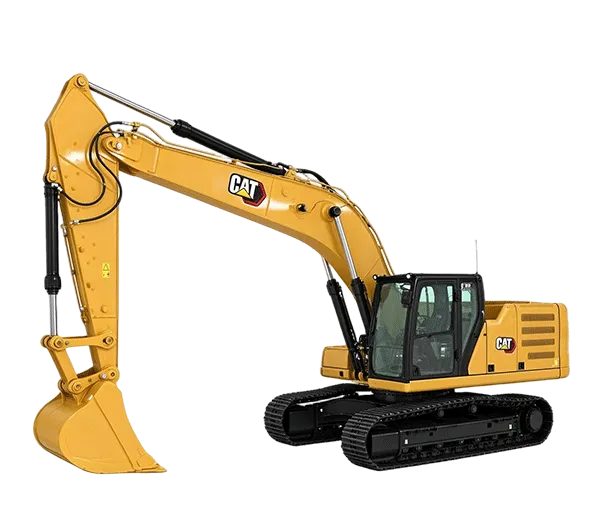

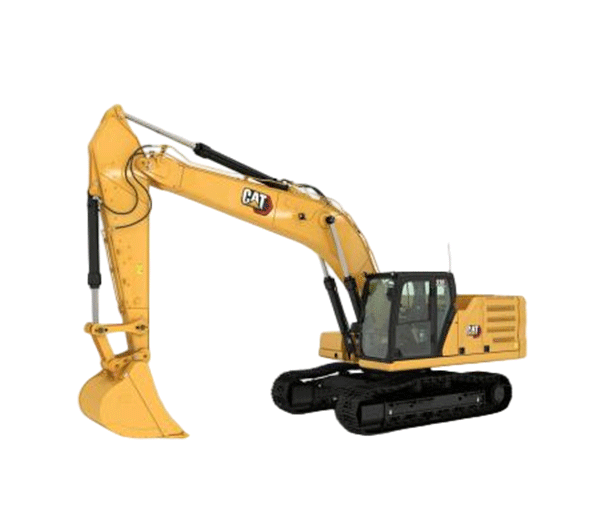

The 330 Hydraulic Excavator is built around these basic needs. It is a heavy-duty crawler excavator designed for demanding excavation, trenching, loading, site preparation, infrastructure construction, and large-scale earthmoving work. Its crawler undercarriage gives the machine a wide and stable working base, while the hydraulic system transfers engine power into digging and lifting force.

For buyers looking for a 330 Crawler Excavator, I believe it is important to look beyond a single horsepower number. A machine needs to match the job, attachment, soil condition, transportation method, and expected working hours. That is why we normally discuss the complete working condition before recommending a configuration.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate as an industrial group covering equipment R&D, manufacturing, testing, customization, international trade, sales, and equipment leasing. Our own HKLOONG range includes Excavators, loaders, Backhoe loaders, and swamp excavators. We also handle construction, mining, and agricultural machinery from several established brands according to actual project requirements.

1. What Is a 330 Hydraulic Excavator?

A hydraulic excavator uses a diesel engine, hydraulic pumps, cylinders, valves, and motors to turn engine power into machine movement. The engine provides the basic power. The hydraulic pumps send pressurized oil through the system. Hydraulic cylinders then move the boom, stick, and bucket, while hydraulic motors control functions such as travel and swing.

In simple terms, the operator does not directly move the bucket with mechanical cables. Instead, joystick commands tell the hydraulic system what to do. This makes it possible to control digging, lifting, swinging, and travel with good precision.

The crawler design is another important part. Instead of wheels, the excavator uses tracks. This gives it strong ground contact and helps it remain stable when working on uneven, muddy, or rough terrain. It also makes a crawler excavator suitable for jobs where a wheeled machine may have difficulty maintaining traction.

The current Caterpillar 330 listed for Tier 4 / Stage V markets has a net power rating of 273 hp (203.7 kW), an operating weight of about 31,400 kg, and a maximum digging depth of 7,240 mm in the listed configuration. Caterpillar also lists a 6.15 m reach boom, 3.2 m reach stick, and 1.76 m³ heavy-duty bucket for the referenced configuration. These figures are configuration-specific rather than universal numbers for every 330 machine sold worldwide.

Source: Caterpillar official 330 Hydraulic Excavator product specifications. Specifications may vary according to market, emissions standard, boom, stick, bucket, undercarriage, and other machine configuration.

2. How the 330 Hydraulic Excavator Works

The working principle sounds complicated if we use too many technical terms, but the basic idea is quite simple.

First, the engine produces mechanical power. The hydraulic pumps use that power to move hydraulic oil through the machine. When the operator moves a joystick, hydraulic valves direct oil to the correct cylinder or motor. If the operator wants to lower the boom, oil is sent to the boom cylinder. If the operator wants to curl the bucket, another hydraulic circuit moves the bucket cylinder.

The same basic idea applies to the excavator's travel and swing functions. Hydraulic motors provide movement to the tracks, while the swing mechanism rotates the upper structure around the undercarriage.

This arrangement gives a crawler excavator a useful combination of force and control. The operator can dig into soil, lift material, swing it toward a truck, and return the bucket for another cycle. On a well-organized job site, these repeated cycles are where productivity is created.

The current 330 specifications list a maximum main hydraulic flow of 560 L/min. Maximum equipment and travel pressure are listed at 35,000 kPa, while lift mode pressure can reach 38,000 kPa. The machine is also listed with a swing speed of 11.5 rpm and maximum swing torque of 110 kN·m.

For an operator, however, numbers on a specification sheet are only part of the story. Smooth response matters too. When the machine is digging close to a utility line or trimming a foundation, excessive movement can create problems. When the job is bulk excavation, the operator may need faster cycles. A good hydraulic system should give enough response for both situations.

Hydraulic Power and Operator Control

The 330 uses an electro-hydraulic control system to balance available engine power and hydraulic demand. Caterpillar describes the machine as using power modes and a Smart mode that can match engine and hydraulic power to working conditions. This approach is useful because an excavator does not need maximum power every second of the day.

For example, fine grading and heavy digging are two very different tasks. Using the same operating setting for both is not always the most practical approach. Matching machine response to the job can help the operator work more smoothly and can also help control fuel consumption.

3. Main Features That Matter in Daily Work

When we inspect a crawler excavator for a customer, we do not focus only on appearance. We pay attention to the working parts that will affect the machine after it reaches the customer's job site.

Strong Crawler Undercarriage

The crawler undercarriage is the foundation of the machine. A heavy excavator needs a stable base because the boom, stick, and bucket can create large forces when the machine is digging or lifting.

Tracks also distribute machine weight over a larger contact area than conventional tires. This is useful on soft soil and uneven construction sites. However, track width and undercarriage configuration still need to be selected according to transportation restrictions and working conditions.

Powerful Excavation Performance

The 330 is designed for jobs where digging force matters. Caterpillar's current specification lists a bucket digging force of 179 kN and a stick digging force of 126 kN for the referenced configuration. These figures help explain why the machine is suitable for deep excavation, bulk earthmoving, foundation work, and other demanding applications.

In practice, actual production depends on much more than digging force. Soil type, bucket size, operator skill, swing angle, truck position, digging depth, and site layout can all change the number of cubic meters moved per hour.

Large Working Range

A machine with a good working range does not need to reposition itself as often. The current 330 specification lists a maximum reach at ground level of 10,680 mm, maximum cutting height of 10,030 mm, and maximum loading height of 6,950 mm.

This makes the machine suitable for large excavation areas and truck-loading work. It can also be useful when the excavator needs to reach across a trench or work from a stable position while handling material.

Attachment Flexibility

A hydraulic excavator becomes much more useful when it can accept different attachments. Depending on the configuration, auxiliary hydraulic systems can support tools such as breakers, grapples, couplers, and other work tools.

For a contractor, this means one machine can potentially perform several different jobs. A bucket may be used for excavation in the morning, while a Hydraulic Breaker or other attachment may be used later for a different task, provided the attachment and hydraulic configuration are correctly matched.

Technology for More Controlled Work

The current 330 product information lists technologies such as Cat Grade with 2D, Cat Payload, Auto Dig Boost, and Auto Heavy Lift as standard features in the referenced configuration. Caterpillar also describes optional or compatible systems such as Grade with 3D, VisionLink, and attachment-related technologies. Availability can vary by market and machine configuration.

These systems are not magic buttons. They are tools that help an experienced operator work more consistently. For example, payload information can help an operator keep truck loading closer to the desired target rather than relying only on visual judgment.

Source: Caterpillar official 330 product information. Feature availability can vary by region, machine configuration, attachment, and software or service requirements.

4. 330 vs. 330 GC: Why the Configuration Matters

One question I often recommend buyers ask is: “Which 330 are we actually buying?” The name can look similar, but the standard 330 and 330 GC are not simply two names for the same machine.

Caterpillar's current North American 330 page lists 273 hp net power, about 31,400 kg operating weight, and 7,240 mm maximum digging depth. The current 330 GC page lists 201 hp net power, about 30,900 kg operating weight, and 7,260 mm maximum digging depth in its referenced configuration. The 330 GC also uses different hydraulic and working specifications.

Source: Caterpillar official product specifications for the 330 and 330 GC. Values shown are for the referenced current configurations and should not be treated as universal specifications for every regional version.

This comparison is important when buying a 330 excavator for construction. A customer who needs high productivity for intensive mass excavation may have different requirements from a customer who mainly wants straightforward earthmoving with a controlled equipment budget.

There is also a regional issue. Caterpillar publishes different versions for different markets. For example, its official pages show Tier 4 / Stage V and Tier 3 versions with different engine power and emissions specifications. The company itself advises customers to check the applicable regional specifications.

That is why we do not recommend choosing a machine based only on a model name. Before confirming an order, we check the actual year, market, engine emissions standard, boom and stick combination, bucket, track shoes, counterweight, hydraulic configuration, and available attachments.

5. Where the 330 Hydraulic Excavator Is Used

A machine in this class is useful when the project involves a large amount of material or requires serious digging force. It is not meant to replace a Compact Excavator in a narrow backyard. Its strength is larger-scale work.

Mass Excavation and Site Preparation

For commercial and industrial construction sites, the first stage can involve removing large quantities of soil. A 330 crawler excavator can dig, swing, and load material continuously when the site is properly organized.

It can also help with general site preparation before foundations, roads, warehouses, industrial buildings, and other structures are constructed.

Foundation and Basement Excavation

Deep foundation work requires good reach and digging depth. The 330's working range makes it suitable for excavation where a smaller machine would need to reposition frequently.

Operators still need to follow the project's excavation and safety requirements. Machine capability does not remove the need for proper site planning, soil assessment, edge protection, and safe working distances.

Road and Railway Construction

Road and railway projects often involve earthmoving, drainage channels, embankment preparation, trenching, and material loading. A crawler excavator can move between work areas and operate on rough ground where its track system provides useful stability.

Mining and Quarry Support

In mining and quarry environments, excavators may be used for material handling, bench preparation, loading, trenching, and support work. The attachment and bucket need to match the material. Hard rock, loose soil, aggregate, and mixed material do not place the same demands on the machine.

Utility and Pipeline Work

Large utility projects often require long trenches and significant digging depth. A 330 hydraulic excavator for trenching can be configured for this type of work when the trench dimensions and surrounding site conditions fit the machine's working range.

Demolition and Material Handling

With suitable attachments and the correct protective configuration, excavators can also be used for selected demolition and material-handling tasks. The attachment must be matched to the hydraulic flow, pressure, machine weight, and working conditions. For specialized demolition, a purpose-built demolition configuration may be more appropriate than a standard excavator.

6. Manufacturing, Inspection and Delivery Process

When a customer orders construction machinery from us, the job does not end when the machine is assembled. A reliable delivery process starts with confirming the actual working requirements.

For standard crawler excavators, the normal production cycle is around 30–60 days, depending on the model, configuration, order quantity, and customization requirements. A more complicated configuration or special attachment package can require additional time.

Requirement Confirmation

We first confirm the application, working environment, required digging depth, attachment requirements, local emissions rules, transportation limits, and preferred configuration. This step sounds basic, but it can prevent many problems later.

Component and Structural Inspection

During production and preparation, attention is given to major structural components, hydraulic parts, engine systems, electrical systems, undercarriage components, attachments, and operator controls.

For a used machine, the inspection focus is naturally different. We pay particular attention to operating hours, hydraulic response, engine condition, structural cracks or repairs, track wear, cylinder leakage, swing performance, and maintenance history when available.

Functional Testing Before Delivery

Before shipment, the machine is checked for hydraulic performance, engine operation, structural condition, control functions, and overall working reliability. The goal is simple: identify problems before the equipment leaves the yard instead of discovering them after it reaches a distant job site.

Delivery documents can include inspection records, operating manuals, spare parts, certificates, and other documents required for the agreed shipment and destination.

Source: Ganglong Heavy Industry Technology and Hefei Ganglong International Trade standard equipment preparation and delivery process.

Packaging and Ocean Transportation

A 30-ton-class excavator is not something we can simply put into an ordinary small package. Transportation has to be planned around the machine's dimensions, weight, port conditions, destination, and vessel type.

Depending on the machine and destination, transportation can use a bulk vessel, Ro-Ro vessel, or container solution. The equipment is normally cleaned before shipment, protected against rust and moisture, securely fixed, and covered or wrapped. Detachable components may be packed separately when this helps reduce transport space or protect the parts.

For international buyers, transport planning is just as important as the machine itself. A machine that is suitable for the job but difficult to unload at the destination port is not a good project solution. We therefore discuss shipping conditions before finalizing the configuration.

7. Why Work With Ganglong?

I do not describe Ganglong as the manufacturer of every machine we supply. This point is important when you are buying equipment from an international supplier.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was established in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate as a comprehensive industrial and international trading group. Our business covers equipment R&D, manufacturing, testing, customization, sales, leasing, and international trade.

We have our own HKLOONG brand covering excavators, loaders, backhoe loaders, and swamp excavators. At the same time, we provide complete machine sales and leasing services for brands including Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON, and LOVOL, subject to actual availability and transaction terms.

This means our role can be different from project to project. Sometimes a customer needs a new machine. Sometimes the customer needs a used machine. Sometimes the main concern is an attachment or a specific working configuration. In other cases, leasing makes more sense than purchasing.

Our international trade arm, Hefei Ganglong International Trade Co., Ltd., focuses on overseas machinery business. Our team has experience serving customers in Asia, Africa, America, and other international markets.

For a customer searching for a 330 Hydraulic Excavator Supplier, this project-based approach can be useful because the real question is not simply “Can you supply this model?” It is “Can you help me get the correct machine, configuration, documents, and transportation arrangement for my project?”

We also understand that heavy equipment buyers usually want straightforward information. They want to know the actual machine condition, configuration, production or preparation time, shipping method, payment arrangement, available documents, and after-sales support. We try to answer these questions before the order rather than leave them until the machine is already on the way.

8. FAQ About the 330 Hydraulic Excavator

1. What is a 330 Hydraulic Excavator mainly used for?

The 330 Hydraulic Excavator is mainly used for heavy excavation, mass earthmoving, foundation work, trenching, road construction, infrastructure projects, utility work, material handling, and selected mining or demolition applications. The exact application depends on the machine configuration and attachment.

2. What is the operating weight of the 330?

The current Caterpillar 330 Tier 4 / Stage V specification lists an operating weight of approximately 31,400 kg for the referenced configuration. Operating weight can change with the boom, stick, bucket, counterweight, track shoes, and other equipment installed on the machine.

3. How deep can a 330 excavator dig?

The current Caterpillar specification lists a maximum digging depth of 7,240 mm for the referenced 330 configuration using the listed reach boom and stick combination. Different boom, stick, or specialized configurations can change the working range.

4. Is the 330 suitable for road and infrastructure projects?

Yes. Its digging force, working range, crawler undercarriage, and hydraulic capacity make it suitable for many road and infrastructure tasks, including bulk excavation, drainage work, trenching, site preparation, and material loading. The correct bucket and attachment should be selected according to the actual material and job conditions.

5. What is the difference between the 330 and 330 GC?

The 330 and 330 GC are different configurations. For example, Caterpillar's current U.S. specifications list 273 hp net power for the 330 and 201 hp for the 330 GC, while their operating weights and hydraulic specifications also differ. Buyers should confirm the exact model, year, market, emissions standard, and configuration before ordering.

6. Can the 330 use different attachments?

Yes, depending on the hydraulic configuration and attachment requirements. Possible work tools can include different buckets, hydraulic breakers, grapples, couplers, and other equipment. Hydraulic flow, pressure, machine stability, attachment weight, and control settings should all be checked before selecting an attachment.

7. How long does it take to prepare a crawler excavator for delivery?

For standard crawler excavators, our typical production or preparation cycle is around 30–60 days. The actual schedule depends on the model, configuration, order quantity, customization, machine availability, inspection requirements, and shipping arrangements.

8. How is a 330 Hydraulic Excavator shipped overseas?

Depending on the machine size, destination, port conditions, and shipping plan, crawler excavators can be transported by Ro-Ro vessel, bulk vessel, or container. We clean and prepare the machine before loading, protect it against moisture and rust, and secure the equipment for long-distance transportation.

9. What payment terms are normally available?

International machinery transactions are commonly arranged by T/T. A deposit is normally paid after order confirmation, with the remaining balance settled before shipment. The exact payment structure can be discussed according to the machine, order value, destination, and contract.

10. Can you help us select the right configuration?

Yes. This is one of the parts of the project we prefer to discuss before quotation. If you tell us the digging depth, soil condition, expected daily working hours, attachment requirements, transport restrictions, destination country, and project type, we can work with you to identify a practical configuration instead of simply quoting a model name.

Final Thoughts on the 330 Hydraulic Excavator

A heavy excavator is a long-term working tool, so I always recommend looking at the complete picture rather than focusing on one specification. Engine power matters, but so do hydraulic response, digging force, machine stability, bucket selection, undercarriage configuration, operator control, maintenance access, transportation, and parts support.

The 330 Hydraulic Excavator sits in the 30-ton-class equipment segment and is designed for serious construction and earthmoving work. The current Caterpillar 330 specification shows 273 hp net power, approximately 31,400 kg operating weight, 7,240 mm maximum digging depth, 179 kN bucket digging force, and 560 L/min maximum main hydraulic flow in the referenced Tier 4 / Stage V configuration.

At the same time, specifications are not universal. Caterpillar publishes different configurations for different markets, and the 330 should not be confused with the 330 GC. Before purchasing, I recommend confirming the actual machine configuration, production year, emissions standard, boom and stick combination, bucket, track shoes, counterweight, hydraulic options, attachments, and shipping dimensions.

At Ganglong, we approach equipment supply from the project side. Whether you are looking for a 330 crawler excavator, a 330 excavator for construction, a machine for mass excavation, or equipment for an overseas infrastructure project, we focus on matching the machine with the actual working conditions. Our goal is to make the purchase process clear from configuration confirmation through inspection, payment, loading, and international delivery.

If you are planning to purchase or lease a 330-class hydraulic excavator, send us your project application, destination, preferred configuration, attachment requirements, and expected working conditions. We can then discuss the machine specification and delivery plan based on the actual job rather than making a decision from a model name alone.
