When I talk with customers about compact excavation equipment, one question comes up again and again: how much machine do I really need for a job where space is limited? In many cases, bringing a Large Excavator to a small construction site creates more problems than it solves. Transport becomes harder, access is restricted, and the machine may simply be too large for the working area.

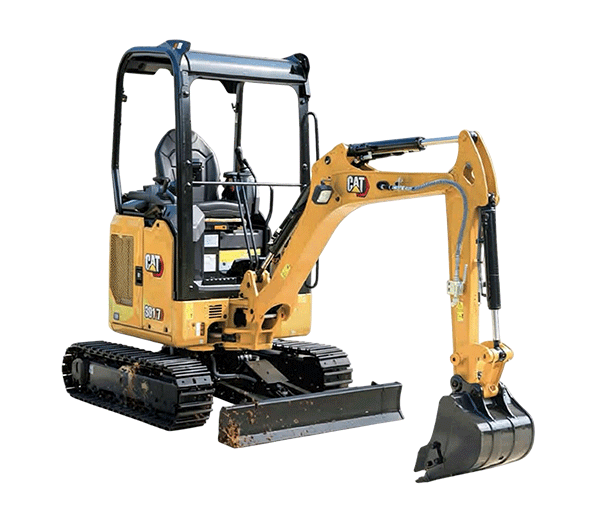

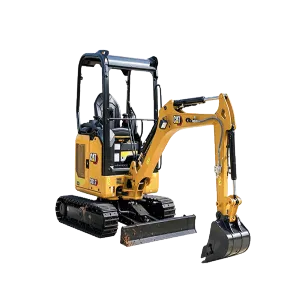

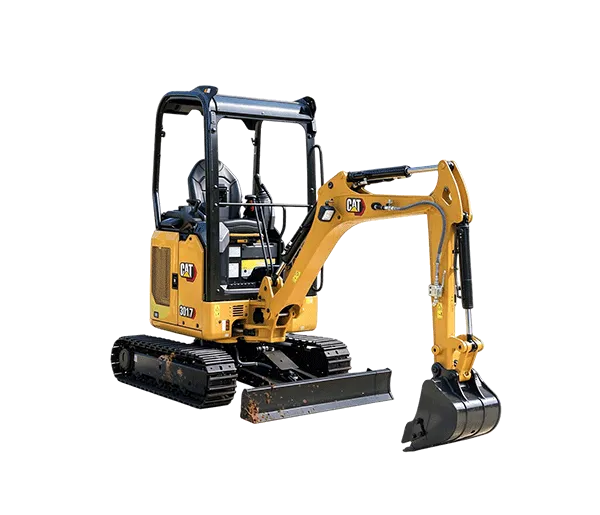

This is where the Cat 301.7 CR Mini Excavator becomes interesting. It is a compact crawler excavator built for jobs where working space, machine size, digging control, and easy movement all matter. The 301.7 CR belongs to Caterpillar's Compact Mini Excavator range and uses a compact-radius design that helps operators work in tighter areas.

From my experience working with construction machinery customers, I see this type of machine as a practical tool rather than a replacement for a larger Excavator. It is intended for smaller excavation jobs, utility work, landscaping, site preparation, trenching, and similar applications where a compact machine can get into places that larger equipment cannot.

According to Caterpillar's current published specifications, the Cat 301.7 CR has a net power rating of 21 hp (15.7 kW), an operating weight of up to 1,915 kg, and a maximum digging depth of 2,540 mm when equipped with the long stick configuration. The machine also has an expandable undercarriage, with a retracted track width of 990 mm and an expanded width of 1,300 mm. Actual specifications can vary according to configuration, region, and selected equipment.

When I supply or arrange a Cat 301.7 CR Mini Excavator for a customer, I pay close attention to the exact configuration, machine condition, attachments, inspection requirements, destination, and shipping method. These details are just as important as the model name itself, especially when the machine is being purchased for an overseas project.

1. What Makes the Cat 301.7 CR Mini Excavator Practical?

The main attraction of the Cat 301.7 CR is its compact size. A mini excavator needs to be small enough to enter restricted areas, but it still needs enough hydraulic power and digging force to complete real work. That balance is what I look at first when helping a customer choose a machine.

The 301.7 CR is a compact-radius excavator. In simple terms, the rear of the machine is designed to stay relatively close to the machine's working envelope. This can be useful when working beside buildings, walls, fences, roads, landscaping features, or other obstacles.

The machine's expandable undercarriage is another useful feature. Caterpillar lists a retracted track width of 990 mm and an expanded track width of 1,300 mm. I find this particularly useful when a customer has to move through a narrow entrance and then wants a wider working stance once the machine reaches the job site.

The crawler undercarriage also gives the machine a stable base. Unlike a wheeled machine, the tracks spread the machine's weight over a larger ground area. This is helpful when working on soil, grass, gravel, muddy areas, and other uneven surfaces. Of course, ground conditions still need to be assessed before operation.

Another point I consider important is transportation. According to Caterpillar, the published shipping height is about 2,300 mm, while overall shipping length is approximately 3,590 mm with the long-stick configuration, depending on blade position. These dimensions are useful when planning loading, unloading, container or vessel transportation, and site access.

Source: Caterpillar official Cat 301.7 CR product specifications.

I always recommend checking the final machine configuration before placing an order because stick length, track type, counterweight, attachments, and regional specifications can affect the actual operating weight and working dimensions.

2. How the Cat 301.7 CR Mini Excavator Works

The working principle of a crawler excavator is actually quite straightforward. The engine supplies mechanical power, the hydraulic system turns that power into controlled movement, and the operator uses the controls to coordinate the boom, stick, bucket, swing system, and travel system.

The Cat 301.7 CR uses a hydraulic system with a variable displacement piston pump and load-sensing, flow-sharing hydraulics. I would not expect every customer to care about the technical terminology, so I usually explain it this way: the hydraulic system is responsible for delivering oil flow and pressure where the machine needs it, allowing the operator to control the working equipment smoothly.

When the operator moves the joystick, hydraulic oil is directed to the relevant cylinder or motor. The boom can rise or lower, the stick can move inward or outward, and the bucket can curl or dump. The upper structure can also swing so the operator can dig in one position and place material somewhere else without moving the entire machine.

The published specifications list equipment and travel hydraulic operating pressure at 245 bar. Caterpillar also lists a primary auxiliary circuit flow of up to 33 L/min, depending on configuration. This means the machine can support hydraulic attachments designed for its size and configuration, such as compatible buckets, augers, thumbs, hammers, or other tools.

For a customer buying a machine for a specific job, I always ask about attachments before finalizing the equipment. A mini excavator with the wrong bucket or attachment can be less useful than expected. For example, trenching, landscaping, post-hole work, and demolition can require very different tools.

Source: Caterpillar official Cat 301.7 CR hydraulic and swing system specifications.

These figures are manufacturer-published specifications rather than performance guarantees for every job. Soil type, bucket selection, operator skill, temperature, altitude, machine condition, and site conditions can all affect real-world productivity.

3. Main Features I Look At Before Supplying This Mini Excavator

When I inspect or prepare a Compact Excavator for a customer, I do not look only at horsepower. A good machine needs to work as a complete system. The following are some of the areas I pay attention to with the Cat 301.7 CR.

Compact-Radius Design

The compact-radius layout is useful when the machine has to work close to structures or in restricted areas. This is especially relevant for residential construction, utility installation, landscaping, and municipal maintenance.

For example, imagine a contractor digging beside an existing building. A large rear swing can create a constant clearance problem. A compact machine gives the operator more room to work, although the actual safe working envelope must always be checked at the job site.

Expandable Undercarriage

The expandable undercarriage gives the machine two useful working widths. With the tracks retracted, the machine is approximately 990 mm wide according to Caterpillar's specifications. When expanded, the track width can reach approximately 1,300 mm.

I consider this one of the more practical features for contractors who frequently move between narrow access points and open working areas. The operator can benefit from the narrower configuration when entering a site and a wider stance during operation.

Hydraulic Attachment Capability

A mini excavator becomes much more useful when its attachment selection matches the job. The 301.7 CR is listed with auxiliary hydraulic lines and support for one-way and two-way auxiliary flow. Available attachment options can include buckets, couplers, thumbs, augers, and hammers, subject to configuration and regional availability.

I always confirm compatibility before quoting an attachment because not every tool is suitable for every hydraulic flow, pressure, weight, or machine configuration.

Simple Operator Environment

The Cat 301.7 CR is offered with a tilt-up canopy arrangement, and Caterpillar lists features such as adjustable wrist rests, travel pedals and hand levers, a retractable seat belt, a washable floor mat, storage space, and a color LCD monitor.

These details may sound small, but anyone who operates construction machinery for several hours knows that small things matter. Easy controls, clear information, good visibility, and straightforward maintenance access can make daily work less tiring.

Maintenance Access

Maintenance is something I always discuss with overseas customers. Buying a machine is only the beginning. Engine oil, filters, hydraulic components, tracks, pins, bushings, hoses, electrical parts, and attachments all need attention over the machine's service life.

Caterpillar's Next Generation mini excavator information highlights ground-level maintenance access and serviceability features. The company also states that routine maintenance checkpoints are accessible at ground level on the relevant Next Generation range.

4. Cat 301.7 CR Mini Excavator Applications

I normally recommend looking at the job first and the machine second. The Cat 301.7 CR is a compact excavator, so its value comes from the type of work it can perform in limited spaces rather than from trying to compete with large mining or heavy earthmoving Excavators.

Construction and Building Work

For small construction projects, the machine can be used for foundation preparation, trenching, site cleanup, material handling with suitable attachments, and general excavation. Its compact dimensions can be useful where a conventional excavator has difficulty entering the site.

Utility and Pipeline Work

Utility contractors often need to create narrow trenches for cables, water pipes, drainage systems, and other services. The machine's compact body and digging capability make this type of work a natural application.

When trenching, I pay attention to the required depth, trench width, soil condition, access route, and whether an attachment change is needed. The machine's published maximum digging depth is not the same thing as the recommended depth for every project.

Landscaping

Landscaping is another area where compact excavators are useful. A contractor may need to remove soil, prepare planting areas, create drainage channels, dig small ponds, or reshape a garden. Large equipment can damage finished surfaces or simply fail to reach the work area.

Agriculture

On farms and rural properties, compact excavators can help with drainage, ditch cleaning, small foundations, fence installation, land preparation, and maintenance work. Rubber tracks can be useful on some surfaces, although operators still need to consider ground pressure and the risk of surface damage.

Municipal Maintenance

Small municipal projects can involve sidewalks, drainage, street-side utilities, landscaping, and maintenance around existing structures. In these situations, machine size and maneuverability can be just as important as digging force.

Rental and Contractor Fleets

For equipment rental companies and contractors with mixed fleets, a compact excavator can fill the gap between hand tools and larger excavators. I often see customers looking for machines that can be moved between smaller jobs without requiring the same logistics as a full-size excavator.

Source: Application suitability is based on the published Cat 301.7 CR configuration, dimensions, hydraulic system and attachment capabilities; final application suitability depends on site conditions and machine configuration.

5. Cat 301.7 CR Compared with Other Small Cat Excavators

Customers often ask me why they should consider the 301.7 CR instead of another small excavator. I prefer not to answer that with a simple slogan. The useful way to compare machines is to look at size, power, operating weight, digging depth, and the physical restrictions of the project.

Caterpillar's own product information places the 301.7 CR alongside models such as the 300.9D, 301.5, 301.8, and 302 CR in its compact mini excavator range. The specifications below are published figures and should be checked against the exact machine configuration being quoted.

Source: Caterpillar official Mini Excavator product-line information. Published figures may vary by configuration and market.

From a buyer's point of view, I would use this table as a starting point, not as the final purchasing decision. If access width is the biggest problem, machine dimensions may matter more than a small difference in horsepower. If digging depth is the priority, stick configuration and working geometry become more important. If transportation is the main concern, operating weight and shipping dimensions should be checked together.

6. How We Handle Inspection, Preparation and International Delivery

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was established in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we work across construction machinery, mining machinery, agricultural machinery, attachments, equipment sales, leasing, and international trade.

One important point I want to make clearly is that the Cat 301.7 CR is a Caterpillar product. We do not present ourselves as the manufacturer of Caterpillar equipment. Our role is to help customers source suitable construction machinery, arrange equipment supply, coordinate inspection and preparation, and organize international delivery according to the agreed transaction.

When a customer asks me for a Cat 301.7 CR Mini Excavator, I first confirm the required configuration. This includes machine condition, operating hours where applicable, standard or long stick, rubber or steel tracks, attachment requirements, hydraulic auxiliary lines, destination country, and shipping requirements.

For used equipment, condition is especially important. I normally recommend checking the engine, hydraulic system, travel motors, swing function, undercarriage, boom, stick, bucket linkage, electrical system, operator controls, leaks, and visible structural condition. Hour-meter information should also be checked against available machine records rather than treated as the only indicator of machine condition.

For a new or factory-supplied machine, the inspection focuses more on configuration, factory condition, documentation, accessories, serial-number information, and delivery requirements. Before shipment, the equipment should be cleaned and prepared for transport.

Our group has experience serving customers in Asia, Africa, America, and other international markets. This matters because exporting construction machinery is not simply a matter of putting a machine on a truck. Shipping documents, loading methods, destination requirements, port arrangements, customs procedures, and machine dimensions all need to be considered.

Production and Supply Cycle

For standard crawler excavators supplied according to a confirmed order, the typical production or preparation cycle can be around 30–60 days depending on whether the machine is newly manufactured, available from stock, customized, or sourced to a specific configuration. Used-machine sourcing can follow a different schedule because availability depends on the selected machine.

I always prefer to confirm the actual lead time after the model, configuration, quantity, and destination are clear. Giving a fixed delivery promise before those details are confirmed can create unnecessary problems later.

Payment

For international machinery transactions, T/T is a common payment method. A typical structure may involve a deposit after order confirmation, with the balance paid before shipment. The exact payment schedule is agreed in the commercial contract and can vary according to the machine, order size, supplier arrangement, and transaction conditions.

Transportation

The Cat 301.7 CR's compact dimensions can make transportation easier than moving a large excavator, but the actual shipping method depends on the destination and machine configuration. Possible methods include container shipment, Ro-Ro service, or bulk/project cargo arrangements where appropriate.

Before booking transportation, I check the machine's shipping height, length, width, operating weight, attachment arrangement, and loading requirements. This helps avoid surprises at the port or during inland transportation.

Packaging and Protection

Construction machinery is not normally packed like a small consumer product. Instead, the focus is on secure loading, moisture protection, surface protection, and preventing movement during transportation.

Depending on the shipping method, the machine can be cleaned, inspected, protected against moisture and rust where appropriate, securely tied down, and covered or wrapped. Detachable components may be separated and secured individually when this makes transportation safer or more efficient.

7. Why Work With Ganglong for Construction Machinery Supply?

When I work with an overseas customer, I know that the customer is not only buying a machine. They are also buying a supply process. A machine can look perfect in a product photo, but international buyers need clear information about the actual configuration, condition, documentation, shipping, payment, and after-sales communication.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. operates together with Hefei Ganglong International Trade Co., Ltd. as part of a construction machinery and international trade group. Our business covers equipment R&D, manufacturing, testing, customization, sales, leasing, and international equipment sourcing.

Our own HKLOONG product range includes excavators, loaders, Backhoe loaders, and swamp excavators. At the same time, we provide machine sales and leasing services involving international and domestic brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON, and LOVOL, subject to availability and applicable sales arrangements.

For customers looking specifically for a Cat 301.7 CR Mini Excavator, our value is in coordinating the complete purchasing process. I can help clarify the required configuration, compare available equipment options, arrange inspection requirements, prepare shipping information, and communicate the delivery details with the customer.

I also understand that every market has different requirements. A contractor in Africa may care most about rugged working conditions and shipping arrangements. A landscaping company in Europe may focus more on machine dimensions and emissions requirements. A rental company may care about operating hours, attachment compatibility, maintenance records, and fleet consistency. There is no single specification sheet that answers every customer's question.

That is why I prefer to start with the job rather than simply pushing a model. Tell me what you need to dig, where the machine will work, how often it will be used, what access restrictions exist, and what attachments you need. From there, we can work backward to the right configuration.

Frequently Asked Questions About the Cat 301.7 CR Mini Excavator

1. What is the operating weight of the Cat 301.7 CR Mini Excavator?

Caterpillar lists a maximum operating weight of 1,915 kg for the Cat 301.7 CR in the published specification. The minimum operating weight with canopy is listed as 1,790 kg. Actual weight depends on configuration, including track type, stick, counterweight, fuel, operator, and other equipment.

2. How deep can the Cat 301.7 CR Mini Excavator dig?

With the standard stick, Caterpillar lists a maximum digging depth of approximately 2,350 mm. With the long stick configuration, the published maximum digging depth is approximately 2,540 mm. I recommend confirming the exact digging geometry before ordering because stick configuration changes the working range.

3. Is the Cat 301.7 CR suitable for narrow job sites?

Yes, its compact-radius design and expandable undercarriage make it suitable for many restricted-access applications. The published track width is approximately 990 mm when retracted and 1,300 mm when expanded. Whether it can physically enter a particular site depends on the complete access route, including gates, doors, ramps, overhead clearance, and turning space.

4. What attachments can be used with the Cat 301.7 CR?

Depending on configuration and market availability, the machine can support attachments such as buckets, couplers, thumbs, augers, and hammers. Auxiliary hydraulic lines are part of the listed equipment, but I always recommend confirming hydraulic flow, pressure, attachment weight, coupler type, and machine configuration before selecting a tool.

5. Can you supply the Cat 301.7 CR Mini Excavator for overseas projects?

We handle international construction machinery supply through Hefei Ganglong International Trade Co., Ltd. We can discuss the required model, configuration, machine condition, attachments, destination, inspection requirements, and transportation method before preparing a quotation.

6. How long does it take to prepare a crawler excavator for delivery?

For standard crawler excavator orders, a typical production or preparation period can be around 30–60 days, depending on model, configuration, quantity, customization, and availability. For a specific Cat 301.7 CR, I would confirm the actual lead time after checking the requested machine and destination.

7. What payment terms are available?

T/T is a commonly used international payment method. A typical arrangement may include a deposit after order confirmation and the balance before shipment. The final payment terms depend on the specific machine, transaction structure, supplier arrangement, and contract.

8. How do you ship a Cat 301.7 CR Mini Excavator?

Depending on the destination and machine configuration, transportation can be arranged by container, Ro-Ro vessel, or other suitable cargo methods. I check the machine's dimensions, weight, loading requirements, destination port, and inland transportation needs before confirming the shipping plan.

9. What should I check before buying a used Cat 301.7 CR?

I recommend checking the engine, hydraulic system, travel system, swing function, undercarriage, boom, stick, bucket linkage, electrical system, visible leaks, structural condition, operating controls, hour-meter information, and available service records. For an overseas purchase, I also recommend a pre-shipment inspection so the customer has a clearer picture of the machine before it leaves the origin.

10. Why should I provide my project information before asking for a quotation?

A model number alone does not tell me everything I need to prepare the right offer. Working environment, digging depth, soil type, access width, attachment requirements, machine condition, destination country, shipping method, and delivery schedule can all affect the final configuration and cost. The more complete the project information, the more accurately I can prepare the quotation.

Final Thoughts: Is the Cat 301.7 CR the Right Size for Your Job?

When I look at the Cat 301.7 CR Mini Excavator, I see a machine designed around a very practical problem: getting useful excavation performance into places where larger equipment has difficulty working.

Its 21 hp net power, compact-radius design, expandable undercarriage, hydraulic attachment capability, and approximately 1.9-ton maximum operating weight make it suitable for a range of small construction, utility, landscaping, agricultural, and municipal applications. Caterpillar's published specifications provide a useful starting point, but the actual machine configuration should always be confirmed before purchase.

For me, the most important part of supplying construction equipment is not simply matching a product name with a customer inquiry. It is matching the machine to the work. If the job involves narrow access, trenching, landscaping, utility installation, small foundations, or general site preparation, I would look carefully at the machine's dimensions, digging range, attachment requirements, transportation weight, and operating environment before making a final decision.

Ganglong Heavy Industry Technology and Hefei Ganglong International Trade can support customers with construction machinery sourcing, sales, leasing, inspection coordination, configuration confirmation, and international transportation arrangements. If you are looking for a Cat 301.7 CR Mini Excavator, send us your required quantity, new or used preference, working application, attachment requirements, destination country, and delivery schedule. I can then work with you on the specific machine and supply plan rather than giving you a generic equipment quotation.
