When I talk with contractors about a medium-size Excavator, I usually start with one simple question: what kind of work will the machine actually do every day? A machine can have plenty of power on paper, but that does not automatically make it the right choice. For many contractors, what matters is a good balance between digging performance, machine size, hydraulic power, transportability, fuel use, attachment compatibility, and service support.

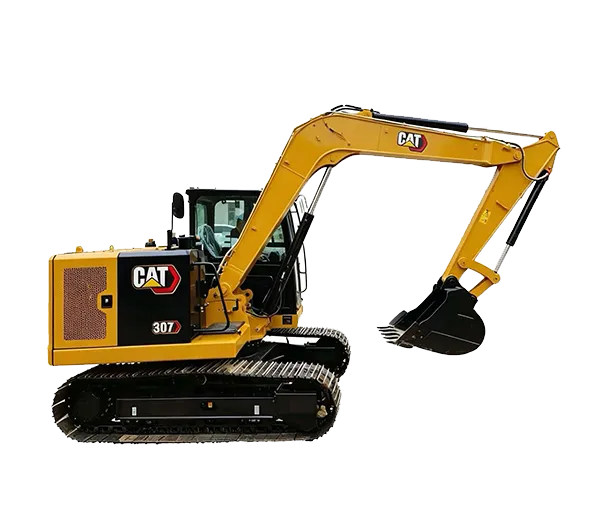

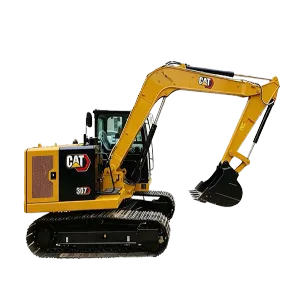

The Cat 307 Compact Hydraulic Excavator is a machine I would consider when a project needs more digging capability than a small Compact Excavator can provide, but the customer still wants a machine that is relatively easy to transport and practical on different construction sites. The 307 combines a Cat C2.4T turbo diesel engine with a load-sensing hydraulic system, crawler undercarriage, front working equipment, and a range of hydraulic and mechanical attachments.

According to Caterpillar's published specifications for the Cat 307, the machine has a net power of 48.9 hp (36 kW), a maximum listed operating weight of about 7,500 kg, a standard-stick maximum digging depth of approximately 4,067 mm, and a maximum reach at ground level of about 6,159 mm. The published hydraulic system uses a variable displacement piston pump, with pump flow listed at 147 L/min. These figures are configuration- and market-dependent, so I always confirm the exact specification before preparing a quotation.

That last point is important when buying construction equipment internationally. The name “Cat 307” can refer to equipment offered in different markets or production periods, and specifications can change with emissions standards, attachments, cab or canopy configuration, stick options, and regional requirements. Caterpillar's current global Mini Excavator range also includes models such as the 306 CR, 307.5, 308 CR and 309 CR, while some regional Caterpillar pages continue to publish specifications for the 307 model.

At Ganglong Heavy Industry Technology, I therefore do not treat a model name as the complete order specification. I confirm the machine version, destination, working application, attachments, condition, inspection requirements, and shipping plan before discussing the final supply arrangement.

1. Getting to Know the Cat 307 Compact Hydraulic Excavator

The Cat 307 is built around a fairly straightforward idea: give the operator enough power and digging force to handle serious construction work while keeping the machine practical for everyday projects.

Its crawler undercarriage provides the base for the machine. Instead of wheels, the excavator travels on tracks, which helps distribute its weight across the ground and gives it good traction on many job sites. This is particularly useful when the ground is uneven, soft, muddy, or covered with loose material. It does not mean the machine can safely work on every type of slope or soil condition, of course. Ground conditions must always be assessed by the operator and site manager.

The standard Cat 307 specification published by Caterpillar lists a 2.4-liter Cat C2.4T engine, 48.9 hp (36 kW) net power, and a maximum operating weight of 7,500 kg in the referenced configuration. Caterpillar also lists a 2,300 mm blade width, 450 mm track shoe width, and approximately 2,200 mm overall shipping width.

For me, the interesting part is not simply the horsepower. The hydraulic system, digging geometry, track system, blade, boom, stick, and attachment support all work together. A contractor who is digging trenches all day needs a different setup from a landscaping contractor moving loose soil or a utility company using a hydraulic attachment.

The Cat 307 also has a standard stick configuration listed at 1,665 mm, while the one-piece boom is listed at 3,700 mm. With this standard working configuration, Caterpillar publishes a maximum digging depth of 4,067 mm, a maximum reach at ground level of 6,159 mm, and a maximum digging height of 7,240 mm.

Source: Caterpillar official Cat 307 product specifications. Values can vary by market and machine configuration.

I recommend using these numbers as a technical reference rather than assuming that every Cat 307 available on the international market has exactly the same configuration. Before purchase, I check the serial number, production information, regional specification, attachment package, and machine condition.

2. How the Cat 307 Hydraulic Excavator Works

The basic working principle of a hydraulic excavator is easier to understand than the technical terms might suggest. The engine creates power. The hydraulic pump moves hydraulic oil. The oil sends pressure and flow to different hydraulic components. The operator controls the flow with joysticks and pedals, and the machine turns that hydraulic energy into digging, lifting, swinging, and traveling movements.

The Cat 307 uses load-sensing hydraulics with a variable displacement piston pump. Caterpillar lists pump flow at 147 L/min at 2,400 rpm, equipment and travel operating pressure at 285 bar, and swing operating pressure at 240 bar on the referenced specification.

In simple terms, this hydraulic arrangement allows the machine to supply oil according to the work being requested. When the operator moves the boom, stick, or bucket controls, hydraulic oil is directed to the appropriate cylinders. The cylinders then extend or retract to move the working equipment.

The boom is responsible for raising and lowering the front working equipment. The stick moves the bucket farther away from or closer to the machine. The bucket itself curls into the material and then opens to release it. By combining these movements, the operator can dig a trench, load soil, shape a slope, or place material in a selected location.

The upper structure can also rotate on the swing bearing. This allows the operator to dig in one position and then swing the material toward a truck, stockpile, trench side, or another work area. The published machine swing speed for the Cat 307 is 10.5 r/min.

The travel system works in a similar hydraulic way. The crawler tracks are driven by travel motors, allowing the excavator to move forward, backward, and turn. Caterpillar lists two travel speeds for the referenced Cat 307 configuration: 4.3 km/h at high speed and 2.5 km/h at low speed.

When I explain this to customers, I usually say that the machine's strength comes from how these systems work together. Engine power alone does not dig a trench. Hydraulic pressure alone does not move a machine. The engine, pump, valves, cylinders, travel motors, swing system, and controls have to work as one system.

Hydraulic Performance and Attachments

One reason customers choose hydraulic Excavators is their ability to use different work tools. A bucket is only the starting point. Depending on the machine configuration and local availability, hydraulic excavators can work with tools such as hydraulic hammers, thumbs, augers, grapples, compactors, and other attachments.

Caterpillar's published Cat 307 specification lists a primary auxiliary circuit flow of up to 115 L/min and maximum primary auxiliary circuit pressure of 285 bar. Caterpillar also notes that hydraulic flow and pressure are not simply combined at their maximum values at the same time; actual hydraulic performance depends on the operating condition and attachment.

Source: Caterpillar official Cat 307 hydraulic system specifications.

Before I recommend an attachment, I always check its hydraulic flow, pressure requirement, weight, connection method, and intended application. A hydraulic hammer, for example, has different requirements from an auger. Matching the attachment to the excavator is just as important as selecting the excavator itself.

3. Main Features I Consider Important on the Cat 307

When a customer asks me what makes the Cat 307 useful, I do not usually give a long list of marketing phrases. I look at the features that affect the operator's daily work.

Strong Digging Capability

The Cat 307 has a published bucket digging force of 53.2 kN and standard-stick digging force of 36.3 kN. These figures show that the machine is designed for real excavation work rather than just light landscaping.

This makes it suitable for jobs involving soil excavation, trenching, foundation preparation, drainage work, and general earthmoving. Actual productivity will depend on soil type, bucket size, operator skill, digging depth, truck cycle time, and job-site layout.

Load-Sensing Hydraulic System

The load-sensing hydraulic system is another important part of the machine. Instead of treating the hydraulic system as a simple on/off power source, the system manages hydraulic demand based on the machine's working functions.

For the operator, the benefit is mainly control. Smooth control matters when the excavator is working close to an existing structure, utility pipe, road edge, or finished surface.

Crawler Undercarriage

The crawler system provides a stable platform for digging and traveling. Caterpillar lists 450 mm track shoes and a maximum gradeability of 30 degrees for the referenced Cat 307 specification.

I would not interpret the 30-degree figure as a general recommendation to operate on any 30-degree slope. Safe operation depends on ground condition, slope direction, machine configuration, attachments, operator skill, and site rules. The published number is a machine specification, not a replacement for a site risk assessment.

Two Travel Speeds

The Cat 307 has high and low travel speeds. The published figures are 4.3 km/h and 2.5 km/h respectively. The lower speed can be useful when the operator needs controlled movement, while the higher speed helps when moving between work areas.

Blade for Site Work

The machine is equipped with a front blade. Caterpillar lists the blade width at 2,300 mm and blade height at approximately 364 mm on the referenced model.

The blade can help with basic backfilling, leveling, and machine stabilization during certain operations. I would still use the correct attachment or grading equipment when a project requires tight final grading tolerances.

Operator Environment

Operator comfort is not just about having a comfortable seat. An excavator operator needs good visibility, predictable controls, useful information on the monitor, and an environment that makes long working hours manageable.

The published Cat 307 standard equipment includes a cab with air conditioning, hydraulic control lockout, travel pedals and hand levers, a monitor, hour meter, mechanical suspension seat, windshield wiper and washer, interior lighting, radio, storage space, and a washable floor mat.

Features can vary according to market and configuration, so I confirm the exact operator environment before preparing an international quotation.

4. Cat 307 Applications: Where Does This Excavator Make Sense?

I see the Cat 307 as a flexible machine for contractors who handle different types of earthmoving and construction work. It is large enough for serious excavation but still much more manageable than many heavy excavators used in large-scale mining or major earthmoving projects.

General Construction

General building contractors can use an excavator of this class for site preparation, foundation excavation, trenching, backfilling, soil removal, and material handling with suitable attachments.

On a building site, the excavator may perform several different jobs during the same project. One morning it may dig drainage trenches. Later it may prepare an area for a foundation or move soil. The ability to change buckets or other work tools gives the machine more flexibility.

Road Construction and Maintenance

Road contractors often need machines for drainage channels, shoulder preparation, roadside excavation, culvert work, and maintenance. The crawler system can provide useful traction on unfinished surfaces, while the front blade can help with certain site preparation tasks.

Utility and Pipeline Installation

Water lines, drainage pipes, communication cables, and electrical services often require controlled trenching. The Cat 307's digging depth and hydraulic control make it suitable for many utility excavation applications.

For utility work, I always recommend selecting the bucket width based on the pipe or cable installation requirement rather than simply choosing the largest bucket. A narrower trench can reduce unnecessary soil removal and backfill volume when the project design allows it.

Landscaping and Site Development

Large landscaping projects can require more power than a small mini excavator can provide. The Cat 307 can be used for soil removal, drainage work, grading preparation, pond excavation, slope shaping, and other site development work.

The correct attachment can make a big difference here. A standard digging bucket may be useful for bulk excavation, while a Grading Bucket may be better for shaping and finishing work.

Agricultural Projects

Farm and rural contractors may use excavators for drainage ditches, pond work, irrigation preparation, land clearing, foundation work, and property maintenance. The tracks are useful on many unpaved surfaces, but operators still need to consider ground pressure and potential damage to finished or sensitive surfaces.

Municipal Engineering

Municipal contractors often work around existing roads, sidewalks, drainage systems, public utilities, and buildings. A crawler excavator in this size range can handle excavation while remaining more manageable than a larger production excavator.

Demolition and Material Handling

With the right hydraulic attachment, excavators can also support selected demolition and material handling tasks. However, the attachment must be approved for the machine's hydraulic capacity and operating weight, and demolition work requires appropriate safety procedures and site planning.

Source: Application recommendations are based on the Cat 307's published digging, hydraulic, travel, and attachment-related specifications. Final suitability depends on the actual project and machine configuration.

5. Cat 307 Compared with Other Cat Excavators

Customers often ask me how the Cat 307 compares with other Cat excavators. I think the best way to answer is to look at published specifications instead of simply saying that one model is “better.” Different machines are designed for different working ranges and operating conditions.

There is also an important model-year and market issue here. Caterpillar's current global mini excavator overview lists the 306 CR, 307.5, 308 CR, 309 CR and 310 in its 7–10-ton class. Caterpillar has also announced that the new 308 CR Fixed Boom replaced the previous 307.5 Fixed Boom model in its product lineup.

The Cat 307 itself remains listed on certain Caterpillar regional product pages, with a published 7,500 kg operating weight and 48.9 hp net power in the referenced configuration.

Source: Caterpillar official product specifications and current mini excavator range information. Specifications are market- and configuration-dependent.

I would use this comparison to narrow the search, not to make the purchasing decision by itself. If the customer needs a particular digging depth, we check the working configuration. If transport cost is important, we check actual shipping dimensions and weight. If the machine will run a hydraulic hammer or other attachment, we check the auxiliary circuit. If the job is in a restricted area, we check overall width and tail swing.

This is also why I ask customers for the application before quoting. Two customers can request a “7-ton excavator” but have completely different requirements.

6. Inspection, Supply and International Delivery

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate across construction machinery, mining machinery, agricultural machinery, attachments, equipment sales, leasing, customization, testing, and international trade.

Our own HKLOONG range includes excavators, loaders, Backhoe loaders, and swamp excavators. We also provide machine sales and leasing services involving brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON, and LOVOL, depending on availability and the agreed supply arrangement.

For a Cat 307 Compact Hydraulic Excavator, I want to make one point very clear: Cat is the manufacturer of Caterpillar-branded equipment. Ganglong is not presenting itself as the manufacturer of the Cat 307. Our role is to support equipment sourcing, sales and leasing, inspection coordination, logistics, and international trade services.

Machine Confirmation

Before I prepare a final offer, I confirm what the customer actually needs. This normally includes the machine model, new or used condition, production year where relevant, operating hours for used equipment, standard or optional attachments, bucket type, track configuration, destination, and required delivery schedule.

For used construction machinery, I also pay attention to the hydraulic system, engine, travel motors, swing system, undercarriage, boom, stick, bucket linkage, cylinders, hoses, electrical system, visible oil leaks, structural condition, and service records.

I do not recommend judging a Used Excavator only from photographs. Photos are useful for the first review, but a proper inspection gives the buyer much more useful information.

Inspection Before Shipment

Depending on the transaction, inspection can cover engine starting, idle and operating performance, hydraulic movement, travel, swing operation, attachment operation, gauges, electrical components, visible leakage, undercarriage condition, and general appearance.

For an overseas buyer, I can also coordinate inspection information and supporting documentation before shipment. This gives the customer a clearer understanding of what is being shipped.

Production and Preparation Time

For standard crawler excavator orders, the typical production or preparation cycle can be approximately 30–60 days. The actual schedule depends on model availability, configuration, order quantity, customization, inspection requirements, and destination.

For a used Cat 307, the supply schedule can be different because it depends on locating a suitable machine. I prefer to confirm the actual availability before giving the customer a firm delivery schedule.

Payment Terms

International construction machinery transactions commonly use T/T payment. A typical arrangement may include a deposit after order confirmation and the remaining balance before shipment. The final payment terms are determined by the specific transaction, machine, supplier arrangement, and commercial contract.

Transportation

The transportation method depends mainly on machine dimensions, weight, destination, port facilities, and the customer's logistics requirements. Possible methods include container shipping, Ro-Ro service, bulk vessel transportation, or other project cargo arrangements where appropriate.

Before shipping, I check the overall shipping dimensions and weight rather than relying only on the operating specification. The Cat 307 regional specification referenced by Caterpillar lists an overall shipping length of approximately 6,076 mm and shipping width of about 2,200 mm, with a transport height of approximately 2,634 mm.

Loading and Protection

Construction equipment does not normally need the same type of packaging used for small industrial products. Instead, safe loading and securement are the main concerns.

The machine can be cleaned before loading, inspected for visible problems, secured to the transport platform, and protected from moisture and environmental exposure as appropriate. Detachable attachments or components can be secured separately if that is more suitable for the shipping method.

7. Why Customers Work With Ganglong for Construction Machinery

Buying an excavator from overseas involves more than finding a machine at an attractive price. The buyer also needs to understand the configuration, condition, documents, payment process, inspection, shipping, and delivery arrangements.

This is where our international trade experience becomes useful.

Hefei Ganglong International Trade Co., Ltd. focuses on international construction machinery, mining machinery, agricultural machinery, and related equipment. Our team has worked with customers across Asia, Africa, America, and other international markets.

When I receive an inquiry for a Cat 307 Compact Hydraulic Excavator, I try to understand the project before suggesting the supply arrangement. What is the machine going to dig? How deep? What type of soil? How many hours will it work each day? Is a hydraulic hammer required? Does the customer need a narrow bucket? Is the machine new or used? Which country will receive it?

These questions are not there to slow the customer down. They help prevent a common problem in equipment purchasing: buying a machine that looks right on paper but is not properly matched to the job.

We can also supply other construction machinery and attachments when a customer needs more than one type of equipment. This can be useful for contractors building a mixed fleet or purchasing machines for a complete project.

Our approach is practical. We confirm the machine, confirm the configuration, check the supply conditions, organize inspection requirements, and then work through the shipping plan. The customer should know what they are buying and how it will reach the destination before the transaction is completed.

8. Cat 307 Compact Hydraulic Excavator FAQ

What is the operating weight of the Cat 307?

Caterpillar's published specification for the referenced Cat 307 lists an operating weight of 7,500 kg. The actual operating weight can change depending on bucket, blade, track configuration, stick, fuel level, operator, and other equipment.

How much horsepower does the Cat 307 have?

The referenced Cat 307 uses a Cat C2.4T engine. Caterpillar lists net power at 48.9 hp, or 36 kW, for this specification. Power ratings can vary by testing standard, market, and machine version, so I confirm the exact specification before quoting a particular unit.

How deep can a Cat 307 excavator dig?

With the standard stick configuration shown by Caterpillar, the published maximum digging depth is approximately 4,067 mm. The exact working range depends on the stick, boom, bucket, and machine configuration.

What is the maximum reach of the Cat 307?

Caterpillar lists a maximum reach of approximately 6,297 mm and a maximum reach at ground level of approximately 6,159 mm for the referenced standard-stick configuration. Actual working range depends on the selected front equipment and bucket.

What type of hydraulic system does the Cat 307 use?

The Cat 307 specification published by Caterpillar uses load-sensing hydraulics with a variable displacement piston pump. Pump flow is listed at 147 L/min at 2,400 rpm. Equipment and travel operating pressure is listed at 285 bar.

Can the Cat 307 use hydraulic attachments?

Yes. Caterpillar lists a primary auxiliary hydraulic circuit on the Cat 307, with maximum primary flow of 115 L/min and maximum pressure of 285 bar for the referenced specification. The actual attachment must be matched to the excavator's hydraulic flow, pressure, weight, connection system, and intended application.

Is the Cat 307 suitable for road construction?

It can be suitable for many road construction and maintenance tasks, including drainage excavation, roadside work, culvert preparation, trenching, and general site preparation. The correct configuration depends on the project's digging depth, soil conditions, attachments, and transport requirements.

Is the Cat 307 suitable for utility trenching?

Yes, the machine's digging depth, hydraulic control, and crawler design make it suitable for many utility trenching applications. Bucket width should be selected according to the required trench dimensions and the project specification.

Can I use a Hydraulic Breaker with the Cat 307?

A compatible hydraulic breaker can be considered where the machine configuration supports it. I would confirm the breaker flow and pressure requirements, mounting arrangement, operating weight, and auxiliary hydraulic configuration before recommending a specific attachment.

What should I check when buying a used Cat 307?

I recommend checking the engine, hydraulic pump and valves, cylinders, travel motors, swing system, undercarriage, boom and stick, bucket linkage, hoses, electrical system, control functions, structural condition, operating hours, and available maintenance records. For international purchases, a pre-shipment inspection is also useful.

How long does it take to prepare a crawler excavator for delivery?

For a standard crawler excavator order, the typical production or preparation cycle can be around 30–60 days. The actual time depends on machine availability, configuration, quantity, customization, inspection, and shipping arrangements.

How is the Cat 307 transported internationally?

Depending on the destination and configuration, transportation may be arranged by container, Ro-Ro vessel, bulk vessel, or another suitable cargo method. I confirm the machine's shipping dimensions, weight, loading method, destination port, and inland transportation requirements before finalizing the shipping plan.

What payment method do you accept?

T/T is a commonly used payment method for international machinery transactions. A typical arrangement may include a deposit after order confirmation and the balance before shipment. The exact terms are agreed according to the individual transaction and commercial contract.

Final Thoughts on the Cat 307 Compact Hydraulic Excavator

For me, the Cat 307 Compact Hydraulic Excavator is interesting because it sits in a useful part of the construction equipment market. It offers more digging capability than a small compact excavator while remaining considerably more manageable than a large production excavator.

The published Cat 307 specifications show a 48.9 hp Cat C2.4T engine, approximately 7,500 kg maximum operating weight, 147 L/min hydraulic pump flow, 4,067 mm maximum digging depth with the standard stick, and a 6,159 mm maximum reach at ground level. These specifications give contractors a clear starting point when considering the machine for construction, utility, roadwork, landscaping, agriculture, and municipal applications.

At the same time, I would not recommend choosing an excavator only from a specification table. The actual job is more important. If the machine needs to work in a narrow area, I check dimensions and swing clearance. If it needs to dig deep trenches, I check the working range. If it will use a hydraulic breaker, I check auxiliary flow and pressure. If the machine will be shipped overseas, I check weight and transport dimensions.

There is also a reason I confirm the exact model and market before quoting. Caterpillar's current product range has changed over time, and the company currently lists 306 CR, 307.5, 308 CR and 309 CR machines in its broader 7–10-ton mini excavator range. Caterpillar also announced in January 2026 that its new 308 CR Fixed Boom model replaced the previous 307.5 Fixed Boom model.

So if a customer sends me a request saying “Cat 307 Compact Hydraulic Excavator,” I do not want to guess. I confirm which machine version is required, where it will be delivered, whether the machine should be new or used, what attachments are needed, and what inspection and shipping standards apply.

Ganglong Heavy Industry Technology and Hefei Ganglong International Trade can support international customers with construction machinery sourcing, equipment sales and leasing, configuration confirmation, inspection coordination, attachments, and logistics arrangements. Our experience across Asia, Africa, America, and other markets helps us handle the practical details that come after the initial product inquiry.

If you are planning to purchase a Cat 307 Compact Hydraulic Excavator, send us the application, quantity, machine condition requirement, attachment requirements, destination country, and expected delivery time. With those details, I can work with you on a specific equipment and logistics plan rather than giving you a generic machine quotation.
