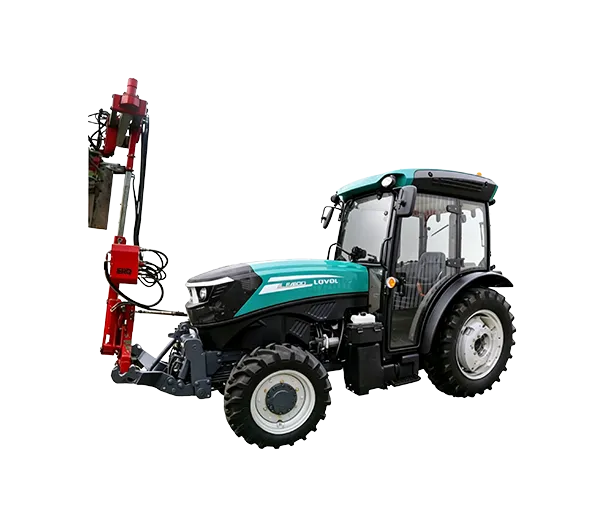

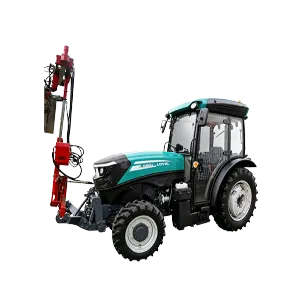

F SERIES F4000 75-100HP Platform Tractor for Orchard and Vineyard Farming

When I talk with farmers about tractors, one question comes up again and again: “How big does the tractor really need to be?”

For large open farmland, the answer may be a high-horsepower machine with a wide body and heavy implements. But fruit farms and vineyards are different. The working space between rows can be narrow, the turning area may be limited, and the tractor has to move around trees, vines, posts, irrigation equipment, and other obstacles without making the job harder.

That is exactly where I see the LOVOL F SERIES F4000 75-100HP Platform Tractor making sense.

The F4000 was developed as a compact orchard tractor rather than simply a smaller version of a conventional field tractor. LOVOL's published materials describe the F4000 series as an orchard-focused platform covering roughly 75-110 HP in different versions, with a narrow body, flexible steering, four-wheel drive, 16+16 transmission, hydraulic implement support, and optional front PTO and front suspension.

From our side at Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we look at this kind of machine from a practical angle. We supply and arrange agricultural machinery for international customers, so we care about more than the tractor itself. We need to know where the tractor will work, what implements it will use, how wide the orchard rows are, what power is required, which configuration is available, and how the machine will be prepared for shipment.

For an orchard owner, a 75-100HP tractor is not just a number on a brochure. The useful question is whether the tractor can enter the working rows, turn without wasting time, provide enough PTO and hydraulic power, and handle the daily jobs that actually matter.

1. What Is the LOVOL F SERIES F4000 Platform Tractor?

The F SERIES F4000 Platform Tractor is a compact agricultural tractor developed mainly around orchard and vineyard work. Compared with a conventional open-field tractor, the F4000 puts much more attention on body width, steering flexibility, ground clearance, implement connection, and operation in restricted spaces.

LOVOL's published F4000 information describes a fourth-generation body with a machine width around 1.44 meters in the newer published material. Earlier F4000 materials also list a body width of about 1.345 meters for the platform. This difference is a good example of why I always recommend confirming the exact model and production configuration before an international order.

The idea behind the narrow body is easy to understand.

Imagine a vineyard with rows of vines that leave only a limited amount of room for the tractor. A wide machine may still have enough engine power, but if it keeps touching branches, posts, or vines, the operator has a problem. The same thing happens in fruit orchards. The tractor needs enough power, but it also needs to fit the environment.

The F4000 platform tries to balance both sides.

LOVOL's earlier F4000 material lists four main models: F4075, F4080, F4090 and F4100, with rated power figures of approximately 75, 76, 90 and 100 HP respectively. Newer LOVOL material expands the F4000 range toward 110 HP in some markets.

Source: LOVOL published F4000 series product information. Exact specifications may vary by market, model year, and configuration.

This makes the F4000 useful for customers searching for a 75HP orchard tractor, 80HP orchard tractor, 90HP fruit farm tractor, or 100HP vineyard tractor without moving into the much larger dimensions of a heavy field tractor.

2. Why a Narrow Tractor Matters in Orchard and Vineyard Work

In my experience, body width is one of those specifications that people sometimes ignore until they actually start working in an orchard.

Then it becomes very important.

The F4000 is built around a narrow-body concept. LOVOL's product information highlights its suitability for orchard and vineyard operation, with flexible steering and a small turning radius. Earlier official material lists a steering angle of up to 70 degrees and a minimum turning radius of about 3.1 meters for the super-steering-axle configuration. A Brazilian LOVOL product page for the F4075 lists a minimum turning radius of around 3 meters.

For orchard work, a smaller turning radius can save time at the end of every row.

That sounds like a minor point, but imagine a tractor moving through 50 or 100 rows every day. If every turn requires several forward and reverse movements, the operator loses time and the machine spends more time moving without actually doing useful work.

A tractor that can turn more tightly can make the work feel much easier.

The narrow body also helps when the tractor needs to move between trees or vines. The operator still has to consider actual row spacing, tire width, attachments, terrain, and crop layout, but the basic design gives the F4000 a useful starting point.

This is why I would describe the F4000 as a specialized compact orchard tractor, rather than simply calling it a small tractor.

3. F4000 Power, Transmission and Drivetrain

The F4000 range covers several power levels, allowing customers to choose a configuration according to the work they need to perform.

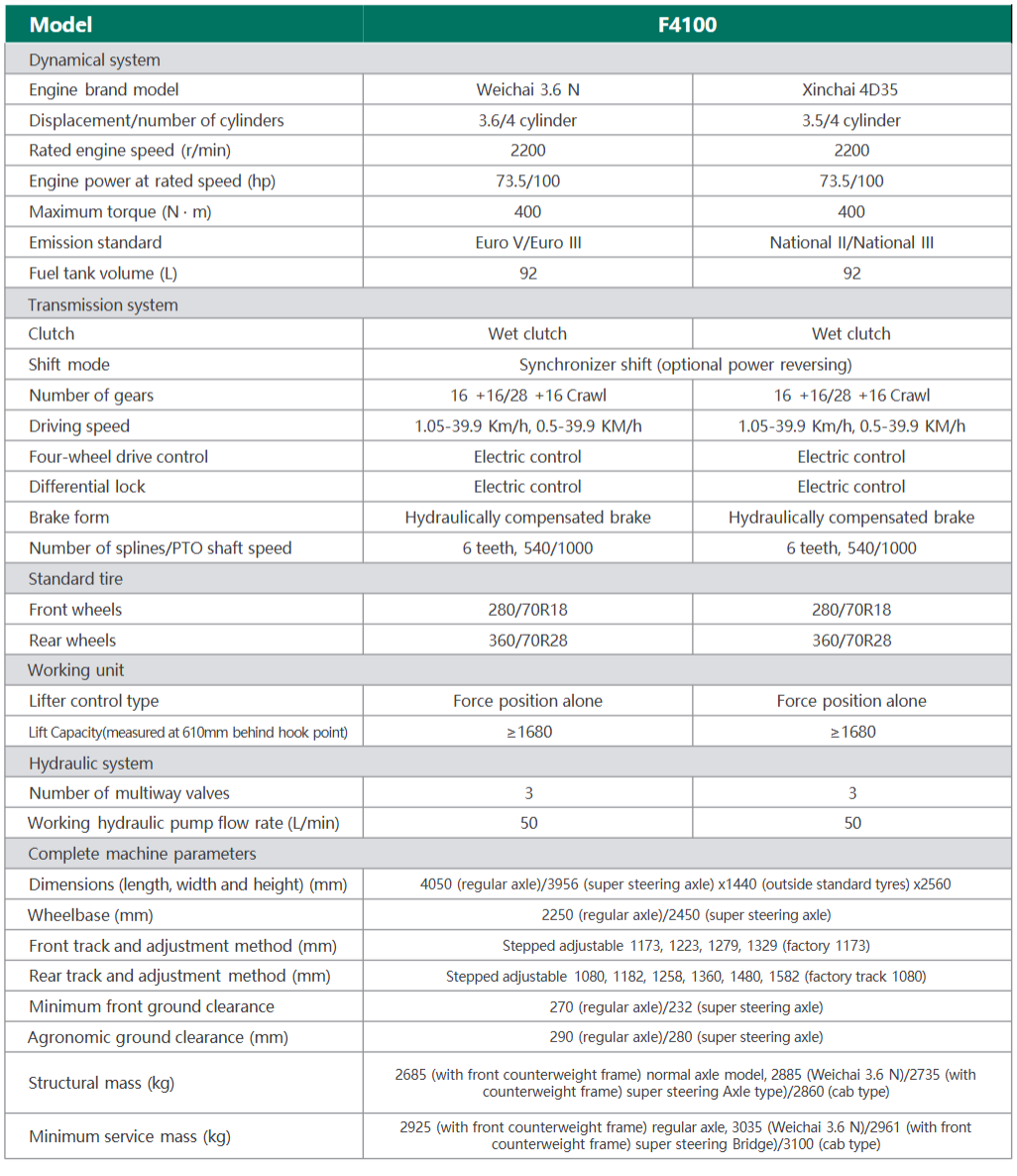

The earlier published F4000 specification lists the 4D35RT30/1002 engine family across the F4075-F4100 range, with rated power from 55.2 kW to 73.5 kW. It also lists maximum torque figures from 344 N·m to 400 N·m depending on the model.

Newer market-specific F4100 versions can use different engine configurations. For example, LOVOL's current international F4100 pages list 100 HP configurations with Xinchai 4D35 or Weichai 3.6N engines, depending on market and emissions configuration. This is why we do not treat one engine specification as universal for every F4000 tractor sold internationally.

Source: LOVOL F4000 series published specifications and current F4100 international product information. Final configuration should be confirmed against the selected tractor.

The 16+16 transmission is another feature worth discussing.

Orchard work does not always happen at one speed. Tillage, spraying, transportation, mowing, and other jobs have different speed requirements. Having more gear choices allows the operator to select a speed that matches the implement and field condition more easily.

The shuttle function is also useful because orchard work often includes repeated forward and reverse movement. When turning around at the end of a row or positioning the tractor near trees, smooth direction changes can make the job less tiring.

The F4000 also uses four-wheel drive, which helps the tractor transfer available engine power to the ground. In wet soil, slopes, grass-covered areas, or uneven orchard lanes, traction becomes much more important than it is on a dry, flat surface.

The differential lock adds another layer of traction support. Again, I would not treat this as a magic solution for every terrain. Tire choice, soil condition, slope, ballast, implement weight, and operator technique all matter. But having the correct drivetrain system gives the tractor a stronger base for difficult working conditions.

4. Hydraulic System, PTO and Implement Matching

A tractor becomes useful when it can work with the right tools.

That is particularly true in orchard farming because one tractor may perform several different jobs during the season. The same machine may be used for mowing, spraying, tillage, material transportation, fertilizer application, or other operations.

The F4000 platform is designed with this multi-purpose use in mind.

Published F4000 information lists up to three rear hydraulic outputs and continuous hydraulic flow of up to 50 L/min. The same material lists a lifting capacity of up to 16.8 kN for the specified single-force lifter configuration.

Hydraulic flow is simply the amount of hydraulic oil the system can move in a certain period. In practical terms, it affects how well the tractor can support hydraulic equipment. If an implement needs a certain hydraulic flow, the tractor must be capable of providing it.

This is why we ask about the implement before finalizing the tractor order.

A customer may say, “I need a 100HP tractor,” but that does not tell us enough. We also want to know whether the tractor will pull a plow, operate a sprayer, power a mower, carry a trailer, or run another specialized orchard implement.

The F4000 also offers useful PTO options. Published F4000 data lists a two-speed rear PTO at 540/760 r/min, with 540/1000 r/min available as an option in the specified configuration. Front PTO is also available on certain versions.

Front PTO and front suspension are especially interesting for orchard customers because they open up more implement combinations. LOVOL's current F4000 material specifically highlights optional front PTO and front suspension for different orchard machines and tools.

5. Main Applications of the F4000 75-100HP Tractor

Fruit Orchards

Fruit orchards are the natural home for the F4000.

Apple, pear, peach, citrus, and other fruit farms can have narrow working rows and limited turning space. A compact tractor can move through these areas more easily than a large field machine, provided the tractor width and height match the actual orchard layout.

The F4000 can be used with suitable implements for soil preparation, mowing, transportation, spraying support, and other routine orchard work.

Vineyards

Vineyards create a similar challenge.

Rows are often close together, and the tractor needs to work without damaging vines. Steering flexibility and compact body dimensions therefore become important.

LOVOL specifically positions the F4000 for vineyard operation, and its published product information emphasizes flexible movement in orchards and vineyards.

Vegetable and Specialty Farms

The F4000 can also be useful on specialty farms where field sizes are moderate and equipment needs to move through restricted spaces.

Depending on the configuration, the tractor can be matched with suitable tillers, sprayers, trailers, mowers, fertilizer equipment, and other implements.

Greenhouse and Facility Agriculture

Some facility farming operations also need compact agricultural machinery. Here, the actual greenhouse dimensions become the key factor. We normally recommend checking entrance width, working aisle width, ceiling height, turning space, and floor condition before selecting the tractor.

The F4000's compact concept makes it worth considering for certain facility agriculture applications, but the exact dimensions should always be compared with the customer's site.

Farm Transportation

A tractor is often used for more than soil work.

During harvest season, transportation becomes a major daily task. Trailers may be used to move fruit, fertilizer, tools, boxes, or other materials around the farm.

The F4000's transmission and four-wheel-drive configuration make it a flexible machine for these general agricultural duties, subject to the correct trailer and load limits.

Source: LOVOL F4000 product introduction and application information. Actual suitability depends on site dimensions, implement requirements, terrain, and selected configuration.

6. F4000 Manufacturing Details and What We Check Before Shipment

When a tractor is sold locally, the customer can usually inspect it, test it, and arrange transport directly. International machinery sales are a little different.

The tractor may travel thousands of kilometers before reaching the farm. That means preparation before shipment matters.

At Ganglong, we normally start by confirming the exact machine configuration. This includes the model, engine, transmission, tire specification, PTO, hydraulic outlets, front or rear suspension, safety frame or cab arrangement, and any requested attachments.

We then check the machine according to the agreed inspection requirements.

For a tractor, this can include the engine starting condition, hydraulic functions, steering, brakes, four-wheel-drive system, differential lock, PTO operation, three-point linkage, tires, electrical components, instruments, and other working functions.

We also pay attention to loose parts and accessories. Items that could move or become damaged during transportation are secured appropriately. Smaller parts can be packed separately in cartons or wooden cases depending on the product and destination.

The complete tractor is generally prepared for sea transportation for international orders. Spare parts and smaller accessories may be shipped by air or express where suitable.

There is another point that is easy to overlook: documents.

Before shipment, we confirm the required commercial and machine documents according to the destination and order. The exact document list can differ between countries, so we do not use one fixed package for every customer.

Most importantly, we do not promise an artificial fixed delivery time before checking availability. Production or preparation time depends on the selected F4000 model, configuration, order quantity, machine availability, inspection requirements, and destination.

7. Why Work With Ganglong for an F4000 Tractor?

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we work across construction machinery, mining machinery, agricultural machinery, and related attachments.

Our role with LOVOL equipment is straightforward: we supply and arrange the machinery according to the customer's requirements. We are not the manufacturer of the LOVOL brand, so we focus on what an international buyer actually needs from a machinery supplier.

First, we help match the machine with the application.

If the customer says, “I have a vineyard with 2.5-meter row spacing,” that information is much more useful to us than simply saying “I need a tractor.” We can then look at tractor width, tire arrangement, turning requirements, PTO needs, and implement matching.

Second, we help confirm the exact configuration.

The F4000 family has appeared in different configurations and markets. Older published materials list F4075, F4080, F4090 and F4100, while newer international materials can show different engine and emissions options.

For this reason, our quotation and order confirmation should identify the actual model and configuration rather than relying only on the family name “F4000.”

Third, we help with the international process.

Our team has served customers across Asia, Africa, America, and other markets. We can coordinate inspection, packing, shipping arrangements, documents, and communication with the customer before the machine is dispatched.

Payment is commonly arranged by T/T, with the deposit and balance terms agreed between both parties. The final payment arrangement, shipping terms, and delivery schedule are confirmed according to the actual order.

For us, good machinery supply is not just about putting a tractor on a vessel. It is about reducing surprises between the first quotation and the moment the machine arrives at the farm.

8. F4000 75-100HP Platform Tractor FAQ

What is the LOVOL F4000 tractor mainly used for?

The F4000 is mainly positioned for orchard and vineyard applications. It is also suitable for various agricultural operations where a compact tractor with flexible steering and useful implement capability is needed. Depending on the configuration, it can support tillage, mowing, transportation, spraying-related work, and other farm operations.

Is the F4000 a 75HP or 100HP tractor?

Both descriptions can be correct depending on the model. Published F4000 materials list F4075 at approximately 75 HP, F4080 at approximately 76 HP, F4090 at approximately 90 HP, and F4100 at approximately 100 HP. Newer F4000 materials also extend the series toward 110 HP in some markets.

How wide is the F4000 tractor?

Published materials differ by version. Earlier F4000 product information lists a machine width of about 1,440 mm for the platform, while another LOVOL brochure lists 1,345 mm for a specific F4000 configuration. Current market-specific versions can also differ. We therefore confirm the exact width from the selected model before an order.

Can the F4000 work in a vineyard?

Yes. Vineyard operation is one of the key applications described by LOVOL. The narrow-body design, flexible steering, and compact layout are intended to make row work easier. The actual tractor width should still be compared with vineyard row spacing before purchase.

Does the F4000 have four-wheel drive?

Yes. The published F4000 specifications list 4WD. Four-wheel drive helps the tractor transfer power to the ground and can be useful when working on slopes, uneven orchard roads, or other conditions where traction is important.

What transmission does the F4000 use?

The published F4000 specifications list a 16+16 transmission, with synchronizer shuttle shifting or configuration-dependent power-shift arrangements. The exact gearbox should be confirmed for the selected model and market.

Does the F4000 support front PTO?

Yes, front PTO is available on certain F4000 configurations. LOVOL's newer F4000 product information specifically highlights front PTO and front suspension options for different orchard implements and tools.

What is the hydraulic flow of the F4000?

Published F4000 materials list hydraulic output flow up to 50 L/min for the specified configurations. Actual hydraulic flow can vary according to the model and market version, so we confirm this point together with the customer's implement requirements.

Can you supply the F4000 for international orders?

Yes. Ganglong and its international trade subsidiary can arrange agricultural machinery supply for overseas customers. We can assist with model confirmation, configuration, inspection, packing, shipping, and related documents according to the destination.

How is the F4000 shipped overseas?

Complete tractors are generally transported by sea. Before loading, the machine is checked, secured, and prepared for transportation. Smaller spare parts and accessories can be shipped by air or express when suitable.

How long does delivery take?

There is no universal fixed lead time. The preparation period depends on the exact F4000 model, configuration, quantity, availability, inspection requirements, and destination. We confirm the final delivery schedule after the order details are agreed.

Final Thoughts: Why the F4000 Makes Sense for Specialty Farming

When I look at the F SERIES F4000 75-100HP Platform Tractor, I do not see it as simply another tractor in the 75-100HP class.

I see a machine designed around a very specific problem: how to bring useful tractor power into places where a large conventional tractor may be inconvenient.

Orchards and vineyards are good examples. The farmer needs power, but also needs a narrow body. The tractor needs traction, but also needs flexible steering. It needs to operate implements, but it must still fit between rows. It needs to be strong enough for daily work without becoming unnecessarily large.

The F4000 platform addresses these requirements with a compact orchard body, 4WD, 16+16 transmission, flexible steering, hydraulic implement support, rear PTO, and optional front PTO and front suspension. Published F4000 specifications also show power levels covering approximately 75 to 100 HP in the F4075-F4100 range, while newer materials extend the family toward 110 HP.

For customers searching online for a LOVOL F4000 tractor, F4000 orchard tractor, 75HP orchard tractor, 90HP vineyard tractor, 100HP fruit farm tractor, or compact agricultural tractor for orchard work, the most important thing is to match the machine to the farm rather than choosing only from a horsepower number.

At Ganglong, that is how we approach every international agricultural machinery inquiry. We first understand the working environment, then check the tractor configuration, then match the implements, and finally arrange inspection, packing, shipping, and delivery.

If your farm is mainly flat and open, you may need to compare the F4000 with a conventional field tractor. But if your daily work involves fruit trees, vineyards, narrow rows, limited turning space, or specialty agriculture, the compact F4000 platform deserves a closer look.

And before any order is finalized, we will confirm the exact model, engine, transmission, dimensions, PTO, hydraulic system, tires, attachments, availability, and shipping arrangement. That final step matters because the F4000 name covers several configurations across different markets.

For an international machinery buyer, clear specifications and a practical delivery plan are just as important as the tractor itself.
