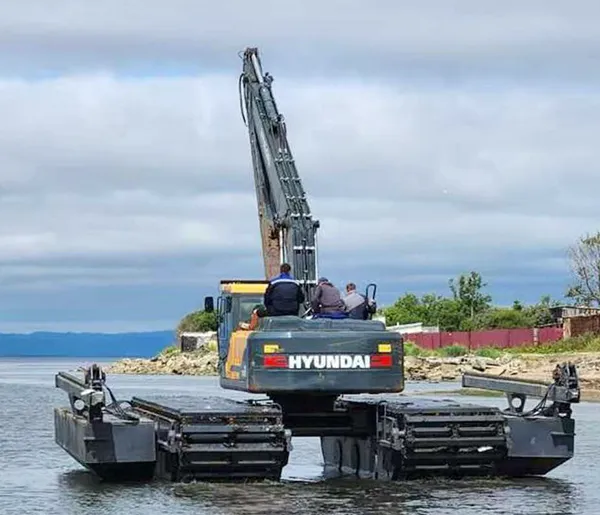

Introduction to Amphibious Wetland Excavators (Pontoon Excavators)
Amphibious excavators—also known as swamp or Wetland excavators—are specialized pieces of heavy construction machinery.
Core Structural Features
The upper structure consists of a standard Hydraulic Excavator unit, while the undercarriage is replaced by sealed pontoon floats and widened tracks. The pontoons provide buoyancy, and the tracks allow the machine to traverse silt and shallow water without sinking like a conventional excavator; this enables seamless operation across land, swamps, and shallow water zones.
Key Functions
River Dredging and Desilting
Clearing silt and weeds from riverbeds and ditches, as well as widening and deepening waterways (e.g., excavating silt directly from the river channel); this is the most common application in inland waterway management.
Wetland and Tidal Flat Ecological Restoration
Wetland rehabilitation, swamp excavation, tidal flat development, and reed pond management, helping to preserve wetland water systems.
Hydraulic Embankment Construction
River levee reinforcement, cofferdam excavation, flood control and emergency response, and flood defense operations in low-lying areas.
Pond and Fish Farm Modification
Excavating fish ponds, desilting shrimp ponds, and removing sediment from reservoirs.
Soft-Ground Earthworks
Excavation in swamps and low-lying soft-soil areas; capable of operating on muddy terrain inaccessible to standard excavators.
Advantages
Moves freely through shallow water and silty swamps without the need for support vessels;
Versatile functionality; supports interchangeable attachments such as buckets and Hydraulic Breakers;
Suitable for operations in narrow rivers and wetlands where large dredging vessels cannot enter.
Applicable Scenarios
River management, wetland restoration, hydraulic engineering, tidal flat development, fish pond modification, and flood control/emergency response.
Amphibious wetland excavators utilize a pontoon-track undercarriage to operate in swamps, shallows, and silty river zones. They are primarily used for river dredging, wetland restoration, pond excavation, and embankment construction, making them ideal for soft, water-logged environments where standard excavators cannot operate.
Hyundai 305 Wetland excavator for Soft Ground, Dredging and Waterlogged Jobsites
When I talk with customers about Excavators for wetlands, marshes, riverbanks, ponds, and muddy construction sites, one question comes up again and again: how do we keep a heavy machine working when the ground itself is the problem?
For normal construction work, an Excavator mainly needs digging power, hydraulic performance, stability, and suitable working equipment. On soft ground, there is another issue that cannot be ignored. The machine has to put its weight on ground that may be wet, loose, muddy, or easily damaged.
That is where the Hyundai 305 Wetland excavator comes into the discussion. In this article, I use this phrase as the product and search term for a Hyundai 305-class excavator configured or selected for wetland applications. It should not be understood as one fixed official Hyundai model name. Hyundai's published product information includes 30-ton-class machines such as the R300LC-9S, while other markets and generations use different model names and specifications.
At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we supply construction machinery, mining machinery, agricultural machinery, attachments, and complete equipment solutions. We also provide machine sales and leasing services for domestic and international brands, including Hyundai. Our international trade team works with customers across Asia, Africa, America, and other markets.
For us, selecting a wetland excavator is not simply about finding the machine with the biggest engine. I want to know where the machine will work, what the soil is like, how deep the water is, what the machine needs to dig, how far it needs to reach, and how it will be transported to the site.
A wetland excavator is an excavator prepared for difficult ground conditions. The basic machine still works in the familiar way: the engine supplies power, hydraulic pumps move oil through the hydraulic system, and hydraulic cylinders control the boom, arm, and bucket.
The difference is how the machine is matched to the ground.
In wetlands, the soil can have low bearing capacity. A normal crawler excavator may travel well on firm construction ground but have trouble when the surface becomes deep mud. The tracks may sink, the machine may lose mobility, and repeated travel can damage the working area.
A wetland configuration usually focuses on spreading machine weight over a larger contact area. Wider or extended tracks can help reduce average ground pressure. Higher ground clearance can also help when the machine travels over uneven or muddy surfaces.
Of course, wide tracks do not magically make an excavator capable of working everywhere. If the soil is extremely weak, water is too deep, or the machine is placed too close to an unstable bank, even a specially configured excavator can become unsafe.
That is why I always look at the complete working condition instead of using the word “wetland” as a guarantee.
For customers searching for a Hyundai 305 Wetland excavator, the 305-class concept is useful because a machine around 30 tonnes provides considerably more digging and lifting capacity than smaller excavators. It can be suitable for larger drainage, dredging, earthmoving, environmental, municipal, and infrastructure projects when the ground conditions and machine configuration are properly matched.
When buying a crawler excavator, many people first look at engine power and bucket capacity. I understand why. Those numbers are easy to compare.
But when the project is on wet or soft ground, I also want to know how the machine sits on the ground.
Think about walking on wet soil. A normal shoe puts your body weight on a relatively small area. If you stand on a wider board, the same body weight is spread over a larger area. The soil feels a different load.
A crawler excavator works on the same basic principle. A wider track shoe increases the contact area. This can reduce the average pressure applied to the ground.
Hyundai's published R300LC-9S information is useful as a reference for this class. The machine is listed at approximately 30 tonnes, with 600, 700, 800, and 900 mm track shoe options in the dimensional information. The corresponding overall width changes from about 3,200 mm to 3,500 mm.
| Track Shoe Reference | Approx. Overall Width | Practical Meaning |
|---|---|---|
| 600 mm | 3,200 mm | More compact crawler width |
| 700 mm | 3,300 mm | More contact area than standard narrow setup |
| 800 mm | 3,400 mm | Wider support for suitable soft ground |
| 900 mm | 3,500 mm | Large contact width, requiring more transport space |
Source: Hyundai construction equipment R300LC-9S dimensions and working-range information. These are reference configuration values and should not be treated as specifications for every Hyundai 305 Wetland excavator.
This table shows something important: wider tracks can be helpful, but they also make the machine wider.
That means I need to think about both the working site and the transport route. A customer may want the widest possible track because the site is soft, but the machine may then become difficult to move through a narrow road or load under a specific transport restriction.
There is always a practical balance.
Because “Hyundai 305 Wetland excavator” is an application-oriented product phrase rather than a single confirmed factory model name, I do not recommend publishing made-up specifications under that exact name.
Instead, I use official Hyundai information from the 30-ton-class R300LC-9S as a technical reference. According to Hyundai's published specifications, the R300LC-9S has an operating weight of about 30 tonnes and a rated power of 185 kW at 2,200 rpm. The listed hydraulic system uses two main pumps with a rated flow of 252 L/min each.
| Technical Item | Hyundai R300LC-9S Reference |
|---|---|
| Operating Weight | 30 tonnes |
| Rated Power | 185 kW / 2,200 rpm |
| Engine | Hyundai HM8.3 |
| Main Pump Flow | 2 × 252 L/min |
| Implement Circuit | 350 kgf/cm² |
| Fuel Tank | 500 L |
| Hydraulic Tank | 190 L |
| Swing Speed | 11.6 rpm |
| Travel Speed | 6 km/h |
| Max. Traction Force | 27,300 kgf |
| Max. Gradeability | 35° |
Source: Hyundai Construction Equipment official R300LC-9S product specification page. Hyundai notes that specifications can vary with standard specifications or optional equipment and may change without notice.
These figures give us a good idea of what a 30-ton-class Hyundai excavator can offer. But for a wetland project, the numbers that matter most can be different from those used for a general construction comparison.
I would pay particular attention to track width, operating weight, ground pressure, working range, bucket type, hydraulic attachment requirements, transport dimensions, and the actual soil condition.
The first feature is the undercarriage.
For soft ground, wide tracks can provide a larger supporting surface. This is one of the simplest ways to improve the machine's contact with the ground.
For a Hyundai 305 Wetland excavator, the exact track arrangement should be selected according to the job. Wider tracks can be useful for marshland, muddy fields, riverbanks, and other soft surfaces, but the customer also needs to consider road width and transportation regulations.
Muddy work can be messy. Soil, grass, branches, stones, and other material can collect around the undercarriage.
Good ground clearance helps the machine move through uneven areas with less interference. Hyundai's R300LC-9S reference specification lists minimum ground clearance of approximately 500 mm.
Again, this is a reference figure, not a universal value for every wetland configuration.
Digging force comes from the hydraulic system. The engine provides power to the pumps, and hydraulic oil is sent through the control system to the boom, arm, bucket, swing motor, and travel motors.
For a large wetland excavator, hydraulic performance matters because the machine may handle heavy clay, compacted soil, roots, sediment, gravel, and other difficult material.
The official R300LC-9S specification lists two main pumps at 252 L/min each and an implement circuit pressure of 350 kgf/cm².
This kind of hydraulic capacity is useful when the excavator needs to work with different attachments, although the final attachment circuit requirements should always be checked before ordering.
A wetland excavator has to manage its own weight while the boom and bucket are moving.
When the bucket is full and the upper structure swings, the machine's center of gravity changes. On firm ground, the operator has a relatively stable platform. On soft ground, the surface itself can move.
This is why I recommend controlled operation rather than sudden swinging, aggressive traveling, or working too close to an unstable bank.
The basic operating cycle of the Hyundai 305 Wetland excavator is simple.
First, the operator positions the machine on a suitable working surface. The tracks provide the supporting contact area, while the undercarriage transfers the machine weight to the ground.
The engine then drives the hydraulic pumps. The pumps send hydraulic oil through the main control valve. Depending on the operator's controls, the oil flows to different hydraulic cylinders and motors.
The boom cylinder raises or lowers the boom. The arm cylinder controls the arm. The bucket cylinder opens and closes the bucket. The swing motor rotates the upper structure, while travel motors drive the crawler tracks.
During excavation, the bucket cuts into the soil and fills with material. The operator raises the boom, retracts the arm, swings toward the dumping point, and releases the material.
On soft ground, the operator needs to pay more attention to each movement.
For example, if the bucket is very heavy and the machine swings quickly, the changing load can affect stability. If the excavator travels repeatedly over the same muddy area, the tracks can gradually disturb the surface and make the ground weaker.
Good operation is therefore part of the equipment solution.
I often tell customers that a wetland excavator is not simply a normal excavator with wider tracks. The machine, attachment, working method, operator, and jobsite conditions all work together.
Dredging is one of the most common applications associated with wetland excavators.
Ponds, drainage channels, riverbanks, reservoirs, and shallow waterways can accumulate mud, sediment, vegetation, and other material. Removing this material requires the excavator to reach the work area while maintaining a stable position.
For shallow water and soft banks, a suitably configured crawler excavator can be a practical solution.
For deeper water, the situation becomes more complicated. The machine may need a longer working range, a special bucket, an extended arm, a floating platform, or other equipment depending on the project.
I would never recommend simply extending the arm beyond the machine's approved working range. Long-reach work changes the balance of the machine and can reduce bucket capacity. The complete configuration must be checked.
Hyundai's official R300LC-9S information gives a useful example of the normal working range for a 30-ton-class machine. The listed boom is 6,250 mm and the standard arm is 3,050 mm. Maximum digging reach is 10,820 mm, while maximum digging depth is 7,390 mm under the published configuration.
| Working Range Item | R300LC-9S Reference | Why It Matters in Wetland Work |
|---|---|---|
| Boom Length | 6,250 mm | Determines basic working geometry |
| Arm Length | 3,050 mm | Affects digging reach and depth |
| Maximum Digging Reach | 10,820 mm | Useful when working away from the machine |
| Maximum Digging Depth | 7,390 mm | Important for channels and deeper excavation |
| Maximum Dumping Height | 7,110 mm | Useful for loading trucks and stockpiles |
| Minimum Swing Radius | 4,230 mm | Important for space planning |
Source: Hyundai Construction Equipment official R300LC-9S product specifications. Actual working range depends on equipment configuration and should be confirmed for the ordered machine.
For dredging, I also want to know where the removed material will go. There is little point in having a long working range if the dumping or loading arrangement is inefficient.
Wetland construction can include site preparation, earthmoving, drainage channels, embankments, access routes, and environmental restoration.
A 30-ton-class excavator can provide enough capacity for larger projects while still being more manageable than very large Mining Excavators.
Riverbanks are challenging because the ground can change quickly from firm soil to wet mud. A suitable crawler configuration can help spread machine weight and provide a more stable working base.
Typical work includes bank shaping, sediment removal, drainage work, channel maintenance, and material handling.
Ponds can collect sediment over time. Excavators can remove accumulated material, vegetation, and other deposits when the site allows machine access.
For this kind of work, bucket selection matters. A standard digging bucket is not always the best choice for loose sediment or water-related material.
Drainage work is often carried out after heavy rain or in areas with naturally high water levels. Excavators may be used to open, deepen, widen, or maintain drainage channels.
The long working reach of a 30-ton-class excavator can be useful when the machine needs to stay farther away from the edge.
Agricultural customers may use wetland excavators for irrigation channels, drainage, pond construction, land improvement, and material handling.
Here, I pay close attention to access conditions. A machine may work perfectly in a field but still need to travel through a narrow farm road before reaching that field.
Environmental engineering can include wetland restoration, vegetation removal, sediment management, waterway maintenance, and site rehabilitation.
These projects often require careful operation because the goal is not simply to move as much soil as possible. The machine may need to work around water, vegetation, protected areas, or existing structures.
Municipal teams may use crawler excavators for drainage maintenance, river management, pond cleaning, earthmoving, and infrastructure construction.
The ability to use different buckets and attachments makes a 305-class machine more flexible for these changing tasks.
When a customer tells me, “I need a Hyundai 305 Wetland excavator,” I normally ask several simple questions before talking about price.
Where will it work?
How soft is the ground?
How deep is the water?
What is the required digging depth?
How far does the machine need to reach?
What material will it handle?
How wide is the access road?
How will the machine be transported?
These questions may sound basic, but they can completely change the recommended configuration.
For a muddy construction site, wider tracks may be the main concern.
For riverbank work, stability and working reach may be more important.
For pond cleaning, the bucket and reach can become the key factors.
For agricultural drainage, transportation width may be just as important as digging power.
For municipal projects, attachment flexibility can be useful because the machine may perform several different jobs during the year.
This is why I prefer a project-based equipment discussion instead of simply sending a standard specification sheet.
Once the machine configuration is confirmed, the next step is production or equipment preparation.
Production time depends on the excavator model, configuration, order quantity, and customization requirements. We confirm the delivery schedule before production begins.
For a wetland excavator, configuration confirmation is especially important. Track width, working equipment, bucket, attachments, transport dimensions, and other requirements should be checked before the machine is prepared for delivery.
Before shipment, we inspect the machine's appearance, engine, hydraulic system, undercarriage, working equipment, and basic operating functions.
I consider the undercarriage particularly important for this type of machine. The customer is buying an excavator for difficult ground, so the crawler system and related components need proper attention before the machine leaves our side.
We also prepare standard accessories, operation manuals, spare parts, and required documents according to the order.
If the customer has specific documentation or spare-part requirements, these should be confirmed before shipment rather than added at the last minute.
Payment is commonly arranged by T/T, with a deposit before production and the balance before shipment. Exact commercial terms are confirmed in the order and contract.
Complete excavators are generally transported by sea. Smaller spare parts and accessories can be shipped by air or express depending on their size, destination, urgency, and cost.
For export transportation, the machine is protected with film where appropriate and securely fixed according to transportation requirements. Loose parts and accessories are packed separately, usually in cartons or wooden cases when required.
Our international trade team at Hefei Ganglong International Trade Co., Ltd. handles the practical side of overseas orders. Since our customers are located across Asia, Africa, America, and other regions, export coordination is a regular part of our business.
Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we are part of an industrial group covering equipment R&D, manufacturing, testing, customization, sales, and international trade.
Our own product range includes HKLOONG excavators, loaders, Backhoe loaders, and swamp excavators. At the same time, we provide complete machine sales and leasing services for domestic and international brands, including Hyundai, Hitachi, SANY, Lonking, XCMG, SHANMON, and LOVOL.
For this reason, when we discuss a Hyundai 305 Wetland excavator, our role should be clear. We do not present ourselves as the manufacturer of Hyundai-branded equipment. We act as a machinery supplier and international trade partner, helping customers source and arrange suitable equipment according to their project requirements.
This distinction is important because the final machine specification can depend on the market, model generation, available equipment, emissions requirements, attachments, and customer requirements.
We can help customers discuss the machine class, track configuration, working equipment, attachments, inspection, shipping, packing, and documentation before the order is finalized.
We also understand that overseas machinery purchasing involves more than selecting an excavator.
The customer needs to know how the machine will be checked.
They need to know how the machine will be prepared for shipment.
They need to understand payment arrangements and delivery timing.
They need documents and spare parts that match the order.
These are not exciting things to talk about, but they are the things that can make an international machinery purchase much smoother.
I do not recommend comparing wetland excavators only by horsepower. A more useful comparison looks at several parts of the machine at the same time.
| Item | General 30-Ton Excavator | Wetland-Oriented Configuration | What I Check |
|---|---|---|---|
| Track Width | Standard configuration | May use wider shoes | Ground condition and transport width |
| Ground Pressure | Depends on standard setup | Can be reduced through suitable track configuration | Soil bearing capacity |
| Working Reach | Standard boom and arm | May use selected long-reach equipment | Distance from machine to work area |
| Bucket | General digging bucket | May use project-specific bucket | Soil, mud and material type |
| Transport Width | Usually easier to control | Can increase with wider tracks | Road and shipping limits |
| Application | General earthmoving | Soft ground, drainage, dredging and wetland work | Actual project conditions |
This is a practical application comparison, not a factory specification table. The actual dimensions, weight, ground pressure, and working range must be confirmed for the specific machine and configuration.
For example, Hyundai's published R300LC-9S information shows that track shoe options can range from 600 to 900 mm and that overall width changes accordingly.
That is exactly the kind of detail I want a customer to consider before selecting a wetland excavator.
My first check is the ground.
Is it firm mud or deep soft mud?
Is there standing water?
Can the ground support the machine when the bucket is full?
Is the machine working parallel to a riverbank or directly toward it?
My second check is the work itself.
Does the customer need deep excavation? Long reach? Dredging? Loading? Grading? Material handling?
My third check is transportation.
What is the maximum road width?
What is the destination port?
Does the machine need special transport preparation?
Will attachments be shipped together?
My fourth check is the machine configuration.
Track width, boom, arm, bucket, hydraulic attachment circuit, working equipment, and other options should all match the job.
This process may take a little more time at the beginning, but it can save a lot of trouble later.
Not necessarily. “Hyundai 305 Wetland excavator” is best treated as a product and search phrase describing a Hyundai 305-class excavator intended or configured for wetland applications. Hyundai's official published product range includes the R300LC-9S, a 30-ton-class excavator, but model names and specifications can vary by market and generation.
It depends on the specific model and configuration. For example, Hyundai's official R300LC-9S specification lists an operating weight of 30 tonnes. Optional equipment and configuration can change the final machine weight.
Wide tracks increase the contact area between the machine and the ground. This can help reduce average ground pressure and improve support on suitable soft surfaces. However, wider tracks also increase overall machine width, so transport and access need to be checked.
The answer depends on the actual ground conditions. A suitable wide-track or specialized wetland configuration may improve performance on soft ground, but no excavator should be assumed safe in every type of mud or waterlogged soil. Ground strength, water depth, slope, and machine configuration should be evaluated first.
Typical applications include wetland construction, dredging, drainage, riverbank maintenance, pond cleaning, water conservancy, agriculture, environmental projects, municipal engineering, mining-related earthmoving, and infrastructure development.
Depending on the machine and project, suitable buckets, long-reach equipment, and other attachments may be considered. The attachment needs to match the machine's hydraulic system, working range, weight, and stability requirements.
Yes. Ganglong provides complete machine sales and leasing services for Hyundai and other domestic and international construction machinery brands. The exact model, availability, configuration, and commercial terms should be confirmed according to the customer's market and project requirements.
Production time depends on the excavator model, configuration, order quantity, and customization requirements. We confirm the expected delivery schedule before production.
We inspect the machine's appearance, engine, hydraulic system, undercarriage, working equipment, and basic operating functions. Standard accessories, manuals, spare parts, and required documents are also prepared according to the order.
Complete excavators are generally transported by sea. Spare parts and smaller accessories can be shipped by air or express when suitable. The transportation method depends on machine size, destination, urgency, and customer requirements.
The excavator is protected and securely fixed according to transportation requirements. Loose parts and accessories are packed separately, using cartons or wooden cases where appropriate.
For me, the most important thing about a Hyundai 305 Wetland excavator is not the number “305” by itself.
The real question is whether the complete machine matches the ground and the work.
A 30-ton-class excavator can offer strong digging capacity, a large working range, and useful hydraulic performance. Hyundai's official R300LC-9S reference data, for example, lists 185 kW rated power, 2 × 252 L/min main pump flow, a 30-ton operating weight, 10,820 mm maximum digging reach, and 7,390 mm maximum digging depth under the published configuration.
But wetland work adds another layer to the decision.
The track must match the soil.
The machine width must match the transport route.
The bucket must match the material.
The working range must match the job.
The operator must understand the ground.
And the machine must be inspected and prepared properly before it travels overseas.
That is the way I look at wetland excavators at Ganglong.
We supply HKLOONG excavators, loaders, backhoe loaders, swamp excavators, and other machinery, while also providing complete machine sales and leasing services for brands such as Hyundai, Hitachi, SANY, Lonking, XCMG, SHANMON, and LOVOL.
For customers searching for a Hyundai 305 Wetland excavator, Hyundai 305 excavator, 305 Wetland excavator, or a suitable Hyundai Wetland excavator for dredging, drainage, soft-ground construction, agriculture, water conservancy, or environmental projects, we can discuss the actual jobsite and equipment requirements before confirming the machine.
We believe the right excavator starts with the right questions. Once we understand the ground, the work, the transportation conditions, and the required configuration, we can work toward a practical equipment solution rather than simply selling a machine by model name.
Technical source note: The technical reference data in this page is based primarily on Hyundai Construction Equipment's official R300LC-9S product information and dimensions documentation. Hyundai states that specifications may be based on standard specifications or optional equipment and may change without notice. The final machine specification, configuration, dimensions, emissions standard, attachments, and availability should therefore be confirmed before ordering.
info@hkloong.com
86 158 5511 9567
©2026 HKLOONG Heavy Industry Technology (Hefei) Co., Ltd. All Rights Reserved.
This website uses cookies to ensure you get the best experience on our website.
Español
Pусский
Français
العربية
WhatsApp
Phone
E-mail
Message
