Introduction to Amphibious Wetland Excavators (Pontoon Excavators)
Amphibious excavators—also known as swamp or Wetland excavators—are specialized pieces of heavy construction machinery.
Core Structural Features
The upper structure consists of a standard Hydraulic Excavator unit, while the undercarriage is replaced by sealed pontoon floats and widened tracks. The pontoons provide buoyancy, and the tracks allow the machine to traverse silt and shallow water without sinking like a conventional excavator; this enables seamless operation across land, swamps, and shallow water zones.
Key Functions
River Dredging and Desilting
Clearing silt and weeds from riverbeds and ditches, as well as widening and deepening waterways (e.g., excavating silt directly from the river channel); this is the most common application in inland waterway management.
Wetland and Tidal Flat Ecological Restoration
Wetland rehabilitation, swamp excavation, tidal flat development, and reed pond management, helping to preserve wetland water systems.
Hydraulic Embankment Construction
River levee reinforcement, cofferdam excavation, flood control and emergency response, and flood defense operations in low-lying areas.
Pond and Fish Farm Modification
Excavating fish ponds, desilting shrimp ponds, and removing sediment from reservoirs.
Soft-Ground Earthworks
Excavation in swamps and low-lying soft-soil areas; capable of operating on muddy terrain inaccessible to standard excavators.
Advantages
Moves freely through shallow water and silty swamps without the need for support vessels;
Versatile functionality; supports interchangeable attachments such as buckets and Hydraulic Breakers;
Suitable for operations in narrow rivers and wetlands where large dredging vessels cannot enter.
Applicable Scenarios
River management, wetland restoration, hydraulic engineering, tidal flat development, fish pond modification, and flood control/emergency response.
Amphibious wetland excavators utilize a pontoon-track undercarriage to operate in swamps, shallows, and silty river zones. They are primarily used for river dredging, wetland restoration, pond excavation, and embankment construction, making them ideal for soft, water-logged environments where standard excavators cannot operate.

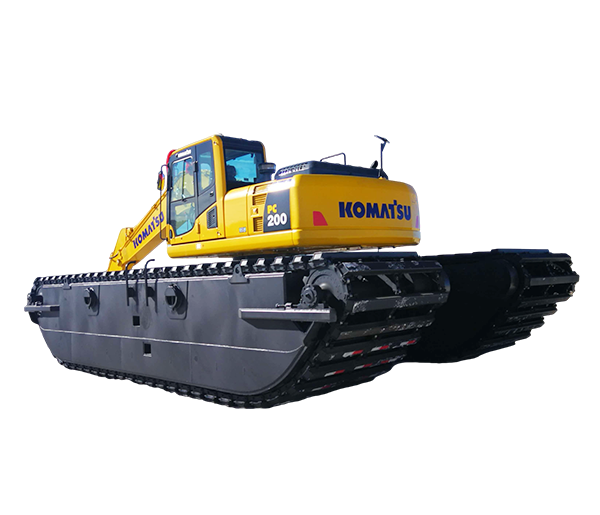

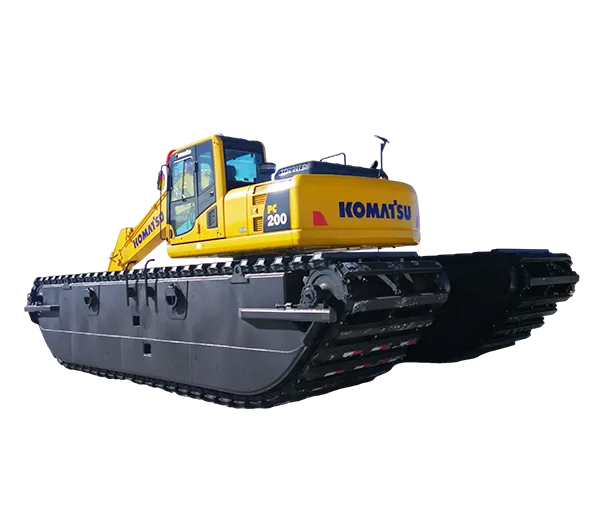

Komatsu 200 Wetland excavator for Soft Ground, Dredging and Wetland Projects
When a normal Excavator enters soft ground, the problem is not always digging power. Very often, the real problem is ground pressure. A machine may have enough engine power and hydraulic force, but if the tracks sink too deeply into mud, movement becomes slow, unstable and expensive. This is where a properly configured Komatsu 200 Wetland excavator can make a practical difference.
At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we look at this type of machine from the actual job site rather than only from a catalog. We supply construction equipment for different working conditions, and wetland excavation is one area where machine configuration matters a lot. For customers looking for a Komatsu 200 excavator for marshes, riverbanks, ponds, drainage projects or soft agricultural land, we first check the working environment, required digging depth, transportation conditions and attachment needs.
One important point should be made clear from the beginning. “Komatsu 200 Wetland excavator” is commonly used as a search and purchasing phrase for a Komatsu 200-class excavator configured for wet or soft-ground work. It should not automatically be treated as the exact official factory model name. Komatsu has produced different PC200-class and related machines for different markets and applications, and specifications can vary by model, year, region and configuration. For example, Komatsu lists the PC200-10M0 as a mid-size excavator with an operating weight of about 20,400 kg, 110 kW of power and a 1.00 m³ bucket in one market.
That distinction is important to us because we do not want to sell a machine by using a nice-looking specification sheet and then discover that the machine does not fit the customer's site. We prefer to confirm the actual machine, configuration and wetland requirements before an order is finalized.
In simple terms, a Komatsu 200 Wetland excavator is a Komatsu 200-class crawler excavator prepared for jobs where ordinary ground conditions are not available. Instead of working on hard soil, the machine may need to operate on mud, marshland, waterlogged ground, riverbanks, ponds, reclaimed land or other areas with poor bearing capacity.
The basic job is still excavation. The operator uses the boom, arm and bucket to dig, lift, swing and place material. What changes is the way we prepare the machine for the ground.
For soft-ground work, I pay close attention to the undercarriage first. Wider tracks or an extended track arrangement can spread the machine's weight over a larger contact area. In practical terms, this can help reduce ground pressure and make it easier for the excavator to move across soft terrain.
Ground clearance can also matter. Wetland projects often contain water, mud, vegetation, loose soil and hidden obstacles. A suitable configuration needs enough clearance and a working arrangement that matches the actual site. The hydraulic system also needs to deliver steady performance because wetland excavation is not always a simple “dig and dump” operation.
Komatsu's PC200 family has been used for general excavation and earthmoving applications. For example, the PC200/LC-8M0 is described by Komatsu as a workhorse for civil construction, rental and related industries, with an operating weight of 21,960 kg, 103 kW engine power and a 0.97 m³ bucket in the cited configuration.
For a wetland application, however, I would never assume that the standard machine specification is automatically suitable. Track width, undercarriage design, boom and arm selection, bucket type, hydraulic attachments and working range all need to be checked against the job.
On normal construction ground, the excavator can usually sit on a firm surface and transfer its digging force through the tracks. On soft ground, the situation is different.
Imagine putting a heavy box on wet soil. A small contact area makes it sink quickly. Put the same weight on a wider board, and the pressure is spread over a larger area. The basic idea is similar with a wetland excavator.
This is why a 200 Wetland excavator often needs more attention to track configuration than a standard excavator working on a prepared construction site.
We normally consider several questions before recommending a configuration:
How soft is the ground?
How deep is the water or mud?
Does the machine need to travel long distances on the wetland?
Will it work from the bank or directly inside the wet area?
What is the required digging depth?
How far does the excavator need to reach?
What type of soil, sludge or material will be handled?
Will a standard bucket be enough?
Does the customer need a long-reach boom or special attachment?
How will the complete machine reach the project site?
These questions may sound basic, but they can prevent expensive mistakes. A machine that looks suitable in a photograph may perform very differently once it enters deep mud.
Komatsu's published PC200-10M0 CE specifications, for example, show an operating weight range of approximately 19,900–20,500 kg and bucket capacities of 0.8–1.00 m³, depending on configuration. This gives us a useful reference for the 20-ton class, but it is not a promise that every wetland configuration will have exactly the same figures.
| Reference machine | Operating weight | Engine power | Bucket capacity | Typical positioning |
|---|---|---|---|---|
| Komatsu PC200-10M0 | 20,400 kg | 110 kW | 1.00 m³ | 20-ton class general excavation |
| Komatsu PC200-10M0 CE | 19,900–20,500 kg | 110 kW | 0.8–1.00 m³ | Civil engineering and general construction |
| Komatsu PC200LC-8M0 | 21,960 kg | 103 kW | 0.97 m³ | Earthmoving and general construction |
Source: Komatsu official product pages for PC200-10M0, PC200-10M0 CE and PC200LC-8M0. Specifications vary by market and configuration.
The table is useful as a reference, but when we quote a machine to a customer, we confirm the actual unit and final configuration separately.
The track is one of the most important parts of a wetland excavator. Wider tracks can distribute the machine's weight across a larger area. This is particularly useful when the soil is soft and the risk of sinking is high.
For some projects, customers may also need extended undercarriage arrangements. The correct choice depends on the site. Wider is not always automatically better because transport width, turning space and road regulations also have to be considered.
Digging in mud is different from digging on compact soil. When the machine is working, the bucket creates a reaction force. If the ground under the tracks moves too much, the operator can feel the difference immediately.
A suitable wetland excavator should therefore provide a stable platform for digging, swinging and lifting. We look at the complete machine rather than one individual component.
Hydraulics control the main working movements of an excavator. The boom, arm, bucket and swing system all depend on hydraulic power.
For dredging and drainage work, smooth control can be just as useful as raw digging force. The operator may need to remove material carefully without disturbing the surrounding bank or damaging an existing drainage structure.
Wetland sites can contain standing water, thick vegetation, mud and uneven ground. Suitable ground clearance gives the machine more room to work through difficult areas.
But again, I do not recommend choosing a machine only because it has a certain clearance number. The complete undercarriage and working conditions need to be considered together.
A wetland excavator does not always spend the whole day digging normal soil. Depending on the project, it may need a Dredging Bucket, cleaning bucket, hydraulic thumb, breaker, grapple or other attachment.
The attachment affects machine balance, hydraulic demand and working range. We therefore confirm the attachment before finalizing the machine configuration.
One common mistake in online equipment buying is assuming that the number in a model name tells the whole story. “200” generally points customers toward a machine class, but it does not mean that every Komatsu 200 excavator has identical specifications.
For example, Komatsu's official PC200-10M0 page lists a 20,400 kg operating weight, 110 kW engine power and 1.00 m³ bucket capacity. Meanwhile, the PC200LC-8M0 listed by Komatsu Australia and New Zealand has a 21,960 kg operating weight, 103 kW engine power and 0.97 m³ bucket capacity.
This is why we use the model number as a starting point rather than treating it as the final technical specification.
| Technical item | PC200-10M0 reference | PC200-10M0 CE reference | PC200LC-8M0 reference |
|---|---|---|---|
| Machine class | Mid-size excavator | Mid-size excavator | Mid-size excavator |
| Operating weight | 20,400 kg | 19,900–20,500 kg | 21,960 kg |
| Engine power | 110 kW | 110 kW | 103 kW |
| Bucket capacity | 1.00 m³ | 0.8–1.00 m³ | 0.97 m³ |
| Excavation depth reference | 6,010 mm | Not stated on cited summary page | Varies by configuration |
Source: Komatsu official product information. The figures are reference specifications and should not be used as the specifications of a modified wetland machine without confirmation.
There is another useful example. Komatsu's older PC200-8M0 technical brochure lists the PC200/LC-8M0 with a 0.8 m³ factory bucket, a maximum digging depth of about 6,620 mm and a maximum digging reach of about 9,875 mm for the stated configuration. That shows why model generation and configuration must be checked before using a specification in a quotation.
For a customer who needs a Komatsu 200 excavator for wetland work, I normally focus less on finding one “magic number” and more on matching the whole machine to the site.
Wetland construction can involve access roads, channels, embankments, drainage systems and site preparation. The machine needs to move carefully while still providing enough digging performance for the project.
Dredging is one of the most common reasons customers look for a wetland excavator. The machine can be used to remove sludge, sediment, soil, vegetation and other material from ponds, channels and shallow water areas, depending on the working arrangement.
For dredging, bucket selection becomes especially important. A bucket that works well for dense soil may not be the right tool for loose sludge. We discuss the material before selecting the attachment.
Water conservancy projects often include drainage channels, riverbanks, reservoirs, flood-control areas and irrigation systems. These sites can have soft soil and limited access, making a properly configured crawler excavator useful.
Land reclamation work can involve moving soil, cleaning channels, preparing ground and handling fill material. A 200-class excavator offers a useful balance between working capability and transport size for many medium-scale projects.
Farm drainage and land improvement sometimes require machinery to work in wet fields. A suitable wetland excavator can help clean drainage ditches, reshape channels and move soil where conventional wheeled equipment cannot work efficiently.
Environmental projects may include wetland restoration, waterway cleaning, vegetation removal and controlled material handling. These projects often require careful machine operation rather than simply maximum digging force.
Drainage construction, pipeline corridors, river maintenance and other municipal projects can involve areas where the ground is not fully prepared. A crawler excavator configured for soft terrain can give contractors more working flexibility.
For us, selling a machine does not finish when the customer confirms the order. A Large Excavator has many moving parts, and international transportation adds another layer of risk. Our job is to make the machine ready before it leaves.
Production time depends on the selected excavator, configuration, order quantity and any customization requirements. We confirm the expected delivery schedule before production so the customer has a clear idea of the process.
Before shipment, we inspect the machine's general appearance and basic operating condition. We pay attention to the engine, hydraulic system, undercarriage, working equipment and operating functions.
For a wetland configuration, the undercarriage deserves special attention. We check the track condition and related components, while also confirming that the agreed track arrangement and attachments match the order.
We also prepare standard accessories, operation manuals, spare parts and required documents according to the order. If the customer needs additional attachments or specific documentation for import clearance, we confirm those requirements before shipment.
I believe this practical inspection stage is important because a machine can look good from the outside while still having problems that only appear during operation. Basic functional checks give us a better chance to catch those issues before loading.
| Inspection area | What we check | Why it matters for wetland work |
|---|---|---|
| Engine | Starting, running condition and basic functions | Reliable power is needed for continuous excavation |
| Hydraulic system | Basic hydraulic operation and working movements | Stable boom, arm, bucket and swing operation |
| Undercarriage | Tracks and related components | Critical for movement on soft terrain |
| Working equipment | Boom, arm, bucket and attachment condition | Directly affects digging and material handling |
| Operating functions | Basic travel, digging and control functions | Helps confirm normal operation before shipment |
| Documents and accessories | Manuals, spare parts and agreed documents | Supports delivery, operation and maintenance |
This inspection process is based on our normal supply procedure and is adjusted according to the machine and customer order.
Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate as a comprehensive industrial group covering equipment R&D, manufacturing, testing, customization and global sales.
Our own HKLOONG product range includes Excavators, loaders, Backhoe loaders and swamp excavators. At the same time, we provide complete machine sales and leasing services involving domestic and international brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL.
This experience is useful when a customer is looking for a Komatsu 200 Wetland excavator because we understand that the machine itself is only part of the purchase.
The other part is matching.
What bucket does the customer need? What track configuration is suitable? Does the machine need to work from the bank or inside the wet area? How deep does it need to dig? What is the transport width? What country will it be shipped to? Are spare parts required? What documents are needed?
These are the questions that help turn a general excavator inquiry into a workable equipment solution.
Our international trade arm, Hefei Ganglong International Trade Co., Ltd., has years of experience in construction machinery, mining machinery and agricultural machinery. The team has served customers across Asia, Africa, America and other international markets.
For overseas customers, we normally arrange communication around the machine configuration first and then discuss delivery, payment, inspection, packing and transportation.
Payment is commonly arranged by T/T, with a deposit before production and the balance before shipment, subject to the agreed contract terms.
Complete wetland excavators are generally shipped by sea. Smaller spare parts and accessories can normally be arranged by air or express according to size, weight, destination and urgency.
For machine packing, we protect exposed areas with suitable film or protective materials, secure the machine for transportation and pack loose parts and accessories separately. Cartons or wooden cases may be used for smaller components according to the shipping requirement.
We also understand that customers buying construction machinery from overseas are often concerned about communication after the order. That is why we try to keep the process simple: confirm the machine, confirm the configuration, confirm the documents, inspect the equipment and then arrange shipment.
Not necessarily. “Komatsu 200 Wetland excavator” is best treated as a product/search phrase describing a Komatsu 200-class excavator configured for wetland applications. Official Komatsu model names vary by market and generation, such as PC200-series machines. We confirm the exact model and configuration before quotation.
It depends on the exact model and configuration. For example, Komatsu lists the PC200-10M0 at approximately 20,400 kg in one market, while the PC200LC-8M0 is listed at 21,960 kg in Australia and New Zealand. A wetland configuration can have different weight because of undercarriage, attachment and other equipment choices.
It depends on the actual ground conditions and machine configuration. A wider or extended track arrangement can help distribute machine weight, but it does not make an excavator suitable for every depth of mud or water. We need the site conditions before recommending the configuration.
Possible attachments include digging buckets, cleaning buckets, dredging-related buckets, Hydraulic Breakers, grapples and other tools. The exact choice depends on the material, hydraulic requirements and project.
A 200-class excavator can be used for certain dredging and waterway maintenance projects, particularly where the working depth and reach are within the machine's practical range. For deeper or more specialized dredging, a long-reach or dedicated dredging arrangement may be more suitable.
The production or preparation time depends on the exact excavator, availability, configuration, quantity and customization requirements. We confirm the expected schedule before production or preparation begins.
We check the machine's appearance, engine, hydraulic system, undercarriage, working equipment and basic operating functions. We also prepare the agreed accessories, manuals, spare parts and documents before shipment.
Complete wetland excavators are generally transported by sea. Smaller spare parts and accessories can be shipped by air or express when appropriate. The final method depends on machine dimensions, destination, shipping schedule and customer requirements.
Yes. We can discuss the working conditions and recommend a suitable configuration based on the project information. Useful details include ground condition, water depth, required digging depth, working reach, expected attachment, project location and transportation restrictions.
When I talk with customers about a Komatsu 200 Wetland excavator, I usually bring the conversation back to one simple question: what exactly does the machine need to do?
A wetland excavator is not simply a normal excavator with wider tracks. The ground condition changes the way the entire machine should be selected. Track width, machine weight, stability, hydraulic performance, attachment choice, reach, ground clearance and transport requirements all need to work together.
Komatsu's PC200-class machines provide a useful reference point for customers looking for a 20-ton-class excavator. Official Komatsu specifications show that different PC200 configurations can have different weights, power ratings and bucket capacities, which is exactly why we confirm the specific machine before making a final quotation.
At Ganglong, we supply construction, mining and agricultural machinery for customers in different markets. For a Komatsu 200 Wetland excavator, our role is to help match the available machine and configuration with the real working environment, then handle the inspection, documents, packing and international transportation arrangements.
If your project involves marshland, soft soil, riverbanks, ponds, drainage channels, land reclamation or other difficult terrain, send us the basic working conditions. We can then discuss the excavator class, track arrangement, attachment and delivery plan instead of simply quoting a machine based on its name.
For wetland excavation, the right machine is the one that fits the ground, the work and the transport plan together.
