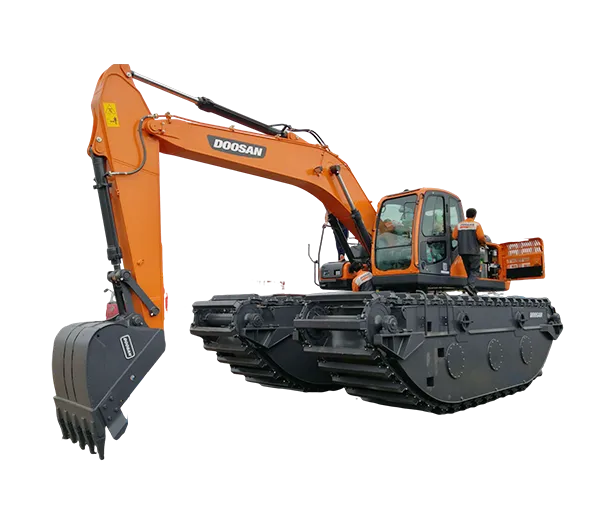

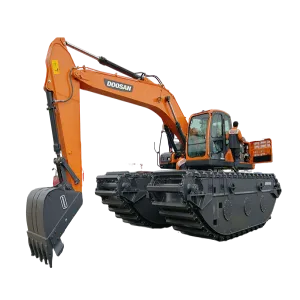

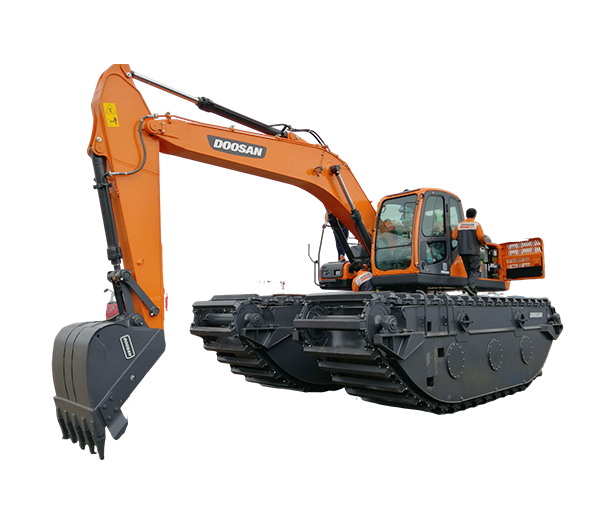

Doosan 215 Wetland excavator for Soft Ground, Dredging and Wetland Projects

When I talk with customers about a Doosan 215 Wetland excavator, I usually start with the ground condition instead of the Excavator model. That may sound a little strange, but it makes sense once you have worked around mud, marshes and waterlogged soil. On soft ground, a machine can have plenty of digging power and still struggle if the tracks sink too deeply or the working platform becomes unstable.

That is why we treat a wetland excavator as a complete working solution rather than simply a standard crawler excavator with a different name. At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we supply construction machinery for different working conditions, and we help customers match machine configuration with actual job requirements.

The keyword Doosan 215 Wetland excavator is commonly used to describe a Doosan 215-class crawler excavator prepared for soft-ground, wetland or water-related applications. The exact factory model name can vary by production year and market. Historical Doosan equipment documentation includes the DX225LC series, while current official product information is published under the DEVELON brand. For example, the official DEVELON DX225LC-7 is a 23.3-ton crawler excavator with 129 kW of engine power and a 0.81–1.05 m³ bucket range depending on configuration.

So, when we discuss a Doosan 215 excavator for a customer, we confirm the actual machine, production year, configuration, attachments and working conditions before making a final quotation. I think this is much safer than assuming every “215” machine has exactly the same specifications.

1. What Is a Doosan 215 Wetland Excavator?

A Doosan 215 Wetland excavator is a crawler excavator intended for jobs where normal firm ground is not available. It can be configured for excavation, dredging, drainage, land reclamation and material handling in places such as wetlands, marshes, muddy fields, riverbanks and ponds.

The basic principle is quite simple. The machine uses crawler tracks to move around the site, while the boom, arm and bucket provide the digging and loading functions. For wetland work, however, the undercarriage and working arrangement become especially important.

On hard soil, the machine can normally rely on the ground to support its weight. On soft soil, the same machine may start to sink. Once the tracks sink, travel becomes harder, fuel use can increase and the operator may have trouble keeping the machine stable.

This is why we often look at track width and ground pressure when discussing a wetland excavator. A wider track can spread the machine's weight over a larger area. Depending on the project, an extended undercarriage or other low-ground-pressure arrangement may also be considered.

But I would not tell a customer that wider tracks automatically solve every wetland problem. They do not. The actual mud depth, soil bearing capacity, water level, slope, working radius and transportation limits all matter.

The same rule applies to the bucket. A standard digging bucket may work well in firm soil, while a cleaning or Dredging Bucket may be more useful when handling loose sediment or sludge. The correct choice depends on what the machine will actually be doing.

2. Why Ground Conditions Matter So Much

One of the easiest ways to understand a wetland excavator is to think about walking on wet soil yourself.

If you stand on wet mud wearing narrow shoes, your feet sink. If you stand on a wider board, your weight is spread over a larger area and you are less likely to sink. An excavator works on the same basic idea, although the machine is obviously much heavier and the forces involved are much greater.

For a 215 Wetland excavator, track configuration is therefore one of the first things we discuss.

We normally ask the customer:

• How soft is the working ground?

• How deep is the mud?

• How much standing water is present?

• Does the excavator need to travel inside the wetland?

• Will the machine mainly work from the riverbank?

• What is the required digging depth?

• How far must the bucket reach?

• What material will be removed?

• Which attachment is required?

• How will the excavator be transported to the project?

These questions may look simple, but they can change the machine configuration considerably.

For example, a customer cleaning a shallow drainage channel may need a different arrangement from a contractor removing sediment from a large pond. A customer working on a riverbank may also have different requirements from someone reclaiming agricultural land.

We therefore do not treat the words “wetland excavator” as one fixed specification.

Instead, we use the project conditions to determine what kind of Doosan 215 excavator configuration makes practical sense.

3. Reference Specifications for the Doosan 215-Class Excavator

When customers search for “Doosan 215 excavator,” they are often looking for a machine around the 21–23 ton class. Historical Doosan specifications for the DX225LC-3 list a machine weight of 48,722 lb, which is about 22.1 metric tons, with 155 hp SAE net power. The same official page also lists 700 mm, 800 mm and 900 mm shoe options for that configuration.

Current DEVELON information for the DX225LC-7 gives another useful reference. It lists an operating weight of 23,300 kg, 129 kW / 174 hp engine power and a bucket capacity range of 0.81–1.05 m³ on the specification section. The model page also describes a 2 × 210.6 L/min maximum main pump flow.

Source: Official Doosan and DEVELON product information. The figures above are reference specifications for named models and should not be treated as the exact specification of every Doosan 215 Wetland excavator.

This difference between models is exactly why I recommend checking the machine identification plate, production year and specification sheet before purchasing.

4. Main Features I Look For in Wetland Applications

Wide Track Options

Wide tracks are one of the most practical features to consider when working on soft ground.

Historical Doosan DX225LC-3 information lists 700 mm, 800 mm and 900 mm shoe options. The wider shoe can provide a larger contact area, which may help distribute machine weight on soft ground.

However, wider tracks also increase transportation width. This is why we always consider the road transport plan together with the working condition.

Stable Crawler Undercarriage

The undercarriage carries the machine and transfers its weight to the ground. For wetland work, its condition is especially important.

When we inspect a used or prepared machine, we pay attention to the tracks and related components because poor undercarriage condition can create problems long before the engine reaches the end of its useful working life.

Strong Hydraulic System

The hydraulic system controls the boom, arm, bucket and swing movement. When the machine is dredging or cleaning a drainage channel, smooth hydraulic control can be very useful.

It is not always about moving the bucket as quickly as possible. Sometimes the operator needs slow and controlled movement to remove material without damaging a bank or existing structure.

Useful Working Range

Reach and digging depth become particularly important when the machine cannot move close to the excavation area.

The official DEVELON DX225LC-7 specification lists a maximum digging reach of 9,865 mm and maximum digging depth of 6,590 mm for the standard configuration.

These figures are useful as a reference, but a wetland machine using a different boom, arm or attachment can have different working dimensions.

Attachment Flexibility

A wetland excavator may use more than one bucket during its working life.

Depending on the project, we may discuss general-purpose buckets, cleaning buckets, dredging buckets, grapples, breakers or other hydraulic attachments. The attachment needs to match the machine's hydraulic system and working weight.

5. Technical Comparison: Different 215-Class Configurations

I find comparison tables useful because they show one simple fact: the model number alone does not tell us everything.

Source: Doosan DX225LC-3 official product information and DEVELON DX225LC-7M / DX225LC-7 official product pages.

There is also a special long-reach version. The official DEVELON DX225LC-7 SLR uses an 8,500 mm boom and 6,200 mm arm, with a maximum digging reach of 15.4 m and an operating weight of 24.6 tons.

This is a good example of why I ask about the actual job before recommending equipment. If a customer needs to reach across a pond or work from a riverbank, a long-reach arrangement may be more useful than simply increasing bucket size.

6. Applications of a Doosan 215 Wetland Excavator

Wetland Construction

Wetland construction often involves soft ground, limited access and drainage problems. A properly configured crawler excavator can help with earthmoving, channel preparation and material handling.

Dredging

Dredging is one of the most common applications associated with wetland machinery.

A Doosan 215 Wetland excavator can be considered for suitable pond, channel and shallow-water dredging work when the working depth and reach are within the machine's practical limits.

For loose sediment, mud and sludge, we usually pay close attention to bucket design. The goal is not simply to dig harder. The goal is to remove the material efficiently while keeping the machine stable.

Drainage Channel Maintenance

Blocked drainage channels can cause water to remain in agricultural land, construction areas and low-lying regions. An excavator can clean accumulated soil and vegetation and reshape the channel where necessary.

Riverbank Work

Riverbanks can be difficult because the ground close to the water may be much softer than the ground farther away. A crawler excavator with suitable reach can sometimes work from a firmer position while keeping the machine away from the weakest ground.

Land Reclamation

Land reclamation can involve soil movement, drainage, channel cleaning and material placement. A machine in the 20-ton class provides useful capacity for many medium-sized earthmoving jobs.

Agricultural Projects

Agricultural drainage is another practical application. Farmers and contractors may need to clean ditches, improve water flow or remove wet soil from specific areas.

Environmental Projects

Environmental work can include wetland restoration, waterway cleaning, vegetation management and sediment removal. These projects often require careful control because the surrounding environment needs to be disturbed as little as possible.

7. How We Prepare and Inspect the Machine

At Ganglong, we believe that equipment supply does not end with finding a machine. Preparing the machine properly before shipment is part of the job.

Production or preparation time depends on the excavator model, configuration, order quantity and customization requirements. We confirm the expected schedule before production or preparation begins.

Before shipment, we inspect the machine's appearance, engine, hydraulic system, undercarriage, working equipment and basic operating functions.

For a wetland excavator, the undercarriage deserves particular attention. Tracks are the connection between the machine and the ground, so their condition matters greatly when the machine will work in soft terrain.

We also check that the agreed bucket, attachments and accessories correspond with the order. Operation manuals, spare parts and required documents are prepared according to the customer's requirements.

This is our normal inspection approach. The exact inspection list can be expanded according to the machine and customer requirements.

8. Why Choose Ganglong for Doosan 215 Wetland Excavator Supply?

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate as a comprehensive industrial enterprise covering equipment R&D, manufacturing, testing, customization and global sales.

Our own HKLOONG product range includes Excavators, loaders, Backhoe loaders and swamp excavators. We also provide complete machine sales and leasing services involving domestic and international brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL.

This gives us experience across different equipment categories instead of working with only one type of machine.

For a customer searching for a Doosan 215 Wetland excavator, our job is not simply to repeat a model name. We want to understand the project and then confirm which machine and configuration can meet the requirement.

Our international trade arm, Hefei Ganglong International Trade Co., Ltd., has years of experience in construction machinery, mining machinery and agricultural machinery. The team has served markets across Asia, Africa, America and other regions worldwide.

For international customers, we can discuss the machine configuration, inspection, documents, payment and transportation as one process.

Payment is commonly arranged by T/T, with a deposit before production and the balance before shipment, according to the agreed contract.

Complete wetland excavators are generally transported by sea. Spare parts and smaller accessories can be shipped by air or express when appropriate.

Before loading, the machine is protected with suitable film and securely fixed according to transportation requirements. Loose accessories and spare parts are packed separately, using cartons or wooden cases when required.

We also understand that international machinery purchases involve more than the machine itself. Customers need clear information about the model, configuration, delivery schedule, inspection, documentation and transport.

That is why we prefer a straightforward process: understand the project, confirm the equipment, inspect the machine, prepare the documents, pack the equipment and arrange shipment.

Frequently Asked Questions About Doosan 215 Wetland Excavator

Is Doosan 215 Wetland excavator an official model name?

Not necessarily. “Doosan 215 Wetland excavator” is mainly used as a search and purchasing phrase for a Doosan 215-class excavator configured for wetland applications. Historical Doosan products include the DX225LC series, while current products are marketed under the DEVELON name in many markets. We confirm the exact model before quotation.

What is the operating weight of a Doosan 215 excavator?

The answer depends on the exact model and configuration. Historical Doosan DX225LC-3 specifications list 48,722 lb, while the current DEVELON DX225LC-7 is listed at 23,300 kg.

Can a Doosan 215 excavator work in wetlands?

It can be configured for suitable soft-ground applications, but the actual site conditions must be checked first. Mud depth, ground bearing capacity, water level, slope, track configuration and working method all affect whether a particular machine is suitable.

Can wider tracks reduce ground pressure?

Wider tracks spread the machine's weight over a larger contact area and can therefore help reduce ground pressure. However, the actual result depends on machine weight, track dimensions, soil conditions and other factors.

Can the machine be used for dredging?

Yes, a suitable 20-ton-class crawler excavator can be used for certain dredging and pond-cleaning applications. The required reach, water depth, material type and bucket arrangement should be confirmed before selecting the machine.

What attachments can be supplied?

Depending on the machine and project, attachments may include general-purpose buckets, cleaning buckets, heavy-duty buckets, Hydraulic Breakers, grapples, clamshell buckets and other tools. The exact attachment depends on hydraulic compatibility and the intended work.

How long does delivery take?

Delivery time depends on the exact machine, configuration, order quantity, availability and customization requirements. We confirm the schedule before production or preparation.

How do you inspect the excavator before shipment?

We inspect the machine's appearance, engine, hydraulic system, undercarriage, working equipment and basic operating functions. We also prepare the agreed accessories, manuals, spare parts and required documents.

How is a wetland excavator transported?

Complete machines are generally shipped by sea. Smaller spare parts and accessories can be sent by air or express depending on their size, weight, destination and urgency.

Can you arrange a wetland excavator according to a specific project?

Yes. We can discuss the project conditions and help determine a suitable machine and configuration. It is useful to provide the ground condition, water depth, required digging depth, working reach, attachment requirements, project location and transport restrictions.

Conclusion

A Doosan 215 Wetland excavator is not simply about choosing a machine with “215” in its name. For soft-ground work, the details matter.

Track width, machine weight, ground pressure, stability, hydraulic performance, working range and attachment selection all affect how the excavator performs in a wet environment.

Official Doosan and DEVELON information also shows why model identification is important. Different generations of the DX225LC family have different weights, engine outputs and configurations.

At Ganglong, we focus on matching the machine with the actual job. Whether the project involves dredging a pond, cleaning a drainage channel, working along a riverbank, reclaiming land or handling material in soft terrain, we first look at the working conditions.

We then discuss the suitable excavator class, undercarriage arrangement, attachment, inspection requirements and shipping plan.

For international customers, our team can also coordinate payment, documents, packing, sea transportation and spare-parts arrangements.

If you are searching for a Doosan 215 Wetland excavator, the most useful information to send us is not only the machine name. Tell us where the machine will work, how soft the ground is, how deep the water or mud is, how far it needs to reach and what material it needs to remove.

With those details, we can work around the actual project instead of simply selling a model number.

The right wetland excavator should fit the ground, the job and the transport plan together.
