When I work with customers looking for a Wheeled Excavator, one requirement comes up again and again: they want a machine that can dig like an excavator but move around a jobsite without the hassle of a crawler machine. That is where the M315 GC Wheeled Excavator becomes interesting. It is built for customers who need digging performance, road mobility, and practical operation in the same machine.

The Cat M315 GC is a medium-size wheel excavator designed for applications where the machine may need to travel between work areas frequently. Unlike a crawler excavator, it runs on wheels and is therefore better suited to paved roads, urban construction sites, utility projects, road maintenance, landscaping, drainage work, and similar jobs. Caterpillar lists a maximum travel speed of 37 km/h and a maximum operating weight of 15,600 kg for the M315 GC reference configuration.

From my point of view, the biggest advantage of a wheeled excavator is not simply speed. It is flexibility. If a contractor needs to finish a drainage section on one street, travel to another nearby location, and then work beside a road without arranging a separate low-bed trailer every few hundred meters, road mobility becomes a real working advantage.

At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we focus on matching the machine to the actual job instead of looking only at the model name. We work with construction machinery, mining machinery, agricultural machinery, and related attachments, while our international trade team handles customers across Asia, Africa, America, and other markets. For an M315 GC Wheeled Excavator, we can assist with machine selection, configuration confirmation, inspection, export preparation, documentation, and transportation arrangements.

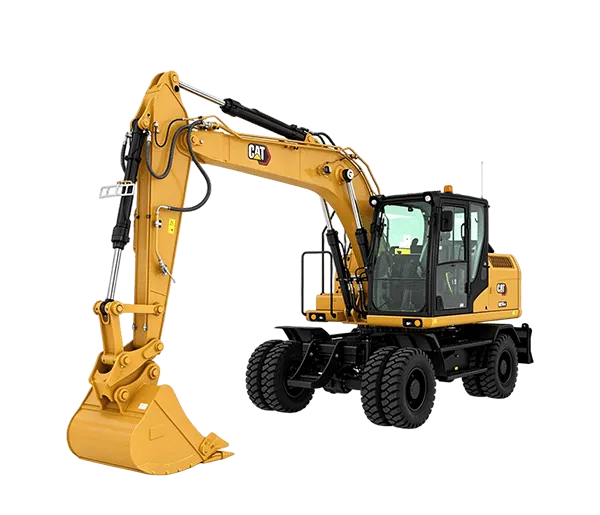

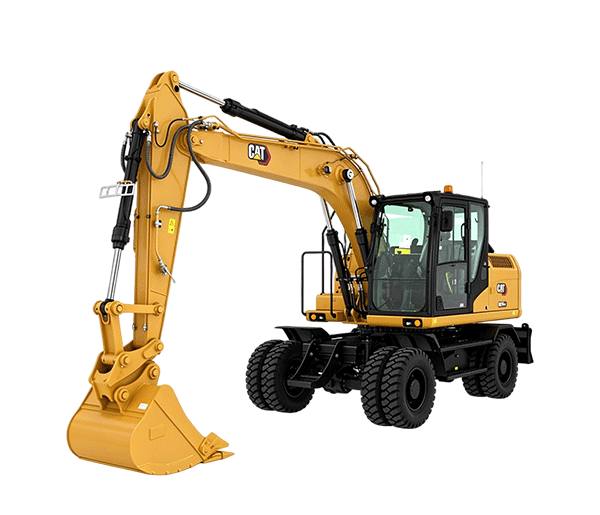

1. What Is the M315 GC Wheeled Excavator?

The M315 GC Wheeled Excavator is a wheeled Construction Excavator developed for customers who need both excavation capability and road-going mobility. Its four-wheel design allows the machine to travel more easily between nearby work locations than a traditional crawler excavator.

The machine uses a Cat C4.4 engine. Caterpillar's published M315 GC specifications list 121 hp (90 kW) of net power under ISO 9249 and 125 hp (93 kW) under ISO 14396. The maximum operating weight is listed at 15,600 kg, while maximum travel speed reaches 37 km/h in the referenced configuration.

These numbers give us a useful starting point, but I would not choose this machine based on horsepower alone. With a wheeled excavator, road mobility, steering, braking, working equipment, stabilizer configuration, hydraulic performance, and attachment compatibility all matter. The machine needs to move efficiently when traveling and remain stable when digging.

Source: Caterpillar official M315 GC product specifications and Caterpillar M315 GC product announcement. Actual specifications may vary according to market, model configuration, attachments, and production version.

The published working range is also useful when planning a project. Caterpillar lists a maximum digging depth of 5,091 mm, maximum ground reach of 8,312 mm, maximum loading height of 6,378 mm, and vertical wall digging depth of 4,198 mm for the referenced M315 GC configuration.

2. How a Wheeled Excavator Works

The basic working principle of the M315 GC is similar to other hydraulic Excavators. The engine produces power, the hydraulic system converts that power into controlled movement, and hydraulic cylinders operate the boom, stick, and bucket. The upper structure can swing, while the wheeled undercarriage moves the machine from one working position to another.

What changes is the undercarriage. A crawler excavator uses tracks, while a wheeled excavator uses wheels and a road-going chassis. This difference affects where the machine works best.

For example, imagine a municipal contractor replacing drainage pipes along a long urban road. A crawler excavator can certainly do the digging, but moving it from one section to another usually means using a transport vehicle. A wheeled excavator can often travel between nearby work areas much more easily, subject to local road regulations and site conditions.

The operator uses the hydraulic controls to lower the boom, extend the stick, and curl the bucket into the soil. Once the bucket is full, the upper structure swings toward a truck, spoil pile, or other unloading location. The machine then returns to the excavation area and repeats the cycle.

When working on wheels, stability becomes particularly important. Outriggers, a dozer blade, or other available stabilizing equipment can be used according to the machine configuration and job requirements. Before digging, the operator should make sure the machine is positioned correctly and the ground is suitable.

I always tell customers that road mobility does not mean the machine can be driven anywhere under any condition. Local traffic rules, road weight limits, tire condition, braking requirements, and site safety rules still apply. The advantage is that the machine is designed around mobility, making it particularly useful for projects where travel between nearby work zones is part of the daily routine.

3. Main Features I Look for in the M315 GC

Fast Movement Between Work Areas

The maximum travel speed listed by Caterpillar for the M315 GC is 37 km/h. For a wheeled excavator, this is an important practical feature. The machine does not have to spend all its time sitting on a transport truck whenever it needs to move a short distance between suitable work areas.

This makes the M315 GC useful for road construction, municipal maintenance, utility installation, drainage projects, and landscaping. These jobs often involve several small work zones rather than one large open excavation area.

Balanced Machine Size

With a published maximum operating weight of 15,600 kg, the M315 GC sits in a size range that can be useful for medium-duty construction and infrastructure work. It is large enough for serious excavation tasks but still designed around road mobility.

For me, this balance is one of the most important points. A contractor working in a crowded city does not always need a huge crawler excavator. In some cases, a machine that can reach the working area under its own power is more practical.

Useful Digging Range

The M315 GC reference configuration has a maximum digging depth of 5,091 mm and a maximum reach at ground level of 8,312 mm. This working range is suitable for many utility, drainage, road, landscaping, and general construction tasks.

Before selecting the machine, however, I recommend checking the actual required digging depth. If a project involves unusually deep excavation, a different boom and stick combination or another excavator class may be more suitable.

Hydraulic Working System

The hydraulic system is the part of the machine that turns engine power into digging and lifting movement. Caterpillar lists maximum implement and travel circuit pressure of 35,000 kPa for the M315 GC reference specification.

For the customer, the important thing is not simply having a high pressure number. What matters is smooth control, reliable response, and matching the hydraulic system to the attachment. A bucket for general digging has different requirements from a hydraulic hammer or other powered attachment.

Practical Operator Controls

For a machine used in urban work, operator control matters. The machine may be working close to buildings, traffic, utility lines, sidewalks, parked vehicles, and other equipment. Smooth hydraulic control can make daily work easier and help the operator place the bucket accurately.

Caterpillar's M315 GC product information emphasizes easy-to-use controls and practical operation. For us, this is also something worth considering when discussing the machine with a customer. A machine is not productive simply because it has strong specifications. The operator needs to work with it comfortably for many hours.

4. M315 GC Wheeled Excavator vs. Crawler Excavator

Customers often ask me whether a wheeled excavator is better than a crawler excavator. I usually change the question slightly: which machine fits the jobsite better?

A crawler excavator is normally a strong choice when the machine needs high traction and stability on rough, soft, muddy, or uneven ground. A wheeled excavator makes more sense when road travel and movement between nearby work areas are important.

Source: General equipment application comparison based on wheeled and crawler excavator operating principles. Machine suitability depends on actual site conditions, local regulations, configuration, and attachment selection.

The difference becomes obvious in urban utility work. If a contractor has to dig several trenches along a road, a wheeled excavator can travel between sections without repeatedly loading and unloading from a trailer, where local regulations permit road travel.

On the other hand, if the job involves steep slopes, very soft ground, muddy construction areas, or rough quarry terrain, I would pay more attention to crawler stability and traction.

There is no universal answer. The working surface should always be part of the machine selection process.

5. Applications of the M315 GC Wheeled Excavator

Urban Construction

Urban construction is one of the clearest applications for a wheeled excavator. Jobsites are often spread across busy streets, narrow work zones, and developed areas. The machine may need to travel between locations several times during the day.

The M315 GC can be used for general excavation, site preparation, material handling, and supporting construction work where its size and working range are appropriate.

Municipal Engineering

Municipal projects often involve drainage channels, roadside maintenance, sewer work, water pipelines, and other public infrastructure. These projects are rarely confined to one large open site.

A wheeled excavator can move between work sections more easily than a tracked machine, which can make it useful for maintenance contractors and municipal engineering teams.

Utility Installation

Gas, water, electricity, communications, and drainage projects often require narrow trenches along roads or developed areas. The excavator may dig, load spoil, backfill, and move to the next section.

For this kind of work, machine reach, bucket size, working width, road mobility, and attachment options should all be considered together.

Road Construction and Maintenance

Road contractors can use wheeled excavators for drainage work, shoulder preparation, roadside excavation, material handling, and other maintenance tasks. The ability to travel between nearby work areas is especially useful when the project covers a long road section.

Landscaping

Landscaping contractors may need to move soil, prepare planting areas, dig drainage systems, remove old material, and reshape outdoor spaces. A medium-size wheeled excavator can provide a useful balance between digging capability and mobility.

Demolition Support

With a suitable attachment and configuration, a wheeled excavator can support selected demolition and material-handling tasks. The exact attachment must be matched to hydraulic flow, pressure, machine stability, and the job's safety requirements.

6. M315 GC Technical Reference and Configuration

When I prepare a quotation, I try not to mix specifications from different excavator models. This sounds obvious, but it is surprisingly easy to see online product pages that combine data from different generations or markets.

For the M315 GC, Caterpillar's official reference information lists the Cat C4.4 engine, 121 hp (90 kW) net power under ISO 9249, maximum operating weight of 15,600 kg, and maximum travel speed of 37 km/h. The published maximum digging depth is 5,091 mm and maximum ground reach is 8,312 mm.

Source: Caterpillar official M315 GC product page and M315 GC specification guide. Specifications are reference values and should be confirmed for the exact machine and destination market before purchase.

There is also an important distinction between the M315 GC and the standard M315. Caterpillar currently publishes separate product specifications for these machines. The standard M315 page lists a different configuration, including up to 18,000 kg operating weight, 141 hp (105 kW) net power, 35 km/h maximum travel speed, and a different working range.

Source: Caterpillar official M315 GC and M315 product specifications. The two models use different configurations and should not be treated as interchangeable.

This is exactly why I recommend confirming the model name and configuration before publishing a specification table, placing an order, or comparing quotations. A difference of one letter in the model name can mean a different machine configuration.

7. How We Prepare a Wheeled Excavator for Delivery

At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we treat machine delivery as a process rather than simply putting equipment on a ship.

Our group was founded in 2013 and integrates equipment R&D, manufacturing, testing, customization, and global sales. We offer our own HKLOONG excavators, loaders, Backhoe loaders, and swamp excavators. We also provide complete-machine sales and leasing services involving brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON, and LOVOL according to actual supply arrangements.

For international customers, Hefei Ganglong International Trade Co., Ltd. serves as our professional international trade arm. Our team has experience with construction machinery, mining machinery, agricultural machinery, and related equipment, and we have served customers across Asia, Africa, America, and other regions.

When handling a wheeled excavator order, I first confirm the machine model, working application, attachments, destination country, and transport requirements. Then we can determine whether the machine configuration is suitable for the project.

Inspection Before Shipment

Before delivery, we check the main operating functions of the machine. This includes engine operation, hydraulic functions, steering, braking, working equipment, electrical systems, tires, controls, and overall operating condition.

For a wheeled excavator, I pay particular attention to the road-going components. A machine that works well in the yard still needs its steering and braking systems to be checked before it is prepared for transportation.

Production and Preparation Time

For standard crawler and wheeled excavator orders, the typical production or preparation cycle is around 30 to 60 days. The actual time depends on the model, configuration, order quantity, customization requirements, machine availability, inspection arrangements, and shipping schedule.

For this reason, I prefer to give customers a practical delivery estimate after the machine configuration has been confirmed instead of promising an identical lead time for every order.

Delivery Documents

Depending on the order and destination, delivery standards can include factory testing, inspection records, operating manuals, spare parts, certificates, and relevant shipping documents. Export documentation should be confirmed according to the destination country's requirements before shipment.

Payment Terms

International machine purchases are commonly arranged by T/T. A typical arrangement includes a deposit after order confirmation and the balance before shipment. The exact payment schedule is confirmed in the commercial contract according to the machine, supplier arrangement, order value, and customer requirements.

Transportation and Packing

Wheeled excavators can be transported by Ro-Ro vessel, bulk vessel, or suitable container solutions depending on machine dimensions, weight, destination, and shipping availability. For long-distance transportation, the machine is normally cleaned, protected against rust and moisture, securely fixed, and covered or wrapped as needed.

Detachable components may be packed separately when doing so reduces transportation space or provides better protection. The final packing and securing method depends on the machine configuration and selected shipping method.

8. Why Choose Ganglong for an M315 GC Wheeled Excavator?

Buying construction machinery internationally involves more than choosing a model from a catalog. There are specifications to verify, machine conditions to inspect, documents to prepare, attachments to match, and shipping details to arrange.

This is where our experience in construction machinery and international trade becomes useful. We can communicate with customers about the practical side of the purchase, from application and configuration to inspection and export preparation.

I also prefer to keep the product information clear. If a specification comes from a particular Caterpillar configuration, we identify it as such. If the machine is supplied through a particular commercial arrangement, we explain that arrangement. We do not present Ganglong as the manufacturer of a machine that is actually manufactured by another brand.

For customers searching for an M315 GC Wheeled Excavator for Sale, this distinction matters. The Caterpillar brand and machine specifications belong to Caterpillar, while our role is as an equipment supplier and international trade partner. This keeps the purchasing process more transparent.

Our customers may need different things. A road contractor may care most about mobility. A municipal contractor may need compact working dimensions and utility attachments. A landscaping company may focus on bucket selection and handling. A dealer may care more about export documents, parts, shipping, and commercial terms.

We can start from those actual requirements and then work backward to the appropriate machine configuration.

9. FAQ About the M315 GC Wheeled Excavator

Q1: What is the M315 GC Wheeled Excavator mainly used for?

The M315 GC is designed for applications where excavation performance and road mobility are both important. Typical applications include urban construction, road maintenance, utility installation, drainage, municipal engineering, landscaping, site preparation, material handling, and selected demolition work.

Q2: How fast can the M315 GC travel?

Caterpillar lists a maximum travel speed of 37 km/h for the M315 GC reference configuration. Actual road operation must always follow local traffic laws, weight restrictions, site rules, and the machine's operating instructions.

Q3: What engine does the Cat M315 GC use?

The M315 GC uses a Cat C4.4 engine. Caterpillar lists 121 hp (90 kW) net power under ISO 9249 and 125 hp (93 kW) under ISO 14396 for the referenced configuration.

Q4: How deep can the M315 GC excavate?

The published maximum digging depth for the referenced M315 GC configuration is 5,091 mm. Working range can change with boom, stick, bucket, and other equipment, so the exact configuration should be confirmed before purchase.

Q5: Is a wheeled excavator suitable for road construction?

Yes. Wheeled excavators are commonly used for road construction and maintenance because they can move efficiently between nearby work areas. They are particularly useful for drainage, utility trenching, roadside excavation, material handling, and similar work where frequent relocation is required.

Q6: What is the difference between an M315 GC and a crawler excavator?

The main difference is the undercarriage. The M315 GC uses wheels and is designed around road mobility, while crawler excavators use tracks and are generally better suited to rough, soft, muddy, or uneven ground where traction and stability are important.

Q7: How long does it take to prepare an excavator for delivery?

Our typical production or preparation cycle is around 30–60 days for standard excavator orders, but the actual schedule depends on machine availability, configuration, quantity, customization, inspection, and shipping arrangements.

Q8: Can Ganglong arrange overseas shipping?

Yes. Our international trade team can assist with export preparation and transportation arrangements. Depending on machine dimensions and destination, shipping may use Ro-Ro vessels, bulk vessels, or suitable container solutions. Packing and securing methods are selected according to the machine and transportation plan.

Conclusion: A Wheeled Excavator Built Around Mobility and Practical Work

The M315 GC Wheeled Excavator is designed for a very practical type of construction work: jobs where the machine needs to dig, lift, load, and then move to another work area without making transportation the center of the project.

Its Cat C4.4 engine, published 121 hp net power, 15,600 kg maximum operating weight, 37 km/h maximum travel speed, 5,091 mm maximum digging depth, and 8,312 mm maximum ground reach give it a useful specification profile for urban construction, utility work, road maintenance, municipal engineering, landscaping, and related applications.

But the numbers are only part of the story. The real question is whether the machine fits the jobsite. If the project involves frequent movement between nearby work areas, paved roads, utility corridors, drainage work, or urban construction, the wheeled design can be very practical. If the site is extremely soft, muddy, steep, or rough, the customer should carefully compare the machine with a crawler excavator before making a decision.

At Ganglong, we help customers look at that complete picture. From machine selection and configuration confirmation to inspection, payment arrangements, documentation, packing, and international transportation, our goal is to make the equipment purchasing process straightforward.

If you are looking for an M315 GC Wheeled Excavator for urban construction, roadwork, utility installation, municipal engineering, landscaping, or material handling, we can work from your actual project requirements and help confirm a suitable machine configuration for your market and delivery destination.
