When a construction project requires both excavation power and the ability to move quickly between work areas, I usually look at a wheeled Excavator first. A crawler excavator is excellent on soft or uneven ground, but it is not always convenient when a machine has to travel along roads, move between several nearby work zones, or work in a busy urban area. This is where the M320 Wheel Excavator makes practical sense.

At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we supply construction machinery for customers who care about more than a machine's name on the specification sheet. We look at where the excavator will work, how far it needs to travel, what attachments are required, how it will be shipped, and what support the customer needs after delivery. For the M320, these details matter because the machine can be configured in different ways for different jobs.

The current Caterpillar M320 specification lists a Cat C4.4 engine with 174 hp (129 kW) under ISO 14396, a maximum operating weight of 21,200 kg, and a maximum travel speed of 35 km/h. Depending on configuration, Caterpillar lists a 5,260 mm variable adjustable boom, 2,500 mm stick, 0.98 m³ general-duty bucket, 6,030 mm maximum digging depth, and 9,290 mm maximum reach at ground level. These figures are useful when planning a project, but I always recommend checking the exact machine configuration before placing an order.

In simple terms, the M320 is built for contractors who do not want to choose between mobility and digging ability. It can travel on roads, reach a work area without the same transport arrangement normally required for a crawler machine, and then work as a full-size Hydraulic Excavator once it arrives. That combination makes it particularly useful for utility construction, roadwork, municipal engineering, drainage, trenching, landscaping, waste handling, and general site work.

1. What Makes the M320 Wheel Excavator Different?

The biggest difference is right under the machine. Instead of crawler tracks, the M320 uses a wheeled undercarriage. That sounds like a small change, but on a real construction site it changes how the machine is used every day.

Imagine a contractor working on a long urban drainage project. The first trench may be 500 meters away from the next work area. With a crawler excavator, the machine can certainly be moved, but road travel normally requires more planning and often additional transport equipment. With a Wheeled Excavator, the machine can travel between suitable work areas under its own power, subject to local road regulations and site conditions.

The current M320 is listed with a maximum travel speed of 35 km/h. Caterpillar also describes the longer wheelbase as helping operating stability and ride quality when traveling between jobsites. The company's launch information for the M320 specifically mentioned utility work, trenching and waste handling as applications.

For me, this is the practical value of an M320 Wheeled Excavator: it is not simply an Excavator With Wheels. It is a machine designed around the idea that excavation and road travel may both be part of the same working day.

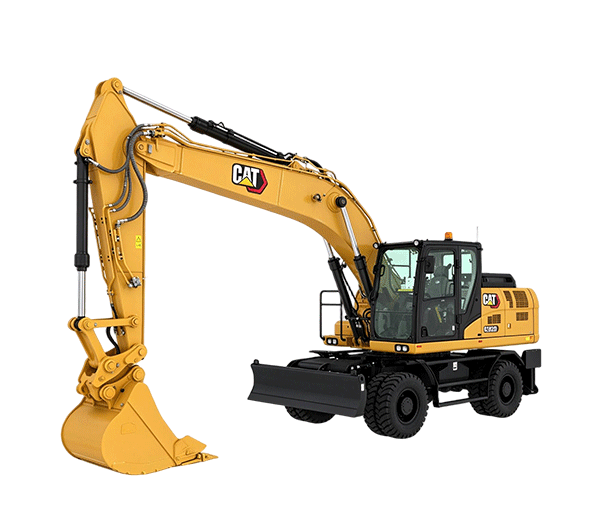

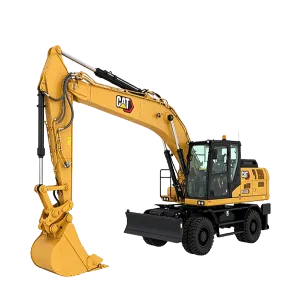

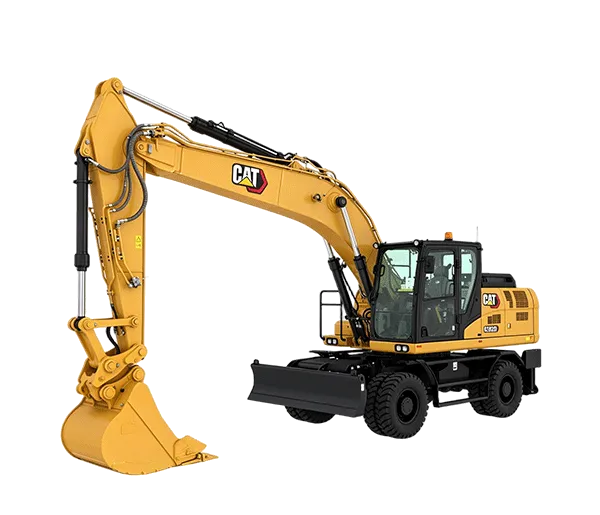

M320 Wheel Excavator at a Glance

Source: Caterpillar M320 product specifications. Actual values can change according to boom, stick, counterweight, tires, bucket, Quick Coupler, regional specification and other equipment choices.

One point I always make clear to buyers is that these numbers should not be treated as a promise that every M320 sold in every country will have exactly the same setup. Caterpillar itself notes that equipment and specifications can vary by configuration and region. For an export order, we confirm the actual machine configuration, attachments, tires, counterweight and required documents before shipment.

2. How the M320 Wheel Excavator Works on a Jobsite

The working principle of the M320 is straightforward. The engine provides power, the hydraulic system turns that power into controlled movement, and the wheeled chassis allows the excavator to move between work areas. The operator uses the controls to operate the boom, stick and bucket, while the upper structure can rotate to load trucks or move material.

The hydraulic system is especially important because an excavator does not dig simply by engine horsepower. The engine drives the hydraulic system, and hydraulic oil under pressure moves the cylinders and motors. When the operator moves the joystick, the hydraulic system sends oil to the correct component. The boom rises, the stick moves, or the bucket curls depending on the command.

For the current M320 specification, Caterpillar lists a maximum implement hydraulic flow of 306 L/min, normal implement pressure of 35,000 kPa, and heavy-lift implement pressure of 37,000 kPa. The machine also has a dedicated swing system and a maximum swing torque listed at 52.5 kN·m. These figures help explain why the machine can handle digging, loading and attachment work rather than being designed only for road travel.

When digging a trench, the operator normally positions the machine, locks or stabilizes the axle as required, lowers the working equipment and uses the bucket to cut and collect soil. The upper structure then swings toward the truck or stockpile. After unloading, the excavator swings back to the trench and repeats the cycle.

That cycle may sound simple, but small improvements matter when a machine repeats it hundreds of times every day. Smooth hydraulic control, good visibility, stable positioning and quick movement between locations can all affect the amount of work completed in a shift.

Wheeled Excavator vs. Crawler Excavator

Source: This table combines Caterpillar's published M320 road-travel and application information with the normal operating characteristics of wheeled and crawler Excavators. It is a practical application comparison rather than a manufacturer-to-manufacturer performance test. Caterpillar specifically identifies road travel, utility work, trenching and waste handling among M320 applications.

I would not tell a customer that a wheeled excavator is always better than a crawler excavator. That is simply not true. If your main work is on soft ground, steep terrain or constantly changing rough surfaces, a crawler excavator may make more sense. If your work is spread across roads, urban streets and several nearby construction areas, the M320's mobility becomes much more valuable.

3. Main Features I Look at When Choosing an M320

Road Mobility

Road mobility is the first thing most buyers notice. The M320 can travel at up to 35 km/h according to the current Caterpillar specification. For contractors handling utility work, road maintenance or municipal projects, this can reduce the number of times a separate transport vehicle is needed for short moves between suitable sites. Local road laws, permits and machine configuration still need to be checked before road travel.

Long Wheelbase and Working Stability

A wheeled excavator needs a good balance between mobility and stability. Caterpillar states that the M320's longer wheelbase helps improve operating stability and ride quality when traveling. This matters when the machine changes from road travel to actual digging.

Of course, no machine should be treated as automatically stable in every condition. Ground slope, outrigger position, attachment weight, lifting radius and load all matter. When customers use the M320 for lifting, we pay close attention to the actual operating conditions rather than looking only at a headline lifting figure.

Heavy Lift Mode

The M320 includes a Heavy Lift mode designed to provide additional force when needed. Caterpillar lists 37,000 kPa maximum implement pressure in heavy-lift mode compared with 35,000 kPa for normal implement pressure. This can be useful when handling heavier loads or performing demanding excavation work.

Attachment Flexibility

A good excavator should not be limited to one bucket. Depending on the project and hydraulic configuration, the M320 can work with different attachments. Caterpillar lists buckets, grapples, hammers, multi-processors and tiltrotators among available attachment solutions. Optional technology can also support grading and material weighing applications.

For a contractor, this means one machine can potentially cover several jobs. A general-duty bucket can handle normal excavation. A ditch-cleaning bucket can help with shaping and drainage work. A grapple can handle irregular materials. A hammer can be used for concrete or rock breaking when the hydraulic requirements are properly matched.

Operator Visibility and Comfort

Operators spend many hours inside the cab, so I do not consider cab design a minor feature. The current M320 specification includes a sound-suppressed ROPS cab, a 10-inch high-resolution touchscreen monitor, rear and right-side cameras, and controls designed for easy access. Deluxe and Premium cab options are also available depending on configuration.

Good visibility is particularly useful in urban work. Utility projects often involve workers, barriers, trucks, pipes and other equipment operating within a relatively small area. The M320 uses large windows, smaller cab pillars, a flat engine hood design and camera systems to help the operator see around the machine.

4. Technical Advantages for Real Construction Work

Technical specifications are useful, but I prefer to explain them through actual work. A contractor buying an M320 is usually not interested in hydraulic pressure simply because the number looks impressive. The real question is: what does the number help me do?

For trenching, the hydraulic system needs to provide enough force to move the bucket through soil while allowing the operator to control the boom and stick smoothly. For loading, the machine needs enough reach and lifting ability to place material into a truck. For roadwork, it needs to travel efficiently between locations. For attachment work, it needs suitable auxiliary hydraulic performance and control.

The M320's current specification lists a 9,290 mm maximum reach at ground level and a 6,030 mm maximum digging depth with the referenced configuration. Maximum loading height is listed at 6,960 mm. Bucket and stick forces are listed at 137 kN and 92 kN respectively.

These figures give contractors a useful starting point for checking whether the machine can reach the required trench depth or loading position. They should not, however, be treated as guaranteed production rates. Soil type, operator skill, bucket design, working cycle, haul distance and site layout all influence actual output.

M320 Configuration and Working Range

Source: Caterpillar M320 product specification. Working ranges are based on the specified boom, stick, bucket and tire configuration; actual results vary with configuration and working conditions.

Another point I like about the M320 is the combination of mechanical and digital tools. The machine can be equipped with systems such as Cat Grade with 2D, Cat Grade with Assist, Cat Payload and Cat Grade 3D Ready, depending on the selected configuration and market. These systems are not magic buttons, but they can make repetitive grading, trenching and loading work easier to control.

For fleet owners, VisionLink can provide machine data such as hours, miles, location, idle time and fuel utilization. Remote Flash and Remote Troubleshoot can also help with software updates and certain diagnostic tasks. Feature availability depends on machine configuration and region.

5. Where I Recommend the M320 Wheel Excavator

The M320 is especially useful when a project combines excavation with frequent machine movement. Below are the applications we most commonly consider when discussing a Cat M320 wheeled excavator with customers.

Utility Construction

Utility projects are a natural fit. Water pipes, gas lines, electrical systems, communication cables and drainage networks often run through developed areas. Contractors may need to dig a trench, move a short distance, load spoil, place material and then continue along the same road.

In this type of project, mobility is not a nice extra. It can directly affect how the crew organizes the workday. The M320 can travel between suitable work areas while retaining the digging capability expected from a medium-to-Large Wheeled Excavator.

Road Construction and Maintenance

Road contractors often work along long stretches of pavement. The machine may need to clean drainage channels, excavate shoulders, handle fill, remove damaged material or prepare areas for utility work. A wheeled excavator can be moved along suitable roads without the same transport process normally associated with moving a crawler machine.

Municipal Engineering

Municipal work is often unpredictable. One day the machine may be repairing drainage; the next day it may be helping with a sidewalk project or utility trench. The ability to move between locations and change attachments can make a wheeled excavator useful for municipal contractors.

Drainage and Trenching

Drainage projects require controlled excavation rather than simply moving large amounts of soil. The operator needs to maintain trench shape, work around existing infrastructure and often clean or reshape channels. The M320's hydraulic control and working range make it suitable for this kind of work when the configuration is matched to the project.

Landscaping and Site Preparation

Large landscaping projects may include earth moving, grading, ditch preparation, material placement and removal of unwanted soil. With the right attachment, the M320 can handle several of these tasks without changing to another base machine.

Waste and Material Handling

Caterpillar specifically identifies waste handling among the applications of the M320. With suitable hydraulic attachments such as grapples, the machine can be configured for sorting and handling certain waste or scrap materials. The correct attachment and safety configuration must always be selected for the actual material being handled.

6. Maintenance, Manufacturing Preparation and International Delivery

Buying an excavator is not finished when the machine leaves the factory. From our side, the preparation and delivery process is just as important as the initial product selection.

For a typical order, our production or preparation cycle is around 30–60 days, depending on the machine model, configuration, order quantity and customization requirements. If the customer needs special attachments, a particular tire arrangement, additional equipment or export documentation, we confirm these details before the order is finalized.

For the M320, Caterpillar provides a number of maintenance-focused features. The current machine specification includes ground-level access to daily maintenance points, long-life filters, centralized grease points, Scheduled Oil Sampling ports and an integrated vehicle health management system. Caterpillar also lists a 3,000-hour replacement interval for the hydraulic oil filter under the stated system configuration.

Our own pre-delivery process is more practical. Before shipment, we check the engine condition, hydraulic functions, steering system, braking system, working equipment, electrical system and overall operating condition. We also check for visible leakage, abnormal noise, loose components and obvious transport risks.

For international customers, we prepare the machine according to the selected shipping method. Depending on dimensions, destination and shipping conditions, transportation may use Ro-Ro vessels, bulk vessels or suitable container solutions. The final method is selected according to the actual machine configuration rather than using one shipping method for every order.

Our Typical M320 Export Preparation

This process is important because an excavator may spend weeks in transportation and handling before reaching the final jobsite. A machine that leaves properly prepared has a much better chance of arriving in the condition the customer expects.

7. Why Work With Ganglong Heavy Industry?

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate as a comprehensive machinery group covering equipment R&D, manufacturing, testing, customization and global sales.

Our product range includes our own HKLOONG excavators, loaders, Backhoe loaders and swamp excavators. At the same time, we provide complete machine sales and leasing services involving domestic and international construction equipment brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL, subject to the actual machine and transaction arrangement.

I think this broader equipment background is useful when discussing the M320 because customers do not always need a machine simply because its specification looks good. Sometimes the right answer is a different excavator, a different attachment, a different configuration or even a different type of machine. Our job is to understand the application first.

Hefei Ganglong International Trade Co., Ltd. serves as our professional international trade arm. Our team has experience with construction machinery, mining machinery and agricultural machinery and has served customers in Asia, Africa, America and other international markets.

We also understand that international buyers need clear information. They need to know what is included, how the machine will be prepared, what documents are available, how long preparation may take and how the equipment will be transported. We therefore confirm these details before shipment instead of leaving them unclear until the last moment.

One important clarification is worth making here: Ganglong is not the manufacturer of Caterpillar-branded M320 excavators. Caterpillar is the manufacturer of the Cat M320. We act as a machinery sales, trade and service-oriented supplier according to the specific transaction arrangement. Caterpillar's published product specifications and trademarks remain the reference for Caterpillar-branded machine information.

This distinction is important to us because a professional machinery website should not blur the line between manufacturer and supplier. Customers deserve to know who makes the machine and what role their trading or equipment partner actually plays.

8. M320 Wheel Excavator FAQ

Q1: What is the M320 Wheel Excavator mainly used for?

The M320 is designed for applications where excavation performance and road mobility are both important. Typical applications include utility construction, trenching, roadwork, municipal engineering, drainage, landscaping, material handling and waste-related work. Caterpillar specifically describes the machine as suitable for work ranging from dirt to asphalt and lists utility work, trenching and waste handling among its applications.

Q2: How fast can the M320 travel?

The current Caterpillar specification lists a maximum travel speed of 35 km/h. Actual road travel must follow local traffic laws, permits, tire requirements and operating rules. The maximum published speed should therefore be viewed as a machine specification, not as permission to travel at that speed on every public road.

Q3: What is the digging depth of the M320?

For the current Caterpillar configuration referenced on its product page, the maximum digging depth is 6,030 mm. The same specification lists a maximum ground-level reach of 9,290 mm and maximum loading height of 6,960 mm. These values depend on the boom, stick, bucket, tires and other configuration details.

Q4: What engine does the M320 use?

The current M320 specification uses a Cat C4.4 engine. Caterpillar lists 174 hp (129 kW) under ISO 14396 and 171 hp (127.8 kW) net power under ISO 9249. The published specification also states compliance with U.S. EPA Tier 4 Final and EU Stage V emission standards for the referenced configuration. Regional requirements should be checked before ordering.

Q5: What is the maximum operating weight of the M320?

Caterpillar lists a maximum operating weight of 21,200 kg and a minimum operating weight of 18,800 kg. The published note explains that operating weight varies with configuration and includes items such as fuel, operator, bucket and dual pneumatic tires in the stated reference setup.

Q6: Can the M320 use different attachments?

Yes. Depending on the hydraulic configuration and attachment requirements, the M320 can work with different tools. Caterpillar lists buckets, grapples, hammers, multi-processors and tiltrotators among its attachment solutions, while optional hydraulic and technology packages can further expand machine functions. The exact attachment should be matched to the machine's hydraulic flow, pressure, weight and application.

Q7: Is the M320 suitable for road construction?

Yes, particularly when the project requires frequent movement between work areas. Its wheeled design and published maximum travel speed of 35 km/h make it suitable for many roadwork and municipal applications where road travel is legally permitted and ground conditions are appropriate. Caterpillar also describes the M320 as suitable for work from dirt to asphalt.

Q8: How long does it take to prepare an M320 for delivery?

For our normal machinery orders, preparation or production commonly takes around 30–60 days. The exact schedule depends on the machine configuration, quantity, attachment requirements, customization, inspection arrangements and shipping plan. Before confirming an order, we provide the customer with the expected preparation and delivery schedule based on the actual machine.

Q9: How do you prepare the M320 for international shipment?

Before shipment, we inspect the main operating systems, clean the machine, apply suitable rust and moisture protection, secure the equipment and protect exposed areas. Depending on the shipping arrangement, detachable components may be packed separately. We can use Ro-Ro, bulk vessel or suitable container transportation according to the machine dimensions and destination.

Q10: What payment terms do you normally accept?

International machinery transactions are commonly arranged by T/T. A deposit is normally paid after order confirmation, with the balance arranged before shipment. The exact payment structure depends on the machine, order value, configuration and contract. We confirm all commercial terms in writing before production or preparation begins.

Final Thoughts: Is the M320 Wheel Excavator Right for Your Project?

When I evaluate a wheeled excavator, I do not start with horsepower. I start with the job. How often will the machine travel? How deep are the trenches? Will it load trucks? Will it work on paved roads? Does it need a hammer, grapple, tiltrotator or another attachment? What are the local road rules? How will the machine reach the final destination?

If the answer to those questions points toward a machine that must combine strong excavation performance with practical road mobility, the M320 Wheel Excavator is worth serious consideration. Its Cat C4.4 engine, 174 hp ISO 14396 rating, 21,200 kg maximum operating weight, 35 km/h maximum travel speed, 6,030 mm maximum digging depth and 9,290 mm maximum ground reach give contractors a useful combination of working range and mobility.

Its value becomes even clearer when the project involves several nearby work locations. Instead of thinking of the excavator as a machine that stays in one place all day, I see the M320 as a mobile working platform that can travel, dig, load, handle materials and change attachments according to the job.

At Ganglong Heavy Industry Technology, we focus on matching the machine with the actual project instead of simply quoting a model name. We can discuss machine configuration, attachments, inspection, preparation, payment, packing and international transportation based on your requirements.

If you are looking for an M320 wheeled Excavator for Sale, an M320 wheel excavator for road construction, a Cat M320 wheeled excavator for utility work, or an M320 configuration for international delivery, send us your working conditions, destination, required attachments and expected quantity. We can then check the suitable machine configuration and prepare a practical quotation for your project.

Important specification note: Caterpillar publishes different M320 configurations and regional product pages, and specifications can vary according to market, tires, boom, stick, counterweight, bucket, quick coupler and optional equipment. The technical data in this article is based primarily on Caterpillar's current published M320 product information and should be confirmed against the exact machine configuration before purchase.
