When I talk with customers about mobile crushing equipment, one question comes up again and again: how can we get a strong crushing plant that can move between working areas without making the whole project complicated? This is where the SP1213IE crawler impact crushing plant (electric) gets practical.

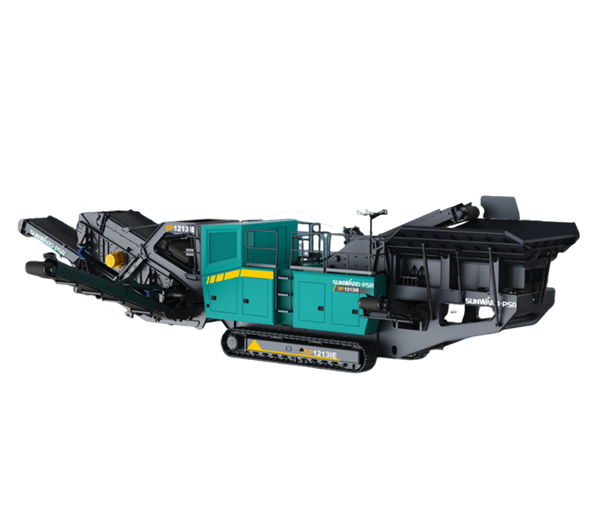

The SP1213IE is a track-mounted mobile impact crushing plant designed for quarrying, aggregate production, mining, construction waste processing, road projects, and other material processing jobs. According to the published Sunward specifications, the machine has a total weight of 57 tons, a processing capacity of 120-350 t/h, electric drive, a maximum feeding size of 600 mm, and a C.S.S. range of 15-200 mm. Its transportation dimensions are 19,000 × 4,260 × 3,850 mm. Actual output, of course, depends on the material, feed size, moisture, feeding method, discharge setting, and complete plant configuration.Sunward official product data, SP1213IE

From my point of view, the value of this machine is not just the impact crusher itself. The real advantage is the combination of a crawler chassis, electric drive system, heavy-duty rotor, feeding and conveying system, and optional configurations in one mobile unit. That makes it easier to move the crushing operation closer to the material source instead of building a fixed crushing line for every project.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we work across equipment R&D, manufacturing, testing, customization, sales, and international trade. Our business covers construction machinery, mining machinery, agricultural machinery, and matching attachments. Through our international trade team, we support customers in Asia, Africa, America, and other overseas markets.

1. What Is the SP1213IE Crawler Impact Crushing Plant?

I usually describe the SP1213IE in simple terms: it is a mobile impact crusher built on crawler tracks and powered by electricity. Instead of installing the crusher permanently in one place, the whole unit can be moved around a job site by its crawler travel system.

The machine is designed around an impact crushing process. Large pieces of rock or other hard material enter through the feeding system and are delivered to the impact crusher. Inside the crusher, a high-energy rotor throws the material against impact surfaces. The repeated impact breaks the feed into smaller pieces. The final product size can then be adjusted according to the working requirement and crusher setting.

This approach is especially useful when the material needs a good shape rather than simply being broken into smaller pieces. Impact crushing can help produce a more useful particle shape for aggregate applications because the material is subjected to repeated impact rather than only being squeezed between two surfaces.

Sunward describes the SP1213IE as using a large kinetic-energy and heavy-rotor design, with high crushing ratio, large output, and good particle shape. The manufacturer also lists multiple configurations for different requirements, including the ability to produce two or three material standards or mixed materials.Sunward official product information

For a buyer, however, I would not look at the headline capacity alone. A stated capacity of 120-350 t/h is a reference range, not a promise that every material will run at 350 t/h. Feed hardness, gradation, moisture, material density, crusher settings, feeding stability, and downstream equipment all affect the real production result.

Source: Sunward official SP1213IE product page and Sunward AU product listing.

2. How Does the SP1213IE Work?

Understanding how a mobile impact crushing plant works is actually quite simple. I normally break the process into several steps.

Feeding the Material

First, raw material is loaded into the feeding section. Depending on the project, this material may come from blasting operations, demolition, quarrying, road construction, or another upstream crushing process.

The feeding system has an important job. It needs to deliver material to the crusher at a reasonably stable rate. If the feed suddenly becomes too large or irregular, the crusher has to deal with a much heavier load. A stable feed helps the complete crushing process run more smoothly.

Impact Crushing

Once the material enters the impact crusher, the heavy rotor provides the main crushing force. The rotor spins at high speed and transfers kinetic energy to the incoming material. The material is then broken by impact against the internal crushing surfaces.

The key point here is that the rotor is not just a rotating component. Its weight, speed, balance, and overall design affect how energy is transferred to the material. Sunward specifically highlights the large kinetic energy and heavy rotor design used in the SP1213IE.Sunward official SP1213IE product information

Controlling the Product Size

The crusher setting can be adjusted according to the required output. Sunward publishes a C.S.S. range of 15-200 mm for the SP1213IE. C.S.S. means the closed-side setting, which is one of the basic measurements used when discussing the crusher discharge opening and product size.

In real operation, I recommend treating this number as part of the complete process rather than using it alone to predict the final gradation. The final material distribution depends on the feed material, rotor condition, feed size, crusher setting, feed rate, and operating conditions.

Conveying the Finished Material

After crushing, the processed material is transferred through the conveying system. Depending on the plant configuration, the output can be sent to stockpiles, screening equipment, or another crushing stage.

This is one reason why I see the SP1213IE as more than a simple impact crusher. It is a complete mobile crushing platform. The crawler design allows the equipment to be positioned close to the material flow, reducing unnecessary movement of raw material around the site.

3. Main Features I Look at When Evaluating This Machine

There are several details I would pay attention to when selecting a crawler impact crushing plant. They are not just brochure words. They affect how the machine fits into an actual project.

Electric Drive

The SP1213IE uses an electric drive system. For a site with suitable external power available, electric operation can be a practical choice. The machine does not need to rely on an onboard diesel generator as its main drive source.

The published total working power is 318 kW. Sunward also describes an integrated variable-frequency system with dust-proof, cooling, shock-isolation, and water-proof functions to help protect the electrical system.

For buyers, the important thing is to check the power supply conditions at the actual site before ordering. Voltage, electrical infrastructure, cable arrangement, local regulations, and available power capacity should all be confirmed during technical communication.

Heavy Rotor Design

The impact crusher uses a heavy rotor with high kinetic energy. In simple language, the rotor stores and transfers a large amount of energy during operation. This helps the crusher deal with large quantities of incoming material.

Sunward states that the impact crusher design is based on Atlas crushing technology and highlights its crushing ratio, output, and particle shape. These are useful features for aggregate and material processing applications where the shape of the finished product matters.

Flexible Configuration

Not every crushing project needs the same setup. One site may need two output sizes, while another may need three. Some customers may also want mixed materials.

The manufacturer states that the SP1213IE can be supplied with multiple configurations for different requirements. This gives us more room to discuss the machine around the customer's actual production process instead of forcing every project into exactly the same configuration.

Optional Belt Scale

Sunward lists a belt scale as an optional configuration for the SP1213IE. A belt scale can help monitor output in real time. For a commercial aggregate operation, this information can be useful when checking production records, loading plans, and daily output.

I would still recommend confirming the exact belt-scale configuration and measurement requirements before placing an order because the final configuration can vary according to customer requirements.

Crawler Mobility

The crawler chassis is another practical feature. A tracked mobile crusher can move around a working area without being treated like a fixed stationary crushing plant.

This can be useful in quarrying and construction projects where the material source or work area changes over time. Instead of moving all raw material to one permanent crusher location, the crushing unit can be repositioned as the project develops.

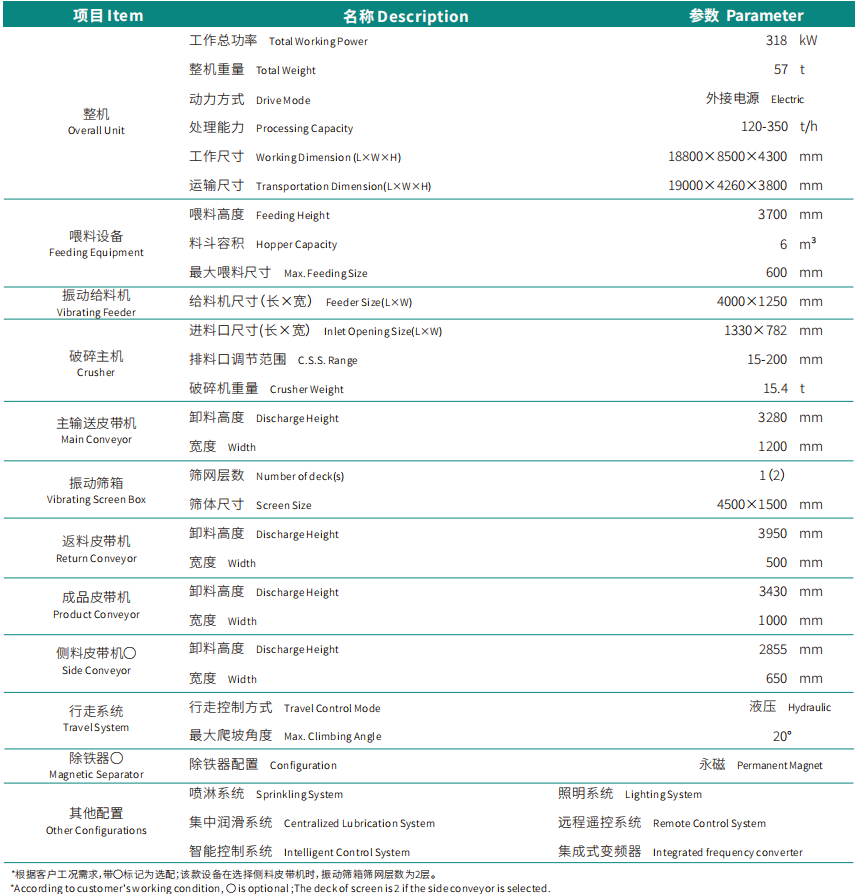

4. SP1213IE Technical Data and Practical Comparison

When customers compare crushing plants, I suggest looking at several figures together. Weight, capacity, drive mode, transport dimensions, feed size, and discharge setting all tell part of the story.

Source: Sunward official product data and Sunward AU product listing.

One point I always emphasize is that specifications should be read as a system. For example, a large maximum feed size does not mean every 600 mm piece should be continuously fed into the crusher. The actual feed should be prepared according to the material, operating conditions, and recommended configuration.

The same idea applies to capacity. If the feed contains too much moisture, has an unsuitable size distribution, or is delivered unevenly, actual throughput can be lower than the published range. Good crushing starts before the material reaches the crusher.

SP1213IE vs. SP1213ITD

A useful comparison is the SP1213ITD crawler impact crushing plant. The two models have a similar processing capacity and basic crushing purpose, but their power arrangements are different.

Source: Sunward official SP1213IE and SP1213ITD product pages.

The practical difference is the power source. Sunward states that the SP1213ITD provides two power methods, including external electricity and an equipped generator, while the SP1213IE is the electric model.

So when I discuss these two machines with a customer, I would first ask about the site rather than simply asking which model looks better on paper. If stable external power is available and the project is planned around an electric crushing process, the SP1213IE may fit that operating setup. If the site needs more flexibility in power supply, the diesel-electric model is a different configuration to consider.

SP1213IE vs. Jaw Crushing Plant

Another common question is whether an impact crusher should replace a Jaw Crusher. In most cases, I would not describe them as direct substitutes. They perform different roles in a crushing process.

Source: Sunward official product pages for SP1213IE and SP127JE.

The SP127JE is a crawler jaw crushing plant with a published capacity of 170-520 t/h and maximum feeding size of 700 mm. Sunward describes its jaw crusher as using a deep V cavity, small meshing angle, and large stroke.

In a complete crushing line, a jaw crusher can be used for primary crushing while an impact crusher can be used later for further reduction and shaping. The correct arrangement depends on the raw material and target product.

5. Where Can the SP1213IE Be Used?

I see the SP1213IE as a machine for projects where mobility, impact crushing, and electric operation all make sense together.

Quarrying and Aggregate Production

Quarrying is one of the obvious applications. Rock from a quarry normally needs to pass through several stages before becoming usable aggregate. The SP1213IE can serve as an impact crushing stage where the project requires further size reduction and useful particle shape.

For aggregate production, the final requirement matters a lot. A customer may need material for road base, concrete aggregate, asphalt-related applications, construction filling, or other purposes. Each product has its own size and quality requirements.

Road Construction

Road projects often move from one working area to another. A crawler impact crushing plant can be useful when the material processing point changes as the project progresses.

Instead of repeatedly hauling raw material over long distances, a mobile crushing setup can sometimes bring the processing equipment closer to the working area. The actual economic benefit depends on the site distance, haulage cost, material volume, and project duration.

Mining Operations

Mining applications can involve large amounts of material and demanding working conditions. The SP1213IE has a published maximum feed size of 600 mm and a processing range of 120-350 t/h, making it suitable for certain medium-scale mobile crushing requirements when the material characteristics match the machine configuration.

Before selecting the crusher for mining, I would check rock hardness, abrasiveness, feed gradation, moisture, expected daily production, target product sizes, and available electrical infrastructure.

Construction and Demolition Material

Construction and demolition sites can also benefit from mobile crushing equipment. Concrete, masonry, and other mineral-based materials can be processed when the material falls within the machine's suitable operating range and the project has the correct pre-processing and sorting arrangements.

For these jobs, material cleanliness matters. Steel, oversized objects, wood, plastic, and other unwanted materials should be managed before they reach the crusher. A crusher is powerful, but it is not a magic sorting machine.

General Material Processing

There are also projects that do not fit neatly into one category. Contractors may need temporary crushing capacity for infrastructure work, site preparation, earthmoving, or aggregate recycling.

This is where the mobile format becomes useful. The machine can be integrated into a larger material processing plan and moved when the project changes.

6. Manufacturing, Inspection, Delivery and International Service

For an industrial machine of this size, buying the crusher is only one part of the job. I pay just as much attention to inspection, documentation, transportation, and communication before shipment.

Production Planning

Production time is not always a fixed number of days because configuration affects the manufacturing and preparation process. Model, configuration, order quantity, optional equipment, and customization requirements all need to be confirmed first.

For that reason, we normally confirm the production schedule with the customer before production begins. This is much more useful than giving a random delivery promise before the actual specification has been finalized.

Pre-Shipment Inspection

Before shipment, we arrange inspection around the machine's main condition and functions. This includes appearance, main operating functions, hydraulic and electrical systems where applicable, and basic operating performance.

For an electric crushing plant such as the SP1213IE, the electrical system deserves particular attention. The customer should receive equipment that matches the confirmed configuration and order requirements.

We also prepare standard documents and accessories according to the order. If a customer needs particular certification documents, manuals, spare parts, or other paperwork, those requirements should be discussed before shipment rather than at the last minute.

Payment Terms

For international orders, payment is commonly arranged by T/T. A typical structure may include a deposit before production and the remaining balance before shipment. The exact payment arrangement is confirmed between both parties according to the order and commercial terms.

I prefer clear payment conditions because heavy equipment orders involve a lot of coordination. Model, configuration, production schedule, inspection, shipping, and documentation should all match the commercial agreement.

Transportation

The SP1213IE has a published transportation dimension of 19,000 × 4,260 × 3,850 mm and a total weight of 57 tons. These figures are important when planning international logistics.

For complete machines, sea transportation is commonly considered for international delivery. Parts and smaller accessories may be sent by air or express when suitable.

Because the SP1213IE is large and heavy, the shipping plan needs to consider the destination port, route, loading method, local road restrictions, customs requirements, and final delivery arrangement. The exact shipping method should be confirmed for each order rather than copied from another project.

Packaging

Before transportation, machines are generally protected with suitable film or protective materials and secured according to shipping requirements. Loose accessories and spare parts can be packed separately in cartons or wooden cases.

The final packing method can be adjusted according to the destination, shipping route, customer requirements, and shipping conditions. Our international trade team can coordinate these details with customers so the equipment is prepared for the actual logistics route.

7. Why Work With Ganglong for the SP1213IE?

Our role is not simply to put a machine name on a quotation and wait for the customer to figure everything else out.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate as a comprehensive industrial group covering equipment R&D, manufacturing, testing, customization, sales, and international trade.

Our equipment business covers construction machinery, mining machinery, agricultural machinery, and matching attachments. We also have experience working with domestic and international construction machinery brands and provide complete machine sales and leasing services.

For overseas customers, Hefei Ganglong International Trade Co., Ltd. is especially important because international machinery sales involve much more than the equipment itself. Communication, configuration confirmation, inspection, documents, payment, packing, shipping, and after-sales coordination all need to connect properly.

We have served customers across Asia, Africa, America, and other international markets. This gives our team practical experience with different shipping routes, customer requirements, working environments, and equipment applications.

When a customer asks us about an SP1213IE electric crawler impact crusher, I prefer to start with the project rather than immediately discussing price.

I would first want to know:

• What material will be crushed?

• What is the maximum feed size?

• What is the required output capacity?

• What finished product sizes are required?

• Is stable external electrical power available?

• Will the crusher work alone or with a screening plant?

• How many hours per day will the machine operate?

• Where will the machine be shipped?

• What spare parts and accessories are required?

These questions may look basic, but they prevent many expensive misunderstandings. A crusher that is technically strong can still be the wrong choice if the feed material, power supply, product requirement, or logistics plan does not match.

Our job is to help connect those pieces before the order is finalized.

8. SP1213IE Crawler Impact Crushing Plant FAQ

What is the capacity of the SP1213IE?

The published processing capacity is 120-350 t/h. Actual production depends on the feed material, feed size, material characteristics, moisture, crusher setting, feeding stability, and overall plant configuration.

Is the SP1213IE fully electric?

The SP1213IE is listed with electric drive mode and 318 kW total working power. It is designed for projects where suitable external electrical power is available. The electrical supply conditions should be confirmed before ordering.

What is the maximum feeding size?

The published maximum feeding size is 600 mm. This should be treated as a machine specification rather than a recommendation to continuously feed oversized material at the maximum dimension. Actual feeding practice should follow the operating requirements and material conditions.

What is the C.S.S. range?

The published C.S.S. range is 15-200 mm. The appropriate setting depends on the material and the required finished product.

How heavy is the SP1213IE?

The total machine weight is listed as 57 tons. This is an important figure when planning transportation, loading, unloading, and site access.

What are the transportation dimensions?

The published transportation dimensions are 19,000 × 4,260 × 3,850 mm. Before shipping, the actual logistics plan should be checked against the destination, route, port, and local transportation requirements.

Can the SP1213IE be used for quarrying?

Yes. The SP1213IE is a crawler impact crushing plant designed for material processing applications including quarrying and aggregate-related work. The correct configuration depends on the rock type, feed size, target output, and required production rate.

Can it be used for mining?

It can be considered for suitable mining crushing applications. Before ordering, I recommend checking material hardness, abrasiveness, feed gradation, production target, and the required final particle sizes. These factors have a direct effect on crusher performance and wear.

What is the difference between SP1213IE and SP1213ITD?

The main difference is the power configuration. The SP1213IE is the electric model, while the SP1213ITD is a diesel-electric model with external electricity and an equipped generator as two power methods according to Sunward's published information. Both models are listed with 120-350 t/h processing capacity and a 600 mm maximum feeding size.

Can the machine be shipped overseas?

Yes. Ganglong's international trade team supports overseas machinery sales and logistics coordination. Complete machines can generally be shipped by sea, while suitable parts and accessories may be transported by air or express. The final shipping method depends on the destination and logistics route.

Do you provide inspection before shipment?

Yes. Before shipment, the machine can be checked for appearance, main functions, hydraulic and electrical systems where applicable, and basic operating performance. Standard documents and accessories are prepared according to the confirmed order.

How is payment usually arranged?

International orders commonly use T/T payment, such as a deposit before production and balance before shipment. Exact payment terms are confirmed between the buyer and seller according to the individual order.

Final Thoughts on the SP1213IE

After looking at the machine from the practical side, I would describe the SP1213IE crawler impact crushing plant (electric) as a mobile crushing solution built around three main ideas: impact crushing performance, crawler mobility, and electric operation.

Its published specifications include 120-350 t/h processing capacity, 57 t total weight, 318 kW total working power, 600 mm maximum feeding size, and 15-200 mm C.S.S. range. Sunward also lists a heavy rotor design, integrated variable-frequency electrical system, multiple configuration options, optional belt scale, and professional ergonomic design among the product highlights.

But I would not choose a crusher based on one number. The right question is whether the complete machine matches the material, production target, power conditions, product size, working location, and transportation plan.

That is also how we approach equipment supply at Ganglong. We look at the application first, confirm the machine configuration, arrange inspection and documentation, and then coordinate packing and international transportation around the actual destination.

If you are looking for an SP1213IE crawler impact crushing plant, SP1213IE electric impact crusher, or a track-mounted impact crushing plant for quarrying and aggregate production, our team can discuss the working conditions, required configuration, delivery requirements, and international shipping plan with you before the order is finalized.
