SWTH3007 Telehandler

When I talk with customers about material handling equipment, one question comes up again and again: do you really need a large forklift, or do you need something that can reach farther and work on more types of sites?

For many jobs, the answer is a telehandler.

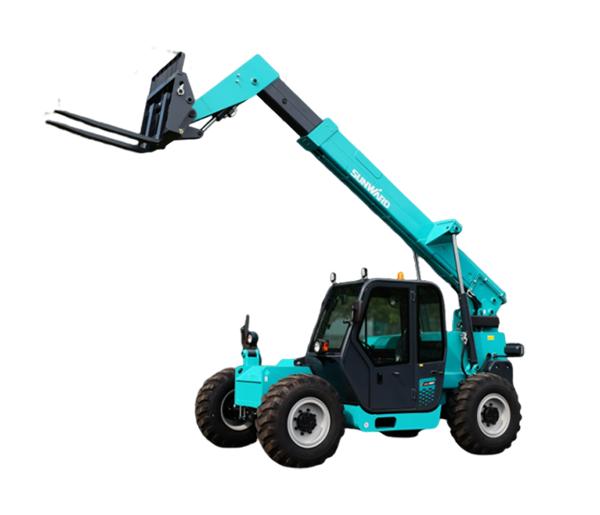

The SWTH3007 Telehandler is a compact telescopic handling machine designed for lifting, moving, and positioning loads at different heights and distances. Instead of using a fixed mast like a standard forklift, it uses a telescopic boom. This simple difference gives the machine much more flexibility when the load is not directly in front of the machine or needs to be placed at a higher position.

The current Sunward product information lists the SWTH3007 with a rated bearing capacity of 3,000 kg and a maximum lifting height of 7 m. The technical brochure also lists a maximum extension length of 4.02 m and a loading capacity of 1,000 kg at maximum extension.

From our side, Ganglong Heavy Industry Technology (Hefei) Co., Ltd. works with construction machinery, mining machinery, agricultural machinery, attachments, equipment supply, and international trade. We can help customers source and arrange suitable machinery, confirm configurations, coordinate inspection, prepare documents, and organize transportation. For branded equipment such as Sunward machines, our role is equipment supply and international trade coordination rather than claiming to manufacture the Sunward brand ourselves.

1. What Is the SWTH3007 Telehandler?

I usually explain a telehandler in very simple terms: think of it as a forklift with a long arm.

A normal forklift uses a vertical mast. The forks move up and down close to the front of the machine. That works very well in warehouses, factories, and flat yards where the load is usually close to the machine.

A telescopic handler works differently. Its boom can move upward and extend forward. This allows the operator to pick up a load, raise it, and then reach forward to place it somewhere that a normal forklift may not easily reach.

That is the main reason customers consider the SWTH3007 Telescopic Handler for construction sites, farms, industrial yards, warehouses, logistics areas, material storage yards, and other outdoor working environments.

The SWTH3007 has a published rated capacity of 3,000 kg and a maximum lifting height of 7 m. Its maximum extension length is 4.02 m, and the published capacity at maximum extension is 1,000 kg. These numbers are much more useful when we look at them together rather than separately.

For example, a customer may say, “I need a 3-ton telehandler.” That is only the starting point. I would then ask: How high do you need to lift the 3 tons? How far forward? What attachment will you use? Is the ground flat? Will you work indoors or outdoors? How often will the machine travel between work areas?

These questions matter because a telehandler's available load changes with boom position. The SWTH3007 technical material provides a load chart covering different boom angles and working positions. In other words, 3,000 kg is not a promise that the machine can carry 3,000 kg at every height and reach.

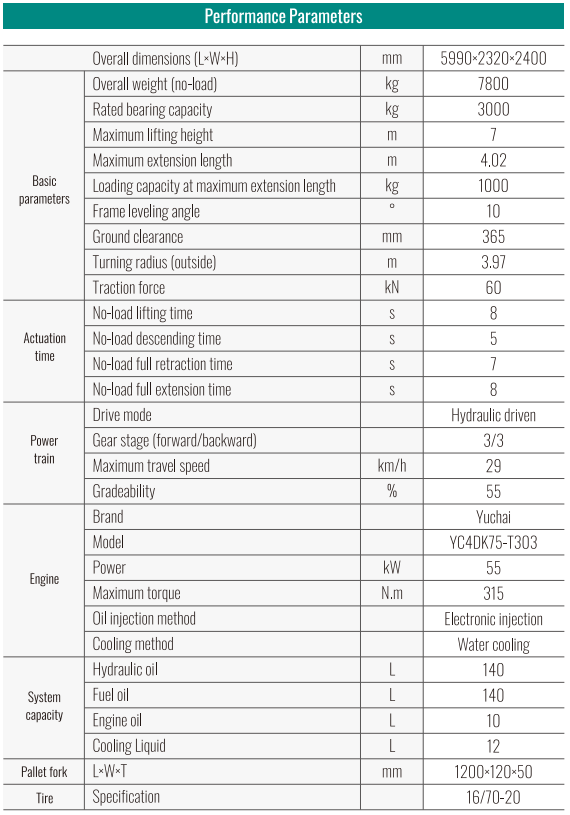

SWTH3007 Basic Specifications

Source: Sunward SWTH series English technical brochure. Individual specifications may vary according to configuration and market, so the final quotation should be used for order confirmation.

One thing worth noticing is the machine size. At around 5.99 m long, 2.32 m wide, and 2.40 m high, the SWTH3007 is a relatively compact telehandler within this type of equipment. That can be useful when a customer wants useful reach without moving up to a much larger high-reach machine.

2. How Does the SWTH3007 Telehandler Work?

The working principle is actually quite straightforward.

The engine supplies power to the machine. The transmission and hydraulic system transfer that power to the wheels and working equipment. The operator uses the controls inside the cab to move the machine, raise or lower the boom, extend or retract the boom, and position the attachment.

When I explain the operation to a new buyer, I normally break it into five basic steps.

First, approach the load. The operator drives toward the material and positions the forks or attachment correctly.

Second, pick up the load. The forks move underneath the pallet or load, and the boom is controlled to lift it from the ground.

Third, move the machine. Once the load is secured, the telehandler can travel to another position.

Fourth, raise and extend. The telescopic boom can move upward and outward. This is where a telehandler has an advantage over a conventional forklift.

Fifth, place the load. The operator carefully positions the attachment and lowers the load into the required location.

It sounds simple, but there is an important rule here: the farther the boom extends, the more attention must be paid to the load chart and machine stability. The SWTH3007 technical documentation shows different load zones according to boom position.

The published technical data also lists hydraulic transmission, a 55 kW Yuchai engine, 64 kN maximum traction force, and a maximum travel speed of 29 km/h. Another published technical source identifies the engine as the Yuchai YC4DK75-T303.

For a machine used outdoors, this combination is practical. The operator is not limited to a smooth warehouse floor. The SWTH3007 is designed as a mobile handling machine for more demanding working environments.

3. Main Features I Would Pay Attention to

3,000 kg Rated Capacity

The first number most buyers look at is capacity, and that makes sense.

The SWTH3007 has a published rated bearing capacity of 3,000 kg. That gives it enough lifting ability for many construction materials, palletized goods, agricultural products, industrial components, and general site handling tasks.

But I always tell customers not to stop at the 3-ton figure.

If you need to lift a 3,000 kg load only a short distance from the machine, the working condition is very different from lifting the same load to a higher position while extending the boom. This is why the load chart should be checked before deciding that the machine fits a particular job.

7 m Maximum Lifting Height

A maximum lifting height of 7 m makes the SWTH3007 useful for jobs where a normal forklift does not have enough vertical reach.

Construction sites are a good example. Materials may need to be lifted onto platforms, upper levels, temporary structures, or higher storage positions.

It can also help in agricultural operations where materials need to be placed into higher storage areas or loaded into elevated positions.

Sunward currently lists the SWTH3007 as part of its telescopic handler range, alongside models with different capacity and reach levels.

4.02 m Maximum Extension

The boom can extend up to 4.02 m according to the technical documentation. This is one of the features that separates the SWTH3007 from a conventional forklift.

Imagine a pallet sitting behind a barrier or at the edge of a building area. A standard forklift may need to move much closer to the final position. A telehandler can potentially stay farther away and use the boom to reach forward.

Of course, this does not mean the operator can simply extend the boom fully with any load. The published maximum extension capacity is 1,000 kg, which clearly shows why the working load must be checked according to boom position.

Four-Wheel Drive and Outdoor Mobility

A telehandler is often purchased because the job is not taking place on a perfectly flat warehouse floor.

The SWTH3007 is equipped for outdoor work, with four-wheel drive and a hydraulic transmission listed in published specifications. Its maximum gradeability is listed as 60%, while the minimum ground clearance is around 350–365 mm depending on the published specification source.

That gives the machine useful mobility on construction sites, farms, material yards, and similar locations.

Still, I would never tell a customer that a 60% gradeability figure means every slope is safe. Real conditions are more complicated. Soil, moisture, load, tire condition, slope length, surface grip, and operator experience all affect actual performance.

10° Frame Leveling

The technical brochure lists a frame leveling angle of 10°.

This is a useful feature when the working surface is not perfectly level. Instead of expecting the operator to work only on a completely flat surface, the machine has a system designed to help adjust its working position.

For construction and agricultural customers, this can make a real difference because outdoor ground conditions change from one area to another.

Compact Turning Space

The SWTH3007 technical information gives an outside turning radius of about 3.97 m, while other published specifications list approximately 3.8 m.

The small difference between published sources is exactly why we recommend confirming the final technical sheet for the specific machine configuration before ordering.

In practical terms, the turning radius is important when the machine works around buildings, storage areas, temporary roads, agricultural facilities, or other locations where space is limited.

4. SWTH3007 Technical Advantages in Daily Work

Specifications are useful, but customers usually want to know what those numbers mean when the machine is actually working.

Simple Material Handling

The SWTH3007 is designed to handle more than one simple movement. The machine can approach, lift, carry, reach, and position materials.

That makes it useful when the same job involves several handling steps. Instead of moving a load with one machine and then using another machine to place it, a telehandler can potentially perform both parts of the job.

This is particularly helpful on construction sites where the work area changes frequently.

Useful Reach Without a Very Large Machine

The SWTH3007 offers 7 m maximum lifting height and 4.02 m maximum boom extension while keeping its overall dimensions at around 5.99 m long, 2.32 m wide, and 2.40 m high.

For buyers who do not need the extreme reach of a large telehandler, this can be a practical balance.

It is not always a good idea to buy the biggest machine available. Bigger equipment normally means more weight, larger transport requirements, more space, and a different operating cost. The better approach is to match the machine to the actual work.

Hydraulic Transmission

The published SWTH3007 specifications identify hydraulic transmission.

For a machine that needs controlled movement both on the road and at the worksite, smooth power transmission is important. The operator may need to travel slowly when approaching a pallet and then move between different working areas at higher speed.

The published maximum travel speed is 29 km/h.

Yuchai Engine

Published SWTH3007 data identifies a Yuchai YC4DK75-T303 engine with 55 kW power and 315 N·m maximum torque.

For an international machinery order, engine details are worth checking carefully. Depending on the destination market, emissions requirements and configuration may affect the final specification. We therefore confirm the engine configuration and applicable requirements before shipment.

Fork Configuration

The published technical data lists a fork size of 1,200 × 120 × 50 mm. Other published specifications identify a 1,200 mm fork length.

Fork dimensions matter more than people sometimes think. The load size, pallet size, center of gravity, and attachment position all affect how the machine should be used.

If your load is unusual, such as a long pipe bundle, large machine component, bulk material, or irregular-shaped load, tell us before ordering. We can then check whether the standard fork configuration is suitable or whether another attachment should be discussed.

SWTH3007 Compared with Other SWTH Models

Sunward's current telescopic handler range includes several models. Comparing basic capacity and lifting height is a useful first step, although it should not replace a full load-chart review.

Source: Sunward International's current telescopic handler product range. SWTH3007 technical figures are also supported by the manufacturer's technical brochure. A dash means the cited current range page does not provide that specification in the available listing.

This comparison shows where the SWTH3007 fits. It is not the largest machine in the range, and that is not necessarily a problem. If the project needs around 7 m lifting height and 3-ton rated capacity, moving to a much larger machine may add capacity that the customer simply does not use.

On the other hand, if the customer needs to place loads at 10 m, 14 m, or 17 m, a longer-reach model may be more suitable. We prefer to make that decision from the actual work requirement.

5. Where Can I Use the SWTH3007 Telehandler?

Construction Projects

Construction is one of the most natural applications for the SWTH3007.

Construction materials are often heavy, awkward, and needed in different locations. Pallets of blocks, bricks, steel components, boards, pipes, insulation, roofing materials, and other supplies may need to be moved from a storage area to a higher working position.

A telehandler gives the operator more reach than a standard forklift. That can reduce unnecessary repositioning and make material movement more flexible.

Agriculture and Farm Work

Farms have their own material handling problems. Bags, feed, pallets, hay, tools, equipment, and other materials may need to be lifted and moved around large outdoor areas.

The SWTH3007's mobility and telescopic boom can make it useful for these jobs, especially when materials need to be placed at a height or moved over uneven outdoor ground.

The right attachment is important. Forks may be suitable for pallets, while buckets or other tools may be better for loose materials. We can discuss the attachment requirement before preparing a quotation.

Warehouses and Logistics Yards

For a traditional indoor warehouse with smooth floors and narrow aisles, a standard forklift may be more appropriate. But not every warehouse is like that.

Large logistics yards, outdoor storage areas, construction-material warehouses, and mixed indoor-outdoor operations may benefit from a telehandler.

The SWTH3007 can move between working areas and provide both lifting and forward reach. Before using it indoors, however, I recommend checking door height, floor capacity, ventilation, turning space, and local safety requirements.

Industrial Plants

Factories and industrial sites often have heavy components that need to be moved during maintenance, installation, or production support.

The telescopic boom is useful when the machine cannot get directly under the final placement point. Instead of moving the whole machine into an exact position, the operator may be able to keep a safer working distance and use the boom to reach forward.

Material Storage and Yards

Outdoor yards are another good application. Timber, pipes, construction supplies, steel products, pallets, agricultural materials, and other goods often need to be moved around open storage areas.

A telehandler can combine transport and lifting functions in one machine, which can make daily yard work more flexible.

Emergency and Special Handling Work

There is also evidence that the SWTH3007 platform has been used in emergency rescue equipment applications. In November 2024, Sunward reported delivery of an enhanced SWTH3007 batch to China Aneng for an emergency rescue equipment project, describing the machine in that application as having lifting, safety, and performance advantages. The reported enhanced version had a 5.99 m overall length including the forks, 2.32 m width, 2.40 m height, a reported 3.55-ton rated load, and 7.20 m maximum lifting height. These figures refer specifically to the enhanced version reported in that project and should not be treated as the standard SWTH3007 specification.

That distinction is important. When we write a product page, we should not mix different configurations simply because they share the same model family. The exact machine being quoted should always be checked against its final technical sheet.

6. What Should I Check Before Buying an SWTH3007?

Buying a telehandler is not like buying a small piece of warehouse equipment. There are several things I want to confirm before an order moves forward.

1. What Is the Real Load?

Start with the heaviest load you actually need to move. Do not use an estimated number if you can get the real weight.

If the load is 2.5 tons, tell us 2.5 tons. If it is 3 tons, tell us 3 tons. If the load center is unusual, tell us that too.

2. How High Must It Go?

The SWTH3007 has a maximum lifting height of 7 m. If your normal work is only 4 or 5 m, that may give you useful working room. If you need more than 7 m, we should compare other SWTH models rather than trying to force the SWTH3007 into a job outside its intended range.

3. How Far Forward?

This question is just as important as lifting height.

The SWTH3007 has a maximum extension length of 4.02 m, but its published capacity at maximum extension is 1,000 kg.

So if your job requires a heavy load at long reach, we need to calculate the working condition carefully.

4. Which Attachment?

Forks are only one option in the broader world of telehandler attachments.

Depending on the machine configuration and application, customers may need buckets, lifting hooks, baskets, clamps, grapples, or other tools. The attachment changes how the machine works and can also affect the load center.

5. What Is the Ground Like?

A machine working on compact concrete has a different job from one working on soft soil or gravel.

We normally ask about the site because ground conditions affect machine selection, tires, transport, and operation. The SWTH3007 has published ground clearance of around 350–365 mm and is designed for outdoor working conditions, but site assessment remains important.

6. Where Is the Machine Going?

For international orders, destination matters.

The destination country can affect emissions requirements, documentation, shipping arrangements, electrical components, spare parts planning, and local operating requirements.

At Ganglong, we ask for the destination before finalizing the supply plan because international machinery logistics are not one-size-fits-all.

7. Our Supply, Inspection and Delivery Process

From our experience in international machinery trade, a smooth order is mostly about getting the small details right.

When a customer contacts us about the SWTH3007, we first collect the basic working information. We want to know what the machine needs to lift, how high it needs to go, how far it needs to reach, what attachment is required, where it will work, and where it needs to be delivered.

After that, we confirm the machine configuration and commercial terms.

Our supplied product information states that production time depends on the loader or machine model, configuration, order quantity, and customization requirements. We therefore confirm the delivery schedule before production instead of promising an unrealistic universal lead time.

Before shipment, we can coordinate inspection of appearance, engine and hydraulic systems, lifting and loading functions, electrical systems, and basic operating performance according to the order requirements.

Standard accessories, manuals, spare parts, and required documents are prepared according to the order. For payment, T/T is commonly arranged with a deposit before production and the balance before shipment, subject to the specific commercial agreement.

For international transportation, complete machines are generally shipped by sea. Spare parts and suitable accessories can be arranged by air or express. The machine is protected with film, fixed securely, and packed according to transportation requirements. Loose accessories can be packed separately in cartons or wooden cases.

8. Why Choose Ganglong for SWTH3007 Supply?

There are plenty of machinery websites where you can find a model number and a price. That is not really the difficult part.

The harder part is making sure the machine you receive is actually suitable for the job, correctly configured, properly documented, and transported to the destination without unnecessary trouble.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we work across equipment supply, international trade, construction machinery, mining machinery, agricultural machinery, and attachments.

Our group also has its own HKLOONG range covering Excavators, loaders, Backhoe loaders, and swamp excavators. At the same time, we provide complete machine sales and leasing services involving brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON, and LOVOL.

This multi-brand background is useful when customers are still deciding what type of equipment they need. Sometimes the correct answer is a telehandler. Sometimes it is a Wheel loader, forklift, Excavator, or a combination of machines.

Our international trade team has experience serving customers in Asia, Africa, America, and other regions. That means we are familiar with the practical side of overseas machinery orders: communication, quotations, inspection, documents, packing, shipping, spare parts, and delivery coordination.

For the SWTH3007 specifically, we can help customers understand the difference between rated capacity and actual working capacity, review the required lifting height and reach, discuss attachments, and coordinate the equipment supply process.

I think this is more useful than simply saying a machine is “powerful” or “high quality.” A machinery buyer needs information that can be checked and used.

If you send us the load weight, required lifting height, forward reach, working environment, attachment requirement, and destination country, we can start from those details and work backward to the equipment configuration.

SWTH3007 Telehandler FAQ

What is the SWTH3007 Telehandler?

The SWTH3007 is a telescopic handler, also commonly called a telehandler or telescopic boom forklift. It combines a forklift-style attachment with an extendable boom for lifting, carrying, and positioning materials at different heights and distances.

What is the rated capacity of the SWTH3007?

The current Sunward product listing gives the SWTH3007 a rated bearing capacity of 3,000 kg.

Actual capacity changes according to boom position, height, reach, load center, attachment, and working condition. The manufacturer's load chart should be used for the specific lifting task.

How high can the SWTH3007 lift?

The published maximum lifting height is 7 m.

This does not mean that the full 3,000 kg rated capacity is available at the maximum height. The correct load chart must be checked for the actual boom position and load.

How far can the SWTH3007 boom extend?

The technical brochure lists a maximum extension length of 4.02 m. It also lists a loading capacity of 1,000 kg at maximum extension.

What engine does the SWTH3007 use?

Published specifications identify a Yuchai YC4DK75-T303 engine with 55 kW power and 315 N·m maximum torque.

For export orders, we recommend confirming the final engine and emissions configuration according to the destination market before signing the final order.

What is the operating weight?

The current English SWTH technical brochure lists an overall no-load weight of 7,800 kg. Some other published listings show 7,500 kg, which demonstrates why buyers should confirm the exact production configuration and final technical sheet before ordering.

What is the maximum travel speed?

Published SWTH3007 specifications list a maximum travel speed of 29 km/h.

Can the SWTH3007 work on slopes?

Published specifications list maximum gradeability of 60%. This is a technical capability figure, not a recommendation to operate on every slope. Actual safe operation depends on ground condition, load, slope, weather, tires, and operator training.

Is the SWTH3007 suitable for agriculture?

Yes. The SWTH series is positioned for material handling in agriculture as well as construction and industrial applications. A telehandler can be useful for pallets, feed, hay, equipment, bags, and other materials when the appropriate attachment is selected.

Is the SWTH3007 suitable for construction?

Yes. Its 3,000 kg rated capacity, 7 m lifting height, telescopic boom, outdoor mobility, and 4.02 m maximum extension make it suitable for many construction material handling tasks. The exact application should still be checked against the load chart and site conditions.

Can the SWTH3007 replace a standard forklift?

Not in every situation. A conventional forklift can be a better fit for some warehouse applications, especially where the floor is flat and loads are handled at relatively short distances. The SWTH3007 makes more sense when forward reach, lifting height, outdoor mobility, and flexible material positioning are important.

Can Ganglong arrange international shipping?

Yes. Hefei Ganglong International Trade Co., Ltd. is the group's international trade arm. We can coordinate equipment supply, inspection, documentation, packing, and international transportation according to the agreed order requirements.

How long does it take to produce the SWTH3007?

Production time depends on the equipment configuration, order quantity, customization requirements, and current supply schedule. We confirm the expected delivery time before production rather than using one fixed lead time for every order.

Final Thoughts

The SWTH3007 Telehandler is a practical machine for customers who need more than simple forklift lifting.

With a published 3,000 kg rated bearing capacity, 7 m maximum lifting height, 4.02 m maximum extension length, 55 kW Yuchai engine, 64 kN traction force, and outdoor-oriented design, it provides a useful combination of lifting, reaching, carrying, and positioning functions.

What I like about this type of machine is its flexibility. One machine can move a pallet, lift materials, reach forward, and position loads without needing a separate machine for every small handling task.

At the same time, I would not choose a telehandler based only on the headline capacity. The real decision should start with the job: load weight, load center, lifting height, reach, attachment, ground condition, working space, and destination.

That is where Ganglong can help.

We can discuss the application, confirm the machine configuration, coordinate supply and inspection, prepare the necessary documents, and arrange international transportation through our experienced trade team. Whether you are sourcing one SWTH3007 telehandler or looking for a broader construction machinery package, we can start with the actual working requirement instead of simply pushing a model number.

If your project needs a 3-ton telescopic handler, 7 m telehandler, telescopic boom forklift, construction telehandler, or outdoor material handling machine, the SWTH3007 is worth putting on your equipment comparison list. Send us the load, lifting height, reach, attachment, and destination details, and we can work from there.
