XE215EV Crawler-Type Battery-Swapping Hydraulic Excavator for Efficient Construction Applications
When I talk with construction equipment buyers about electric Excavators, one question usually comes up very quickly: how can an electric Excavator keep working when the job site does not have enough time for long charging periods? This is exactly where the XE215EV Crawler-type Battery-swapping Hydraulic Excavator becomes interesting.
Instead of treating charging as the only way to restore the machine's working energy, the XE215EV Battery-swapping Hydraulic Excavator uses a replaceable battery solution. The basic idea is simple. When the working battery needs to be replaced, the machine can use a prepared battery through a dedicated swapping system rather than waiting for the installed battery to complete a normal charging cycle.
From my experience working with construction machinery customers, this difference matters most on projects where machine utilization is important. A contractor may have a fixed working schedule, a mining or industrial site may have several shifts, and a construction project may have limited access to electrical infrastructure. In these situations, battery swapping can become part of the equipment planning rather than just another technical feature.
The XE215EV is also not a small electric excavator designed only for light municipal work. XCMG's official information lists the battery-swapping version at an operating weight of 23,500 kg, with a 120 kW electric motor, 400 kWh battery capacity, 1.1 m³ bucket capacity and a maximum digging radius of 9,940 mm. These figures place the machine in a serious mid-to-heavy construction equipment class.
For us at Ganglong Heavy Industry Technology, the value of this machine is not only the electric power system. We look at the complete equipment solution: machine configuration, battery and swapping arrangement, attachments, transportation, site conditions, operator requirements, maintenance planning and after-sales support. That is the practical side of buying an electric excavator that often matters more than a specification sheet alone.

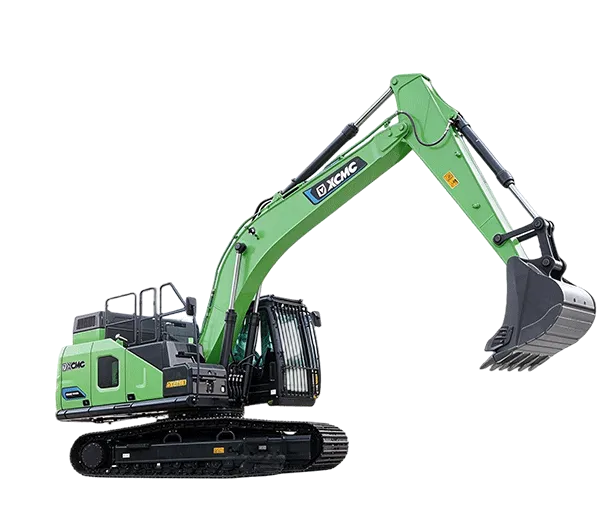

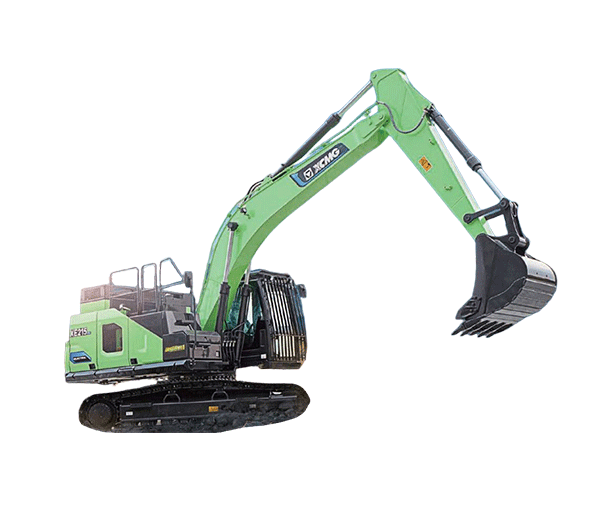

The XE215EV Crawler-type battery-swapping hydraulic excavator is an electric crawler excavator built around a battery-swapping power solution. It uses electric drive technology instead of a conventional diesel engine, while retaining the familiar hydraulic excavation concept that operators already understand.
In simple terms, the machine still performs the basic jobs of a crawler hydraulic excavator: digging, loading, lifting, grading, trenching, material handling and attachment work. The major difference is the way the machine gets and manages its energy.
XCMG's official product page for the XE215EV battery-swapping version identifies three key specifications: 23.5 tonnes of operating weight, 120 kW electric motor power and a 400 kWh battery. The same page lists a 1.1 m³ bucket and a maximum digging radius of 9,940 mm.
| Item | XE215EV Battery-Swapping Version |
|---|---|
| Operating Weight | 23,500 kg |
| Electric Motor Power | 120 kW |
| Battery Capacity | 400 kWh |
| Bucket Capacity | 1.1 m³ |
| Maximum Digging Radius | 9,940 mm |
Source: XCMG official XE215EV battery-swapping product page. Specifications should be confirmed against the final configuration and quotation before purchase.
One point I always recommend to buyers is to separate the battery-swapping model from the charging model. They share the XE215EV name, but their energy systems are not identical. XCMG's official charging version lists a 423 kWh battery and a charging system designed around dual-gun DC fast charging.
| Comparison Item | XE215EV Battery-Swapping Version | XE215EV Charging Version |
|---|---|---|
| Operating Weight | 23,500 kg | 23,500 kg |
| Motor Power | 120 kW | 120 kW |
| Battery Capacity | 400 kWh | 423 kWh |
| Bucket Capacity | 1.1 m³ | 1.1 m³ |
| Maximum Digging Radius | 9,940 mm | 9,940 mm |
| Energy Replenishment | Battery swapping | DC fast charging |
Source: XCMG official product pages for the XE215EV battery-swapping and charging versions.
This distinction is important when preparing a quotation. I would never recommend using charging-version specifications to describe a battery-swapping machine simply because the model name is similar. For an actual purchase, the final equipment configuration, battery system, swapping equipment and local operating requirements should always be checked with the supplier.
The concept behind battery swapping is easier to understand than it may sound.
A conventional diesel excavator stops to refuel. A charging electric excavator connects to a charger and waits for the battery to recover enough energy. A battery-swapping excavator follows another route: the depleted battery is replaced with a prepared battery, allowing the machine to return to work without depending entirely on the charging time of the battery installed on the excavator.
XCMG's official description of the XE215EV battery-swapping version states that it uses an XCMG excavation-and-transport integrated CTV battery-swapping box and supports one-button battery swapping.
For a construction company, I see this as a workflow issue rather than simply an electrical engineering issue. The important question is not only how large the battery is. It is also how the battery supply, swapping equipment, charging point and machine schedule work together.
A typical operating arrangement can be understood in four basic steps:
The excavator operates normally on the job site.
The battery reaches the planned replacement point based on the site's operating schedule.
A prepared battery is available through the battery-swapping system.
The removed battery can be charged separately while the excavator returns to operation with the replacement battery.
This creates a different energy management model. Instead of making the excavator and its battery wait together for charging, the battery charging process can be separated from the excavator's working schedule.
That can be useful for customers who have organized work cycles. For example, a mining site, industrial yard or large construction project may be able to prepare several battery packs and schedule their charging around machine operation. The exact number of batteries and the required swapping infrastructure depend on the project, working hours, charging facilities and local energy conditions.
XCMG has also developed battery-swapping technology across its wider new-energy equipment ecosystem. In 2024, XCMG reported a joint venture launch involving integrated battery packs and battery-swapping solutions for commercial transportation, including excavation and transportation battery-swap units.
That broader ecosystem matters because an electric excavator does not operate in isolation. On larger sites, the real benefit comes when equipment, batteries, charging systems and energy management are planned as one system.
When I evaluate an electric excavator for a customer, I do not start with marketing language. I start with the parts that affect daily work. With the XE215EV battery-swapping excavator, several points stand out.
The first feature is obviously the battery-swapping system. XCMG lists a 400 kWh battery for the XE215EV battery-swapping version and describes a one-button swapping process using its integrated battery-swapping box.
The practical advantage is flexibility. The customer can build an operating plan around battery replacement rather than relying only on fixed charging downtime. This can be particularly relevant where machines need to work for long periods or where charging infrastructure is shared by several electric machines.
At 23,500 kg operating weight, the XE215EV is designed for much more than small landscaping work. This weight class makes it relevant to earthmoving, infrastructure construction, industrial material handling, mining-related work and other medium-to-heavy excavation applications.
The official battery-swapping configuration lists a 120 kW electric motor. Electric motors deliver power differently from diesel engines, and the benefit for an operator is the direct and smooth response of electric drive. XCMG's broader XE215EV electric excavator information also highlights permanent-magnet synchronous motor technology and an electronically controlled hydraulic system.
The 1.1 m³ bucket capacity gives the machine a practical working range for common excavation and loading tasks. Of course, bucket selection should follow the material, density, digging conditions and attachment requirements rather than simply choosing the largest available bucket.
XCMG specifically describes the battery-swapping version as using a compact small-tail-swing design. According to the official product information, this helps the excavator work in locations such as tunnels and enclosed factory spaces.
This is one of those details that sounds small on paper but can become important in real work. On a crowded construction site, every extra meter of swing space can affect how operators position the machine, trucks and materials.
For me, the biggest technical advantage of an electric excavator is not simply that it uses electricity. The complete power and hydraulic system has to work together.
XCMG's global XE215EV page describes a high-safety lithium iron phosphate battery, IP67 protection for key electrical components, a permanent magnet synchronous motor, a large-displacement hydraulic pump and large-diameter main valve. It also highlights multiple attachment control modes, automatic lubrication and a 10-inch touch-screen instrument as available features of the XE215EV platform.
The same global page lists the XE215EV at 23,500 kg operating weight, 140 kW rated power, 1.0 m³ bucket capacity, 149 kN bucket digging force and 111 kN arm digging force. These specifications differ from the dedicated Chinese-market battery-swapping configuration, which lists 120 kW, 400 kWh and a 1.1 m³ bucket. For that reason, I treat them as configuration-specific figures rather than combining them into one specification sheet.
| Technical Area | What It Means in Daily Work | Why I Pay Attention to It |
|---|---|---|
| Electric Drive | Direct electric power delivery | Supports smooth and responsive machine operation |
| Battery System | Large-capacity energy storage | Provides the energy base for electric operation |
| Battery Swapping | Prepared battery replaces the working battery | Separates battery charging time from excavator working time |
| Electronic Hydraulic Control | Electrical signals manage hydraulic functions | Helps provide precise control of machine movements |
| Attachment Control | Multiple working tool modes | Allows the excavator to handle different site tasks |
| Automatic Lubrication | Lubrication system reduces manual work | Helps simplify routine maintenance |
Source: XCMG official XE215EV global and battery-swapping product information. Feature availability may vary by configuration and market.
Another point worth mentioning is safety. XCMG's electric excavator platform uses lithium iron phosphate battery technology, and the global XE215EV page highlights protection of key electrical components. The charging version also lists high-voltage safety protection, battery management and multiple electrical protection functions.
In my view, electrical safety should always be discussed together with operator training, maintenance procedures, battery handling and site management. No single component can replace proper operating discipline.
The right application is one of the most important parts of choosing construction machinery. A good excavator on the wrong job can still become an expensive machine.
Electric excavators can be attractive for urban construction where noise, exhaust and working-space restrictions are important considerations. XCMG lists urban construction among the applications of the XE215EV platform.
For city projects, I would normally look at the actual site first. Road width, working hours, charging or swapping access, nearby buildings and transportation arrangements all influence whether the machine is suitable.
Tunnels are another interesting application. The battery-swapping version uses a compact design intended for confined working spaces, and XCMG specifically lists tunnel work among its application scenarios.
For tunnel projects, electric power can also help reduce the need to manage diesel exhaust at the machine itself. However, ventilation, electrical safety and site logistics still need to be planned according to the specific tunnel conditions.
Industrial facilities often have repetitive material handling work. XCMG lists metal smelting cleaning and cargo-yard loading and unloading among XE215EV application scenarios.
For these sites, I pay particular attention to attachments, material type, working cycles and the distance between the operating area and battery service area. A battery-swapping system can make more sense when machine utilization is high and the site can organize replacement batteries efficiently.
Mining-related work can place heavy demands on an excavator. XCMG identifies mine construction as an application for the XE215EV.
For mining customers, I would not make a decision from battery capacity alone. Ground conditions, material density, cycle time, shift length, transport distance, ambient temperature and available energy infrastructure should all be reviewed before selecting the machine configuration.
Road construction, municipal projects, drainage, site preparation and general earthmoving are also potential applications. The machine's 23.5-tonne operating class and 1.1 m³ bucket make it suitable for a broad range of excavation tasks, subject to the final configuration and job requirements.
At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we have been working with construction machinery since our company was founded in 2013. Our business covers equipment R&D, manufacturing, testing, customization and global sales. Alongside our own HKLOONG excavators, loaders, Backhoe loaders and swamp excavators, we also provide complete machine sales and leasing services involving brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL.
For an electric excavator such as the XE215EV, I believe the pre-delivery process deserves as much attention as the machine itself.
First, we confirm the exact product version. This is especially important with electric equipment because the same base model name may have different energy configurations. As shown by XCMG's official pages, the XE215EV charging version and battery-swapping version have different battery capacities and energy replenishment systems.
Second, we review the working conditions. I normally want to know the expected working hours, material, site size, ambient conditions, attachment requirements, transportation route and local power infrastructure.
Third, we check the machine configuration against the order. This includes the bucket, attachments, battery system, swapping equipment, control functions, safety equipment and other requested options.
Fourth, we pay attention to export preparation. Hefei Ganglong International Trade Co., Ltd. acts as our professional international trade arm. Our team has experience serving construction machinery, mining machinery and agricultural machinery markets across Asia, Africa, America and other regions.
For international buyers, shipping is not simply a matter of putting a machine on a vessel. Dimensions, machine weight, battery-related transport requirements, documentation, destination regulations, customs procedures and unloading arrangements all need to be considered.
I prefer to discuss these points before the order is finalized because solving a logistics problem before shipment is much easier than solving it after the machine reaches the destination.
When a customer contacts us about an XE215EV Crawler-type battery-swapping hydraulic excavator, we do not want the conversation to stop at a machine price.
Our job is to help the customer understand what they are actually buying and whether the equipment arrangement makes sense for the project.
We can support customers with complete-machine sourcing, equipment selection, configuration discussion, attachments and international trade services. Because our business covers construction, mining and agricultural machinery, we can also discuss related equipment when a customer needs a complete project solution rather than a single excavator.
Our relationship with XCMG equipment gives us access to a broad construction machinery product range, while our own HKLOONG product line allows us to provide additional equipment options for different operating requirements.
For an electric excavator, I also believe communication after the sale matters. Battery-swapping equipment involves more than the excavator itself. The battery, swapping equipment, charging arrangement, operator training and maintenance process all form part of the working system.
That is why I recommend that customers provide as much information as possible when asking for a quotation. If I know the intended application, working hours, country, material, attachment requirements and energy setup, I can help make the equipment discussion much more practical.
We have experience serving international markets across Asia, Africa, America and other regions. Our international trade team can assist with the communication, documentation and logistics side of the purchase, while our machinery team focuses on the equipment itself.
The main difference is the energy replenishment method. The XE215EV battery-swapping version is listed by XCMG with a 400 kWh battery and a dedicated battery-swapping system, while the charging version is listed with a 423 kWh battery and a dual-gun DC fast-charging system. Both versions are listed at 23,500 kg operating weight, 120 kW motor power, 1.1 m³ bucket capacity and 9,940 mm maximum digging radius on XCMG's current Chinese product pages.
The official XCMG battery-swapping product page lists an operating weight of 23,500 kg. The final operating weight can depend on the actual equipment configuration and attachments, so buyers should confirm the final specification before transportation planning.
The XCMG official battery-swapping version is listed with a 400 kWh battery capacity. This should not be confused with the 423 kWh battery listed for the charging version.
The official XE215EV battery-swapping configuration lists a 1.1 m³ bucket capacity. The suitable bucket can change according to soil, rock, density and attachment requirements, so we recommend confirming the bucket configuration according to the actual project.
Yes. XCMG specifically describes the battery-swapping version as suitable for tunnel and enclosed-space work because of its compact design. However, tunnel ventilation, site access, electrical safety and local operating rules should still be reviewed before deployment.
The XE215EV platform supports multiple attachment control modes according to XCMG's global product information. Suitable attachments can include tools for different excavation, breaking, handling or grading tasks, but the exact attachment and hydraulic configuration should be confirmed before ordering.
Battery swapping can be useful when a project needs high machine utilization because the charging process for a replacement battery can be separated from the excavator's working schedule. However, the real result depends on the number of batteries, swapping equipment, charging capacity, working intensity and site organization. We recommend designing the complete energy plan rather than looking at battery capacity alone.
I recommend providing your country, project type, expected working hours, material, required bucket or attachments, estimated annual working days, site conditions, transportation requirements and whether you already have charging or battery-swapping infrastructure. With this information, we can discuss the machine configuration and related equipment more accurately.
Ganglong serves international construction machinery markets through Hefei Ganglong International Trade Co., Ltd., with experience covering Asia, Africa, America and other regions. For overseas projects, we can discuss machine configuration, export documentation, shipping arrangements and related equipment requirements.
I always recommend using the final manufacturer-approved configuration and quotation as the purchasing reference. XCMG currently publishes separate information for the XE215EV battery-swapping and charging versions, and some global and regional product pages show different configurations.
The XE215EV Crawler-type battery-swapping hydraulic excavator represents a different way of thinking about electric construction equipment. Instead of making charging time the center of the operating plan, the battery-swapping approach separates energy replenishment from machine operation.
With an official battery-swapping configuration of 23,500 kg operating weight, 120 kW electric motor power, 400 kWh battery capacity, 1.1 m³ bucket capacity and 9,940 mm maximum digging radius, the machine is positioned for serious excavation and construction applications.
For me, the most important point is that battery swapping should not be viewed as an isolated feature. It works best when the excavator, replacement batteries, swapping equipment, charging system, work schedule and site logistics are planned together.
That is the approach we take at Ganglong Heavy Industry Technology. We look beyond the machine itself and consider how the equipment will actually be used after it reaches the job site.
If you are looking for an XE215EV battery-swapping hydraulic excavator for construction, mining, tunnel work, industrial yards, infrastructure or other heavy-duty applications, we can help you review the configuration, attachments, energy solution, export requirements and complete equipment plan before you place an order.
XCMG official XE215EV battery-swapping product page: [XCMG XE215EV Battery-Swapping Version](https://www.xcmg.com/product/pro-detail-138302.htm?utm_source=chatgpt.com)
XCMG official XE215EV charging version: [XCMG XE215EV Charging Version](https://www.xcmg.com/product/pro-detail-136805.htm?utm_source=chatgpt.com)
XCMG Global XE215EV electric excavator: [XCMG Global XE215EV](https://www.xcmgglobal.com/product/electric-excavator/xe215ev/?utm_source=chatgpt.com)
XCMG official XE215EV technical information: [XCMG XE215EV Product Information](https://www.xcmg.com/product/pro-detail-138469.htm?utm_source=chatgpt.com)
