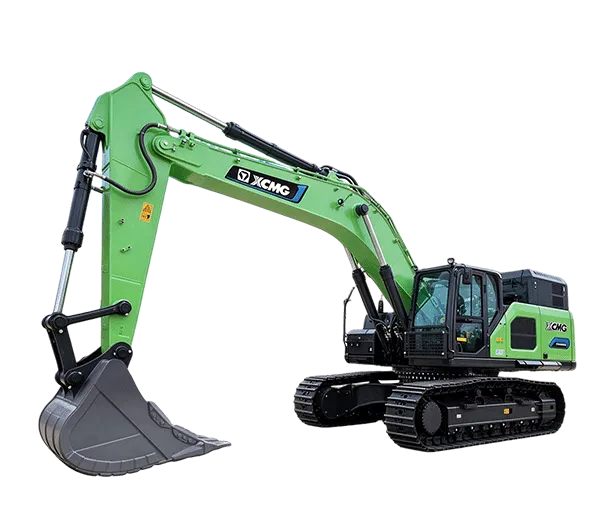

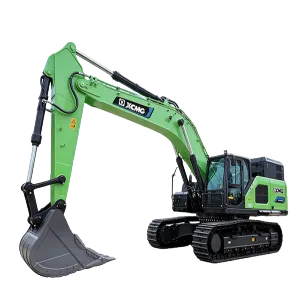

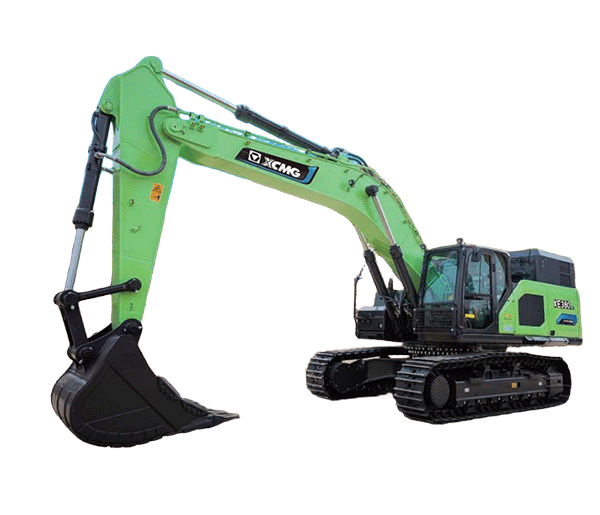

XE380EV Crawler-Type All-Electric Hydraulic Excavator for Efficient Construction and Earthmoving Applications
When I talk with contractors about large electric Excavators, the first question is usually not whether electric equipment is interesting. It is whether the machine can really handle hard work day after day. That is the standard I use when I look at the XE380EV Crawler-type All-electric Hydraulic Excavator.
This is not a small electric machine designed only for light municipal work. The XE380EV is a large crawler excavator built for demanding earthmoving, mining and large construction projects. XCMG's current official information for the battery-swapping version lists an operating weight of 42,300 kg, a 200 kW electric motor, an 800 kWh battery, a 2.3 m³ bucket and a maximum digging radius of 10,390 mm.
From my point of view, those numbers tell only half the story. When I help a customer select an Excavator, I also want to know how the machine behaves under load, how it moves around the site, how the energy system fits the work schedule, what attachments are needed and what kind of support is available after delivery.
The XE380EV is particularly interesting because it combines a familiar crawler hydraulic excavator layout with a pure-electric power system. Instead of a conventional diesel engine, the machine uses a large electric motor and battery system. For the battery-swapping configuration, the energy system is designed around replaceable battery units, so charging and machine operation can be managed as two connected but separate activities.
That makes the machine worth considering for customers who want to reduce dependence on diesel equipment but still need the digging power and working range of a Large Excavator. It can be a practical option for quarrying, aggregate handling, large earthmoving, infrastructure construction and other heavy-duty applications where machine utilization matters.
I usually describe the XE380EV in a simple way: it is a large excavator that changes the way energy is supplied to the machine without changing the basic working idea that operators already know.
The machine still has a crawler undercarriage, boom, arm, bucket and hydraulic system. An operator can still dig a trench, load material, level a working area or work with a suitable attachment. The main difference is the power source.
Instead of burning diesel to generate mechanical power, the XE380EV uses stored electrical energy. XCMG's official battery-swapping version uses an 800 kWh battery system and a 200 kW electric motor. The official product page also lists a 42.3-tonne operating weight and a 2.3 m³ bucket.
| Specification | XE380EV Crawler-type All-electric Hydraulic Excavator |
|---|---|
| Operating Weight | 42,300 kg |
| Electric Motor Power | 200 kW |
| Battery Capacity | 800 kWh |
| Bucket Capacity | 2.3 m³ |
| Maximum Digging Radius | 10,390 mm |
| Energy Solution | Battery Swapping |
Source: XCMG official XE380EV battery-swapping product page. Final specifications should be confirmed according to the actual configuration and quotation.
One thing I want to make clear is that there are different XE380EV configurations. XCMG also publishes a charging version. That version is listed at 41,900 kg operating weight, 200 kW motor power and 801.2 kWh battery capacity, with a bucket range of 1.9–2.1 m³ and a maximum digging radius of 10,970 mm. It uses a high-power four-gun fast-charging system rather than the battery-swapping system.
For this reason, I do not mix the charging-version data with the battery-swapping version when preparing product information. If a customer needs a battery-swapping excavator, the battery-swapping configuration should be used as the reference.
| Item | XE380EV Battery-Swapping Version | XE380EV Charging Version |
|---|---|---|
| Operating Weight | 42,300 kg | 41,900 kg |
| Motor Power | 200 kW | 200 kW |
| Battery Capacity | 800 kWh | 801.2 kWh |
| Bucket Capacity | 2.3 m³ | 1.9–2.1 m³ |
| Maximum Digging Radius | 10,390 mm | 10,970 mm |
| Energy Replenishment | Battery swapping | Four-gun fast charging |
Source: XCMG official XE380EV battery-swapping and charging product pages. Specifications can vary by market and final configuration.
For someone who has never used an electric excavator, the working principle may sound complicated. In practice, the idea is fairly easy to understand.
The battery stores electrical energy. The electric motor converts that energy into mechanical power. The hydraulic system then uses the available power to operate the boom, arm, bucket and other hydraulic functions.
The operator still uses familiar controls. Move the control handle and the excavator responds. Push the travel control and the crawler moves. Operate the boom and arm controls and the working equipment performs the required movement.
What changes is what happens before that movement. With a diesel excavator, fuel is burned by an engine. With the XE380EV All-electric Hydraulic Excavator, electrical energy is supplied to the electric drive system.
This setup has several practical effects. An electric motor does not need the same type of engine oil, fuel system or exhaust after-treatment system used by a diesel engine. XCMG states that the XE380EV battery-swapping version uses a high-torque permanent-magnet synchronous motor with efficiency up to 96.7% and describes it as maintenance-free in normal daily use.
I would still be careful with the phrase “maintenance-free.” The electric motor itself may need less routine attention, but the complete excavator certainly still needs inspection and maintenance. Hydraulic oil, filters, tracks, pins, bushings, attachments, electrical connections and other components still need regular checks.
This is where the XE380EV becomes especially interesting for heavy-duty customers.
XCMG's official information says the machine uses an integrated XCMG battery-swapping box and that the single battery box replacement time is less than 15 minutes. The company also lists a comprehensive operating duration of around 5–7 hours under its stated conditions.
In simple terms, a prepared battery can be used to replace the battery that has been depleted during operation. The removed battery can then be charged separately. The excavator does not necessarily have to remain connected to a charger for the whole battery charging process.
This can make a big difference in a quarry or large earthmoving project. If the site has a planned battery management system, machine operation and battery charging can be organized as two parts of the same work schedule.
Of course, the actual result depends on working intensity. Digging hard rock, loading dense material and continuous heavy-duty operation will use energy differently from lighter excavation work. I always recommend evaluating battery usage based on the real job instead of promising one fixed working time for every customer.
When I evaluate a large excavator, I do not look at one impressive specification and stop there. I want the complete machine to make sense. Here are the areas I pay the most attention to.
The battery-swapping version is equipped with an 800 kWh battery capacity according to XCMG's official specification.
For a 42-tonne-class excavator, a large battery is important because heavy excavation consumes considerable energy. XCMG also states that the two power battery units are independent, meaning that if one battery unit has a problem, the other can continue to support the machine's operation.
That kind of design is worth paying attention to because large construction machines cannot always stop work whenever something goes wrong. Equipment availability has a direct effect on project progress.
The XE380EV uses a 200 kW electric motor in the official battery-swapping configuration.
XCMG describes the motor as a high-torque permanent-magnet synchronous motor, with efficiency up to 96.7%. The motor is designed to deliver the power needed by the hydraulic system while avoiding the conventional diesel engine structure.
The official battery-swapping version is listed with a 2.3 m³ bucket capacity.
This gives the XE380EV a practical position in large earthmoving and material-loading applications. The exact bucket should still be selected according to the material being handled. Soil, gravel, limestone and blasted rock do not behave in the same way, so bucket design matters.
XCMG says the XE380EV battery-swapping version is equipped with a large-torque travel motor and automatic two-speed switching. The company highlights strong travel performance and smoother switching between high and low speeds.
This is useful on sites where the excavator needs to move between working positions or deal with slopes. A large excavator spends plenty of time travelling around a job site, so the undercarriage and travel system should not be treated as secondary components.
The XE380EV uses a Kawasaki large swing motor according to XCMG's official product information. XCMG highlights high output torque, good starting performance, low swing drift and stable parking.
For the operator, these features translate into more predictable machine movement. In loading operations, for example, smooth and stable swing movement helps the operator position the bucket more naturally.
Electric excavators are sometimes described only in terms of zero tailpipe emissions and lower noise. Those points are important, but when I speak with professional equipment buyers, the discussion usually goes deeper.
The machine still has to dig.
It still has to climb.
It still has to swing under load.
It still has to work for long hours.
That is why the hydraulic system is just as important as the battery.
XCMG states that the XE380EV battery-swapping version uses a large-displacement main pump and main valve. The company says the system is designed for precise control, quick response, lower throttling loss and flexible fine operation.
| System | Official XE380EV Information | Practical Meaning |
|---|---|---|
| Battery | 800 kWh | Provides a large energy reserve for heavy electric operation |
| Electric Motor | 200 kW | Supplies power to the machine's working systems |
| Motor Type | Permanent-magnet synchronous motor | High-efficiency electric drive solution |
| Motor Efficiency | Up to 96.7% | Supports efficient conversion of electrical energy |
| Main Hydraulic Pump | Large displacement | Supports fast hydraulic response |
| Travel System | Large-torque travel motor | Supports travel and climbing performance |
| Swing System | Kawasaki large swing motor | Supports smooth and stable upper-structure movement |
Source: XCMG official XE380EV battery-swapping product information.
Another advantage of electric equipment is the working environment. An all-electric hydraulic excavator does not have the same tailpipe exhaust produced by a diesel engine. This can be useful in locations where local environmental requirements are becoming stricter.
XCMG has been expanding its electric excavator range across different weight classes. At its 2026 construction machinery exhibition, the company presented several new-energy excavators covering approximately 1.9 to 75 tonnes, with the XE380EV positioned for mining and large earthmoving applications.
That positioning is consistent with the actual size of the machine. I would not recommend choosing the XE380EV simply because it is electric. I would choose it when the project's workload, machine size, energy plan and operating conditions all make sense together.
The application range of a 38-tonne-class electric excavator is quite different from that of a small electric excavator. The XE380EV is built for work where digging force, bucket size, machine stability and long operating cycles matter.
Mining is one of the clearest application areas for the XE380EV. XCMG's official charging-version page identifies aggregate mine excavation and loading, crushing operations and large infrastructure earthmoving as application scenarios.
In 2026, XCMG also reported delivery of multiple XE380EV electric excavators to a large mine in Sichuan, where the machines were put into crushing-related work. The company described the equipment as a 38-tonne-class large electric excavator for mining and large earthmoving applications.
For mining customers, I would focus on the actual material and working cycle. Hard rock, blasted material and aggregate loading can place very different demands on the machine. Attachment selection and bucket configuration should therefore be discussed together with the project conditions.
Large earthmoving work often involves repeated digging, loading and moving. The XE380EV's 42.3-tonne operating weight and 2.3 m³ bucket give it the physical scale needed for substantial material movement.
This can include site preparation, large foundation projects, industrial construction and other projects where high-volume excavation is required.
Infrastructure projects can involve large quantities of soil and aggregate. Roads, industrial parks, water-related construction and large foundations may all require excavators in this class.
For these projects, I look at transport distance, daily operating hours and the location of the energy service area. Electric equipment works best when its energy plan is designed before the machine arrives.
With the appropriate bucket, the XE380EV can be considered for loading and handling aggregate materials. The machine's large working range and 2.3 m³ bucket capacity make it suitable for material-handling cycles where a large excavator is already required.
Large construction sites often have enough space to organize equipment, batteries and service areas. This makes them suitable candidates for an all-electric hydraulic excavator when the local electrical infrastructure or battery-swapping arrangement can support the machine.
I would not treat “electric” as a universal answer. The right machine depends on the site. That is why we ask customers about their project before recommending a configuration.
At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we have been working in construction machinery since 2013. Our business covers equipment R&D, manufacturing, testing, customization and global sales. We also work with complete-machine sales and leasing for brands including Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL.
For me, selling a large electric excavator is not simply about giving the customer a model number and price. There are several steps that need to be checked before the equipment is shipped.
The XE380EV has different energy configurations. XCMG's official pages separately list the battery-swapping and charging versions, and their specifications are not identical.
So the first step is always to confirm whether the customer needs a battery-swapping system or a charging system. We then confirm the battery arrangement, bucket, attachments and other options.
I want to know what the excavator will actually do. Is it digging soil? Loading aggregate? Working in a quarry? Feeding a crusher? Preparing a foundation? Working long shifts?
The answers affect how we discuss the machine.
For a battery-swapping excavator, the customer needs more than the machine itself. Battery service, charging arrangements and swapping equipment all need to be considered.
XCMG's official battery-swapping configuration uses an integrated swapping box, with the company stating that single-box replacement can take less than 15 minutes.
We therefore encourage customers to plan the complete energy workflow before purchasing the machine.
Our international trade team at Hefei Ganglong International Trade Co., Ltd. serves customers across Asia, Africa, America and other regions. For overseas orders, we help coordinate the machinery side with the international logistics side.
Large excavators require careful transportation planning. Machine dimensions, weight, loading arrangements, shipping documents, destination requirements and unloading equipment should all be reviewed in advance.
Electric equipment adds another important area: battery-related transport and local regulatory requirements. These should be confirmed according to the destination country and the final battery configuration rather than assumed from a general rule.
When a customer asks me why they should work with Ganglong, I prefer to answer with practical points rather than big promises.
We understand construction machinery from more than one angle. Our business includes our own HKLOONG excavators, loaders, Backhoe loaders and swamp excavators, while we also work with a range of established domestic and international construction machinery brands.
That experience helps us understand that a machine is only one part of a project.
A customer may need an excavator today but also need a Wheel loader, crusher, attachment, spare parts or another machine later. We can discuss these requirements as part of a broader equipment plan.
For the XE380EV, our focus is on matching the machine to the customer's actual application. We can discuss bucket requirements, attachments, battery-swapping arrangements, transportation and export details before the order is finalized.
Our international trade team has experience serving customers in different regions. That matters because construction machinery is not sold in exactly the same way in every market. Working conditions, transport, documentation, local regulations and service arrangements can all be different.
I also believe that clear information is part of good equipment service. If a specification belongs to the charging version, I do not want to present it as a battery-swapping specification. If a working-hour figure depends on operating conditions, I prefer to say that clearly rather than give a number that sounds universal.
That is the approach we take when preparing an XE380EV quotation: first understand the project, then confirm the configuration, and finally work through delivery and support details.
XCMG's official battery-swapping product page lists the XE380EV at 42,300 kg operating weight. The final transport weight should be confirmed according to the actual machine configuration and attachments.
The official battery-swapping version is listed with a 200 kW electric motor. XCMG describes it as a high-torque permanent-magnet synchronous motor with efficiency up to 96.7%.
The XE380EV battery-swapping version is officially listed with an 800 kWh battery capacity. XCMG also states that the two battery units are independent.
XCMG states that the battery-swapping version can achieve a comprehensive operating duration of approximately 5–7 hours under its stated conditions. Actual working time depends heavily on digging intensity, material, ambient conditions, operating habits and work cycle.
XCMG's official information states that the single battery box replacement time is less than 15 minutes. Actual site time can depend on the swapping procedure, equipment condition and operating environment.
The official battery-swapping version is listed with a 2.3 m³ bucket. The final bucket should be selected according to material type and working conditions.
XCMG lists a maximum digging radius of 10,390 mm for the XE380EV battery-swapping version.
Yes. XCMG positions the XE380EV for mining and large earthmoving applications. Its official charging-version page identifies aggregate mine excavation and loading, crushing and large infrastructure earthmoving as application scenarios. XCMG also reported XE380EV deliveries to a large Sichuan mine in 2026.
The main difference is the energy replenishment method. The battery-swapping version uses an 800 kWh battery system and a dedicated swapping system, while the charging version is listed with an 801.2 kWh battery and four-gun fast charging. Their published operating weights, bucket ranges and maximum digging radii also differ.
Attachment selection depends on the work being performed. For mining, quarrying, material loading, demolition or other specialized tasks, the hydraulic configuration and attachment requirements should be checked before ordering. We can discuss the working condition and recommend the appropriate configuration.
Operating cost depends on local electricity prices, diesel prices, working hours, energy efficiency, maintenance, charging or battery-swapping infrastructure and financing costs. I would not promise a fixed saving without knowing the customer's actual project. We can instead compare the expected energy and maintenance costs using the customer's local conditions.
I recommend providing your country, project type, material, expected working hours per day, working days per month, required bucket or attachments, site conditions, energy infrastructure and transportation destination. This gives us enough information to discuss the appropriate machine configuration and delivery plan.
The XE380EV Crawler-type all-electric hydraulic excavator is designed for customers who need the size and working capability of a large excavator while moving toward electric power.
Its official battery-swapping configuration combines a 42,300 kg operating weight, 200 kW electric motor, 800 kWh battery, 2.3 m³ bucket and 10,390 mm maximum digging radius. XCMG also states a 5–7 hour comprehensive operating duration and less than 15 minutes for single battery-box swapping under its stated conditions.
What I find most important is the complete system behind those numbers. A large electric excavator needs the right battery arrangement, energy plan, attachments, working schedule and service support. Battery swapping can be particularly useful when a project needs to separate battery charging from excavator operating time.
For mining, quarrying, large earthmoving and infrastructure construction, the XE380EV gives contractors another way to approach heavy excavation work. XCMG's recent product and project information also shows the model being positioned and used in large-scale mining and earthmoving scenarios.
At Ganglong Heavy Industry Technology, I approach every XE380EV project from the actual job site backward. I want to know what the machine needs to do, how many hours it will work, what material it will handle, how the energy system will be arranged and how the machine will reach the destination.
If you are looking for an XE380EV all-electric hydraulic excavator, an XE380EV crawler excavator or a large electric excavator for mining and earthmoving, we can help you review the machine configuration, attachments, battery-swapping solution, export requirements and complete equipment plan before purchase.
XCMG Official XE380EV Battery-Swapping Version: XE380EV Battery-swapping Hydraulic Excavator.
XCMG Official XE380EV Charging Version: XE380EV Charging Hydraulic Excavator.
XCMG 2026 Exhibition Information: XE380EV positioned for mining and large earthmoving applications.
XCMG 2026 Project Case: XE380EV delivered to a large mining customer in Sichuan.
