When I look at a material handler for heavy industrial work, I do not judge it only by motor power or machine size. I look at the whole working process: how the machine gets power, how smoothly it moves the load, how far the working equipment can reach, how easy it is to control, and whether the machine can keep working day after day.

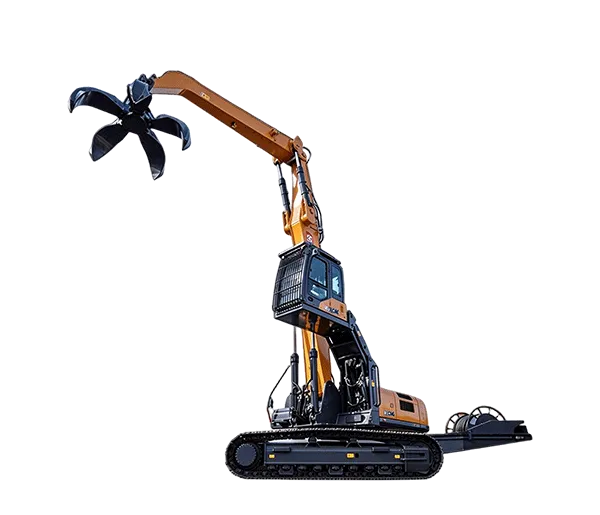

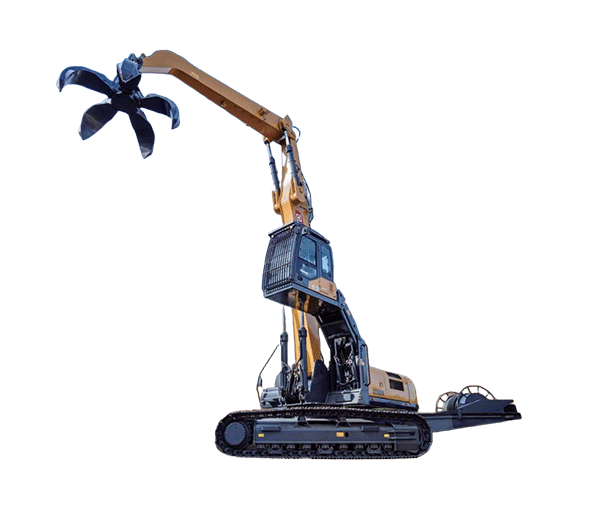

That is why the XE500EM Electric Material Handler gets my attention. It is a large crawler-type electric material handling machine developed by XCMG for demanding material handling work. Publicly available specifications list an operating weight of about 49,000 kg, a 200 kW electric motor, AC 380V/50Hz power supply, a 1 m³ bucket capacity and a maximum material handling radius of 15,110 mm. The machine is also listed with a 7.8 r/min swing speed and a maximum traction force of 338 kN.

In practical terms, I see the XE500EM as an electric solution for yards and industrial sites where material has to be grabbed, lifted, moved, sorted and loaded repeatedly. Typical work can include scrap steel handling, bulk material transfer, metal sorting, loading and unloading operations and other applications where a long working range is useful.

There is one important point I want to make clear from the beginning. The XE500EM is described in current public sales and trade records as a plug-in electric Excavator, rather than a battery-only machine. Trade records have also documented XE500EM units exported as “electric excavator” with a plug-in configuration. That means the site needs to plan the electrical supply and operating area properly. For buyers comparing electric material handlers, this is not a small detail; it directly affects installation, daily operation and project planning.

1. What I Expect from the XE500EM Electric Material Handler

For me, a good material handler starts with the job rather than the brochure. If I am handling scrap steel, I need reach, stability and controlled movement. If I am working in a recycling yard, I need repeated loading and sorting. If I am handling bulk materials, I need a working tool that can pick up and release material quickly without making every movement feel slow.

The XE500EM is built around this type of work. XCMG's material handling range includes dedicated machines designed for loading, unloading, stacking and transferring scrap steel, bulk materials, wood and other materials. Its public material-handler information also describes attachments such as orange-peel grabs, clamshell buckets, timber grabs, electric suction cups and slings for different material handling tasks.

For the XE500EM, the long working equipment is especially important. Public specifications list an arm length of 8,600 mm and a bucket rod length of 6,000 mm. The listed maximum capture radius is 15,110 mm, while maximum working height is listed at about 13,000 mm.

Those numbers tell me something useful: this machine is not simply a standard excavator with an electric motor added. The machine is configured around material handling, where the ability to reach into a pile, truck, container or processing area can be more important than digging a deep trench.

I also pay attention to the machine's overall size. The published specifications list an overall length of 10,965 mm, overall width of 4,210 mm and overall height of 7,950 mm. The crawler width is listed as 600 mm, with a track wheelbase of 4,292 mm. These dimensions matter when I plan a working yard, transportation route, gate width, maintenance area and machine positioning zone.

Source: publicly listed XE500EM specifications from XCMG E-commerce/Machmall and other equipment databases. Final machine configuration should be confirmed against the supplier's technical specification before purchase.

2. How the XE500EM Electric Material Handler Works

The working principle is easier to understand than it may first sound. Instead of using a diesel engine as the main power source, the XE500EM uses an electric motor supplied by an external electrical connection. Public specifications identify the power supply as AC 380V/50Hz and the motor output as 200 kW at 1488 rpm.

From there, the machine uses an electric drive system together with hydraulic systems to turn electrical power into useful movement. The motor provides the main mechanical power, while the hydraulic system controls functions such as the boom, arm and working attachment. The crawler system provides travel, while the swing system allows the upper structure to rotate during loading, unloading and sorting.

This arrangement makes sense in a fixed or semi-fixed industrial yard. If the machine spends most of its time working inside one material handling area, I do not necessarily need a large battery pack simply to move the machine around. Instead, I can connect the machine to an appropriate electrical supply and keep the working area supplied with power.

There is another useful point in the published XE500EM description. It states that the hydraulic oil radiator fan and air-conditioning compressor use electric motors and only operate when needed. The same source states that the main motor efficiency can reach 96% and describes the system as designed to reduce energy loss.

I would not turn that into a blanket promise about energy cost because actual savings depend heavily on local electricity prices, operating hours, load cycles and the existing diesel machine being compared. What I can say is that an electric material handler changes the energy supply model. For a site with suitable electricity infrastructure, that can be an important part of the equipment planning decision.

The control system is another part I consider important. Public XE500EM information describes an electromechanical intelligent control system with a dedicated display for monitoring machine operating conditions and warning the operator when faults or maintenance conditions occur. Electrical circuits are also described as having protective devices.

In daily work, that means the operator does not need to think about the machine as just a motor and hydraulic pump. The electrical system, control system and hydraulic system have to work together. Good control is particularly useful when the machine is picking up irregular loads such as scrap metal, where sudden changes in load can make rough operation uncomfortable and inefficient.

3. Main Features I Would Focus on in Real Material Handling Work

When I explain the XE500EM to a customer, I would not start by listing every technical term. I would start with what the machine actually does better for the job.

Long Working Reach

The published maximum capture radius is 15,110 mm. With an arm length of 8,600 mm and bucket rod length of 6,000 mm, the working equipment is designed to give the operator a broad material handling range.

This matters when I need to reach into a truck, pile or sorting area without constantly repositioning the machine. Fewer unnecessary movements can make the whole loading process easier to organize.

Large Machine for Heavy Material Handling

At around 49 tonnes operating weight, the XE500EM belongs to a heavy equipment class. A heavier machine gives the working equipment a solid platform, which is important when handling heavy materials at reach. Of course, the actual safe lifting load still depends on the working radius, attachment, material density and operating configuration.

Electric Drive

The electric system is one of the defining features. The published specification uses AC 380V/50Hz and a 200 kW motor. Because this is a plug-in configuration, I would plan the power connection before the machine arrives. Cable routing, protection equipment, electrical capacity and working-zone safety should all be considered as part of the machine installation.

Material Handling Attachments

Material handling becomes much more useful when the working tool matches the material. XCMG's material-handler range identifies orange-peel grabs, clamshell buckets, timber grabs, electric suction cups and slings as possible working tools for different materials.

For scrap steel, a grab may be more practical than a standard bucket. For timber, a timber grab makes more sense. For some bulk materials, a clamshell attachment can make loading and unloading easier. The attachment should therefore be selected together with the machine instead of being treated as an afterthought.

Stable Crawler Platform

The crawler undercarriage gives the XE500EM a wide, stable base for industrial work. Published specifications list a maximum traction force of 338 kN and a climbing ability of 35 degrees. These figures are useful reference points, but I would always match machine operation to the actual ground condition and the manufacturer's safety requirements.

Source for XE500EM characteristics: published XE500EM equipment specifications and product descriptions. The diesel column is a general equipment description rather than a specification for one particular competing model.

4. Where I See the XE500EM Being Useful

The first application I would look at is scrap steel handling. Scrap yards and steel processing facilities often need to move irregular, heavy pieces of metal again and again. The machine needs reach, stability and a suitable grab, while the work cycle can involve picking, swinging, releasing and repeating.

The XE500EM has also been described in public sales material as a machine for grabbing steel. Its published working equipment dimensions and 1 m³ bucket specification provide a useful reference for the base machine, while the actual attachment should be selected according to the customer's material and handling method.

Recycling yards are another natural application. Materials can arrive in mixed condition and may need to be separated before processing. An electric material handler can be positioned around a fixed sorting area and used for repeated material transfer. The key is not simply the machine's maximum reach; the complete work cycle, attachment and site layout all matter.

Ports and freight yards can also benefit from dedicated material handling equipment. XCMG's broader material-handler range identifies ports, railway ports and freight yards as application environments for handling scrap steel, bulk materials and wood.

Steel plants and industrial yards are another potential area. In a fixed industrial environment, the ability to use an external electric power supply can fit a planned working zone. However, I would first check whether the site's electrical infrastructure can support the machine and whether the operating area allows safe cable management.

Bulk material transfer is also possible when the correct attachment is selected. Depending on the material, this can include coal, wood, sawdust, grass, metal and other bulk products. XCMG's material-handler information specifically identifies these kinds of materials and several corresponding attachments.

For every one of these applications, I recommend starting with four questions: What material are we moving? How heavy is each load? How far and how high must we reach? How many working cycles are required per hour? These four answers tell me far more about whether a material handler will fit the job than simply looking at the machine's tonnage.

5. Manufacturing, Inspection and Export Preparation

As a construction machinery supplier, I know that buying a large machine is not only about the machine itself. The process before shipment matters too. A 49-ton-class electric material handler has to arrive at the job site in the condition agreed in the purchase contract, with the right configuration and the correct documentation.

At Ganglong Heavy Industry Technology, we work around construction machinery, mining machinery, agricultural machinery and matching attachments. Our business covers equipment R&D, manufacturing, testing, customization and global sales, while Hefei Ganglong International Trade handles international trade services. This gives us a practical understanding of the steps between equipment selection and overseas delivery.

For an XE500EM project, I would normally begin by confirming the working material, attachment, required reach, electrical conditions and destination country. Then I would check the machine configuration against those requirements.

For an electric machine, the electrical side deserves extra attention. I want the buyer to know the required voltage and frequency, power connection method, protection requirements and cable arrangement before shipment. Public XE500EM specifications list AC 380V/50Hz, but the final electrical configuration should always be confirmed against the machine being supplied.

Mechanical inspection is equally important. I would pay attention to the crawler system, working equipment, hydraulic lines, joints, attachment connection, electrical cabinet, control system and visible structural parts. The machine should be checked according to the agreed inspection standard before loading.

We also understand that international customers may have different requirements for transport, customs documents, spare parts and after-sales support. Hefei Ganglong International Trade has experience serving customers across Asia, Africa, America and other international markets. That experience helps us handle the practical details instead of leaving the buyer to solve everything alone.

One point I always recommend is to keep the final technical specification attached to the purchase order. Online product pages can contain different configurations or older data. In fact, public XE500EM listings show some variation in the stated operating weight, so I would not treat every online number as interchangeable. The final quotation, nameplate, technical sheet and agreed configuration should be the reference for the actual machine.

6. Why I Work with Ganglong for Construction Machinery Projects

Ganglong Heavy Industry Technology was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we are affiliated with China Construction Machinery (Group) Co., Ltd. Our business covers equipment development, manufacturing, testing, customization and global sales.

We supply our own HKLOONG brand Excavators, loaders, Backhoe loaders and swamp excavators. At the same time, we provide complete-machine sales and leasing services for brands including Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL.

That multi-brand experience is useful because customers do not always need one specific machine. Sometimes the real question is which machine configuration fits the material, working cycle, site and budget. Having experience with different equipment types helps us discuss the application first.

For an XE500EM Electric Material Handler, I can help the buyer look beyond the machine name and check the complete project. That includes working attachment selection, power requirements, transportation, spare parts, operating environment and after-sales arrangements.

I also believe that straightforward communication is part of good equipment supply. If a specification needs confirmation, I would rather say so than give a number that looks convenient but may not match the final machine. This is especially important for heavy machinery because a small difference in configuration can affect transportation, installation, lifting capacity and operating cost.

Our international trade team has worked with customers across Asia, Africa, America and other regions. We can therefore discuss not only the equipment itself but also export procedures, shipping arrangements and the practical needs of overseas customers.

When a customer contacts us about the XE500EM, I normally want to know the application first. If the customer tells me “I need an electric material handler,” that is only the beginning. I want to know what material is being handled, what attachment is required, how many hours the machine will work, whether the site has suitable electrical power, and how the machine will be transported to the final location.

That information allows us to build a more useful equipment proposal rather than simply sending a generic price.

7. XE500EM Electric Material Handler FAQ

Is the XE500EM a battery electric material handler?

Based on the publicly available XE500EM specifications I reviewed, the machine uses an external AC 380V/50Hz power supply and a 200 kW electric motor. It is therefore better described as a plug-in electric machine rather than a battery-only material handler. Export records also identify XE500EM units as plug-in electric excavators.

What is the operating weight of the XE500EM?

Public equipment listings commonly give an operating weight of about 49,000 kg. However, I recommend confirming the exact operating weight on the final configuration sheet because different online listings can show different figures. The attachment, working equipment and other configuration details can affect the final machine weight.

What is the motor power of the XE500EM?

The published specification lists a 200 kW electric motor at 1488 rpm. The same specification lists maximum motor torque at 1,283 N·m at 1488 rpm.

What electrical supply does the XE500EM require?

The publicly listed specification states AC 380V/50Hz. Before installation, I recommend confirming the final electrical requirements, protection equipment and connection arrangement with the supplier because local electrical standards and the final machine configuration can affect the installation plan.

What materials can the XE500EM handle?

The machine is mainly associated with heavy material handling and steel grabbing. Depending on the attachment, material handling equipment in the XCMG range can be used for scrap steel, bulk materials, wood, metal and other materials. The right grab or bucket should be selected according to material type, density and handling method.

What is the maximum reach of the XE500EM?

Public specifications list a maximum capture radius of 15,110 mm. They also list an 8,600 mm arm length and 6,000 mm bucket rod length. The actual usable working range depends on the attachment and working configuration.

Can the XE500EM be used for scrap steel?

Yes. The XE500EM is publicly marketed for steel grabbing and material handling, and its long-reach working equipment is suited to applications where steel or other heavy materials must be picked, moved and sorted. The attachment should be selected according to the size and shape of the scrap.

Does the XE500EM need a special power installation?

Because the machine is a plug-in electric model, the working site needs an appropriate electrical supply and safe connection arrangement. I recommend planning the electrical infrastructure before delivery instead of waiting until the machine reaches the site. The exact installation requirements should be confirmed with the equipment supplier and the local electrical contractor.

Can Ganglong arrange overseas delivery?

Yes. Hefei Ganglong International Trade Co., Ltd. serves as our international trade arm, and our team has experience working with construction, mining and agricultural machinery customers in Asia, Africa, America and other regions. We can discuss machine configuration, export documents, shipping and related equipment requirements together.

Final Thoughts: Choosing the Machine Around the Work

For me, the most important thing about the XE500EM Electric Material Handler is not simply that it is electric. Its value comes from putting electric power, a heavy crawler platform and a long-reach material handling configuration into one working machine.

With publicly listed specifications of around 49,000 kg operating weight, 200 kW electric motor output, AC 380V/50Hz power supply, 1 m³ bucket capacity and a maximum capture radius of 15,110 mm, it is positioned for serious material handling rather than light-duty yard work.

At the same time, I would never recommend choosing a machine only from a specification table. The material, attachment, working radius, cycle time, electrical infrastructure and site layout all have to fit together. That is especially true for a plug-in electric material handler.

If your project involves scrap steel, recycling, industrial material transfer, steel plants, freight yards or other repeated heavy handling work, I would start by checking the actual working cycle. From there, we can determine the attachment, electrical setup and machine configuration that make sense.

At Ganglong, our job is not simply to move a machine from a factory to a port. We aim to help customers connect the equipment with the real job site. With our experience in construction machinery, mining machinery, agricultural machinery and international equipment trade, we can support the process from model selection and configuration confirmation to inspection, shipping and overseas service.

For an XE500EM Electric Material Handler, that practical approach matters. The right machine is the one that fits the work, the site and the way you plan to operate it.

Sources and Technical References

• XCMG Global material handler information and XE450M application reference.

• Public XE500EM specification and product information from XCMG E-commerce/Machmall, including operating weight, electric motor, power supply, dimensions and working range.

• Public XE500EM model listings from construction machinery databases for cross-checking operating weight and power information.

• Trade records identifying exported XE500EM units as plug-in electric excavators.

Technical note: Product specifications can vary according to market, attachment, working equipment and production configuration. The figures on this page are based on publicly available sources reviewed for this article. Before placing an order, buyers should confirm the final operating weight, attachment, electrical requirements, dimensions, performance data and other technical details with Ganglong and the final XCMG technical documentation.
