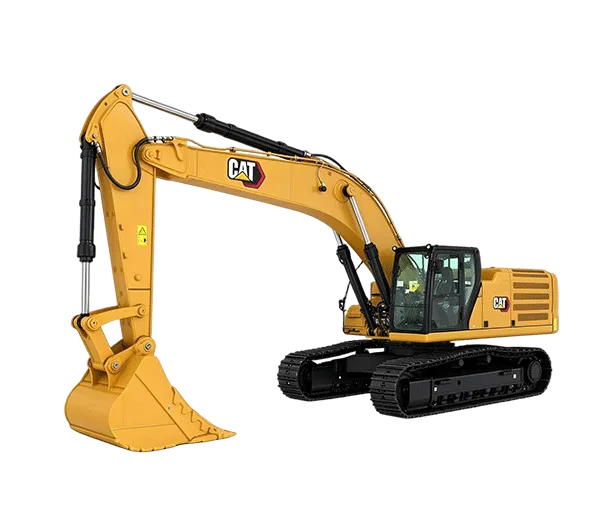

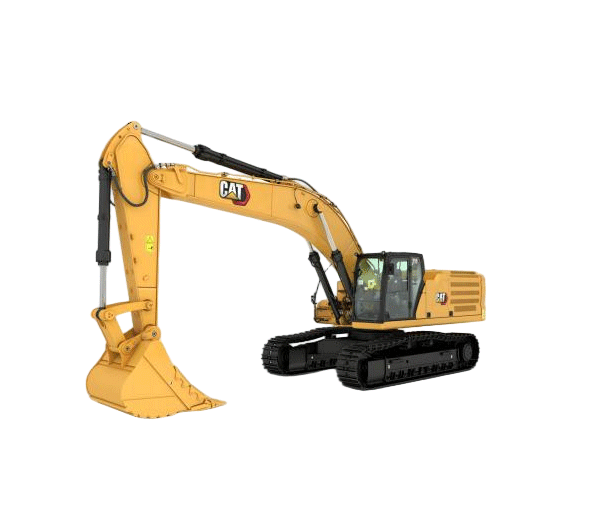

350 Hydraulic Excavator for Heavy-Duty Construction and Earthmoving Applications
When I talk about a 350 Hydraulic Excavator, I am talking about a machine built for jobs where a smaller Excavator simply cannot keep up. Large excavation projects, deep foundation work, road construction, mining support, bulk earthmoving and heavy material loading all demand more than basic digging power. They require a crawler excavator with enough working weight, hydraulic capacity, digging force and stability to keep moving material hour after hour.
At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., I work with customers who usually have a very practical question: “Can this excavator handle my job without creating unnecessary downtime or transport problems?” That is the question I prefer to answer first. A good excavator is not only about horsepower. It is about matching the machine, bucket, boom, stick, undercarriage and working conditions to the actual project.
Our group was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate as a comprehensive machinery business covering equipment R&D, manufacturing, testing, customization and international sales. We offer our own HKLOONG Excavators, loaders, Backhoe loaders and swamp excavators, while also handling complete-machine sales and leasing for a range of domestic and international construction machinery brands, subject to actual availability and transaction terms.
For the model-specific benchmark figures in this page, I refer to the current Cat 350 published by Caterpillar because it provides a clear reference for this class of large hydraulic excavator. Caterpillar currently lists the 350 with 413 hp (308 kW) net power, approximately 46,000 kg operating weight and 8,210 mm maximum digging depth. The published configuration can also use buckets up to 3.2 m³, depending on the selected setup. These figures should be treated as reference specifications rather than a promise that every machine called a “350 Hydraulic Excavator” has exactly the same configuration.
I see the 350 class as a practical step up for contractors who need serious production without moving into the very largest excavator classes. On a busy earthmoving site, the machine has to dig, swing, load, travel and repeat the same cycle many times. If the excavator loses time between these operations, the problem quickly becomes a project cost problem.
The basic working cycle is simple. The bucket cuts into the ground, the boom and stick position the bucket, the hydraulic cylinders generate the movement, the upper structure swings toward the truck or stockpile, and the bucket releases the material. The excavator then returns to the digging position and starts again.
What makes a large hydraulic excavator different is the amount of force and material involved in each cycle. A larger bucket can move considerably more material, but only if the hydraulic system, structure, undercarriage and counterweight are designed to work together. This is why I do not recommend choosing an excavator only by bucket size.
The crawler undercarriage is another important part of the machine. Instead of relying on wheels, the excavator uses tracks to spread its weight over a larger area. This gives the machine a stable working platform and useful traction on rough ground, slopes and less-than-perfect construction sites.
For large-scale excavation, stability matters just as much as digging force. A machine that feels stable during digging allows the operator to work with better control. It also helps when the excavator is handling a full bucket or moving material close to the machine's lifting limit.
In practical terms, I would consider a 350 Hydraulic Excavator for projects such as mass excavation, large foundations, road construction, infrastructure work, quarry support, mining-related earthmoving, utility trenching and major site preparation.
The easiest way to understand a hydraulic excavator is to think of hydraulic oil as the machine's working muscle. The engine supplies power to the hydraulic system. Pumps move hydraulic oil through valves and lines. The oil then reaches hydraulic cylinders and motors, which create the controlled movement needed for digging, lifting, swinging and traveling.
The boom cylinder moves the boom. The stick cylinder controls the stick. The bucket cylinder controls the bucket. Separate hydraulic motors are used for functions such as machine travel and upper-structure swing. The operator does not manually control these hydraulic parts. Instead, joystick movements send control signals that tell the hydraulic system what action is required.
This arrangement gives a skilled operator very fine control. The machine can make a strong digging movement when the soil is hard, then switch to a smoother movement when positioning material. That flexibility is important when one excavator is expected to perform several tasks during the same shift.
On the current Cat 350 reference configuration, Caterpillar combines a Cat C9.3B engine with a large hydraulic system and three operating modes: Power, Smart and Eco. The manufacturer says Smart mode can automatically adjust power according to the task, while Power mode is intended for demanding work and Eco mode focuses on reducing fuel consumption. Availability and exact specifications can vary by market and configuration.
From my experience with construction machinery buyers, operating mode is often overlooked during machine selection. It should not be. A machine does not need maximum engine output every minute of the day. Trenching, swinging, grading and heavy digging do not all require the same power level. Matching machine behavior to the task can help control operating costs.
Another point I always check is the relationship between the bucket and the hydraulic system. A large bucket can increase production, but it also increases the load placed on the front linkage and hydraulic system. The correct bucket should therefore be selected according to the material, working range, density and machine configuration.
When I evaluate a large crawler excavator, I normally break the machine down into several practical areas rather than looking at one headline specification.
The first requirement is simple: the machine must dig effectively. The current Caterpillar 350 reference specification lists 413 hp (308 kW) net power and a maximum digging depth of 8,210 mm. With the published reference configuration, the maximum reach at ground level is 12,150 mm and maximum loading height is 7,390 mm. These figures demonstrate the working scale of the machine, but actual working ranges change with boom, stick, bucket and undercarriage selection.
A Large Excavator needs a strong base. The crawler undercarriage carries the machine, transfers digging forces into the ground and provides traction when traveling around the site. For rough construction sites, this is one reason crawler excavators remain so widely used.
Undercarriage condition is also something I tell used-equipment buyers to inspect carefully. Track chains, rollers, idlers, sprockets and track shoes all experience wear. A machine may look excellent from a distance but still require significant undercarriage work if these components have been neglected.
According to Caterpillar's current 350 product information, the excavator can be configured with buckets up to 3.2 m³, depending on configuration. Caterpillar lists general-duty, heavy-duty, severe-duty and extreme-duty bucket options for different applications.
I would not automatically choose the biggest bucket. If the material is dense, abrasive or difficult to penetrate, a smaller and stronger bucket can sometimes make more sense. For loose soil and bulk earthmoving, a larger bucket can help increase the amount moved per cycle.
Large excavators spend their working lives under high loads. The boom, stick, frame, swing structure and undercarriage therefore need to withstand repeated stress. Caterpillar describes the 350 as using heavy-duty booms and sticks, reinforced structural areas and a heavy-duty undercarriage design.
The operator spends many hours inside the cab, so visibility and comfort are not luxury features. They affect how easily the machine can be controlled throughout the shift.
The current Cat 350 provides large front, side and rear windows, a sealed and sound-suppressed cab, automatic climate control and adjustable seating. Two cab packages are offered, with features varying between versions and markets.
I also pay attention to simple things such as control layout, monitor visibility, access to switches and storage space. These details may sound small, but operators notice them after eight or ten hours of work.
Technical data is useful, but I always tell customers to read it together with the configuration notes. Boom length, stick length, bucket size, counterweight, track shoe width and regional emissions requirements can all affect the final machine specification.
| Specification | Cat 350 Reference | What It Means in Practice |
|---|---|---|
| Engine | Cat C9.3B | Large diesel engine designed for heavy excavation work |
| Net Power | 413 hp / 308 kW | Provides the power base for hydraulic and travel functions |
| Operating Weight | Approx. 46,000 kg | Provides a stable platform for large-scale excavation |
| Maximum Digging Depth | 8,210 mm | Suitable for deep excavation when matched with the specified front equipment |
| Maximum Reach at Ground | 12,150 mm | Provides a broad working envelope for excavation and loading |
| Maximum Loading Height | 7,390 mm | Useful when loading material into suitable high-sided trucks |
| Maximum Bucket Capacity | Up to 3.2 m³ | Allows high-volume material handling with the correct configuration |
Source: Caterpillar official Cat 350 product page and Cat 350 product release. Published figures are configuration-dependent.
The table below shows how the current large-excavator range changes as machine size increases. I use this comparison to explain why the 350 is not simply a “bigger 340.” It occupies its own place in the range.
| Model | Net Power | Operating Weight | Maximum Digging Depth |
|---|---|---|---|
| Cat 340 | 346 hp / 258.3 kW | 37,700 kg | 8,210 mm |
| Cat 350 | 413 hp / 308 kW | 46,000 kg | 8,210 mm |
| Cat 352 | 443 hp / 330 kW | 48,900 kg | 8,210 mm |
| Cat 374 | 484 hp / 361 kW | 73,890 kg | 8,570 mm |
| Cat 395 | 542 hp / 404 kW | 94,000 kg | 9,670 mm |
Source: Caterpillar published large-excavator specifications. Values are current published reference figures and can vary by region and configuration.
There is an important lesson here. If a customer needs more production, the answer is not always to buy the largest excavator available. Transport cost, fuel consumption, working space, bucket size, truck matching and project duration all matter. I prefer to match the excavator to the actual material volume and site conditions.
For large site preparation projects, the excavator can remove soil, load trucks and build or reshape working areas. The combination of operating weight, digging force and bucket capacity makes this class suitable for moving large quantities of material.
Large commercial buildings, industrial facilities and infrastructure structures often require substantial excavation before construction starts. A 350 Hydraulic Excavator can work at considerable depth and reach, making it suitable for large foundation excavation when the site layout allows enough working room.
Road and railway projects often involve cutting, filling, drainage work and moving large volumes of earth. The excavator can also work with different attachments for tasks beyond standard bucket digging.
In mining and quarry environments, the machine can be used for overburden removal, material handling, bench preparation, stockpile work and supporting loading operations. The attachment and bucket need to be selected carefully because abrasive materials can accelerate wear.
Large utility projects may require long trenches and substantial material handling. A crawler excavator provides a useful combination of reach and stability, particularly when the ground is uneven or the machine needs to work beside a developing trench.
Although people often associate excavators with digging, large machines can also reshape land, clear large areas, prepare drainage routes and move soil during major development projects.
| Application | Typical Task | Recommended Consideration |
|---|---|---|
| Mass excavation | Bulk soil removal and truck loading | Bucket size, truck capacity and cycle time |
| Foundations | Deep excavation and material removal | Digging depth and working envelope |
| Road construction | Cutting, drainage and earthmoving | Terrain, transport and attachment selection |
| Mining support | Overburden and material handling | Bucket durability and undercarriage protection |
| Pipeline work | Trenching and spoil handling | Reach, trench width and ground stability |
| Quarry support | Stockpile and material movement | Abrasion resistance and attachment choice |
Source: Application recommendations are based on common crawler excavator operating practices; the Cat 350 product information specifically identifies large-scale projects, material movement, heavy digging and attachment flexibility as key areas of use.
When a customer places an order, I do not treat the process as “build the machine and put it on a truck.” Large construction machinery involves too many details for that approach.
For standard crawler excavators, our typical production cycle is around 30–60 days. The actual schedule depends on the model, machine configuration, order quantity and customization requirements. Before confirming the delivery date, I prefer to check the exact machine specification and required options first.
The first step is to confirm the machine that the customer actually needs. This includes engine and emissions requirements, boom and stick combination, bucket type and capacity, undercarriage, hydraulic attachments, cab configuration and other requested options.
This step is particularly important for international orders. A machine specification suitable for one market may not be the same as the configuration required in another country.
During production, major assemblies are installed and checked as the machine comes together. The engine, hydraulic components, undercarriage, upper structure, working equipment and operator cab all have to work as one system.
For a large excavator, structural quality deserves special attention. The boom and stick repeatedly experience bending and digging loads, while the upper frame and undercarriage carry the machine's working weight. Good assembly and proper inspection help reduce problems after delivery.
Before shipment, I expect the machine to go through functional checks. These can include engine operation, hydraulic response, boom and stick movement, bucket operation, travel functions, swing operation, control response and general working condition.
Inspection records, manuals, spare parts and necessary certificates can also be prepared according to the order and destination requirements.
Once the machine passes the required checks, the focus turns to transportation. Depending on the machine dimensions and destination, crawler excavators can be shipped by Ro-Ro vessel, bulk vessel or container.
Before loading, the machine is normally cleaned and prepared for long-distance transport. Exposed areas can be protected against rust and moisture. The machine is securely fixed, while detachable components may be packed separately where this helps reduce transport space.
For international buyers, I also pay attention to documents, loading arrangements and destination requirements. A machine can be technically correct and still create problems if the shipping preparation is not handled properly.
Our role is different from that of an Excavator Manufacturer that sells only one product line. Ganglong Heavy Industry Technology was founded in 2013 and operates together with Hefei Ganglong International Trade Co., Ltd. as part of a broader machinery business.
Our own HKLOONG product range includes excavators, loaders, backhoe loaders and swamp excavators. At the same time, we provide complete-machine sales and leasing services involving domestic and international brands such as Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL, subject to actual availability and transaction terms.
This gives me a broader view when discussing machine selection. Sometimes the customer already knows the exact model. In other cases, the customer knows the required digging depth, material volume, jobsite conditions and budget but is still deciding which machine class makes sense.
In the second situation, I prefer to start with the project instead of forcing a particular machine. How many cubic meters need to be moved? What material are we digging? How deep is the excavation? How far must the excavator reach? What trucks are being used? Is the machine working on hard rock, loose soil, mud or mixed ground? How often will it be transported?
These questions usually tell us more than a simple “How many tons is the excavator?”
Our international trade team has experience serving customers in Asia, Africa, America and other regions. For overseas customers, we can also discuss shipping methods, packing, documentation, spare parts and delivery arrangements as part of the purchasing process.
Payment terms are commonly arranged through T/T, with a deposit after order confirmation and the balance settled before shipment. Exact payment terms are confirmed according to the individual order.
Most importantly, I want the buyer to receive clear information about what is actually being supplied. If a customer is looking specifically for a Caterpillar 350, Caterpillar is the manufacturer of that branded machine. Ganglong should not be described as the manufacturer of a Cat excavator. Our role is as a machinery supplier, trader and service partner, with actual brand availability depending on the transaction.
A 350 Hydraulic Excavator is generally used for heavy excavation, mass earthmoving, foundation work, road and railway construction, mining support, quarry work, pipeline trenching and large site preparation. Its large crawler platform and high working capacity make it suitable for projects where smaller excavators would require more cycles to move the same amount of material.
The current Caterpillar 350 reference configuration lists a maximum digging depth of 8,210 mm. The actual digging depth depends on the boom, stick and bucket combination, so I always recommend checking the working-range chart for the exact machine before making a purchase decision.
Caterpillar currently lists approximately 46,000 kg operating weight for its published 350 reference configuration. Operating weight is not a universal number for every machine called a 350 Hydraulic Excavator. Counterweight, undercarriage, boom, stick, bucket and other equipment can change the final figure.
The current Cat 350 product information identifies the Cat C9.3B engine and lists 413 hp (308 kW) net power under ISO 9249. Emissions specifications and available configurations can vary by market, so the exact engine and compliance standard should be confirmed before ordering.
Caterpillar states that the current 350 can use buckets up to 3.2 m³ depending on configuration. I would not select a bucket by capacity alone. Soil density, material abrasiveness, digging conditions, transport requirements and the excavator's front-end configuration should all be considered.
It can be suitable for selected mining and quarry support tasks, especially earthmoving, overburden handling, stockpile work and material loading. For highly abrasive material or demanding rock applications, I recommend reviewing the bucket, teeth, undercarriage and protection package before ordering.
For standard crawler excavators, our typical production cycle is around 30–60 days. The final schedule depends on model, configuration, order quantity and customization. Used equipment or machines already in stock can follow a different timeline.
The suitable method depends on the machine dimensions, destination port and shipping schedule. Ro-Ro, bulk vessel and container transportation can all be considered. For a large crawler excavator, I normally check machine dimensions, detachable components, port restrictions and loading requirements before confirming the shipping plan.
No. Caterpillar is the manufacturer of the Cat 350. Ganglong Heavy Industry Technology and Hefei Ganglong International Trade operate as machinery suppliers and international trade partners. If a customer requires a specific Caterpillar model, the exact machine source, brand, condition, configuration and transaction terms should be confirmed before the order is finalized.
I recommend sending the working application, required digging depth, material type, expected working hours, destination country or port, preferred machine condition, bucket requirement and any special attachments. If you already have a target model such as a 350 Hydraulic Excavator, send the model information as well. The more complete the project details are, the easier it is for us to check a suitable configuration and transportation plan.
A 350 Hydraulic Excavator is not a machine I would choose simply because it has a large engine or impressive numbers on a specification sheet. For a real construction project, the better question is whether the machine can deliver the required digging and loading work, in the required ground conditions, with a practical transport and maintenance plan.
The current Cat 350 provides a useful reference for this class, with 413 hp of net power, approximately 46,000 kg operating weight, 8,210 mm maximum digging depth and bucket capacity up to 3.2 m³ in the published configuration. Caterpillar also highlights heavy-duty structural components, multiple operating modes, attachment flexibility, operator-focused cab features and maintenance functions on the current model.
From my side, I focus on the details behind those numbers. I want to know what you are digging, how much material you need to move, what the ground is like, which attachments you need and where the machine has to be delivered. Those details help us avoid choosing a machine that is either too small for the job or unnecessarily large for the project.
Ganglong Heavy Industry Technology and Hefei Ganglong International Trade Co., Ltd. can support customers with construction machinery sourcing, complete-machine sales and leasing, international trade arrangements and related equipment solutions. Whether you need a 350 Hydraulic Excavator for mass excavation, infrastructure construction, mining support, foundation work or another heavy-duty application, I recommend confirming the exact model, year, configuration, machine condition, attachments, inspection requirements and shipping plan before placing an order.
For international buyers, that is the approach I find most useful: start with the job, match the machine to the job, check the actual configuration, and only then finalize the purchase and delivery details.
