HX225LPRO Crawler Excavator for Construction, Earthmoving and Heavy-Duty Excavation
When I work with customers looking for a medium-duty crawler excavator, I usually start with a simple question: what kind of work will the machine actually do every day?
That question matters because an Excavator is not bought just for its engine power or bucket size. A contractor may need to dig foundations, open trenches, load soil, prepare roads, clear land, handle materials, or work on a large infrastructure project. The machine has to fit the job, the ground, the working space, and the customer's transport plan.

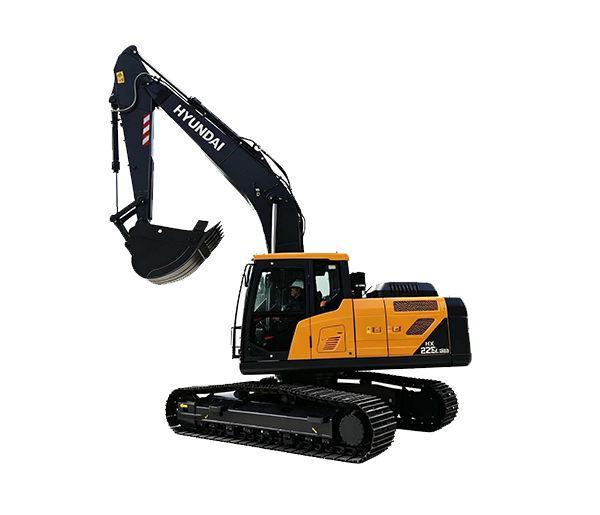

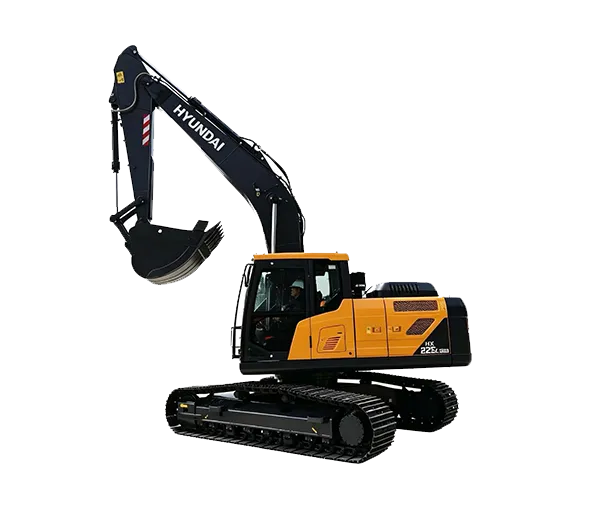

The Hyundai HX225LPRO Crawler excavator is a machine I would place in the roughly 22-ton working class. Publicly available product information for the HX225LPRO (T4) lists operating weights around 22.85 to 23.45 tons, a 135 kW engine rated at 2,100 rpm, and bucket options around 1.05 m³ and 1.2 m³. The listed engine is a Cummins B7, while the hydraulic system uses two main pumps with a rated flow of 234 L/min each.
That combination gives the HX225LPRO a useful position for customers who need more working capacity than a Compact Excavator but do not want to move into a much larger machine class.
At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we deal with construction machinery from a practical point of view. We help customers confirm machine models, configurations, availability, inspection requirements, attachments, documents and international transportation. So in this page, I will explain the HX225LPRO in the same way I would explain it to a real customer.
The HX225LPRO Crawler Excavator is a medium-duty tracked excavator designed for excavation, earthmoving, road construction, foundation work, trenching, land development and material handling.
The word “crawler” is important here.
Instead of wheels, the machine uses crawler tracks. The tracks spread the machine's weight over a larger ground area and provide a stable working platform on suitable construction surfaces. This makes a crawler excavator especially useful when the machine needs to stay on a jobsite and perform repeated digging cycles rather than travel long distances on public roads.
For a contractor, the basic working process is straightforward. The operator positions the machine, lowers the boom, uses the arm and bucket to enter the soil, fills the bucket, lifts it, swings the upper structure and dumps the material. Then the cycle starts again.
It sounds simple, but the quality of the machine becomes obvious during repeated cycles.
A good excavator should respond smoothly to operator input. The boom should lift without unnecessary hesitation. The arm should move in a controlled way. The bucket should have enough digging force for the intended material. The swing system should allow the operator to move between digging and dumping positions efficiently.
That is why I look at the HX225LPRO as a complete working system rather than just a 22-ton excavator.
| Item | HX225LPRO Published Data | Why It Matters |
|---|---|---|
| Machine type | Crawler excavator | Designed for stable work on suitable construction surfaces |
| Operating weight | Approx. 22.85–23.45 tons | Defines the general working class and affects transport planning |
| Rated engine power | 135 kW / 2,100 rpm | Provides power for the hydraulic working system |
| Engine | Cummins B7 | Diesel power unit listed for the T4 configuration |
| Bucket capacity | Approx. 1.05–1.2 m³ | Supports different excavation and material-handling requirements |
| Main pump flow | 2 × 234 L/min | Supports hydraulic working functions |
Source: publicly available HX225LPRO (T4) product information. Exact operating weight, bucket configuration and equipment should be confirmed against the actual machine and order specification.
One thing I always tell buyers is not to compare Excavators using only one number.
For example, a 135 kW engine sounds impressive, but engine power is only one part of the machine. Hydraulic flow, hydraulic pressure, bucket size, machine weight, working equipment and operator control all affect actual performance.
The same applies to bucket capacity. A 1.2 m³ bucket is not automatically the best choice for every material. The bucket needs to match the density of the material and the digging conditions.
The HX225LPRO uses the same basic hydraulic principle found in modern Construction Excavators.
The engine produces mechanical power. The hydraulic pumps use that power to move hydraulic oil through the system. The oil then reaches the hydraulic cylinders and motors that operate the boom, arm, bucket, swing system and travel system.
For someone who does not work with excavators every day, I like to explain it this way: the engine supplies the energy, while the hydraulic system turns that energy into controlled movement.
Imagine the HX225LPRO working on a foundation excavation.
First, the operator positions the excavator at a suitable distance from the digging area. The boom lowers the bucket toward the ground. The arm moves inward, and the bucket teeth enter the soil.
As the bucket curls, it collects material.
The boom then lifts the loaded bucket. The upper structure swings toward the dump truck or stockpile. The bucket opens and releases the material.
The operator swings back and repeats the process.
The faster this cycle can be completed smoothly, the more useful the machine becomes.
But I would not tell an operator to simply make every movement as fast as possible. Smooth movements usually make more sense than aggressive movements. Unnecessary acceleration, sudden controls and poor positioning can waste fuel and increase wear.
Available specifications for the HX225LPRO list two main pumps with a rated flow of 2 × 234 L/min.
In simple terms, hydraulic flow is related to how much hydraulic oil the system can move during operation.
When several functions are used together, the hydraulic system needs to distribute available flow correctly. This is important when the operator is combining boom, arm, bucket and swing movements.
For jobs such as truck loading, trenching and foundation excavation, smooth combined movements can make a noticeable difference to the working rhythm.
The HX225LPRO is a tracked excavator, so it is built around a crawler undercarriage rather than a wheeled chassis.
The crawler system helps spread the machine's weight and gives it a stable platform for excavation.
This is one reason tracked excavators are commonly used for construction sites, earthmoving and infrastructure work.
However, tracks do not make the machine suitable for every type of ground. Extremely soft, wet or unstable ground still requires proper site assessment. A crawler excavator is not a magic solution for poor ground conditions.
The HX225LPRO T4 information lists a Cummins B7 engine with 135 kW rated power at 2,100 rpm.
For the customer, the important point is not simply the horsepower figure. What matters is how the engine works with the hydraulic system during actual excavation.
A construction excavator spends much of its working day changing between different loads. Sometimes the bucket enters soft soil easily. Sometimes it encounters harder material. Sometimes the operator is lifting and swinging a full bucket.
The engine needs to support these changes without making the machine feel weak or difficult to control.
The Cummins B7 is also a familiar engine platform in heavy equipment markets, which can be useful when considering service and maintenance support. Actual parts availability, however, depends on the destination market and machine configuration.
Available HX225LPRO information lists bucket capacities around 1.05 m³ and 1.2 m³, depending on the configuration.
This gives customers some flexibility when choosing the working setup.
For ordinary soil excavation, a general-purpose bucket may be suitable. For heavier or more abrasive materials, a different bucket design may make more sense.
I always recommend confirming the bucket before the order is finalized.
A customer may search for “HX225LPRO Excavator for Sale” with a particular bucket in mind, but the machine offered by a supplier may have a different configuration. The model name alone does not tell you everything about the final machine.
Available product information describes the HX225LPRO as using heavy-duty work equipment, with reinforced boom and arm structures and strengthened components at key areas. The arm tip is described with additional protection using reinforcement plates and ribs.
That kind of reinforcement is important because the boom and arm experience repeated loads throughout the working day.
Think about a contractor running an excavator for eight or more hours. The boom does not perform one digging movement. It performs thousands of movements over its working life.
Good structural design is therefore about handling repeated stress, not just surviving one hard digging cycle.
The available HX225LPRO T4 information also lists a standard bottom guard designed for field operation.
For customers working on construction sites, this is a useful practical feature because the underside of a tracked excavator can encounter stones, debris and uneven ground.
The actual protection level should still be matched to the working environment. Quarry work, demolition and severe rock applications can place different demands on underbody protection.
The published product information describes a high-capacity air pre-cleaner intended to help keep the engine air intake clean.
This matters particularly on dusty construction sites.
Clean air is important for a diesel engine, and regular inspection of filters and intake components should remain part of normal machine maintenance.
When customers ask me to compare excavators, I prefer to put the key figures side by side.
That makes it easier to see what changes between models.
| Specification | HX225LPRO T4 | Practical Meaning |
|---|---|---|
| Operating weight | 22.85 / 23.45 tons | Approximate machine class depending on configuration |
| Rated power | 135 kW / 2,100 rpm | Main engine output |
| Engine | Cummins B7 | Diesel engine platform |
| Bucket capacity | 1.05 / 1.2 m³ | Different working configurations |
| Main pump flow | 2 × 234 L/min | Hydraulic system flow |
| Swing speed | 10.6 rpm | Upper-structure rotation speed |
| Travel speed | 5.8 / 3.5 km/h | Two travel ranges listed in the published data |
| Fuel tank | 395 L | Supports longer working periods between refueling stops |
Source: HX225LPRO (T4) published product specifications. Configuration and market differences should be confirmed before purchase.
For customers comparing the HX225LPRO with other Hyundai excavators, the following table is useful as a basic reference.
| Model | Operating Weight | Rated Power | Bucket Capacity |
|---|---|---|---|
| HX220L | 21.97 ton | 124 kW / 2,050 rpm | 0.92–1.34 m³ |
| HX225SL | 22.07 ton | 111 kW / 1,950 rpm | 0.92 m³ |
| HX225LPRO | Approx. 22.85–23.45 ton | 135 kW / 2,100 rpm | 1.05–1.2 m³ |
| HX230L | 24.7 ton | 189 kW / 1,700 rpm | 1.05 m³ |
Source: Hyundai official product information for HX220L, HX225SL and HX230L, together with published HX225LPRO T4 specifications. This table is a specification comparison, not a performance ranking.
There is an important detail here.
The HX225LPRO should not be confused with the HX225SL simply because their model names look similar. The official Hyundai product page currently lists HX225SL at 22.07 tons with 111 kW power and a 0.92 m³ bucket, while published HX225LPRO T4 information shows a different configuration with 135 kW and larger bucket options.
That is exactly why I recommend checking the actual model plate, catalog and configuration before an international order.
Available HX225LPRO product information lists a 5,700 mm boom and a 2,900 mm arm configuration. It gives approximately 9,936–9,974 mm maximum digging reach and approximately 6,472–6,509 mm maximum digging depth, depending on the listed configuration.
| Working Dimension | Published HX225LPRO Range | Typical Job Relevance |
|---|---|---|
| Boom length | 5,700 mm | General excavation and material handling |
| Arm length | 2,900 mm | Balanced working reach |
| Max. digging reach | Approx. 9,936–9,974 mm | Useful for trenching and larger excavation areas |
| Max. digging depth | Approx. 6,472–6,509 mm | Suitable for deeper excavation work |
| Max. digging height | Approx. 9,734–9,830 mm | Useful for elevated excavation and loading |
| Max. dumping height | Approx. 6,969–7,007 mm | Useful for truck loading and material placement |
Source: published HX225LPRO T4 specifications. Working range changes with boom, arm, bucket and machine configuration.
General construction is one of the most obvious applications for the HX225LPRO.
The machine can be used for foundation excavation, site preparation, soil removal, trenching and material loading.
At this size, it is large enough for substantial construction projects but still within a common medium excavator working class.
For a building contractor, I would look at the available working area first. The machine needs enough room for its tracks, counterweight swing and working equipment.
Road projects often involve a mixture of excavation and material handling.
The HX225LPRO can support drainage excavation, roadbed preparation, earthmoving, shoulder work and other suitable operations.
Its crawler undercarriage makes it suitable for working directly on prepared construction surfaces, while the larger bucket options can help move substantial material.
Foundation work often requires controlled digging rather than simply maximum digging force.
The operator needs to follow the planned excavation shape and avoid removing unnecessary soil.
A Hydraulic Excavator with smooth controls can be useful here because the operator can make smaller corrections during the digging process.
Pipeline and utility construction can involve long trenches, access roads and repeated excavation cycles.
The HX225LPRO's working range makes it suitable for many medium and larger trenching tasks.
However, utility work also requires careful attention to underground services. The machine should never be used as a substitute for proper site information or safe excavation procedures.
Before a new building or industrial facility is constructed, the land often needs to be cleared, shaped and prepared.
The HX225LPRO can support excavation, soil movement, drainage preparation and general earthmoving.
Its tracked design also makes it useful for moving around a prepared construction site without relying on road travel.
The machine can be considered for selected mining and quarry applications, but I would be careful with this category.
Not every 22-ton excavator should be put into severe rock excavation.
Hard rock, abrasive materials and continuous heavy loading can place very high demands on the bucket, boom, arm, undercarriage and hydraulic system.
If the customer is planning quarry work, I first ask about the actual material and attachment. A suitable heavy-duty bucket and wear protection may be more important than simply choosing a larger machine.
With suitable attachments, a crawler excavator can also support land clearing and forestry-related work.
Possible attachments may include Hydraulic Breakers, grapples, thumbs or other specialized tools.
Attachment compatibility must be confirmed before purchase because hydraulic flow, mounting dimensions and machine configuration all matter.
The HX225LPRO can also be used for selected material-handling tasks.
For example, a contractor may need to move soil, construction debris or bulk material around a jobsite.
Again, the attachment should match the work. A standard digging bucket is not automatically the best tool for every material-handling job.
When someone searches for HX225LPRO excavator for sale, the first thing they usually want is price.
I understand that.
But for construction machinery, price is only the beginning.
Before I confirm an order, I want to know the machine configuration, destination, attachments, availability, inspection requirements and shipping method.
The first step is confirming the exact HX225LPRO configuration.
For example:
Operating weight configuration
Bucket capacity
Boom and arm configuration
Track shoe configuration
Engine and emission version
Hydraulic attachment requirements
Optional equipment
This is especially important for international buyers because the same model name may appear with different specifications in different markets.
Production or preparation time depends on the selected configuration, order quantity and machine availability.
We therefore confirm the actual supply situation before giving the customer a final delivery schedule.
I prefer to give a realistic schedule rather than promise a date before checking availability.
Before shipment, we can arrange checks according to the confirmed order.
For an HX225LPRO, the inspection process can include:
Machine appearance
Engine condition
Hydraulic system
Electrical system
Working functions
Boom and arm movement
Bucket and attachment condition
Undercarriage condition
Required machine documents
If the customer requires photographs, videos or specific inspection points, these can be discussed before shipment.
For used equipment, the inspection focus becomes even more important. We need to pay attention to visible wear, leakage, undercarriage condition, working equipment and overall operating condition.
For international machinery orders, T/T is commonly used.
A deposit is generally arranged before order processing, with the balance settled before shipment. The actual payment terms are agreed by both parties according to the order.
For larger equipment purchases, I recommend putting the agreed machine model, configuration, inspection requirements and payment conditions clearly into the commercial documents.
Complete excavators are generally transported by sea for international orders.
The actual shipping plan depends on the destination, port, machine dimensions, loading method and available vessel schedule.
Before shipment, the machine needs to be properly positioned and secured.
Loose tools, accessories and other small components can be packed separately in cartons or wooden cases where appropriate.
Heavy equipment does not need fancy packaging, but it does need correct securing.
The goal is simple: keep the machine stable during handling and transportation while protecting removable components and accessories.
For overseas customers, I also recommend checking the destination port and local unloading arrangements before the machine leaves China.
Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013.
Together with Hefei Ganglong International Trade Co., Ltd., our group is involved in construction machinery, mining machinery, agricultural machinery and matching attachments.
We have our own HKLOONG product range, including excavators, loaders, Backhoe loaders and swamp excavators. At the same time, we provide complete machine sales and leasing services for domestic and international brands including Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL.
For Hyundai machines, our role needs to be clear.
We are not Hyundai's manufacturer.
We act as a machinery supplier and international trade service provider. Our work is to help customers source suitable machines, confirm specifications, arrange inspection, prepare the commercial process and coordinate delivery.
A customer buying an excavator may also need attachments.
Another customer may need a loader, excavator and agricultural machine at the same time.
Someone working on a road project may need several machines with different working functions.
Because our business covers construction machinery, mining machinery and agricultural machinery, we can discuss the wider equipment requirement instead of looking at one machine in isolation.
Hefei Ganglong International Trade Co., Ltd. serves as our group's professional international trade arm.
Our team has experience working with customers across Asia, Africa, America and other international markets.
International machinery trading involves more than putting a machine on a ship.
We need to coordinate specifications, commercial documents, inspection, packing, shipping and destination requirements.
That is where an experienced international machinery supplier can make the buying process easier.
I prefer to keep machinery communication simple.
If a customer needs a 1.2 m³ bucket, we confirm whether that is the actual configuration available.
If the customer needs a hydraulic breaker, we check compatibility instead of simply saying “yes.”
If the machine is not immediately available, we explain the situation.
If the destination has special shipping requirements, we discuss them before the machine is loaded.
Heavy equipment orders involve enough details already. Clear communication helps prevent unnecessary problems.
Published HX225LPRO T4 specifications list operating weights around 22.85 to 23.45 tons, depending on configuration. The exact machine weight should be confirmed against the final specification.
The published T4 product information lists a Cummins B7 engine.
The listed rated power is 135 kW at 2,100 rpm.
Available HX225LPRO specifications list approximately 1.05 m³ and 1.2 m³ bucket configurations. The actual bucket supplied should be confirmed before ordering.
The published specifications list two main pumps with a rated flow of 234 L/min each, or 2 × 234 L/min.
Depending on the listed configuration, published HX225LPRO data gives a maximum digging depth of approximately 6,472 to 6,509 mm.
Published specifications list approximately 9,936 to 9,974 mm maximum digging reach, depending on configuration.
Available HX225LPRO specifications list approximately 9,734 to 9,830 mm maximum digging height.
The published range is approximately 6,969 to 7,007 mm, depending on the configuration.
The published T4 specifications list travel speeds of approximately 5.8 km/h and 3.5 km/h for the two travel ranges.
Yes. The machine can be considered for road excavation, drainage, earthmoving, site preparation and other suitable road construction applications.
Yes. Its working range and bucket options make it suitable for many trenching and utility excavation jobs. The actual configuration should be selected according to trench depth, soil condition and required bucket type.
Yes. The machine can be used for foundation excavation and site preparation when the available working space, digging depth and machine configuration fit the project.
Suitable hydraulic and mechanical attachments can be considered, but compatibility should be checked before purchase. Hydraulic flow, mounting dimensions, attachment weight and working requirements all matter.
No. Similar model names can be confusing. Hyundai's published HX225SL specifications show a different configuration, including 22.07-ton operating weight, 111 kW rated power and 0.92 m³ bucket capacity. The published HX225LPRO T4 specifications list approximately 22.85–23.45 tons, 135 kW and 1.05–1.2 m³ buckets.
Yes. Ganglong can arrange international supply according to the confirmed machine, destination and commercial terms. Complete machines are generally transported by sea.
Yes. We can arrange checks covering the machine appearance, engine, hydraulic and electrical systems, working functions, attachments, undercarriage and required documents according to the confirmed order.
No. Ganglong is a construction machinery supplier and international trade service provider. Hyundai is the equipment brand. We help customers source and arrange Hyundai machinery according to their requirements.
When I look at the Hyundai HX225LPRO Crawler Excavator, I see a machine aimed at customers who need a serious medium-class excavator for everyday construction work.
The published T4 configuration combines approximately 22.85–23.45 tons of operating weight, 135 kW engine power, a Cummins B7 engine and 1.05–1.2 m³ bucket options.
That gives the machine a practical working range for road construction, foundation excavation, trenching, earthmoving, land development and material handling.
What I like about evaluating a machine this way is that we do not have to pretend one excavator is perfect for every job.
If the customer needs a compact machine for a narrow urban site, the HX225LPRO may be more machine than necessary.
If the customer needs a very Large Excavator for heavy quarry production, a larger class may make more sense.
But for customers looking for a 22 ton crawler excavator, Hyundai HX225LPRO excavator, HX225LPRO hydraulic excavator, HX225LPRO excavator for sale or a reliable machine for construction and earthmoving, this model deserves a closer look.
At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we focus on helping customers make the complete equipment purchase practical.
We can discuss the machine configuration, bucket, attachments, availability, inspection, payment terms, packing and international shipping. Our international trade team has experience serving customers across Asia, Africa, America and other markets.
Before we confirm an HX225LPRO order, I would always recommend checking five things: the exact machine configuration, the intended application, the required attachment, the destination requirements and the final shipping plan.
Once those points are clear, buying a heavy excavator becomes much easier to manage.
Technical note: HX225LPRO specifications can vary according to production version, market, emission standard, bucket, arm, track configuration and optional equipment. The technical figures in this page are based on publicly available HX225LPRO T4 information and should be checked against the actual machine specification and commercial documents before purchase.
RELATED
RELATED
RELATED
RELATED
info@hkloong.com
86 158 5511 9567
©2026 HKLOONG Heavy Industry Technology (Hefei) Co., Ltd. All Rights Reserved.
This website uses cookies to ensure you get the best experience on our website.
Español
Pусский
Français
العربية
WhatsApp
Phone
E-mail
Message
