HX505L crawler excavator for Heavy Construction, Mining and Earthmoving

When I work with customers looking for a large crawler Excavator, I do not start with the biggest number on the specification sheet. I start with the job. How much material needs to be moved? What kind of ground will the machine work on? How deep does it need to dig? Will it work in a quarry, on a road project, or at a large construction site? These questions usually tell me much more than a single horsepower figure.

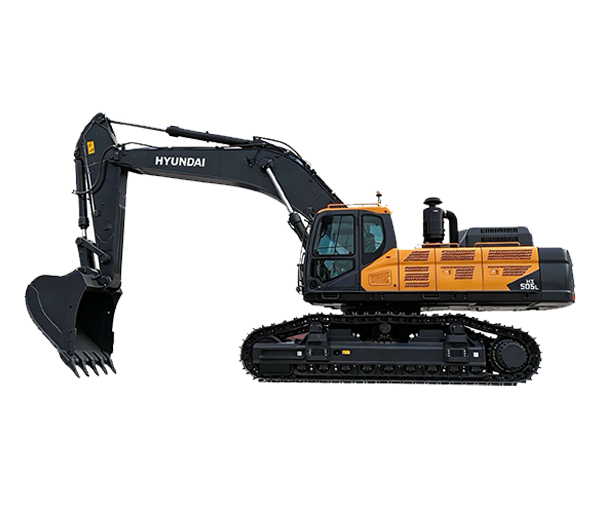

The Hyundai HX505L Crawler excavator is built for exactly the kind of work where a smaller machine may begin to feel out of its depth. According to Hyundai's China product information, the HX505L has an operating weight of 51,900 kg, rated engine power of 280 kW at 2,100 rpm, and a standard 2.79 m³ Rock Bucket. That places it firmly in the heavy crawler excavator class for large-scale excavation, mining support, quarrying, road construction, infrastructure work, and major earthmoving projects.

From my point of view, the interesting thing about the HX505L is not simply that it is a 50-ton excavator. It is the way the machine is matched to heavy working conditions. A machine of this size needs enough engine power, hydraulic capacity, structural strength, track stability, bucket volume, and working range to keep up with the rest of the jobsite.

In this page, I will look at the HX505L from a practical buyer's perspective. I will explain what the machine is, how the main systems work, what the published specifications mean in everyday work, where I would use it, how I compare it with other Hyundai large Excavators, and how we handle inspection, payment, packing, and international delivery at Ganglong Heavy Industry Technology (Hefei) Co., Ltd.

1. What Is the Hyundai HX505L Crawler Excavator?

The HX505L is a large crawler excavator designed for heavy-duty excavation and material handling. It uses crawler tracks rather than road wheels, giving the machine a broad and stable working base. This is especially useful when the excavator needs to dig, swing a loaded bucket, work on uneven ground, or operate for long periods in demanding conditions.

Hyundai's China product listing identifies the HX505L as a large crawler excavator with an operating weight of 51,900 kg. It lists 280 kW rated power at 2,100 rpm and a 2.79 m³ rock bucket as the standard bucket specification.

That rock bucket specification is worth noticing. A 2.79 m³ bucket gives the machine a substantial material-moving capacity, but the word “rock” also tells us something about the intended working environment. This is not a small general-purpose excavator designed mainly for light landscaping or narrow urban maintenance jobs. It is a machine that makes more sense when the project involves serious digging, heavy material, large quantities of earth, or demanding ground conditions.

I also want to make one distinction clear for buyers searching online. The HX505L name appears in Hyundai's Chinese-market product information, while Hyundai's current international website also lists related Large Excavator models such as the HX500L and HX520L with different specifications. The current Hyundai English page, for example, lists the HX500L at 49.9 tons and 249 kW, while the HX520L is listed at 52.37 tons and 249 kW. These should not be treated as identical machines simply because their model numbers are similar.

For an international order, I therefore recommend putting the exact model, market version, emission specification, engine, bucket, working equipment, and machine year into the quotation. It saves everyone a headache later.

Source: Hyundai construction equipment China official HX505L product information. Final specification should be confirmed according to the actual machine and market configuration.

For customers searching for a HX505L Excavator for Sale, Hyundai HX505L crawler excavator, or 50 ton crawler excavator, these basic specifications are a useful starting point. But they are only the starting point. The actual working conditions decide whether this machine is the right fit.

2. How the HX505L Works on a Real Jobsite

The basic principle of a crawler excavator is fairly simple. The diesel engine produces power. The hydraulic system turns that power into controlled movement. Hydraulic cylinders move the boom, arm, and bucket, while hydraulic motors handle functions such as swing and crawler travel.

When the operator lowers the boom and pushes the bucket into the ground, hydraulic pressure provides the force needed to cut into the material. The arm then pulls the bucket toward the machine. Once the bucket is filled, the operator raises the boom, swings the upper structure, and places the material into a truck or stockpile.

That whole cycle may look simple from outside, but a large excavator has to coordinate many systems at the same time. Engine output, hydraulic flow, pressure, swing movement, travel, bucket force, and operator control all need to work together.

For the HX505L specification commonly listed by equipment suppliers, the machine uses a Cummins X12 engine rated at 280 kW at 2,100 rpm, with two main pumps rated at 390 L/min each. The listed implement circuit pressure is 330 kgf/cm², with a power-boost figure of 360 kgf/cm² in the referenced HX505L specification.

In simple terms, this hydraulic capacity gives the machine the ability to handle large working equipment and heavy excavation tasks. The hydraulic system is the part that turns engine power into actual digging and movement. Without enough hydraulic flow and pressure, a big engine would not automatically make a big excavator productive.

The crawler undercarriage is another major part of the machine. At around 51.9 tons, the excavator needs a solid base. Tracks distribute the machine's weight over a relatively large ground contact area, helping it maintain stability while digging and swinging.

The HX505L is also not designed to drive around like a road vehicle. Its travel speed is listed at approximately 3.3 km/h in low range and 5.2 km/h in high range in the published HX505L specification.

For long-distance movement, transport equipment is normally required. On the jobsite itself, however, crawler tracks give the machine the mobility needed to move between nearby working positions.

3. Main Features I Look At in the HX505L

High Engine Power for Heavy Work

The HX505L is listed with 280 kW of rated engine power at 2,100 rpm.

For me, this number is useful because it shows that the machine is designed around heavy work rather than occasional light excavation. Large earthmoving projects can place continuous demands on the engine and hydraulic system, especially when the machine is digging, swinging, and loading throughout the working day.

However, I would never tell a customer to choose an excavator based only on engine power. Engine power has to be considered together with bucket capacity, hydraulic flow, digging force, machine weight, working range, and the material being handled.

2.79 m³ Rock Bucket

The published HX505L specification lists a 2.79 m³ rock bucket.

That is a substantial bucket. On loose earth or suitable bulk material, a large bucket can help move a high volume of material in each cycle. On harder rock, however, bucket design and tooth selection become very important.

I usually ask customers what they are actually digging before discussing the bucket. Clay, loose soil, gravel, limestone, blasted rock, and highly abrasive materials do not all behave the same way. A bucket that works well for one material may not be the right choice for another.

Heavy Crawler Platform

A crawler excavator's tracks are more than just a way to move the machine. They form the working foundation.

When the HX505L digs into the ground, the machine has to resist the forces created by the bucket. When it swings a full bucket, the upper structure shifts the load around the machine. A heavy crawler base helps keep the excavator stable during these movements.

This is one reason large crawler excavators are commonly used on mining, quarrying, infrastructure, and major construction sites. They are built to stay on the job and work from a stable platform.

Large Fuel Capacity

The published HX505L specification gives a fuel tank capacity of around 605 liters.

A large fuel tank is practical for a large machine because heavy excavation work can consume significant fuel over a long operating day. Fewer refueling stops can make site planning easier, although actual fuel consumption will depend heavily on load, operator habits, material, working cycle, idle time, and jobsite conditions.

Strong Digging and Traction Capability

The referenced HX505L specification lists maximum traction force at about 42.8 tons and ISO bucket digging force at approximately 28.42 tons, increasing to around 31.00 tons under the listed boost condition. Arm digging force is listed at approximately 23.27 tons, increasing to about 25.38 tons with boost.

These figures help explain why the HX505L is positioned toward demanding excavation work. In everyday language, the machine has the force needed to push into difficult material and pull the bucket through the ground.

4. HX505L Working Range and Technical Comparison

Working range matters just as much as engine power. A machine may have plenty of power, but if it cannot reach the excavation point or load the truck efficiently, that power is not being used effectively.

Published HX505L specifications list a maximum digging depth of around 6,800 mm and maximum digging height of approximately 10,560 mm. Maximum digging reach is listed around 11,120 mm in the available HX505L technical information.

Because different sources can show different measurements depending on configuration, I recommend treating these figures as reference values until the exact machine configuration has been confirmed.

Source: Hyundai Construction Equipment China official medium and large excavator product information. These figures describe different models and are not a productivity ranking.

This comparison is useful because it shows where the HX505L sits in the Hyundai China product range. The HX405L is listed at 41.3 tons and 254 kW, while the HX505L is listed at 51.9 tons and 280 kW. The HX550L is slightly heavier at 52.5 tons and is listed with a 3.6 m³ bucket.

That does not mean one model is automatically suitable for every job. A customer working mainly with rock may have different needs from a contractor moving loose soil. Transport limits can also be a major factor. A larger machine needs more attention during shipping and site delivery.

Sources: Hyundai HX505L product information and published technical specifications from Hyundai-related market documentation. Exact values should be checked against the actual machine configuration before purchase.

One thing I always tell customers is to avoid mixing specifications from different model years or markets. For example, Hyundai's current international website lists the HX500L at 49.9 tons and 249 kW, while the Chinese Hyundai product listing identifies the HX505L at 51.9 tons and 280 kW. Those numbers are different for a reason, so the exact model and market specification need to be stated clearly in the order documents.

5. Where I Would Use the HX505L Crawler Excavator

Mining Operations

Mining is one of the clearest applications for a machine like the HX505L. Mining sites often require large equipment because the amount of material being moved is substantial.

The HX505L can be considered for excavation, material loading, bench preparation, stockpile work, and other supporting tasks when the machine is matched with the correct bucket and attachments.

For hard rock, I pay particular attention to the bucket. A rock bucket is not simply a larger bucket. It needs to be suitable for the material and working conditions. Teeth, wear protection and attachment selection can have a direct effect on maintenance costs.

Quarrying

Quarries can be rough places for equipment. There may be hard rock, dust, uneven ground, large loading cycles and long operating hours.

The HX505L's operating class, crawler design, hydraulic capacity and rock bucket configuration make it a machine worth considering for quarry support work.

Still, I would not make a blanket promise that one standard configuration is suitable for every quarry. Rock hardness, fragmentation size, loading method, working cycle and attachment requirements should be checked first.

Large-Scale Earthmoving

Large earthmoving projects are another strong application. When a contractor needs to remove large volumes of soil, the combination of machine weight and bucket capacity becomes important.

The HX505L can work alongside dump trucks and Wheel loaders to form a larger material-handling system. The excavator digs and loads, trucks move the material, and graders or dozers can prepare the final surface.

In a well-planned site, productivity is not about one machine working as fast as possible. The machines need to work at roughly the same rhythm. If the excavator loads faster than the trucks can leave, trucks queue. If trucks arrive too quickly, the excavator may sit idle. Matching the equipment is where real productivity comes from.

Road Construction

Road construction can involve huge amounts of excavation before the final road surface is installed. Contractors may need to remove unsuitable soil, prepare the roadbed, dig drainage channels, move aggregate, and create space for bridges or culverts.

A 50-ton-class crawler excavator can handle large excavation tasks on major road projects. It can also work with different buckets and hydraulic attachments depending on the project.

Infrastructure Construction

Large infrastructure projects such as industrial facilities, ports, bridges, water systems and major drainage projects often require heavy excavation equipment.

The HX505L's working range and machine size make it suitable for many large excavation tasks where a smaller excavator would need more passes or additional equipment.

Large Foundation Work

Foundation excavation is another practical application. Large industrial buildings and infrastructure facilities can require deep and wide excavation before construction begins.

The HX505L can excavate soil, load trucks and prepare the foundation area. The exact suitability depends on excavation depth, ground conditions, site access and whether other lifting or specialized equipment is needed.

6. How We Handle HX505L Supply, Inspection and Delivery

When a customer asks me about an HX505L Crawler Excavator for sale, I know that the machine itself is only one part of the transaction. For an international buyer, the details around the machine can be just as important.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate across construction machinery, mining machinery, agricultural machinery and related attachments.

Our group has its own HKLOONG range of excavators, loaders, Backhoe loaders and swamp excavators. At the same time, we supply complete machines from domestic and international brands, including Hyundai, Hitachi, SANY, Lonking, XCMG, SHANMON and LOVOL.

For Hyundai equipment, our role is as a supplier and international trade service provider. We do not present ourselves as the manufacturer of Hyundai machines. Instead, we help customers source the requested equipment and manage the commercial and logistics process around the order.

Machine Availability

The delivery period depends on the exact HX505L configuration, machine availability, order quantity and destination. If a machine is available, the delivery process can be different from a new machine that needs to be arranged according to a production schedule.

Before confirming an order, I prefer to check the actual machine status and expected delivery schedule rather than simply giving a fixed number of days.

Pre-Shipment Inspection

Before shipment, we can arrange inspection according to the confirmed order. Depending on the agreement, this can include the machine exterior, engine, hydraulic system, electrical system, working functions, bucket, attachments, accessories and required documents.

For used equipment, the inspection can also focus on visible wear, track condition, hydraulic leakage, working performance and attachment condition.

For me, a useful inspection should answer practical questions. Does the machine start correctly? Does it move? Does the boom operate normally? Does the bucket work? Are there visible leaks? Is the undercarriage condition consistent with the agreed machine description?

The exact inspection scope should always be agreed before shipment.

Payment

For international machinery transactions, T/T is commonly used. A typical arrangement may involve a deposit before order processing and the remaining balance before shipment.

The exact payment terms depend on the specific machine, order and agreement between both parties. I recommend confirming the payment schedule in writing before the transaction begins.

Shipping

A complete HX505L crawler excavator is generally transported by sea for international orders. Because the machine weighs around 51.9 tons, shipping planning needs to consider the destination port, vessel arrangement, machine dimensions, loading method and local delivery conditions.

Spare parts and smaller suitable accessories can be considered for air or express transportation when their size and weight make that practical.

Packing

A large crawler excavator is not packed like a normal industrial product. The main goal is to secure the machine properly and protect vulnerable parts during transportation.

Loose accessories, spare parts and documents can be packed separately in cartons or wooden cases. The machine is positioned and secured according to the shipping requirements.

The final packing and shipping arrangement is confirmed according to the destination, carrier requirements and customer instructions.

7. Why I Focus on the Complete Equipment Solution

I have found that customers buying heavy machinery usually care about more than the machine name. They care about whether the equipment will actually fit the project and whether the supplier can handle the details after the quotation is accepted.

That is where we focus at Ganglong.

Because our business covers construction machinery, mining machinery, agricultural machinery and attachments, we can look at the equipment requirement as a complete project rather than a single product.

For example, a quarry customer may need an excavator, rock bucket, Hydraulic Breaker and loading equipment. A road contractor may need an excavator together with loaders, dump trucks and other supporting machinery. A mining customer may need several types of equipment working together on the same site.

When a customer asks for an HX505L, I therefore want to know what the machine will actually do.

• What material will it excavate?

• Is the material loose soil, gravel, clay, rock or blasted material?

• How many hours per day will the machine operate?

• What is the required digging depth?

• Will the machine mainly excavate or also load trucks?

• Is a rock bucket required?

• Is a hydraulic breaker needed?

• What emission standard is required in the destination country?

• What is the available transportation route?

• What is the required delivery port?

These questions are not complicated, but they can prevent a costly mismatch.

Our international trade team has served customers across Asia, Africa, America and other regions. We understand that equipment buyers may have different requirements for machine condition, documents, inspection, packing, payment and transportation.

For an international customer, I also believe communication should be very clear. The final quotation should identify the machine, configuration, attachments, inspection scope, delivery arrangement and payment terms. That way, everyone understands what is being purchased.

8. HX505L Crawler Excavator FAQ

What is the operating weight of the HX505L?

Hyundai's China product information lists the HX505L at an operating weight of 51,900 kg.

What is the engine power of the HX505L?

The published HX505L specification lists rated engine power of 280 kW at 2,100 rpm.

What engine does the HX505L use?

Available HX505L technical specifications identify the engine as a Cummins X12. The exact engine and emissions configuration should be confirmed according to the machine's market and production version.

What is the bucket capacity of the HX505L?

The Hyundai China product listing gives a standard bucket capacity of 2.79 m³ with a rock bucket configuration.

How deep can the HX505L dig?

Published HX505L technical information gives a maximum digging depth of approximately 6,800 mm. Working range can vary according to boom, arm, bucket and other equipment, so the exact specification should be confirmed for the machine being supplied.

What is the maximum digging reach?

Available HX505L specifications list a maximum digging reach of approximately 11,120 mm. The exact working range depends on the selected working equipment and configuration.

Is the HX505L suitable for mining?

Yes, the HX505L can be considered for mining support, quarrying, heavy earthmoving and material-handling applications when the machine is matched with suitable working equipment. For very hard or abrasive rock, bucket and attachment selection should be confirmed before purchase.

Can the HX505L be used for road construction?

Yes. Its large machine class, substantial bucket capacity and heavy-duty working capability make it suitable for many large road construction tasks, including excavation, drainage work, earthmoving and site preparation.

Is the HX505L suitable for quarry work?

It can be suitable for quarry applications where the machine configuration matches the material and working method. A rock bucket and suitable wear components are particularly important when dealing with hard or abrasive material.

What is the travel speed of the HX505L?

Available HX505L specifications list low and high travel speeds of approximately 3.3 km/h and 5.2 km/h. Actual operation should always follow the machine's operating instructions and site safety requirements.

What is the fuel tank capacity?

Published HX505L specifications give a fuel tank capacity of approximately 605 liters.

How is the HX505L shipped internationally?

Complete crawler excavators are generally shipped by sea for international orders. The final transportation method depends on the machine dimensions, destination, port conditions and customer requirements.

Can Ganglong arrange pre-shipment inspection?

Yes. We can arrange inspection according to the confirmed order. The inspection can cover the machine appearance, engine, hydraulic and electrical systems, working functions, bucket, attachments, accessories and required documents.

Is Ganglong the manufacturer of the Hyundai HX505L?

No. Ganglong is a construction machinery supplier and international trade service provider. We can source and supply Hyundai equipment according to customer requirements, while Hyundai remains the original equipment brand.

Final Thoughts on the HX505L Crawler Excavator

When I look at the HX505L Crawler Excavator, I see a machine made for projects where the work is big, the material is heavy, and the excavator needs to keep working for long cycles.

The published 51,900 kg operating weight, 280 kW rated power and 2.79 m³ rock bucket place the HX505L firmly in the heavy crawler excavator class. These characteristics make it relevant to mining, quarrying, large-scale earthmoving, road construction, infrastructure work and major foundation excavation.

But I would still start with the job rather than the machine. A 50-ton excavator is not the right answer simply because it is bigger. The site needs to justify the machine. Ground conditions, material type, required digging depth, bucket choice, attachment requirements, transport restrictions and local emissions rules all need to be considered.

I also recommend checking the exact model carefully. The HX505L appears in Hyundai's China-market product information, while related international Hyundai models such as the HX500L and HX520L have different published specifications.

At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we can support customers with equipment sourcing, machine configuration confirmation, inspection, documentation, packing and international transportation. Our international trade team has experience serving markets across Asia, Africa, America and other regions.

If you are searching for a Hyundai HX505L crawler excavator, HX505L Hydraulic Excavator, HX505L excavator for sale, or a 50 ton crawler excavator for mining and construction, I recommend starting with the actual working conditions. Once those requirements are clear, we can confirm the suitable configuration, machine availability, inspection requirements, payment terms and delivery arrangement.

Technical note: Hyundai specifications can vary by market, model year, emissions version, working equipment and optional configuration. The final technical data, machine condition, availability and commercial terms should be confirmed against the actual machine and order documents before purchase.
