Wacker neuson EZ17 Mini Excavator: Compact Zero Tail Excavation for Tight Jobsites

1. Why I Pay Attention to the Wacker Neuson EZ17

When I talk with contractors about compact Excavators, one problem comes up again and again: the jobsite is small, but the work is not.

A machine may need to enter a narrow gate, work beside a building, dig a trench along a road, move around landscaping, or operate in a backyard where there simply is not enough room for a larger Excavator. In these situations, size becomes part of the machine's performance.

This is where I see the Wacker Neuson EZ17 as a practical machine to consider. It is a tracked zero-tail mini excavator designed around compact working dimensions, useful digging capability, and flexible operation.

According to Wacker Neuson's current official technical information, EZ17 specifications vary by market and configuration. One current international version lists an operating weight from 1,724 to 1,887 kg, 13.8 kW effective power, a maximum digging depth of 2,590 mm, and a width range of 990 to 1,300 mm. Another current market version lists an operating weight from 1,784 to 1,950 kg and a maximum digging depth of 2,330 mm.

I want to make that difference clear because it matters when buying construction machinery internationally. The model name may be the same, but the engine, track configuration, working equipment, emission specification, and optional equipment can vary according to the destination market.

For our work at Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we treat the model name as the starting point, not the end of the discussion.

We help customers source and arrange construction machinery from different brands and support international machinery transactions. We are not the manufacturer of Wacker Neuson equipment. Our role is to help customers with sourcing, configuration confirmation, inspection, documentation, transportation, and related trade services.

When someone searches for Wacker Neuson EZ17, they may simply want a price. But from my point of view, price is only one part of the decision.

I want to know where the machine will work, how narrow the entrance is, how deep the excavation needs to be, what kind of soil is involved, whether hydraulic attachments are required, and where the machine needs to be delivered.

Those details tell me much more about whether an EZ17 mini excavator fits the job.

2. Wacker Neuson EZ17 Specifications: The Numbers I Check First

Before discussing applications, I like to start with the basic technical data. This makes it much easier to understand what the machine can realistically do.

The table below uses the current Wacker Neuson U.S. technical data for one EZ17 configuration. Other official regional pages show different figures, so the actual supply version should always be confirmed before ordering.

Source: Wacker Neuson official EZ17 technical data.

One number that immediately stands out to me is the width. The EZ17 can be configured with a travel gear width of approximately 990 mm when retracted, while the travel gear can extend to about 1,300 mm on the referenced configuration.

That adjustable width is useful in real work. A narrow setting can help the excavator pass through restricted access points. A wider setting can provide a broader stance during work when the site allows it.

The official technical data also lists a maximum digging depth of 2,590 mm for the U.S. configuration. However, Wacker Neuson's other regional pages show 2,330 mm or different values depending on arm and market configuration.

For this reason, I would never tell a customer that one EZ17 digging-depth number applies to every machine worldwide. Before purchase, we confirm the actual arm, destination, configuration, and technical sheet.

The same principle applies to operating weight. The official U.S. page lists 1,724–1,887 kg, while another current Wacker Neuson regional page lists 1,784–1,950 kg.

This is normal for construction equipment. Optional equipment, undercarriage configuration, working equipment, canopy or cabin, and market-specific requirements can all affect the final machine weight.

3. How the EZ17 Zero Tail Excavator Works

The EZ17 is a Hydraulic Excavator, so its main working movements come from hydraulic power.

The engine supplies mechanical power to the hydraulic system. Hydraulic oil is pressurized by the hydraulic pump and then directed through the control valves to operate the boom, arm, bucket, swing system, and travel motors.

Wacker Neuson's current EZ17 specifications list an axial piston displacement pump and hydraulic operating pressure of 240 bar. The official ASEAN product information also lists a load-independent flow distribution hydraulic system, hydraulic pilot control through the joysticks, and a variable displacement pump with a flow rate of 39.6 L/min.

In simple terms, the hydraulic system is what turns engine power into useful digging movement.

When the operator pushes the joystick forward, the hydraulic system sends oil to the appropriate actuator. The boom moves. Pull the joystick back, and the boom returns. Move another control, and the arm or bucket responds.

The same basic principle applies to travel. Hydraulic motors drive the tracks, allowing the machine to move across the jobsite.

The EZ17 also uses two travel speeds. Depending on the market version, Wacker Neuson lists approximately 2.6 and 4.8 km/h, while another current version lists 2.8 and 4.5 km/h.

Again, I would check the actual machine configuration before quoting the exact speed.

The zero-tail design is another important part of the working concept. The rear of the machine is kept compact so the operator can rotate the upper structure closer to surrounding obstacles.

That does not mean the machine can ignore safety clearance. Operators still need to understand the swing area and jobsite risks. But a compact rear design gives the operator more room to work in places where a conventional rear swing would be inconvenient.

Wacker Neuson's official dimensions show a tail swing radius around 660 mm for the referenced EZ17 configuration, with a larger figure when the tail weight is included.

For me, this is one of the main reasons the EZ17 is interesting. It is not simply “small.” It is designed around the problems that come with working in small spaces.

4. Main Features I Look for in the Wacker Neuson EZ17

Compact Width

The ability to work at approximately 990 mm retracted width is one of the most useful features of the EZ17.

Think about a residential backyard. There may be a narrow gate between the street and the garden. A contractor needs to dig a drainage trench, remove soil, or prepare the ground for landscaping.

A Large Excavator may not even reach the work area.

A compact machine changes the situation completely.

The EZ17 can also extend its travel gear width to approximately 1,300 mm on the referenced configuration. This gives the operator more flexibility when the jobsite allows additional width.

Zero Tail Swing

Zero-tail design is particularly useful when working next to buildings, walls, fences, roads, and other fixed obstacles.

The official EZ17 dimensions list a tail swing radius of approximately 660 mm on one current configuration.

This compact rear area means the operator can make better use of the available workspace. Instead of constantly worrying about a large rear counterweight extending into the surrounding area, the operator has a more compact machine envelope.

Hydraulic Pilot Control

The EZ17 uses hydraulic pilot control through joystick operation. Wacker Neuson also lists valve control according to several common control standards, including ISO, DIN, SAE, PCSA, and EURO.

For operators, this can make machine control feel more familiar and predictable.

Simple control matters more than people sometimes think. A machine may have good specifications, but if the operator struggles to make small movements, productivity suffers.

Adjustable Undercarriage

The hydraulic telescopic travel gear is another feature I would discuss with customers.

According to Wacker Neuson's official product information, the travel gear can be adjusted from approximately 990 mm to 1,300 mm, with a matching dozer blade extension.

This gives the machine two useful personalities. Narrow when access is the main problem. Wider when the work area gives the operator more room.

Yanmar Diesel Engine

Wacker Neuson's current regional technical data identifies a three-cylinder Yanmar diesel engine. The referenced configurations use around 13.8 kW effective power at 2,200 rpm, while engine model and exact specifications can vary by market.

Engine selection is something we check carefully when preparing an international order. Local emission rules and market requirements can affect the available engine configuration.

Useful Attachment Options

The EZ17 can be equipped with suitable attachments depending on the machine configuration.

Wacker Neuson's official product information lists options and equipment such as a long shovel arm, steel tracks, Easy Lock preparation, and an assembled backhoe attachment. It also lists auxiliary hydraulic connections for two directions of travel on the shovel arm/AUX I.

This is important because a mini excavator becomes much more useful when the working tool matches the job.

A digging bucket, Grading Bucket, breaker, auger, or other tool can change what the machine is able to do. But the hydraulic flow, pressure, mounting system, and attachment weight must be checked before ordering.

5. EZ17 Compared with Other Compact Excavator Options

I often tell customers not to choose a mini excavator simply because its name sounds familiar. The right question is whether the machine fits the job.

For comparison, the table below uses current Wacker Neuson official published information for several compact excavator models. Exact figures can vary by market and equipment configuration.

Source: Wacker Neuson official compact and mini excavator product information. The figures shown are representative published values and should be checked against the final destination-market configuration.

The EZ17 sits in an interesting space here. It is larger than the smallest compact machines but still narrow enough to handle restricted access.

For a contractor who regularly works in gardens, residential properties, utility corridors, and small construction sites, that balance can be useful.

If the machine needs to pass through extremely narrow openings, a smaller excavator may make more sense. If the job involves heavier excavation or requires a larger bucket, moving up to a larger compact excavator may be more practical.

That is why I always ask about the job first.

Source: Wacker Neuson official EZ17 technical data.

These specifications also match the type of information people use when searching Google for Wacker Neuson EZ17 specifications, EZ17 mini excavator weight, Wacker Neuson EZ17 digging depth, EZ17 zero tail excavator, and Wacker Neuson EZ17 for sale.

6. Where I Would Use the EZ17

Residential Construction

Residential work is one of the clearest applications for a compact zero-tail excavator.

Imagine preparing drainage around a house. The machine may need to work close to the wall while the rear of the excavator remains inside a narrow working area.

This is where compact swing dimensions and adjustable width become genuinely useful.

Landscaping

Landscaping contractors often work in finished gardens, parks, private properties, and other places where access is limited.

The EZ17 can support tasks such as soil removal, trenching, planting preparation, drainage, grading support, and general earthmoving when equipped with the appropriate tools.

Wacker Neuson specifically lists gardening and landscaping among the application areas for its mini excavator range.

Utility Installation

Small excavators are widely useful for utility work because pipes and cables often require narrow trenches rather than large open excavations.

Water lines, drainage, electrical cables, communication lines, and similar projects can require controlled digging around existing infrastructure.

The EZ17's compact body and boom offset capability can be helpful in these environments.

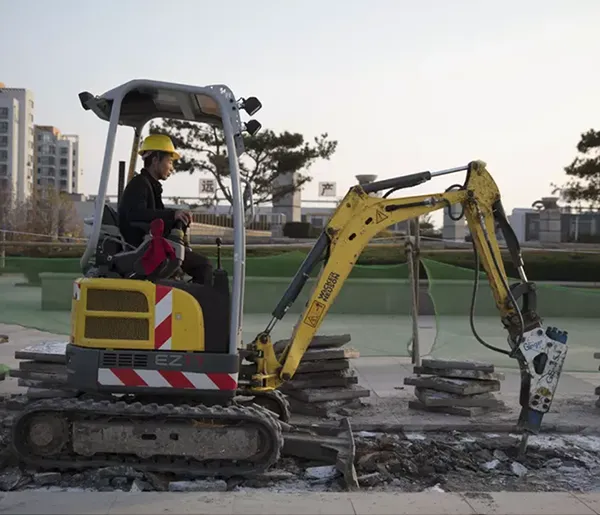

Road Maintenance

Roadside maintenance can involve drainage repair, shoulder work, small trenches, landscaping, and utility access.

These jobs are often carried out beside existing roads and structures, so machine width and rear swing can be just as important as digging force.

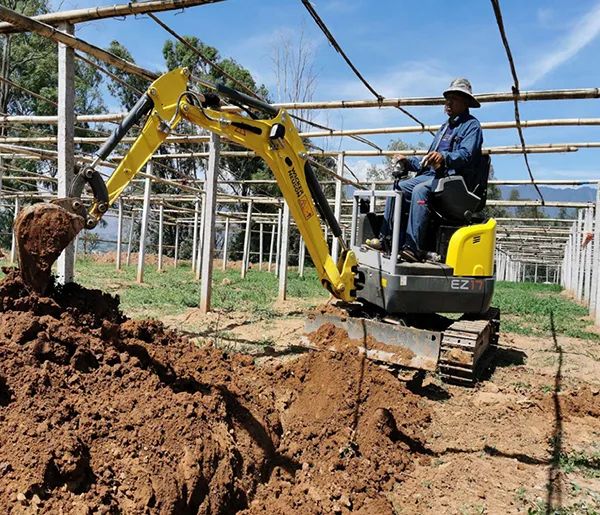

Agricultural Work

On farms and rural properties, the EZ17 can be considered for drainage, ditch maintenance, small building work, soil preparation, and other general earthmoving tasks.

The advantage is flexibility. The machine is small enough to move around many farm environments while still offering more digging ability than hand tools or very small equipment.

Municipal and Property Maintenance

Municipal contractors and property maintenance teams often have a long list of small jobs. They may need to repair drainage one day, prepare a roadside area the next, and handle landscaping work later in the week.

A compact excavator is useful because it can be moved between different tasks without bringing the footprint of a large Construction Excavator.

7. What I Check Before Supplying a Wacker Neuson EZ17

At Ganglong, we try to make the machinery purchasing process practical.

The first thing I ask is the destination. This matters because Wacker Neuson clearly notes that its product range, engines, equipment, and technical data can vary by country.

The second question is the actual application.

“I need an excavator” is not enough information. I want to know whether the customer needs to dig trenches, prepare foundations, landscape a garden, maintain drainage, work on a farm, or use a hydraulic attachment.

The third point is access width.

If the machine needs to pass through a 1-meter gate, we need to confirm the exact retracted track width and any equipment that changes the machine envelope. The EZ17 can have a 990 mm retracted travel gear width on the referenced configuration, but this must be confirmed for the actual machine being supplied.

The fourth point is working depth.

The EZ17 can be supplied with different arm configurations. Wacker Neuson's dimensions page lists a maximum digging depth of 2,326 mm with the short arm and 2,486 mm with the long arm for one current configuration. Another market page publishes up to 2,590 mm.

So when a customer tells me they need “2.5 meters of digging depth,” I check the actual configuration instead of simply saying yes.

The fifth point is attachment compatibility.

Hydraulic attachments need the correct oil flow, pressure, mounting system, and control configuration. The EZ17 official product information lists auxiliary hydraulic connections and attachment-related options, but the final combination should be confirmed before ordering.

The sixth point is transportation.

The official U.S. EZ17 technical data lists shipping weight between 1,595 and 1,765 kg for the referenced configuration. Shipping dimensions and final machine weight can change with equipment, so we confirm the actual data before arranging international transport.

For international delivery, complete machines are generally transported by sea when suitable. Spare parts and smaller accessories can be shipped by air or express when that makes more sense.

Before shipment, we can arrange checks covering appearance, main machine functions, hydraulic and electrical systems, accessories, documents, and basic operating performance according to the agreed order requirements.

Machines are protected and securely fixed for transportation. Loose accessories and spare parts can be packed separately in suitable cartons or wooden cases.

Payment terms are discussed and confirmed between buyer and seller. T/T arrangements, such as a deposit followed by the balance before shipment, can be used depending on the specific transaction.

8. Why I Work with Customers Through Ganglong

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., our business covers equipment R&D, manufacturing, testing, customization, global sales, and international machinery trade.

We have our own HKLOONG excavators, loaders, Backhoe loaders, and swamp excavators. At the same time, we supply and arrange complete machine sales and leasing services involving a range of domestic and international brands according to customer requirements and availability.

For Wacker Neuson equipment, our position is straightforward: Wacker Neuson is the equipment brand and manufacturer, while Ganglong acts as a machinery supplier and international trade service partner.

That distinction is important.

When a customer contacts us about an EZ17 mini Excavator for Sale, we can help with several parts of the process.

• Confirm the requested EZ17 model and destination market.

• Check the actual technical configuration.

• Discuss operating conditions and attachment requirements.

• Confirm machine availability and delivery schedule.

• Prepare commercial information for the customer.

• Arrange pre-shipment inspection according to the order.

• Prepare required documents and accessories.

• Coordinate packing, loading, and international transportation.

• Communicate with customers during the supply process.

Our international trade team has experience serving customers in Asia, Africa, America, and other markets. This matters because exporting construction equipment is not just about putting a machine on a ship.

There are documents to prepare, specifications to confirm, accessories to check, loading plans to organize, shipping routes to discuss, and customer requirements to communicate clearly.

I also believe that a good machinery supplier should be comfortable saying “we need to check that.”

For example, the official Wacker Neuson EZ17 pages currently show different engine configurations, operating weights, digging depths, and travel speeds across markets.

Instead of pretending those differences do not exist, we confirm the actual destination-market machine before the order is finalized.

That approach may sound less exciting than making a big promise, but it is much more useful when the machine is actually being delivered thousands of kilometers away.

Wacker Neuson EZ17 FAQ

What is the Wacker Neuson EZ17?

The Wacker Neuson EZ17 is a tracked zero-tail mini excavator designed for compact construction, landscaping, utility work, road maintenance, agriculture, and general earthmoving applications.

How much does the EZ17 weigh?

The current Wacker Neuson U.S. technical page lists an operating weight of approximately 1,724–1,887 kg. Another current regional page lists approximately 1,784–1,950 kg. The final operating weight depends on the actual configuration and equipment.

How deep can the EZ17 dig?

The published maximum digging depth varies by configuration. Wacker Neuson currently lists up to 2,590 mm on its U.S. technical page, while another official regional page lists 2,330 mm. Arm selection can also affect digging depth.

How wide is the EZ17?

The current official specifications show a width range of approximately 990–1,300 mm, with hydraulic telescopic travel gear allowing the machine to become narrower for restricted access and wider for suitable working conditions.

Is the EZ17 a zero-tail excavator?

Yes. Wacker Neuson identifies the EZ17 as a tracked zero-tail excavator. Its compact rear swing area is intended to make work in confined spaces easier.

What engine does the EZ17 use?

Current official regional specifications identify a three-cylinder Yanmar diesel engine. Depending on the market, the engine designation and exact output can differ. One current specification lists 13.8 kW at 2,200 rpm.

What is the hydraulic flow of the EZ17?

The official specifications list approximately 39 L/min for the referenced configuration, while another Wacker Neuson regional product page lists 39.6 L/min. The exact value should be confirmed for the machine and market being supplied.

Can the EZ17 work with hydraulic attachments?

Yes, suitable hydraulic and mechanical attachments can be used depending on the configuration. Wacker Neuson lists auxiliary hydraulic connections and attachment options for the EZ17. Hydraulic flow, pressure, mounting interface, and attachment weight should be checked before ordering.

What industries use the EZ17?

The EZ17 can be considered for construction, landscaping, utility installation, road maintenance, agriculture, municipal work, property maintenance, and general earthmoving where its size and working range match the job.

Is the EZ17 suitable for narrow gates?

One current official configuration lists a retracted travel gear width of 990 mm. This makes the machine suitable for many narrow access situations, but the actual machine width and equipment configuration should be checked before confirming a site-access requirement.

How is the EZ17 shipped internationally?

Complete machines are generally transported by sea when suitable for international orders. Spare parts and smaller accessories may be shipped by air or express depending on destination, size, weight, and urgency.

How is the EZ17 packed before shipment?

The machine is protected and secured according to transportation requirements. Loose accessories and spare parts can be packed separately in cartons or wooden cases. The final packing method is confirmed according to the destination and shipping route.

How long does delivery take?

Delivery time depends on machine availability, configuration, order quantity, inspection requirements, destination, and shipping schedule. We confirm the expected delivery arrangement before order execution.

Final Thoughts: Small Machine, Real Working Capability

When I look at the Wacker Neuson EZ17, the first thing I notice is not the engine power. It is the way the machine is built around restricted working spaces.

A compact width, zero-tail layout, adjustable undercarriage, hydraulic pilot control, two travel speeds, and useful digging depth make the EZ17 a practical type of machine for jobs where a larger excavator becomes difficult to use.

The current official Wacker Neuson data gives useful reference points: around 1.7–1.9 tons operating weight for one published configuration, 13.8 kW effective power, 240 bar hydraulic pressure, around 39 L/min hydraulic flow, and up to 2.59 meters digging depth on the U.S. specification.

At the same time, the different official regional pages show why buyers should not rely on one online specification sheet without checking the destination version. Wacker Neuson publishes different EZ17 configurations for different markets, and the differences can include engine model, weight, hydraulic flow, digging depth, and travel speed.

For customers searching for Wacker Neuson EZ17 mini excavator, EZ17 compact excavator, EZ17 zero tail excavator, or Wacker Neuson EZ17 specifications, I recommend starting with the actual jobsite.

Tell us the access width, required digging depth, application, attachment requirements, destination country, and expected quantity. From there, we can check the appropriate configuration and work through sourcing, inspection, documents, packing, and transportation.

That is how I prefer to handle construction machinery: start with the work, match the machine to it, and confirm the details before the equipment leaves the yard.
