When I talk with farmers about soil preparation, I usually find that the real question is not simply whether they need a plow. The more important question is what kind of plowing their land actually needs.

Some fields have a hard soil layer after years of repeated cultivation. Some farms work large areas where turning at the end of every row takes a lot of time. Others need a plow that can handle deep tillage while keeping the operation simple for the tractor operator.

This is where I see the value of a Hydraulic Flip Plow.

A hydraulic flip plow, also called a Hydraulic Reversible Plow or Hydraulic Turnover Plow, is designed to turn the plow body hydraulically so the operator can continue plowing in the opposite direction. Instead of making a long empty return trip just to get the plow back into the correct working position, the reversible structure allows the next pass to continue in the proper direction.

That sounds like a small design detail, but in large fields it can make a real difference.

LOVOL positions its hydraulic flip plow as an agricultural implement for plowing operations in large-scale dry farming. Its current product range includes the 1LFTT-4405R, 1LFTT-4506R and 1LFTT-5506RS hydraulic flip plows. LOVOL also lists hydraulic flip plows as part of its large-scale dryland farming equipment solution.

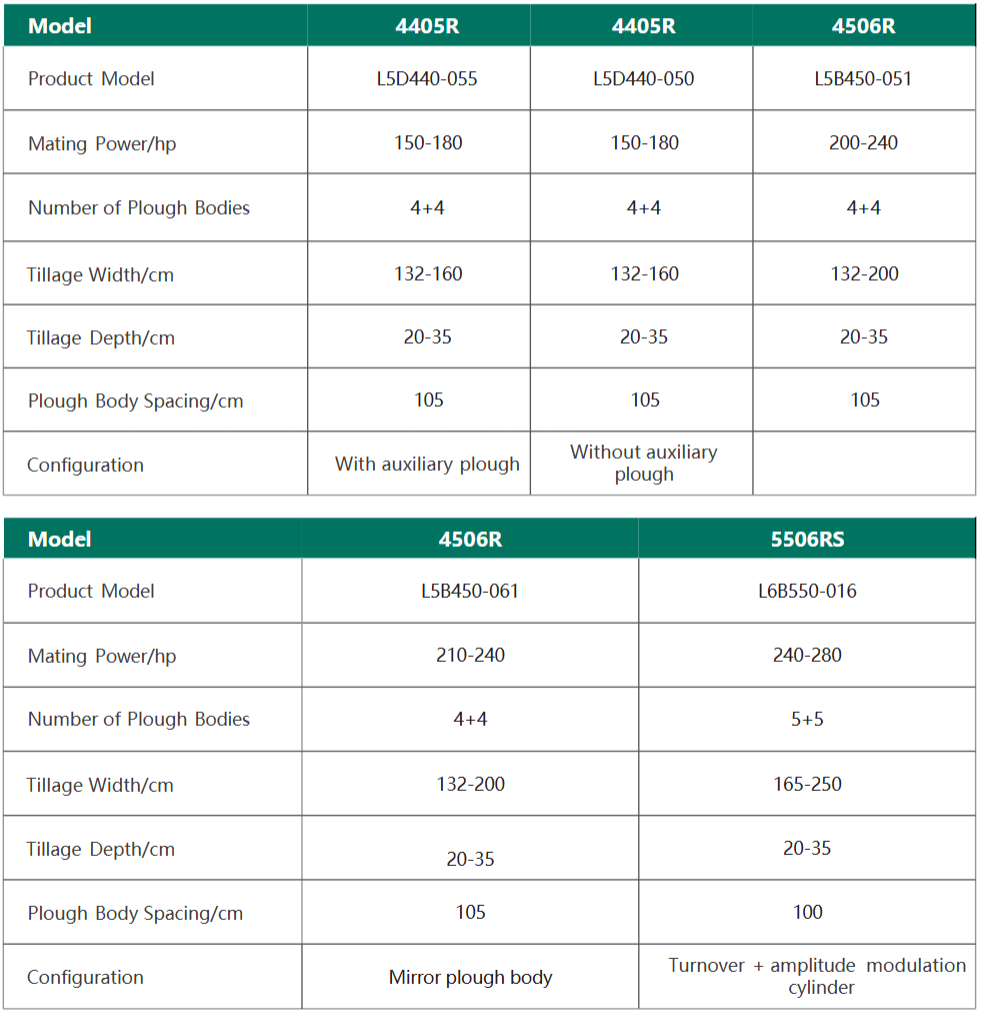

The 1LFTT-4506R published specification uses a hydraulic reversible cylinder, adjustable-width worm gear and grate-type plow body. Its listed working width is 132–200 cm, with 105/110 cm plow-body spacing, 120 × 120 mm beam size, 85 cm beam ground clearance and a total weight of 1,620 kg. The published required tractor power is 200–240 hp.

At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we work with customers who need agricultural machinery for real field operations, not just equipment listed on a product catalog.

Together with Hefei Ganglong International Trade Co., Ltd., we supply agricultural machinery and related attachments for international customers. Our business also covers construction machinery, mining machinery and other equipment. For LOVOL products, our role is to supply and arrange the equipment rather than claim to manufacture the LOVOL brand ourselves.

1. What Is a Hydraulic Flip Plow?

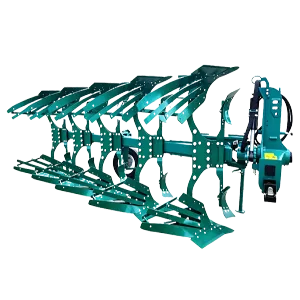

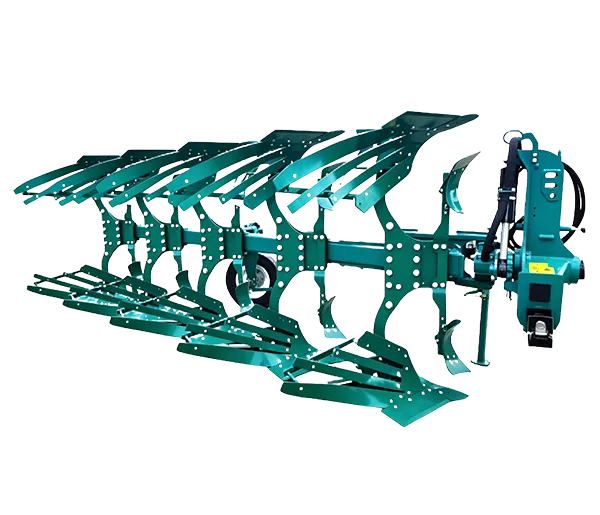

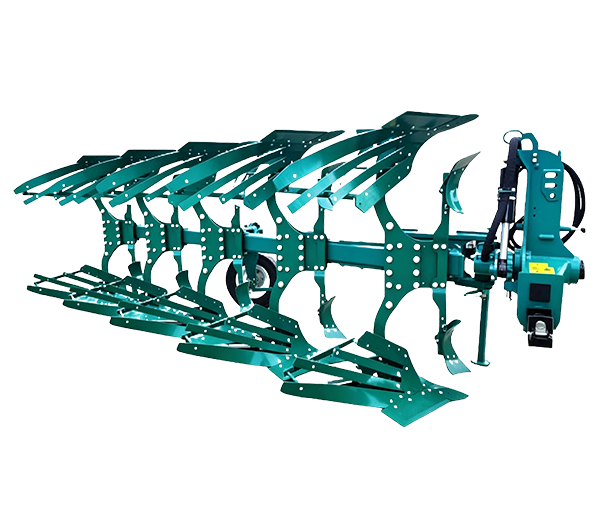

A Hydraulic Flip Plow is a reversible agricultural plow designed for soil turning and deep tillage.

The word “flip” describes the basic working action.

After the tractor reaches the end of one field pass, the plow can be hydraulically turned over so that the plow bodies are positioned correctly for the return pass.

This gives the operator a simple way to maintain a consistent plowing direction.

In practical farming, this matters because conventional fixed plows normally turn the soil in one direction. When the tractor reaches the end of a field, the operator may need to change the working pattern or make additional non-working movements.

A reversible plow can reduce some of these unnecessary movements.

It can also help create a more organized field surface because the soil is turned in a controlled direction from one pass to the next.

Why Soil Turning Matters

Plowing is one of the oldest farming operations, but the basic purpose has not changed much.

The plow enters the soil, cuts a furrow, lifts the soil and turns it over.

This can help break compacted soil layers, bury crop residue and prepare the field for later operations.

LOVOL describes its 1LFTT-4506R Hydraulic Flip Plow as being designed to break hardpan, aerate soil and improve water retention for field preparation and soil health.

I would describe these benefits in simpler terms: the plow helps open and turn the soil so the field is easier to work before planting.

Of course, plowing depth and frequency should be based on the farm's soil type, crop system and agronomic practice. Deep plowing is not automatically better in every field.

Hydraulic Reversing Instead of Manual Turning

The main difference between this type of implement and a simple fixed plow is the hydraulic reversing system.

The operator uses the tractor's hydraulic system to control the reversing cylinder.

The plow turns to the required side, allowing the next pass to begin without manually removing or changing the plow position.

This is especially useful when the machine is working across large areas.

When a farmer spends many hours plowing, small improvements in every headland turn can add up.

2. How the Hydraulic Flip Plow Works

I like to explain the working process of a Hydraulic Reversible Plow in four simple steps.

Step 1: The Tractor Pulls the Plow Through the Field

The hydraulic flip plow is connected to a suitable tractor.

The tractor supplies the pulling power required to move the plow through the soil.

For the 1LFTT-4506R, LOVOL publishes a required tractor power range of 200–240 hp. This is a key point when choosing the equipment.

A plow cannot be selected by working width alone.

The tractor needs enough power to handle the soil resistance created by the plow.

Step 2: The Plow Bodies Enter the Soil

As the tractor moves forward, the plow bodies enter the soil.

The working parts cut a furrow and lift the soil.

The soil is then turned over by the moldboard structure.

This action can help bury surface residue and expose lower soil layers.

The actual result depends on soil moisture, soil structure, working depth, forward speed and plow adjustment.

Step 3: The Tractor Reaches the Headland

At the end of the field, the operator needs to turn the tractor.

This is where the hydraulic reversing mechanism becomes useful.

The operator activates the hydraulic system and turns the plow into the correct working position for the next pass.

There is no need to manually change the plow body arrangement.

Step 4: The Tractor Starts the Next Pass

The tractor moves back across the field while the plow turns the soil in the opposite direction.

With the correct field pattern, this can help the operator maintain a more consistent working layout.

For large dryland farms, that can make the overall operation easier to manage.

Source: LOVOL official 1LFTT-4506R Hydraulic Flip Plow product information. Exact configuration should be confirmed for the destination market and order.

3. Main Features I Look At When Choosing a Hydraulic Flip Plow

Hydraulic Reversible Cylinder

The hydraulic reversing cylinder is one of the most important parts of the design.

Its job is simple: help turn the plow from one working position to the other.

For the operator, this means the reversing process can be controlled from the tractor instead of requiring manual adjustment of the plow body.

When a farm works large fields, this saves more than physical effort. It can also make the whole working routine easier to repeat.

Adjustable Working Width

The 1LFTT-4506R has a published working width of 132–200 cm.

This adjustable range gives the operator some flexibility when matching the implement to the field and tractor.

I would still recommend confirming the final working width before ordering because soil resistance increases with working width and depth.

A wider setting is not always the best setting.

The tractor needs to maintain enough pulling power and stable operation.

Grate-Type Plow Body

LOVOL describes the 1LFTT-4506R as using a grate-type plow body.

The plow body is the part that directly works with the soil.

Its shape affects how the soil is lifted, broken and turned.

For heavy agricultural equipment, the working body needs to cope with repeated contact with soil, crop residue and occasional hard spots.

High Beam Ground Clearance

The published beam ground clearance is 85 cm.

Clearance matters when the implement is being transported or raised at the headland.

It can also give the machine useful room around the main beam and working components.

Heavy-Duty Structure

The published total weight of the 1LFTT-4506R is 1,620 kg.

That tells me this is not a light garden implement.

It is designed for high-power agricultural tractors and larger-scale field work.

The heavy structure needs to remain stable while the plow is working against soil resistance.

4. Why Reversible Plowing Can Be Useful on Large Farms

When I discuss a Hydraulic Flip Plow for large farms, I usually focus on field layout first.

Imagine a long rectangular field.

The tractor starts at one side and moves forward.

At the end of the field, it turns around.

If the plow can reverse hydraulically, the operator can set the plow for the new direction and continue working.

This makes the working pattern easier to control.

It can also help avoid some of the uneven soil movement that can happen when a fixed plow is used repeatedly in one direction.

For large-scale dry farming, LOVOL identifies plowing as one of the main field preparation operations alongside subsoiling, seeding, inter-row cultivation and spraying. Its published large-scale dry farming solution recommends high-capacity tractors above 150 hp and lists the Hydraulic Flip Plow as a compatible agricultural implement.

Source: LOVOL official Hydraulic Flip Plow product information and LOVOL large-scale dry farming application information. This table describes operating concepts rather than claiming a universal performance difference.

Reducing Unnecessary Empty Runs

This is one of the practical advantages I pay attention to.

Every time a tractor moves without working, fuel and time are being used without soil being prepared.

A reversible plow does not eliminate all headland movement, of course. The tractor still needs room to turn.

But the reversible design helps the operator maintain the intended plowing pattern without having to return with the plow working in only one direction.

More Consistent Field Appearance

A reversible plow can help create a more organized plowing pattern.

This matters when the next operation is seeding.

A well-prepared field gives the planter or seed drill a more predictable surface to work on.

That does not mean the plow alone determines planting quality. Soil moisture, leveling, seedbed preparation and seeder adjustment all matter.

5. Hydraulic Flip Plow Applications

Large-Scale Dryland Farming

This is one of the main applications identified by LOVOL.

LOVOL's large-scale dry farming solution covers wheat, grains, beans and other crops, with plowing listed as one of the major land preparation operations.

For farms working hundreds or thousands of hectares, a suitable hydraulic reversible plow can become an important part of the soil preparation system.

Wheat Farming

Wheat production often requires careful soil preparation before planting.

The plow can turn crop residue and prepare the soil before subsequent seedbed operations.

LOVOL has also demonstrated a hydraulic flip plow together with a combined seed drill in wheat production field demonstrations.

The company reported that the combined operation could reduce the number of separate field passes compared with a conventional “rotary tillage plus basic drilling” approach. Its 2025 demonstration also reported yield differences in its own demonstration plots, but those results should be understood as specific field-test results rather than a guarantee for every farm.

Grain Crops

Large grain farms often need high-capacity field preparation equipment.

The tractor and implement need to work together.

A hydraulic flip plow can be paired with high-horsepower tractors for heavy soil preparation.

The correct model depends on soil type, desired depth, working width and tractor power.

Bean and Other Dryland Crops

LOVOL's large-scale dry farming application information includes grains and beans among its crop applications.

For these farms, the hydraulic flip plow can be part of the preparation stage before seeding.

Contract Farming and Agricultural Service Operations

Agricultural contractors often care about working time as much as machine purchase price.

Their machines may work across many farms during a limited seasonal window.

A reversible plow can simplify repeated field operations, especially when used with a suitable high-power tractor.

6. Technical Advantages and Tractor Matching

One mistake I see in agricultural machinery purchasing is choosing an implement first and thinking about the tractor later.

I prefer to do it the other way around.

Start with the tractor.

Then look at soil.

Then decide the plow configuration.

For the 1LFTT-4506R, LOVOL publishes a required tractor power of 200–240 hp.

That is a fairly high power requirement.

It tells us that this model is designed for serious field work rather than light-duty cultivation.

Why Tractor Power Matters

When a plow enters the soil, it faces resistance.

Harder soil creates more resistance.

Deeper plowing can also require more pulling power.

A wider working width can increase the load on the tractor.

If the tractor is too small, the operator may have to reduce working depth or speed.

That is why I always check the tractor before discussing the final hydraulic flip plow configuration.

Source: LOVOL 1LFTT-4506R specifications and general agricultural implement selection principles.

Hydraulic System Compatibility

The hydraulic system is another point I check before confirming an order.

A hydraulic flip plow needs the tractor to provide the required hydraulic function for the reversing cylinder.

For a complete international order, I recommend confirming the tractor model, hydraulic connections and working configuration before shipment.

This is a small step that can prevent a much bigger problem later.

Adjustable Width and Field Conditions

The 1LFTT-4506R has a published working width range of 132–200 cm.

That adjustment gives the operator more flexibility.

But I would not simply choose the widest setting because it looks more productive.

The best setting is the one that the tractor can pull steadily while maintaining the required soil-working result.

7. Manufacturing, Inspection and International Supply

A hydraulic flip plow may look like a straightforward agricultural attachment, but there is quite a lot happening in the structure.

The frame needs to withstand repeated loads.

The plow body needs to maintain its working position.

The reversing mechanism needs to operate smoothly.

The hydraulic cylinder needs to control the flip action reliably.

The connection points need to match the tractor.

And the working parts will naturally experience wear because they spend their time inside the soil.

Structural Components

For the 1LFTT-4506R, LOVOL publishes a 120 × 120 mm beam size and 85 cm beam ground clearance.

The machine's published dimensions are 4480 × 2250 × 1820 mm, with a total weight of 1,620 kg.

These figures give buyers a basic idea of the implement's physical size before considering transport and tractor matching.

Hydraulic Reversing System

The hydraulic cylinder is a key part of the machine.

It needs to provide enough movement to turn the plow body between the two working positions.

For international customers, I recommend checking the hydraulic requirements with the tractor model before placing the final order.

Plow Body and Working Parts

The plow body directly interacts with the soil.

Wear is normal in agricultural tillage equipment.

How quickly parts wear depends on soil hardness, stones, working depth, operating speed and maintenance.

That is why replacement parts and routine inspection should be considered when planning the machine purchase.

Pre-Shipment Inspection

For an international order, we can arrange checks before delivery according to the customer's requirements.

I normally recommend checking the frame, hydraulic cylinder, reversing action, plow bodies, fasteners, connection points, working width adjustment and required accessories.

If the buyer has a third-party inspection company or a specific inspection checklist, that should be discussed before shipment.

Packing and Transportation

Complete agricultural implements are normally prepared according to the final transportation method.

Before loading, the machine should be properly secured.

Loose parts can be packed separately in cartons or wooden cases where appropriate.

For international orders, the final shipping method depends on the destination, machine size, port conditions and customer requirements.

8. Why Customers Can Work with Ganglong for Hydraulic Flip Plow Supply

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013.

Our group combines equipment R&D, manufacturing, testing, customization, sales and international trade.

Our product scope covers construction machinery, mining machinery, agricultural machinery and matching attachments.

We also have the HKLOONG brand for Excavators, loaders, Backhoe loaders and swamp excavators.

For other domestic and international brands, including LOVOL, we provide complete machine sales and leasing services.

For an overseas agricultural machinery buyer, I think our international trade experience is particularly useful.

The machine itself is only one part of the order.

We also need to discuss the tractor match, attachment configuration, inspection, documents, packing and shipping.

We Check the Application First

When a customer asks me for a Hydraulic Flip Plow, I do not want to send a random quotation immediately.

I first want to know:

• What tractor will be used?

• How much horsepower does it have?

• What type of soil will be plowed?

• How deep does the customer want to plow?

• What is the required working width?

• How many hectares need to be prepared?

• What crops will be planted?

• Is the field flat or uneven?

• Does the tractor have a suitable hydraulic system?

• Where will the machine be shipped?

These questions may look basic, but they are important.

A plow that is correct for one tractor may not be correct for another.

We Can Arrange Inspection Before Delivery

Before the machine leaves, we can arrange inspection according to the customer's order.

We can check the working components, hydraulic functions, connection points, attachments and documents.

The final inspection scope can be agreed before shipment.

We Handle the International Trade Details

Hefei Ganglong International Trade Co., Ltd. serves as our professional international trade arm.

Our team has experience serving customers across Asia, Africa, America and other international markets.

For agricultural machinery orders, payment is commonly arranged by T/T, with a deposit before order processing and the balance before shipment. Exact terms are agreed by both parties.

The production and preparation schedule depends on the selected LOVOL model, configuration, order quantity and machine availability.

Complete machinery and agricultural implements are generally transported by sea, while suitable spare parts and smaller accessories can be shipped by air or express.

Frequently Asked Questions About Hydraulic Flip Plow

What is a Hydraulic Flip Plow?

A Hydraulic Flip Plow is a reversible agricultural plow that uses a hydraulic cylinder to turn the plow body from one working position to the other. It is designed for soil turning and field preparation.

What is the difference between a Hydraulic Flip Plow and a normal plow?

The main difference is the reversible hydraulic structure. A fixed plow normally works in one direction, while a hydraulic reversible plow can be turned hydraulically for the next working pass.

What is the LOVOL 1LFTT-4506R?

The 1LFTT-4506R is a LOVOL Hydraulic Flip Plow. Its published configuration includes a hydraulic reversible cylinder, adjustable-width worm gear and grate-type plow body.

What tractor power is required?

LOVOL publishes a required tractor power range of 200–240 hp for the 1LFTT-4506R.

What is the working width?

The published working width of the 1LFTT-4506R is 132–200 cm.

What is the plow body spacing?

LOVOL lists plow body spacing of 105/110 cm for the 1LFTT-4506R.

What is the total weight?

The published total weight is 1,620 kg.

Can a Hydraulic Flip Plow work on hard soil?

It is designed for soil turning and deep tillage, and LOVOL specifically describes the 1LFTT-4506R as helping break hardpan. However, actual working performance depends on soil hardness, moisture, stones, working depth, tractor power and operating speed.

Is it suitable for large farms?

Yes. LOVOL includes Hydraulic Flip Plows in its large-scale dry farming solution, where plowing is part of the land preparation process for wheat, grains, beans and other crops.

Can the working width be adjusted?

Yes. The 1LFTT-4506R has a published adjustable working width of 132–200 cm.

Can I use it with a LOVOL tractor?

The hydraulic flip plow is included in LOVOL's large-scale dry farming equipment solution and can be paired with suitable high-horsepower tractors. The exact tractor and hydraulic compatibility should be confirmed before ordering.

Can I use it with another tractor brand?

Potentially, yes, provided the tractor meets the required power, hydraulic and implement connection requirements. We recommend confirming the tractor model and specifications before finalizing the order.

Can you supply the Hydraulic Flip Plow internationally?

Yes. Ganglong can discuss international supply of suitable LOVOL agricultural implements and arrange configuration confirmation, inspection, documents, packing and shipping.

How is the Hydraulic Flip Plow shipped?

The shipping method depends on the destination and order arrangement. Agricultural machinery and implements are generally transported by sea for international orders, while smaller parts may be shipped by air or express.

Final Thoughts: Choosing a Hydraulic Flip Plow for Real Field Work

After dealing with agricultural machinery, I have found that good equipment selection usually starts with the field rather than the catalog.

A Hydraulic Flip Plow makes sense when the farm needs reliable soil turning, reversible operation and a plow that can work with a suitable high-horsepower tractor.

The LOVOL 1LFTT-4506R is a good example of this equipment category. Its published specifications include 200–240 hp required tractor power, 132–200 cm working width, 105/110 cm plow body spacing, 120 × 120 mm beam size and 1,620 kg total weight.

The hydraulic reversing cylinder is the part that makes the machine different from a basic fixed plow.

For large fields, that simple feature can make the working process easier.

But I would not choose the machine only because it is hydraulic or reversible.

I would first check the tractor.

Then I would check the soil.

Then I would decide the working width and depth.

Finally, I would confirm the attachment, inspection and delivery requirements.

LOVOL's large-scale dry farming solution places hydraulic flip plows alongside high-horsepower tractors and other implements for plowing, seeding and field management. This shows how the implement fits into a larger farming system rather than operating as an isolated product.

For customers searching for a Hydraulic Flip Plow, Hydraulic Reversible Plow, Hydraulic Turnover Plow or Heavy Duty Hydraulic Plow, Ganglong can help discuss the suitable LOVOL configuration and international supply arrangement.

For me, the goal is simple: choose a plow that matches the tractor, matches the soil and fits the way the farm actually works.

That is what makes an agricultural implement useful in the real world—not just how good it looks on a specification sheet.
