Wheel Excavator EC360F: Heavy-Duty Excavation for Demanding Jobsites

When customers search for a wheel excavator EC360F, I usually take a moment to clarify one important point first: the Volvo EC360F is actually a crawler excavator, not a wheeled Excavator. I keep the keyword here because it is part of the search demand, but from a technical point of view, the EC360F belongs to Volvo's crawler excavator family.

For me, that distinction matters. A heavy excavator is not a machine you buy simply because the model number looks right. The working weight, bucket size, boom and arm combination, digging range, undercarriage, hydraulic system, transport requirements and actual jobsite all need to match.

At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., I work with construction machinery buyers who need complete machines for construction, mining, quarrying, road work, infrastructure and other heavy-duty applications. Together with Hefei Ganglong International Trade Co., Ltd., we provide equipment sourcing, sales, inspection, customization coordination and international shipping support.

The EC360F is a machine I would normally discuss with customers who need more than a mid-size excavator. Depending on the configuration and market version, the EC360F can offer a working range of more than 11 meters, digging depth of around 7 meters or more, and strong bucket and arm forces. Volvo's published EC360F data shows different configurations, so I always confirm the exact machine specification before an order is finalized.

1. What Is the Volvo EC360F Built For?

I see the EC360F as a machine for jobs where excavation volume, stability and working reach matter every day. It is not designed for light landscaping or small residential work. This class of excavator is much more comfortable on large construction sites, road projects, quarry operations, foundation work and heavy earthmoving jobs.

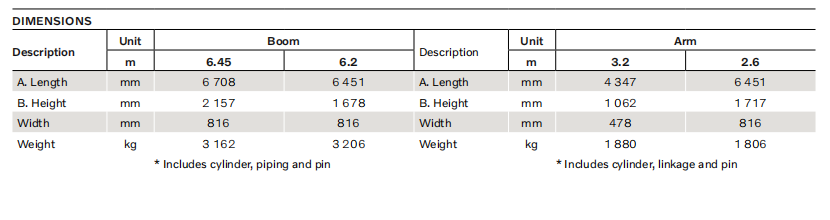

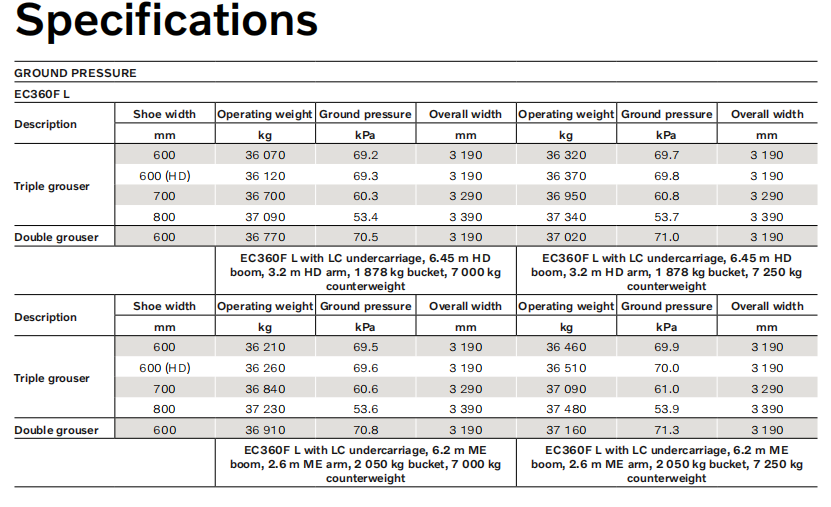

The first thing I look at is the machine's working weight. Volvo publishes EC360F and EC360 configurations in different markets, and the figures vary with the undercarriage, counterweight, boom, arm, bucket and other equipment. For the current EC360 model, Volvo lists an operating weight range of 34,500 to 41,530 kg, gross power of 220 kW and bucket capacity from 0.87 to 2.33 m³.

Older or regional EC360F configurations can have different specifications. For example, Volvo's published EC360F product guide lists configurations using a 6.45 m boom with a 3.2 m arm or a 6.2 m boom with a 2.6 m arm. With the longer configuration, maximum digging reach is 11,115 mm and maximum digging depth is 7,485 mm. With the shorter configuration, those figures are 10,440 mm and 6,740 mm.

Source: Volvo construction equipment EC360F official product guide. Values vary according to machine configuration.

This is exactly why I do not recommend comparing Excavators only by the model name. A customer may say, “I need an EC360F,” but what I really need to know is the required boom and arm, bucket type, working environment, emissions requirement, undercarriage configuration and destination country.

2. How the EC360F Works on a Real Jobsite

An excavator looks simple from a distance: the boom moves, the arm moves and the bucket digs. In reality, several systems have to work together smoothly.

The engine provides the main power. The hydraulic system transfers that power to the boom, arm, bucket, swing system and travel motors. The undercarriage keeps the machine stable while the upper structure rotates. The operator controls all of these functions through the cab controls.

When I evaluate a used or available EC360F, I pay attention to how these systems work together rather than looking only at the paint and operating hours.

For excavation, the bucket first enters the soil. The arm pulls material toward the machine while the bucket curls to fill. The boom controls the working height and reach. Once the bucket is full, the upper structure swings toward the truck or stockpile, and the bucket opens to unload.

That sounds basic, but smooth hydraulic control makes a noticeable difference when the machine works for eight or ten hours a day. Jerky movement, slow response or unstable pressure can turn a powerful excavator into a frustrating one.

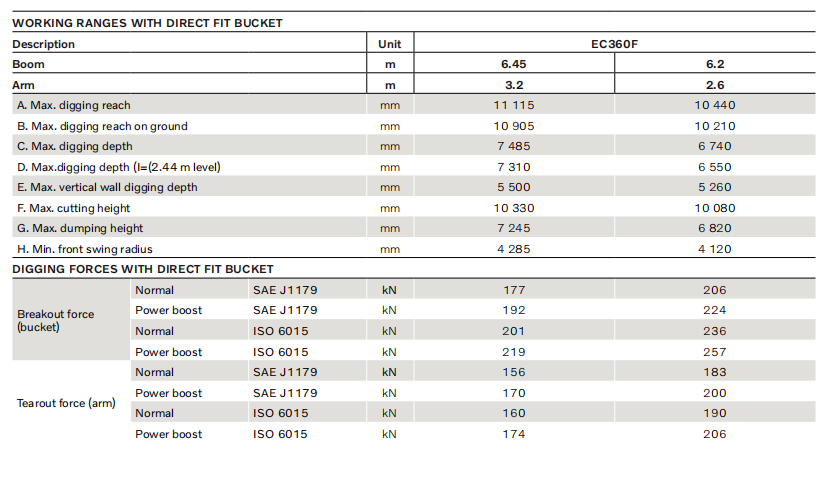

The EC360F product guide also gives breakout and tearout forces under SAE J1179 and ISO 6015 measurement standards. Depending on the boom and arm configuration, the published SAE J1179 breakout force ranges from 177 to 224 kN in normal conditions and from 192 to 224 kN with power boost. These figures show why configuration is so important when comparing machines.

Source: Volvo Construction Equipment EC360F official product guide. Force values depend on the selected boom and arm configuration.

3. Main Features I Look At on the EC360F

When I introduce a heavy excavator to an overseas customer, I try not to hide behind a long list of technical words. The useful question is simple: what does this feature actually do for the person operating the machine?

Strong Working Range

The EC360F can provide a long working reach depending on its configuration. Volvo's published figures show maximum digging reach up to 11,115 mm and maximum digging depth up to 7,485 mm for one EC360F configuration.

That extra reach can be useful when digging wide trenches, working beside stockpiles, loading trucks or preparing large foundations. Instead of constantly repositioning the excavator, the operator can cover a larger working area from one stable position.

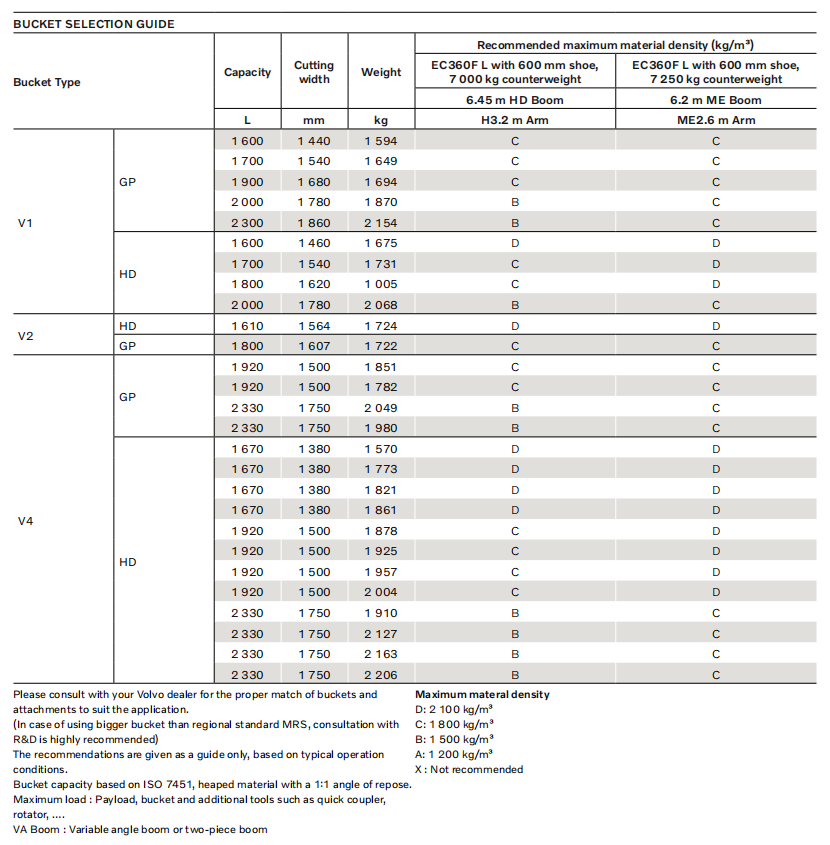

Large Bucket Options

Bucket selection is another area I discuss carefully. A larger bucket is not automatically better. If the material is heavy, hard or abrasive, the bucket must match the machine's hydraulic capability and the job conditions.

For loose earth, a larger general-purpose bucket can help move more material per cycle. For rock or tougher ground, a suitable heavy-duty bucket may be more important than simply increasing bucket volume.

Stable Crawler Undercarriage

This is one of the biggest differences between the EC360F and a true Wheeled Excavator. The crawler undercarriage gives the machine a broad and stable working base. That is useful when the machine spends most of its time digging rather than travelling on public roads.

For quarrying, earthmoving, foundations and rough construction sites, crawler mobility is often more practical than road mobility. The trade-off is that the machine normally needs proper transport arrangements when moving between distant jobsites.

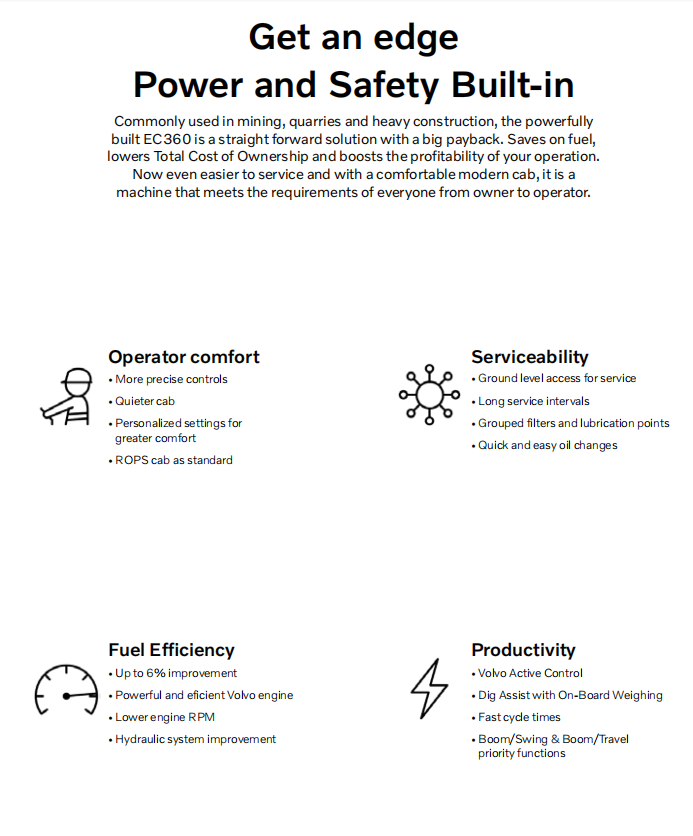

Operator Comfort

I also pay attention to the cab because productivity is not just about engine power. An operator sitting in a noisy, uncomfortable cab for a full shift will have a very different working experience from one working in a well-designed environment.

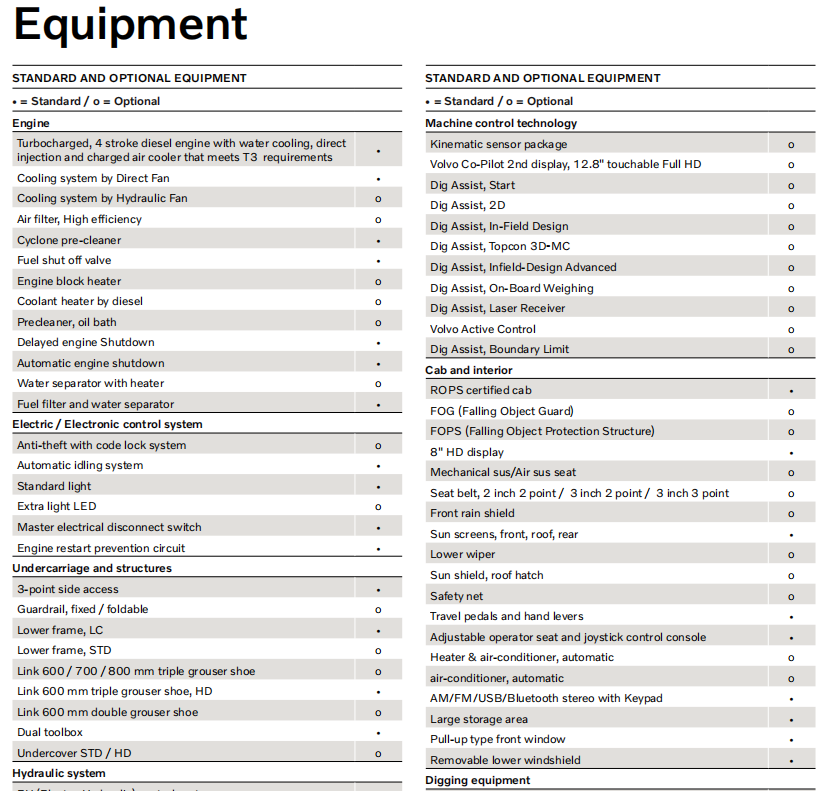

Modern EC360 configurations include features designed around operator comfort, visibility and machine control. Depending on the market and configuration, available equipment can differ, so I confirm the actual cab specification before quoting a machine.

4. Technical Advantages for Heavy Excavation

There are several reasons the EC360F fits heavy construction work. The first is the balance between machine size and working capability. It is large enough for serious excavation but still sits below the very largest Mining Excavators.

The second advantage is working flexibility. With different boom, arm and bucket combinations, the same basic excavator platform can be adapted to different jobs. A customer working mainly on deep trenching may need a different setup from a customer loading blasted rock in a quarry.

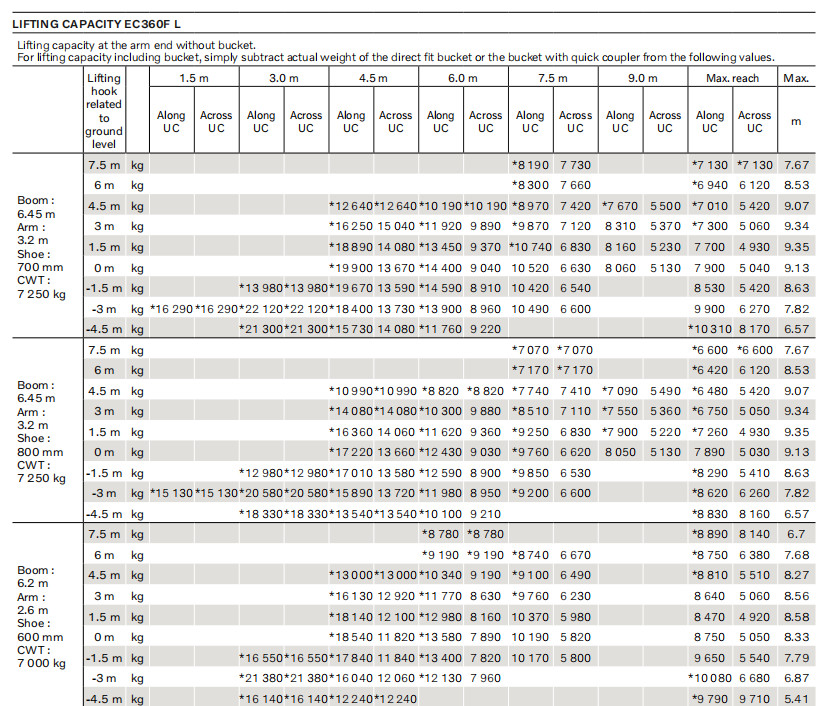

The third point is lifting and stability. Heavy excavators are often asked to do more than dig. They may position pipes, move heavy objects, load trucks or handle materials. Lifting capacity changes with working radius, attachment, configuration and ground conditions, so I always treat lifting figures as application-specific information rather than a single number.

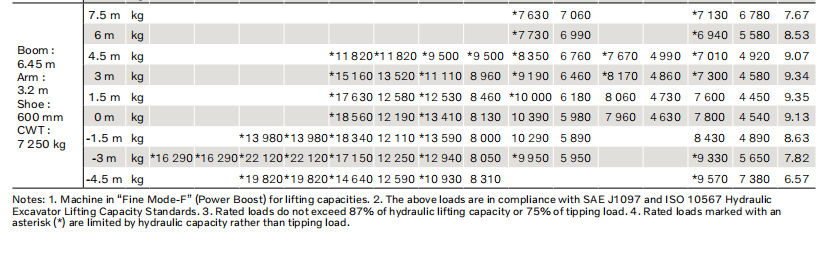

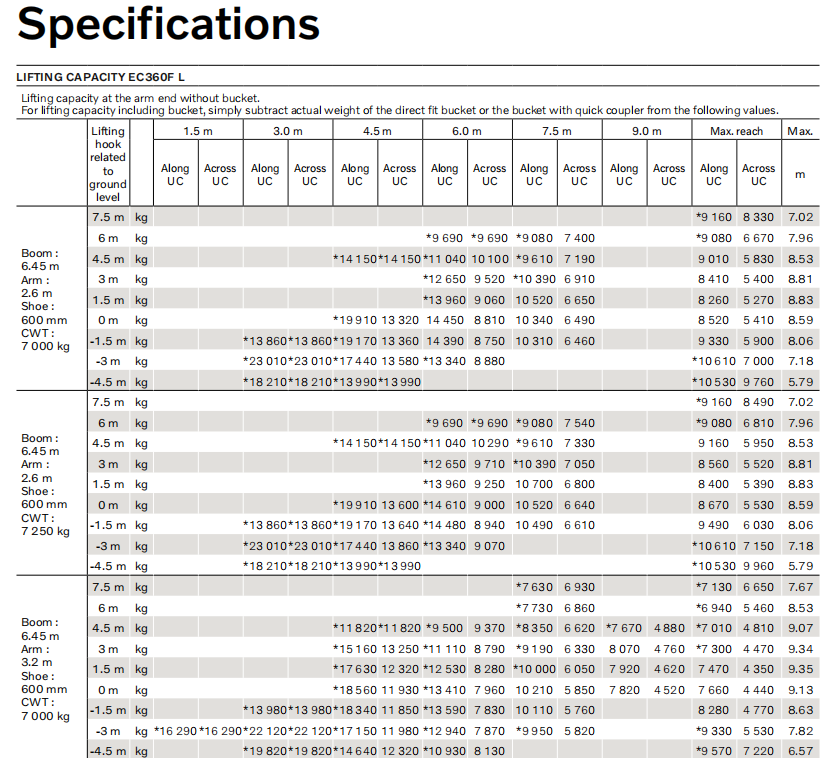

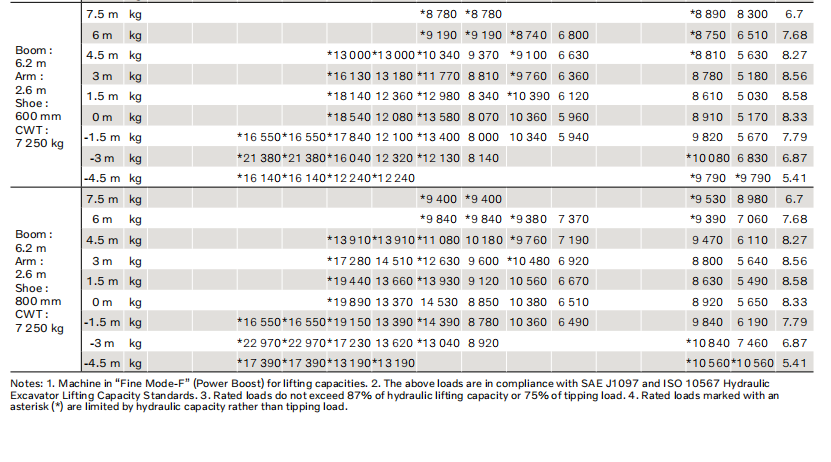

Volvo's current EC360 specification lists a lifting capacity along the undercarriage of 10,430 kg at a stated 4.5 m reach and 6 m height for the published configuration. The same page lists a maximum digging reach of 11,225 mm and maximum digging depth of 7,595 mm for the current EC360 configuration.

Source: Volvo Construction Equipment official EC360 product specifications. These figures are for a stated current configuration and should not be treated as universal EC360F specifications.

There is another important point here: current EC360 machines and older EC360F machines should not be treated as identical. Volvo has published different generations and market versions, including earlier Stage IIIA/Tier 3 configurations and newer Stage V/Tier 4f configurations. Engine output, emissions system, working range, hydraulic performance and available options can therefore change.

5. Where I Would Use a Volvo EC360F

I would normally recommend considering the EC360F class when the job involves regular heavy excavation rather than occasional light digging.

Building and Foundation Construction

Large building projects often involve foundation excavation, basement work, soil removal and site preparation. The EC360F's long working range allows the operator to dig deep areas and move material without constantly repositioning the machine.

Road Construction

Road projects require a lot of earthmoving. Excavators may prepare roadbeds, dig drainage channels, remove unsuitable soil and load trucks. The EC360F can work as part of a larger fleet where production volume matters.

Quarrying

Quarry work can be hard on machinery. Rock, dust, vibration and long working hours are common. In this environment, I pay close attention to the bucket, undercarriage, hydraulic system and cooling system when inspecting a machine.

Mining Support

The EC360F is not the largest mining excavator, but it can play a useful support role in mining-related earthmoving, site preparation, material loading and infrastructure work. The exact application depends heavily on the material and production target.

Utility and Large Trenching Projects

Deep drainage, pipeline and utility projects can benefit from a machine with long reach and digging depth. The correct arm and bucket configuration becomes especially important when the trench profile is deep or access is limited.

Large-Scale Earthmoving

For land preparation, soil removal, embankment work and bulk excavation, production per cycle matters. In these applications, I usually look at bucket capacity, cycle time, truck matching, ground conditions and operator skill together instead of focusing on one specification.

6. How I Handle EC360F Inspection, Supply and Delivery

At Ganglong, I do not see an international machine order as simply “choose a model and ship it.” There are several practical steps between the first inquiry and the machine arriving at the customer's destination.

First, I confirm the exact EC360F model and configuration. This includes the production year where relevant, operating condition, boom and arm, bucket, undercarriage, engine specification, emissions requirement, attachments and destination country.

For a used machine, I pay particular attention to the engine, hydraulic system, swing system, travel motors, track condition, pins and bushings, cylinders, electrical system and cab. Appearance matters, but it is not the first thing I care about. A clean machine with poor hydraulics is not a good deal.

For a complete machine order, I can arrange checks on the machine appearance, engine, hydraulic and electrical systems, working functions, attachments and required documents according to the confirmed order.

Documentation is also important. Depending on the transaction, customers may need commercial documents, machine information, inspection records, packing details, shipping documents and other required paperwork. I confirm the exact document list before shipment instead of assuming that every country uses the same requirements.

Payment

For international orders, payment is commonly arranged by T/T. A typical structure may include a deposit before order processing and the remaining balance before shipment. However, the actual payment terms are agreed between both parties according to the order.

Transportation

Because the EC360F is a large crawler excavator, international transportation normally requires careful planning. Complete machines are generally shipped by sea. The final shipping method depends on the destination, machine dimensions, port conditions and customer requirements.

Packing

The machine is securely fixed and protected for transportation. Loose components, accessories and suitable spare parts can be packed separately in cartons or wooden cases. Before loading, I check that the machine, accessories and documents match the confirmed order.

This part may sound boring, but in international machinery trading, small mistakes in documents, loose parts or loading arrangements can cause unnecessary delays. Good preparation before shipment saves trouble later.

7. Why I Work With Ganglong for Volvo Construction Equipment

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we operate across construction machinery, mining machinery and agricultural machinery.

One point I want to make very clearly is that Ganglong is not Volvo's manufacturer. Volvo is the original brand and manufacturer of Volvo construction equipment. Our role is to provide sourcing, sales, trade and related services for customers who are looking for construction machinery, including equipment from international brands.

This distinction is important because an overseas buyer should know exactly who is supplying the machine and what service role that supplier provides.

Our own product range includes HKLOONG excavators, loaders, Backhoe loaders and swamp excavators. At the same time, we provide complete machine sales and leasing services for a range of domestic and international brands, including Hitachi, SANY, Lonking, Hyundai, XCMG, SHANMON and LOVOL.

For Volvo equipment inquiries, my job is to help the customer identify the correct machine, confirm availability and configuration, coordinate inspection, prepare the order and arrange international delivery.

Our international trade team has experience serving customers in Asia, Africa, America and other markets. That means we understand that a machine order is not finished when the excavator leaves the yard. Shipping, documentation, destination requirements and after-sales communication all matter.

I also prefer to give customers realistic information about model differences. If someone asks for a “Wheel Excavator EC360F,” I would rather explain that the EC360F is a crawler excavator than simply repeat the wrong product type throughout the quotation. Clear information makes international equipment purchasing much safer.

8. Volvo EC360F FAQ

Is the Volvo EC360F a wheel excavator?

No. The Volvo EC360F is a crawler excavator. The “Wheel Excavator EC360F” phrase can still appear as a search keyword, but technically the EC360F uses a crawler undercarriage rather than wheels.

What is the operating weight of the EC360F?

The answer depends on the exact version and configuration. Volvo's published current EC360 specifications show an operating weight range of 34,500 to 41,530 kg. Older EC360F configurations have different specifications, so I confirm the exact machine before providing a final quotation.

What is the EC360F digging depth?

Volvo's EC360F product guide lists maximum digging depth of 7,485 mm for the 6.45 m boom and 3.2 m arm configuration, and 6,740 mm for the 6.2 m boom and 2.6 m arm configuration. The actual figure depends on the machine setup.

What is the maximum digging reach?

The published EC360F figures include 11,115 mm maximum digging reach for the 6.45 m boom and 3.2 m arm configuration. Another configuration is listed at 10,440 mm. Current EC360 specifications can differ, so buyers should check the exact machine data.

What bucket size can the EC360 use?

Volvo's current EC360 product page lists bucket capacities from 0.87 to 2.33 m³. EC360F versions and regional configurations can differ. Bucket selection should be matched to the boom, arm, material density and job requirements.

Can the EC360F be used for quarry work?

Yes, the EC360 class is suitable for demanding excavation applications including quarrying, earthmoving and construction. For abrasive rock conditions, I would pay particular attention to bucket selection, undercarriage condition and machine inspection before purchase.

Can Ganglong arrange international shipping?

Yes. Hefei Ganglong International Trade Co., Ltd. handles international machinery trading and can coordinate complete-machine transportation. Complete excavators are generally shipped by sea, while suitable spare parts and accessories may be shipped by air or express.

Can you check the machine before shipment?

Yes. According to the confirmed order, we can arrange checks covering appearance, engine, hydraulic and electrical systems, working functions, attachments and required documents. For used machinery, I also recommend checking the undercarriage, cylinders, pins, bushings and other high-wear components.

How should I choose the right EC360F configuration?

I start with the job rather than the machine name. Tell me what material you will dig, required digging depth, working radius, bucket capacity, expected daily workload, transport limitations and destination country. From there, I can help identify the configuration that fits the actual application.

Final Thoughts: Choosing the Right EC360F Means Checking the Details

When I talk about the Volvo EC360F, I do not like to reduce the machine to one number such as horsepower, bucket capacity or price. A heavy excavator works as a complete system. The engine, hydraulic system, boom, arm, bucket, undercarriage, operator environment and transport arrangement all affect the result.

I also think buyers should be careful with model names. EC360F machines have been offered in different configurations and markets, while newer EC360 models have their own specifications. That is why I always confirm the exact model, configuration and machine condition before discussing a final order.

If your project involves large-scale excavation, road construction, quarrying, foundation work, infrastructure or heavy earthmoving, the EC360F class is worth examining. Its long working range, strong digging capability and crawler stability make it suitable for jobs where a smaller excavator would spend too much time repositioning or handling the same volume of material.

At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., I focus on making the purchasing process practical and clear. From model confirmation and machine inspection to documentation, payment coordination, packing and sea transportation, I work through the details one by one.

For customers searching online for a Wheel Excavator EC360F, Volvo EC360F Excavator, EC360F crawler excavator or heavy-duty Volvo excavator, the most important step is not simply finding a machine with the right name. It is confirming that the exact machine configuration matches the job you need to finish.

That is the standard I follow when helping customers source construction equipment: clear specifications, practical inspection, honest communication and a delivery plan that makes sense from the factory or yard all the way to the final jobsite.
