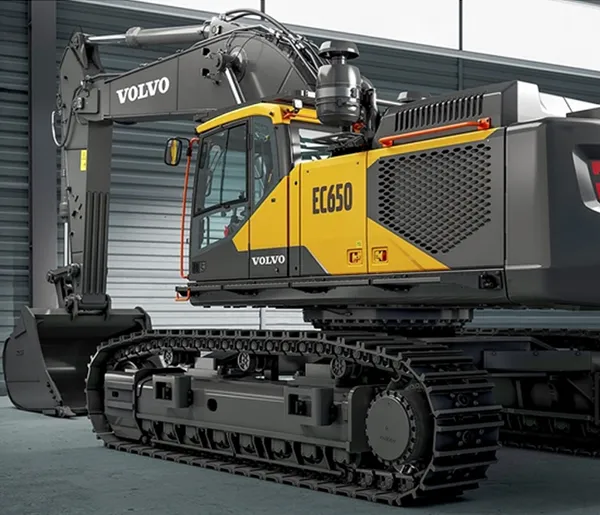

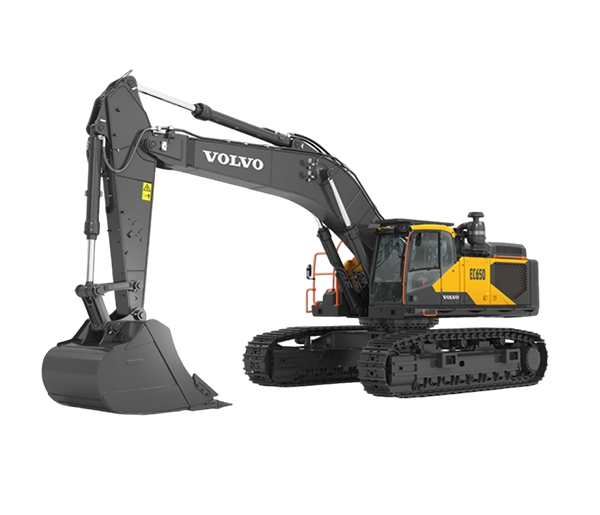

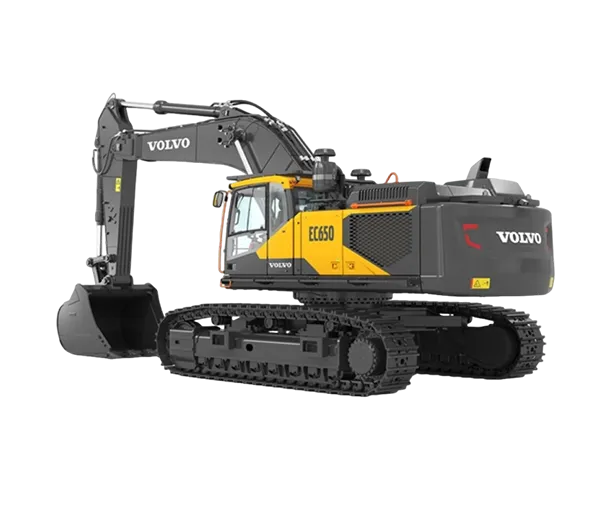

Wheel Excavator EC650: Volvo EC650 excavator for mining and Heavy Construction

When I talk about a wheel excavator EC650, there is one thing I like to clear up first. The Volvo EC650 is officially a large crawler excavator, not a wheeled Excavator. The “Wheel Excavator EC650” phrase can still be used as a search keyword, but the actual machine is built with a crawler undercarriage. For a product page, I believe it is better to keep the keyword while making the technical information clear.

The Volvo EC650 sits in the 65-tonne class and is designed for work that is simply too heavy for a normal medium-size excavator. Volvo currently lists the EC650 with an operating weight of 63,600 kg, gross power of 340 kW and a 4.6 m³ bucket capacity. The published maximum digging reach is 12,062 mm, while maximum digging depth reaches 7,429 mm. These figures tell me straight away that this is a machine for serious excavation, not small site work.

There is also an older EC650 model family in Volvo's product archive. For example, Volvo's archived information for the 1996 EC650 lists a 371 hp engine, 3.3–4.3 m³ buckets and an operating weight of 64.9–66.3 tonnes. An older EC650 B Prime brochure also lists 284 kW, 386 hp and operating weight of 64.9–66.8 tonnes. So when a customer tells me they want a “Volvo EC650,” I always ask which generation they mean.

That small question can save a lot of trouble later. Engine power, bucket size, hydraulic system, working range, emissions standard, undercarriage and available attachments can all vary between generations and markets.

1. What Is the Volvo EC650 Built to Do?

I see the EC650 as a production excavator. It is designed to move a lot of material in a working day, especially when it is paired with properly matched haul trucks and attachments.

Volvo describes the current EC650 as a 65-tonne-class crawler excavator intended for heavy-duty digging, mass excavation and large site preparation. That description makes sense when you look at the machine's size. A 63,600 kg operating weight and 340 kW gross power give the EC650 the strength needed for demanding earthmoving work.

One of the numbers I pay close attention to is the bucket capacity. Volvo lists a 4.6 m³ bucket for the current EC650. That is a substantial bucket, and it changes the way the whole job should be planned. The excavator needs enough truck capacity around it so that its digging ability does not sit idle.

Volvo's published material also says the EC650 can work with a 40–45 tonne tipper truck, with the truck body filled in six passes under the stated configuration. I would treat that as a reference rather than a universal production promise because actual cycle times depend on material, operator, digging depth, truck position, haul distance and site layout.

That is how I normally look at heavy machinery. The machine itself is only one part of the production chain. If the excavator is fast but the trucks are always waiting somewhere else, the total job is still not efficient.

Source: Volvo construction equipment official EC650 technical specifications. Actual production machines can vary according to configuration, market and equipment.

From my point of view, the most useful part of these numbers is not the numbers themselves. They show the kind of job this excavator was made for. If a customer only needs to dig small drainage trenches or prepare a garden, a machine this large would be excessive. But for mass excavation, quarrying, mining support and major site preparation, the picture is very different.

2. How the EC650 Hydraulic Excavator Works

The working principle of the EC650 is familiar if you have used a hydraulic excavator before. The difference is the scale.

The engine produces power. Hydraulic pumps send oil through the hydraulic system. That oil operates the boom, arm and bucket cylinders. The upper structure can swing around the undercarriage, while the crawler tracks move the entire machine around the site.

When the operator pushes the bucket into the ground, several things happen almost at the same time. The boom positions the working equipment, the arm moves the bucket into the material, and the bucket curls to fill itself. Once the bucket is loaded, the upper structure swings toward the truck or stockpile.

It sounds simple, but large excavation is all about making those small movements work smoothly together.

The current EC650 uses an electro-hydraulic system with Independent Metering Valve Technology, or IMVT. I would not expect every customer to remember that technical name. The easier way to understand it is that the hydraulic system can control oil flow more intelligently and adjust it to the work demand.

Volvo says this system provides more variable flow than conventional mechanically coupled hydraulic systems. The goal is better control and improved efficiency rather than simply pushing more oil through the system all the time.

The EC650 also uses functions such as Boom/Swing and Boom/Travel priority, adjustable boom-down speed and boom/arm bounce reduction. For an operator, these features matter because they affect how the machine feels during repeated work cycles.

Imagine loading a truck. The bucket comes out of the excavation, the upper structure swings, the boom and arm move into position, and the bucket opens. If those movements are smooth and well coordinated, the operator can repeat the cycle without fighting the machine.

That is one of the reasons I pay attention to hydraulic control when comparing Excavators. Engine power is easy to put on a specification sheet. Good control is something the operator notices all day.

3. Main Features I Look at on the Volvo EC650

Large Bucket Capacity

The current EC650 has a published bucket capacity of 4.6 m³. This gives the machine a strong position for bulk material handling. The bucket must still be matched to the material and working equipment. I would not use the largest available bucket simply because it looks impressive.

High Engine Power

Volvo lists 340 kW gross power at 1,600 rpm for the current EC650. That gives the machine the power reserve needed for large-scale digging and loading work.

Strong Digging Performance

The current EC650 has a published normal breakout force of 265 kN and boost breakout force of 284 kN. Tear-out force is listed at 241 kN normal and 259 kN boost. These figures explain why the machine is suitable for heavy excavation rather than light earthmoving.

Stable Crawler Platform

A 63-tonne machine needs a strong base. The crawler undercarriage gives the excavator a stable platform for digging and lifting. Volvo also describes the EC650 undercarriage as reinforced to a level more commonly associated with a 70-tonne machine.

Long Working Reach

The published maximum digging reach is 12,062 mm. That gives the operator a wide working envelope and can reduce unnecessary repositioning when working along a large excavation area.

Operator Comfort

Heavy excavation means long hours inside the cab. Volvo equips the current EC650 with a climate-control system, an adjustable ergonomic seat, rear-view camera and LED lighting. An optional Volvo Smart View system can provide a 360-degree bird's-eye view of the machine and surrounding area.

I consider these features more important than they might first appear. A comfortable operator can spend a full shift controlling the machine without unnecessary distractions. Clear visibility is also valuable when working around trucks, stockpiles and other equipment.

Source: Volvo Construction Equipment current EC650 specifications and official archived EC650 product information. Different generations and configurations should not be treated as identical machines.

This comparison is especially useful for used-equipment buyers. When I receive an inquiry simply saying “EC650,” I do not assume the customer is talking about the current model. Volvo's product archive contains older EC650 machines, including versions from the 1990s.

4. Technical Advantages for Heavy-Duty Excavation

For me, the biggest advantage of the current EC650 is the balance between machine size and production capacity.

Volvo positions it as a 65-tonne-class machine with performance and durability commonly associated with larger equipment. That idea is reflected in several areas of the design.

First is the hydraulic system. The electro-hydraulic system with IMVT is designed to control hydraulic flow according to demand. Volvo says this helps the EC650 achieve up to 22% more fuel efficiency in the referenced comparison. I would treat that percentage as Volvo's stated product comparison rather than a guarantee for every jobsite, because fuel consumption depends heavily on soil, cycle time, operator behavior, attachments and site conditions.

Second is the engine-pump optimization. Volvo states that the system can lower engine rpm while maximizing available power. In practical terms, the machine is trying to avoid wasting energy when full hydraulic demand is not needed.

Third is the digging system. The EC650 uses increased cylinder size, automatic power boost and a two-pump flow bucket circuit. Together, these features are intended to give the bucket more hydraulic power and speed.

Fourth is lifting performance. Volvo lists a lifting capacity along the undercarriage of 21,670 kg at a reach/height reference point of 6 m / 1.5 m. I always remind customers that lifting capacity is configuration-dependent. Boom, arm, counterweight, attachment, ground conditions and working radius all matter.

Fifth is durability. Volvo says the EC650 has a reinforced undercarriage, long lower frame, strong upper frame and reinforced digging equipment with large pin sizes. These are not flashy features, but they matter when the machine is expected to work day after day in demanding conditions.

5. Where I Would Use the Volvo EC650

Mining

Mining is one of the clearest applications for the EC650. Large mining operations need machines that can handle substantial quantities of material and work alongside large haulage equipment.

The 4.6 m³ bucket, strong digging force and 63.6-tonne operating weight give the machine the scale needed for serious excavation and loading work. The actual suitability still depends on the mine layout, material, haul trucks and production target.

Quarrying

Quarry operations often involve dense material, repeated excavation and truck loading. The EC650's digging force and large bucket make it suitable for these conditions when the bucket and working equipment are properly selected.

Mass Excavation

Large construction sites may need thousands of cubic metres of soil moved before the next stage of the project can begin. This is where a large crawler excavator earns its keep. Instead of making many small cycles with a smaller bucket, the EC650 can move a larger volume per cycle.

Large Site Preparation

Industrial parks, factories, power projects and major infrastructure sites can require large-scale excavation and land preparation. The EC650 can be used for bulk digging, loading and general earthmoving as part of a larger fleet.

Road and Infrastructure Construction

Major road and infrastructure projects can also use the machine for foundation excavation, large drainage structures, embankment work and material loading. The key question is whether the site has enough space and access to justify a 63-tonne-class excavator.

Heavy Material Handling

With suitable equipment, the EC650 can support heavy material handling. But I would never choose a lifting configuration only by looking at the machine's operating weight. The official lifting chart for the exact machine configuration should always be checked before lifting heavy loads.

Source: Application categories are based on Volvo Construction Equipment's published EC650 positioning for heavy-duty digging, mass excavation and large site preparation, combined with typical excavator operating requirements.

6. How I Handle EC650 Inspection, Supply and Delivery

When the machine is this large, I think the supply process needs to be just as serious as the machine itself.

Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we work across equipment R&D, manufacturing, testing, customization, sales and international trade. Our product scope covers construction machinery, mining machinery, agricultural machinery and matching attachments.

We have our own HKLOONG range of excavators, loaders, Backhoe loaders and swamp excavators. We also provide complete machine sales and leasing services for a range of domestic and international brands according to customer requirements.

For a Volvo EC650, our role is as a supplier and international trade partner. Volvo is the manufacturer of Volvo-branded EC650 equipment. I prefer to keep this distinction clear because the customer should always know exactly where the machine comes from and who is responsible for the supply.

Before confirming an EC650 order, I normally want to know the exact model generation first. If the customer is looking at a current machine, I confirm the current EC650 specification. If it is a used machine, I need the production year and exact version because older EC650 models have very different specifications.

Then I look at the machine condition.

The engine is one of the first areas I check. I want to know whether it starts and runs properly and whether there are obvious signs of abnormal smoke, leakage or overheating.

The hydraulic system is equally important. Pumps, cylinders, hoses and valves should be checked for leaks and abnormal operation. The boom, arm and bucket need to work smoothly under normal operating conditions.

On a machine weighing more than 60 tonnes, I pay particular attention to the undercarriage. Track chains, rollers, idlers, sprockets, track shoes and frame components can experience significant wear. This is one area where a proper inspection can save a buyer from unpleasant surprises later.

The cab and electrical system also deserve attention. Displays, control functions, lighting, cameras, switches and safety systems should be checked according to the agreed inspection scope.

Attachments are another part of the order. A 4.6 m³ bucket is not necessarily the right tool for every material. If the customer needs a different bucket, breaker or specialized attachment, that requirement should be confirmed before shipment.

Once the machine and configuration are confirmed, we can arrange the remaining international trade process.

Production or delivery time depends on the selected model, configuration, order quantity and actual availability. For available used machinery, the schedule depends on the specific unit and preparation requirements.

Payment is commonly arranged by T/T, with a deposit before order processing and the balance before shipment. The exact terms are agreed between both parties before the order is executed.

For international transportation, complete EC650 machines are generally shipped by sea. Because of the machine's size and weight, shipping requires careful planning. Port equipment, loading arrangements, container or breakbulk options, destination regulations and inland transportation all need to be considered.

Loose accessories and suitable spare parts can be packed separately in cartons or wooden cases. The excavator itself is securely fixed and protected for transportation. The final inspection, packing, loading and shipping method are confirmed according to the destination and customer requirements.

7. Why I Focus on the Complete Machine, Not Just the Price

When a customer searches for “Volvo EC650 price,” it is natural to compare numbers. I understand that. But for a Large Excavator, the purchase price is only one part of the cost.

I prefer to compare the whole machine.

First, I check the generation. A current EC650 and an older archived EC650 may have the same basic model number but very different engines, hydraulic systems and specifications.

Second, I check the working hours if the machine is used. Hours alone do not tell the whole story, but they provide useful background when combined with maintenance records and physical inspection.

Third, I check the undercarriage. On a crawler excavator this large, track-component condition can have a meaningful effect on future maintenance costs.

Fourth, I check the bucket and attachments. If the machine is going into a quarry, the bucket needs to match the material. If the job is mass excavation, the working equipment should be selected around production requirements.

Fifth, I check transportation. A 63,600 kg excavator is not a machine that can be treated like ordinary cargo. Transport width, overall dimensions, loading method and destination access all matter.

Finally, I ask what the machine will work with. If the EC650 is loading trucks, the truck size and number should be matched to the excavator's production capacity. If the excavator is working alone with no suitable haulage system, some of its potential productivity may be lost.

This is why I do not like selling heavy equipment as if it were just another product on a shelf. The machine needs to fit the job.

8. Volvo EC650 FAQ

Is the Volvo EC650 a wheel excavator?

No. The Volvo EC650 is officially a large crawler excavator. The phrase “Wheel Excavator EC650” can be used as an SEO search term, but the actual Volvo EC650 uses a crawler undercarriage.

What is the operating weight of the Volvo EC650?

The current Volvo EC650 has a published operating weight of 63,600 kg. Exact weight can vary with equipment and configuration. Older EC650 generations have different published weights.

What is the engine power of the EC650?

Volvo currently lists 340 kW gross power at 1,600 rpm for the EC650. Older EC650 models have different engine specifications, so the production year and generation should be confirmed before comparing machines.

What is the bucket capacity of the Volvo EC650?

The current EC650 has a published bucket capacity of 4.6 m³. Older archived EC650 models used different bucket ranges, including 3.3–4.3 m³ on the 1996 specification.

How deep can the EC650 dig?

The current Volvo EC650 has a published maximum digging depth of 7,429 mm. Actual working depth depends on the selected boom, arm, bucket and machine configuration.

What is the maximum reach of the EC650?

Volvo lists a maximum digging reach of 12,062 mm for the current EC650. Configuration can affect the working range.

What industries use the Volvo EC650?

The EC650 is designed for heavy-duty digging, mass excavation and large site preparation. Typical applications include mining, quarrying, major infrastructure construction, industrial site development and large earthmoving projects.

Is the EC650 suitable for mining?

Yes. Its large bucket, strong digging performance, high operating weight and crawler stability make it suitable for heavy mining-related excavation and loading work when properly configured.

Can the EC650 load large dump trucks?

Yes. Volvo states that the EC650 can be paired with a 40–45 tonne tipper truck and can fill the truck body in six passes under the stated conditions. Actual production depends on material, truck positioning, operator skill, cycle time and site layout.

What should I inspect when buying a used Volvo EC650?

I would check the exact model and year, engine, hydraulic system, boom, arm, bucket, undercarriage, track components, electrical system, cab, operating hours where available, maintenance history and documents. For a large Used Excavator, the physical condition should be checked rather than relying only on photographs.

How is the Volvo EC650 shipped internationally?

Complete machines are generally transported by sea for international orders. Because of the machine's weight and dimensions, the shipping method and loading plan need to be confirmed according to the destination. Suitable spare parts and accessories can be shipped by air or express when practical.

Does Ganglong manufacture Volvo EC650?

No. Volvo is the manufacturer of Volvo-branded EC650 excavators. Ganglong Heavy Industry Technology (Hefei) Co., Ltd. and Hefei Ganglong International Trade Co., Ltd. provide machinery supply and international trade services. We can arrange sourcing, inspection, documentation and delivery according to the agreed order.

Final Thoughts on the Volvo EC650

When I look at the Volvo EC650 as a working machine, I see a clear purpose. It is built for jobs where a normal excavator would simply take too many cycles to move the required amount of material.

The current EC650 combines a 63,600 kg operating weight, 340 kW gross power and 4.6 m³ bucket capacity. Its 12.062 m maximum digging reach, 7.429 m maximum digging depth and strong breakout force put it firmly into the heavy excavation category.

The hydraulic system is another important part of the machine. Volvo's electro-hydraulic system with Independent Metering Valve Technology is designed to improve hydraulic control and efficiency. Volvo also highlights engine-pump optimization, larger cylinders, automatic power boost and a two-pump bucket circuit as part of the EC650's productivity package.

For mining, quarrying, mass excavation, large site preparation and major infrastructure projects, the EC650 has the size and working capacity to become an important part of a heavy equipment fleet.

At the same time, I would not recommend choosing an EC650 simply because the machine looks powerful. The real question is whether the excavator matches the job. The truck fleet, material type, bucket, working area, ground conditions, transport plan and maintenance support all matter.

For customers searching specifically for a Wheel Excavator EC650, the first thing I would clarify is that the Volvo EC650 is a crawler excavator. After that, I would focus on the actual project and the exact machine generation required.

At Ganglong, our approach is straightforward. We confirm the actual machine, check the important technical and physical details, clarify the configuration, arrange the agreed inspection, prepare the required documents and organize international delivery according to the customer's requirements.

A 65-tonne-class excavator is a serious investment. Good machinery selection is therefore not about finding a model name and stopping there. It is about matching the right machine to the right job, checking the actual condition, understanding the configuration and planning the complete delivery process.

That is how I would approach a Volvo EC650 purchase for a mining, quarrying, mass excavation or major construction project: start with the work, confirm the machine, check the details, and then build the equipment and logistics plan around the real jobsite.
