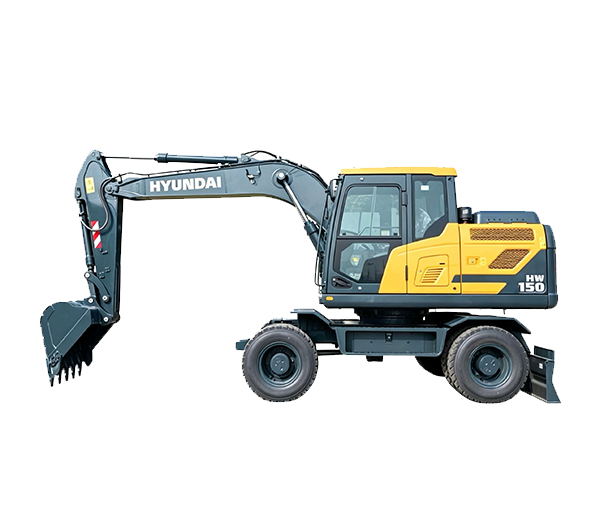

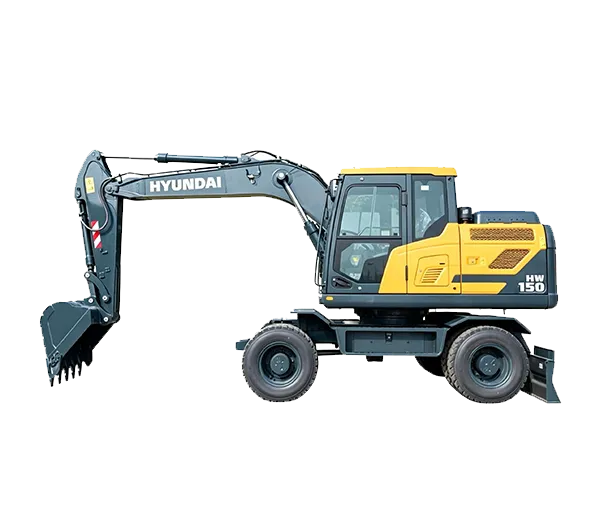

HW150 Wheeled Excavator for Construction, Roadwork and Utility Projects
When I talk about wheeled Excavators with customers, I usually start with one simple question: does the machine need to move around often?
That question matters because a wheeled Excavator is not simply a crawler excavator with tires. Its whole working style is different. A crawler machine is normally chosen for stable excavation on a jobsite, while a Wheeled Excavator makes more sense when the machine needs to travel between working areas, work beside roads, enter developed areas, and still provide serious digging performance.
The Hyundai HW150 Wheeled excavator sits in an interesting middle-to-large working class. According to Hyundai's China product information, the HW150 has an operating weight of 13,740 kg, rated engine power of 125 kW at 2,200 rpm, and a standard bucket capacity of 0.58 m³. Hyundai also lists a maximum digging depth of 4,820 mm and a maximum digging height of 8,500 mm for this model.
From my point of view, those numbers tell a pretty clear story. The HW150 is not a small urban excavator for light landscaping only. It has enough size and power for road construction, drainage, utility work, earthmoving, municipal projects, material handling and many other jobs where a contractor needs both digging ability and road mobility.
In this product page, I will look at the HW150 from a practical buyer's perspective. I will explain how the machine works, what its main specifications mean on a real jobsite, where I would use it, how I compare it with other machines, and how we at Ganglong handle equipment sourcing, inspection, payment and international delivery.
The HW150 is a Hyundai wheeled excavator designed for excavation and material-handling work where mobility is an important part of the job.
The basic idea is simple. Instead of crawler tracks, the machine uses wheels. This allows it to travel much more conveniently on suitable roads and hard surfaces. For contractors who regularly move between nearby construction areas, this can save time and reduce the need to transport the excavator every time the working location changes.
Hyundai's China product listing identifies the HW150 with a 125 kW engine at 2,200 rpm, 13,740 kg operating weight, and 0.58 m³ standard bucket capacity.
| HW150 Specification | Published Value | Practical Meaning |
|---|---|---|
| Machine type | Wheeled excavator | Designed for excavation with flexible road mobility |
| Operating weight | 13,740 kg | Provides a substantial working platform for medium-duty excavation |
| Rated engine power | 125 kW / 2,200 rpm | Supports digging, swinging and hydraulic operations |
| Standard bucket | 0.58 m³ | Suitable for general excavation and material handling |
| Overall length | 7,850 mm | Important for transport and site access |
| Overall height | 3,160 mm | Important when entering or working around structures |
Source: Hyundai construction equipment China official HW150 product information. Final specifications should be confirmed according to the actual machine, configuration and market.
The machine is listed with a Cummins F4.5 engine on Hyundai's China product page.
I think the 0.58 m³ bucket is also important. It gives the HW150 enough bucket volume for meaningful material movement without pushing the machine into the much larger class of equipment used for heavy mining or massive quarry excavation.
That makes the HW150 useful for contractors who need a machine that can do real excavation work but still retain the mobility of a wheeled machine.
Imagine a contractor working on a long road project. One section needs drainage excavation in the morning. A few hours later, the machine needs to move to another section several hundred meters away. Later, it may need to work beside a different access road.
With a wheeled excavator, these movements can be much easier when the route and local regulations allow the machine to travel under its own power.
That is one of the main reasons I see customers looking for terms such as HW150 wheeled Excavator for Sale, Hyundai HW150 excavator, and HW150 Hydraulic Excavator.
The working principle of the HW150 is based on hydraulic power.
The engine provides the main source of power. Hydraulic pumps take that power and create hydraulic flow and pressure. The hydraulic system then controls the boom, arm, bucket, swing system and other working functions.
For a normal digging cycle, the operator first positions the machine next to the excavation area. The boom moves down, the arm moves forward, and the bucket enters the ground. Hydraulic cylinders then pull the bucket through the material.
Once the bucket is filled, the operator raises the boom and swings the upper structure toward the dump truck or stockpile. The bucket is emptied, the machine swings back, and the cycle starts again.
It sounds simple, but smooth control is important. A good excavation cycle is not just about moving the bucket as quickly as possible. It is about keeping the movements controlled and avoiding unnecessary swinging, waiting and idle time.
This becomes particularly important on road and utility projects. The operator may be working close to existing roads, buildings, pipes, cables or other equipment. In those situations, accurate control can matter just as much as raw digging force.
One of the main differences between the HW150 and a crawler excavator is how the machine moves.
| Working Factor | HW150 Wheeled Excavator | Crawler Excavator |
|---|---|---|
| Movement between nearby sites | Convenient on suitable roads and hard surfaces | Usually requires transport |
| Urban road work | Well suited to many applications | Often needs additional transport planning |
| Soft ground | Requires careful site assessment | Generally provides strong ground contact |
| Road mobility | One of its main advantages | Limited compared with wheels |
| Excavation stability | Supported by wheeled chassis and stabilizing equipment | Supported by crawler undercarriage |
Source: General operating principles of wheeled and crawler excavators, supported by Hyundai product information and product literature. This is a practical application comparison, not a manufacturer performance ranking.
The key point is that neither design is automatically suitable for every job. A wheeled excavator is attractive when mobility is important. A crawler excavator may make more sense when the machine spends most of its time on rough or soft ground.
Hyundai lists the HW150 with 125 kW rated power at 2,200 rpm.
For a 13.74-ton wheeled excavator, this gives the machine a useful power level for excavation, loading and hydraulic work.
When I discuss engine power with customers, I always remind them that horsepower is only one part of the picture. A machine with more engine power is not automatically better for every job.
What matters is how the engine works together with the hydraulic system, pump capacity, bucket, machine weight and working equipment.
The standard HW150 bucket capacity is listed at 0.58 m³.
This is a useful size for general excavation and material handling. It can handle soil, gravel, construction material and other suitable bulk materials.
Bucket selection should still follow the material. Loose soil and hard rock place very different demands on the bucket. If the machine will work regularly in abrasive conditions, I would discuss bucket type and wear parts before confirming the order.
Hyundai's China product page lists a maximum digging depth of 4,820 mm.
That gives the HW150 a useful working range for trenching, drainage, foundation work and other excavation tasks.
For example, a utility contractor may need to excavate for water pipes or drainage channels. A road contractor may need to dig beside the road before installing a drainage system.
Of course, maximum digging depth is a technical limit, not a promise that every job should be excavated to that depth. Actual working conditions, ground stability, attachment configuration and safety requirements all need to be considered.
Hyundai lists the HW150 maximum digging height at approximately 8,500 mm.
This is useful when the machine needs to reach higher working areas or load material into suitable trucks and containers.
The exact loading arrangement still depends on the truck height, bucket type and working position. I always recommend checking the actual working range against the customer's loading equipment instead of assuming that a specification number automatically fits every truck.
The wheeled chassis is probably the most important feature of the HW150 from a contractor's point of view.
A wheeled excavator can travel on suitable paved or firm surfaces more conveniently than a crawler machine. This can be particularly useful for municipal projects, road maintenance, utility work and construction projects spread across several locations.
However, wheels also mean that ground conditions matter. Very soft soil, deep mud, steep slopes or difficult off-road conditions need to be evaluated carefully before choosing a wheeled excavator.
Specifications are useful when they help us make a practical decision. They become less useful when they are simply a long list of numbers.
For the HW150, I normally start with operating weight, engine power, bucket capacity, dimensions and working range.
| HW150 Technical Item | Published Value | Why It Matters |
|---|---|---|
| Operating weight | 13,740 kg | Defines the machine's working class and affects transport |
| Engine | Cummins F4.5 | Main power source |
| Rated power | 125 kW / 2,200 rpm | Supports excavation and hydraulic functions |
| Bucket capacity | 0.58 m³ | Determines material volume per bucket cycle |
| Overall length | 7,850 mm | Important for transportation and site access |
| Overall height | 3,160 mm | Important for clearance checks |
| Maximum digging depth | 4,820 mm | Useful for trenching and excavation |
| Maximum digging height | 8,500 mm | Useful for loading and elevated excavation |
Source: Hyundai Construction Equipment China official HW150 product page. Values can vary with equipment and market configuration, so the final machine specification should be confirmed before purchase.
It is also useful to put the HW150 next to other wheeled excavators listed by Hyundai China. This is not about deciding which model is “better.” It is about understanding the size range.
| Model | Operating Weight | Rated Power | Standard Bucket |
|---|---|---|---|
| HW60ECO | 5,650 kg | 36.2 kW / 2,200 rpm | 0.18 m³ |
| HW80G | 6,800 kg | 55.8 kW / 2,200 rpm | 0.30 m³ |
| HW125V | 12,300 kg | 86.1 kW / 2,000 rpm | 0.50 m³ |
| HW150 | 13,740 kg | 125 kW / 2,200 rpm | 0.58 m³ |

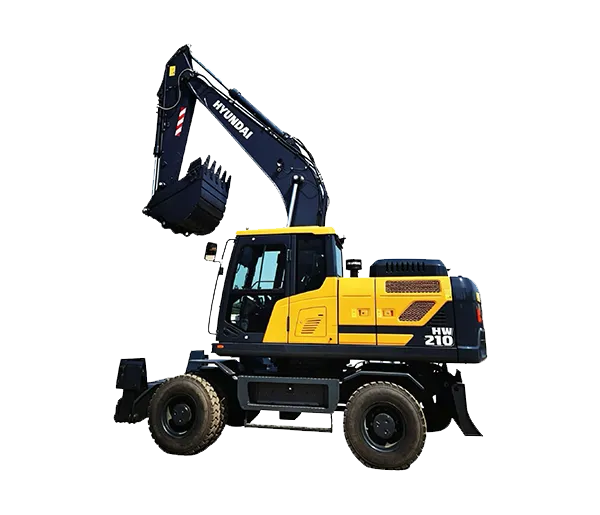

| HW210 | 21,920 kg | 150 kW / 2,000 rpm | 1.00 m³ |
Source: Hyundai Construction Equipment China official wheeled excavator product listing. The comparison shows published model specifications and is not a productivity ranking.
This table gives a better idea of where the HW150 fits. It is substantially larger than the compact HW60ECO and HW80G, while remaining smaller than the HW210.
That middle position can be useful. Some contractors need more excavation capacity than a compact machine can provide, but do not need a 20-ton wheeled excavator for their daily work.
Road projects are one of the applications where I would seriously consider the HW150.
Road work often requires a machine to move along the project instead of staying in one fixed location. Drainage excavation, roadside digging, material loading and foundation preparation can all happen at different points of the same project.
The wheeled design gives the HW150 an advantage when suitable road access is available.
For road maintenance contractors, the machine can also be useful for drainage cleaning, shoulder work, excavation and material handling.
Water, drainage, telecommunications and other utility projects often involve trenching.
The HW150 has enough working size for substantial trench excavation while remaining more mobile than a crawler excavator of a similar working class.
When working around underground services, however, I would always put safe digging procedures ahead of machine speed. The machine should be matched with the site's requirements, operator skill and utility information.
Municipal projects can be spread across roads, neighborhoods and public facilities. This makes mobility important.
The HW150 can be considered for drainage, road repair, earthmoving, site preparation and other municipal construction work where its dimensions and working range fit the project.
Building projects can require foundation excavation, trenching, material loading and site preparation.
The HW150 can handle these tasks when the site has enough room for the machine and the ground conditions are suitable for a wheeled excavator.
Its maximum digging depth of around 4.82 meters gives it a useful range for many medium-scale excavation tasks.
Before construction starts, land often needs to be cleared, shaped and prepared.
The HW150 can support excavation, soil removal, drainage preparation and general material handling during this stage.
Agricultural projects may require irrigation channels, drainage systems, access roads and site preparation.
A wheeled excavator can be useful when the working area has firm access roads and the machine needs to move around a large project.
For very muddy farmland or soft ground, however, I would check whether a crawler excavator is more suitable.
With the right attachment, excavators can do more than dig.
The HW150 can be configured for suitable material-handling applications depending on the hydraulic system, attachment and working requirements. Buckets, Hydraulic Breakers and other tools may be considered depending on the specific job.
I always recommend confirming the attachment before ordering because hydraulic flow, mounting dimensions and machine configuration need to match.
When a customer contacts us looking for an HW150 wheeled excavator for sale, the machine itself is only the beginning of the conversation.
Ganglong Heavy Industry Technology (Hefei) Co., Ltd. was founded in 2013. Together with Hefei Ganglong International Trade Co., Ltd., we work across construction machinery, mining machinery, agricultural machinery and matching attachments.
Our group offers its own HKLOONG excavators, loaders, Backhoe loaders and swamp excavators. At the same time, we provide complete machine sales and leasing services for brands including Hyundai, Hitachi, SANY, Lonking, XCMG, SHANMON and LOVOL.
For Hyundai equipment, our role is that of a supplier and international trade service provider. We do not describe ourselves as the manufacturer of Hyundai machines. Instead, we help customers source the required equipment and coordinate the commercial and logistics process.
Before I prepare a final quotation, I want to know exactly what the customer needs.
Is the machine new or used?
What is the destination country?
What type of work will the HW150 perform?
What bucket or attachment is required?
What emission standard is required locally?
Does the customer have a preferred delivery port?
Is pre-shipment inspection required?
Are additional spare parts needed?
These questions may seem basic, but they prevent many problems later.
Production time depends on the selected configuration, order quantity and machine availability.
For that reason, I do not like giving an exact delivery date before checking the actual supply situation. Once the model and configuration are confirmed, we can provide the applicable schedule.
Before shipment, we can arrange checks according to the confirmed order.
For a complete machine, this may include the exterior, engine, hydraulic system, electrical system, tires, working functions, bucket, attachments and documents.
If the customer purchases a used machine, the inspection can also focus on visible wear, hydraulic leakage, tire condition, working performance and general machine condition.
I prefer a practical inspection. The goal is to understand what is actually being shipped rather than simply producing a long checklist.
For international machinery orders, T/T is commonly used. A typical arrangement may include a deposit before order processing and the balance before shipment.
The exact payment terms are agreed between both parties according to the order.
Complete HW150 wheeled excavators are generally transported by sea for international orders.
The actual logistics plan depends on the destination, port, machine dimensions, shipping schedule and customer requirements.
Smaller spare parts and suitable accessories can be considered for air or express delivery when their size and weight make that practical.
Heavy equipment needs to be secured properly during transportation. The machine is positioned according to the shipping arrangement, and loose parts or accessories can be packed separately.
Cartons or wooden cases may be used for suitable loose components. Final packing and loading arrangements are confirmed according to the destination and carrier requirements.
I believe there is a difference between simply selling construction machinery and helping a customer complete an equipment purchase.
Our work at Ganglong covers equipment sourcing, configuration communication, inspection coordination, documentation, packing and international transportation.
Because our group also works with mining machinery, agricultural machinery and matching attachments, we can discuss equipment as part of a wider project.
For example, a road contractor may need an HW150 for drainage and excavation while also requiring a Wheel loader for aggregate handling. A utility contractor may need different buckets or hydraulic attachments. A municipal contractor may need several machines for different sections of a project.
In these cases, I prefer to understand the whole job before recommending the final machine combination.
Our international trade arm, Hefei Ganglong International Trade Co., Ltd., has experience serving customers across Asia, Africa, America and other regions. This experience is useful because international equipment transactions involve more than machine specifications.
There are documents to confirm, shipping arrangements to organize, inspection requirements to discuss, payment terms to agree on, and destination requirements to check.
My approach is straightforward: make the machine specification clear, make the commercial terms clear, and make the shipping arrangement clear.
Hyundai's China product information lists the HW150 operating weight at 13,740 kg.
The HW150 is listed with rated engine power of 125 kW at 2,200 rpm.
Hyundai's China product page identifies the engine as a Cummins F4.5.
The Hyundai China wheeled excavator listing gives the HW150 a standard bucket capacity of 0.58 m³.
The published maximum digging depth is approximately 4,820 mm. Actual working depth depends on the working equipment and operating conditions.
Hyundai's published HW150 information lists a maximum digging height of approximately 8,500 mm.
The Hyundai China product page lists an overall length of approximately 7,850 mm and overall height of approximately 3,160 mm. These figures should be checked against the actual machine configuration before transportation.
Yes. The wheeled design makes the HW150 suitable for many road construction and maintenance applications, including excavation, drainage, roadside work and material handling.
Yes. The machine can be used for trenching, drainage, pipeline construction and other utility work when its working range and bucket configuration match the project.
It can be suitable for urban construction and municipal projects where there is sufficient working space and suitable road access. Before operation, local regulations, site access and ground conditions should be checked.
Suitable attachments can be considered according to the machine's hydraulic system, mounting arrangement and application. Customers should confirm attachment requirements before ordering.
No. The HW150 is a wheeled excavator. Its wheeled chassis is designed to provide more convenient mobility on suitable roads and firm surfaces compared with a crawler excavator.
Yes. Ganglong can arrange international supply according to the confirmed machine, destination and commercial terms. Complete machines are generally shipped by sea.
Yes. We can arrange inspection of the machine appearance, engine, hydraulic and electrical systems, working functions, tires, bucket, attachments and documents according to the confirmed order.
No. Ganglong is a construction machinery supplier and international trade service provider. Hyundai is the original equipment brand. We help customers source and supply Hyundai equipment according to their requirements.
When I look at the Hyundai HW150 Wheeled Excavator, I see a machine built around a practical balance between digging capability and mobility.
Its published 13,740 kg operating weight, 125 kW engine power and 0.58 m³ standard bucket put it well above compact wheeled excavators such as the HW60ECO and HW80G, while remaining below the larger HW210 class in Hyundai's China wheeled excavator range.
That makes the HW150 relevant to contractors working on roads, drainage, utilities, municipal construction, land development, building foundations and general earthmoving.
The biggest advantage is not simply the engine power or bucket size. It is the combination of a useful working range with a wheeled chassis.
If the machine needs to move between suitable work areas regularly, that mobility can be valuable. If the machine will spend most of its time digging in soft ground, deep mud or difficult off-road terrain, I would compare the working conditions carefully with a crawler excavator before making the final decision.
At Ganglong Heavy Industry Technology (Hefei) Co., Ltd., we support customers with construction machinery sourcing, configuration confirmation, inspection, documents, packing and international transportation. Our international trade team has experience serving markets across Asia, Africa, America and other regions.
If you are searching for a Hyundai HW150 Wheeled Excavator, HW150 excavator for sale, HW150 hydraulic excavator, or a 13 ton wheeled excavator for construction and roadwork, I recommend starting with the actual project rather than choosing a machine only from a specification sheet.
Tell us what the machine needs to do, what material it will handle, where it will work, what attachments are required and where it needs to be delivered. From there, we can check the appropriate configuration, machine availability, inspection requirements, payment arrangement and shipping plan.
Technical note: Hyundai specifications may differ by market, model year, emission version, working equipment and optional configuration. The final machine specification, availability, condition, attachments, payment terms and delivery schedule should be confirmed against the actual machine and order documents before purchase.
