When I work with rock drilling equipment, I always look at three things first: how well the rig handles different rock conditions, how much work it can complete in a day, and how much it costs to keep running. These points are especially important for mining, quarrying, road construction, and drilling and blasting projects where hard rock can quickly slow down a job.

Our SWDE165B Integrated DTH Drill Rig is designed around this practical need. It is a new-generation surface drilling solution developed for high productivity, efficient drilling, and lower construction energy consumption. The machine covers a 138–180 mm drilling diameter and can reach a maximum drilling depth of 36 m. It is designed for multi-angle drilling and can work with both DTH drilling and cutting methods, allowing operators to deal with different rock conditions without changing to a completely different drilling system.

For me, the real value of an integrated DTH drill rig is not simply its drilling diameter or maximum depth. It is how the drilling system, power system, air system, feed mechanism, rotary head, crawler carrier, and operator controls work together as one machine. That system-level design can make a noticeable difference to drilling speed, hole quality, fuel use, maintenance time, and overall project cost.

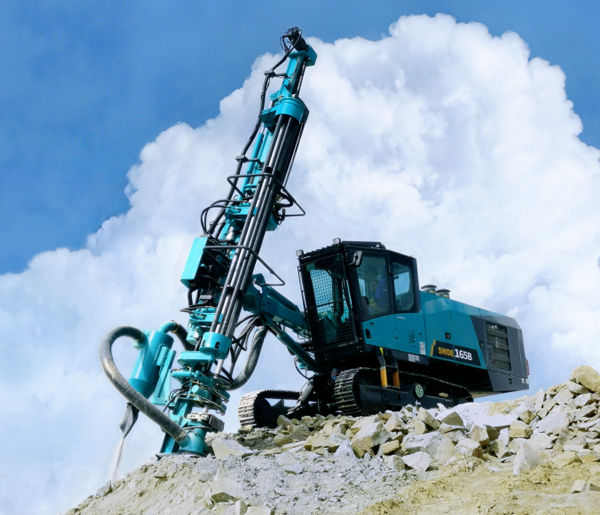

1. What Is the SWDE165B Integrated DTH Drill Rig?

The SWDE165B is an integrated down-the-hole drilling rig for surface rock drilling. In a DTH system, the hammer is positioned close to the drill bit at the bottom of the hole. Compressed air travels through the drill rods to operate the hammer, while the drill string provides rotation and feed force. The air also helps remove broken rock from the borehole.

This arrangement is particularly useful when drilling medium-hard to hard rock. Liebherr describes DTH drilling as a method in which the hammer is mounted at the lower end of the drill rod, with compressed air activating the hammer while flushing carries loosened cuttings upward. The method is mainly used for hard and very hard rock and for penetrating large boulders.

The SWDE165B is built around this principle but adds an integrated machine structure for surface construction work. Public SWDE165B reference information lists a 138–180 mm hole diameter, 5- and 6-inch DTH hammer options, 102/114 mm drill pipe diameters, 6 m × 6 drill pipe configuration, and up to 36 m maximum hole depth.

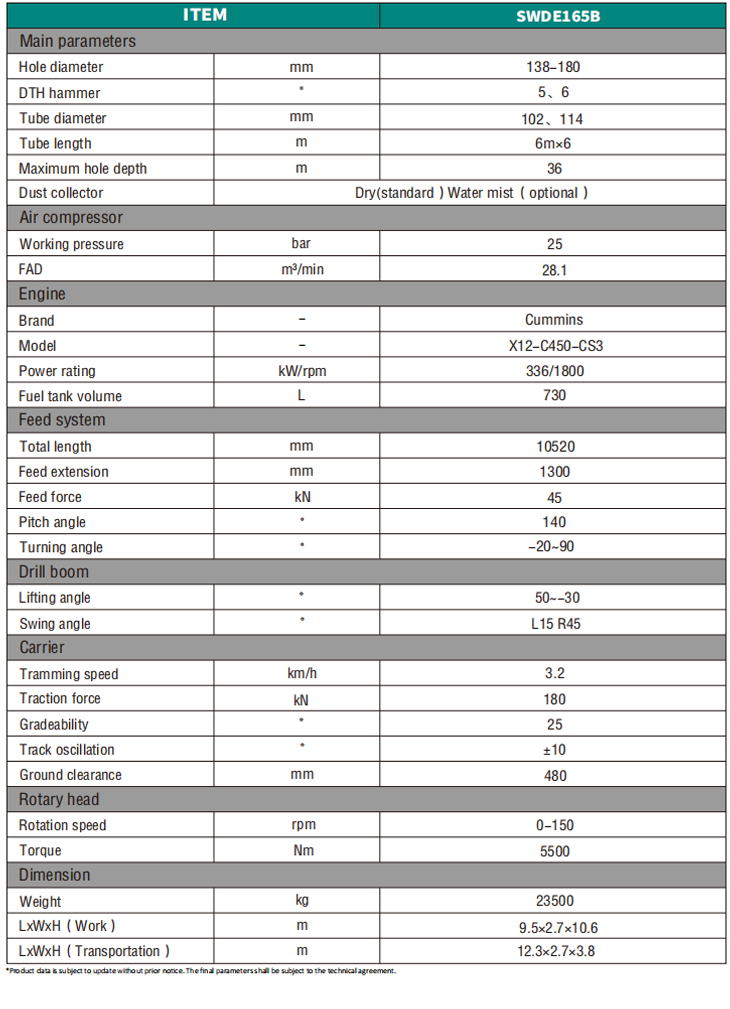

Source: public SWDE165B product reference data from Sunward and related published technical listings. These figures are reference data for understanding the model and should be confirmed against the final HKLOONG configuration before purchase.

2. How My Integrated DTH Drilling System Works

I like to explain DTH drilling in simple terms. Think of the drill bit as doing two jobs at the same time. It rotates and repeatedly receives impact from the hammer. The impact breaks the rock, while rotation moves the bit to a fresh part of the hole bottom.

Compressed air is the key working medium. It travels down through the hollow drill rods and enters the DTH hammer. Inside the hammer, the air drives a piston that strikes the bit. The exhaust air then helps move crushed rock and dust out of the borehole. This means one air system supports both the hammer action and cuttings removal.

USGS drilling guidance also describes DTH air-hammer drilling as a method in which a pneumatic hammer rapidly strikes the rock while the bit rotates, pulverizing the formation and using air to return cuttings. The method is particularly useful in hard rock and some difficult gravel or cobble formations.

In practical operation, I see the drilling process as four linked steps:

• Positioning: I first place the crawler-mounted rig at the required drilling point and set the drill boom and feed system to the planned angle.

• Rotation and feed: The rotary head turns the drill string while the feed system applies controlled forward force.

• Percussion: The DTH hammer breaks the rock directly near the bottom of the borehole.

• Flushing: Compressed air carries drilling cuttings back toward the surface, helping keep the hole bottom clear.

The advantage is easy to understand. Instead of sending all impact energy from a hammer at the surface through a long drill string, the DTH hammer works down inside the hole. That makes DTH particularly useful when consistent rock-breaking performance is required as hole depth increases.

3. One Rig for Soft and Hard Rock Conditions

Rock rarely stays exactly the same throughout a project. A drilling crew may start in weathered rock, move into harder layers, encounter fractured sections, and then return to softer material. A machine that only performs well in one condition can create extra downtime.

That is why the SWDE165B is designed with more than one drilling approach. Public product information describes a one-click switching function between DTH mode and cutting mode. The purpose is straightforward: cutting can be used efficiently in softer rock, while DTH drilling provides strong percussion performance in harder rock.

Source: drilling-method principles from Liebherr and published SWDE165B product information. Actual drilling performance depends on rock strength, abrasiveness, jointing, bit selection, air supply, feed pressure, operator settings, and site conditions.

For a contractor, this flexibility can matter more than a single headline number. If the machine can adapt to changing rock conditions, the drilling crew can spend more time drilling and less time dealing with equipment changes.

4. Key Technical Advantages I Focus On

Wide 138–180 mm drilling range. The drilling range gives the SWDE165B a useful position for surface blasting and rock-drilling projects that need holes larger than those normally produced by compact drilling equipment. The published model data confirms the 138–180 mm range.

Up to 36 m drilling depth. A maximum drilling depth of 36 m gives contractors room to handle deeper hole patterns without relying on short drilling cycles. The actual achievable depth on a project still depends on geology, hole diameter, rod arrangement, drilling tools, air conditions, and operating method.

Multi-angle drilling. Surface blasting does not always use vertical holes. Depending on the bench, rock face, road cut, or construction plan, inclined or horizontal drilling may be needed. Published SWDE165B information identifies vertical, inclined, and horizontal blasting holes among its application requirements.

Integrated machine design. An integrated drill rig brings the major drilling systems together on one carrier. This reduces the need to move separate machines around the work area and makes daily operation more straightforward.

Energy-conscious drilling. The product concept focuses on high drilling efficiency, lower construction energy consumption, energy saving, and lower-carbon operation. I do not treat “low energy consumption” as a fixed number because actual fuel use depends heavily on geology, drilling depth, compressor load, idle time, and operator behavior.

Dust management options. Published SWDE165B reference information lists dry dust collection as standard and water-mist dust collection as an option. Dust control is important because rock drilling can generate a large amount of fine material, especially during blasting-hole preparation.

5. Where I Would Use the SWDE165B

I would position the SWDE165B Integrated DTH Drill Rig mainly for projects where rock drilling productivity has a direct effect on project cost. Typical applications include mining, quarrying, construction blasting, road cutting, foundation-related rock drilling, and other surface drilling tasks.

In quarry operations, the drilling rig can prepare blast holes before controlled blasting. Hole diameter, depth, angle, and spacing need to match the blasting design, so drilling accuracy and repeatability are important.

In mining, drilling productivity directly affects the next stages of the operation. Drilling that is too slow can hold up blasting, loading, hauling, and crushing. For this reason, I focus on maintaining a practical balance between penetration rate, hole quality, consumable life, and machine operating cost.

For road construction and infrastructure projects, rock drilling may be needed for excavation through hard formations or for controlled blasting along a planned alignment. A crawler-mounted integrated rig can also make more sense than moving several separate pieces of equipment when the work area changes frequently.

Source: application information is based on published SWDE165B application descriptions and general DTH drilling references. Final application suitability should be confirmed from the project geology and drilling plan.

6. How I Approach Manufacturing and Quality Control

For a drilling rig, manufacturing quality is not just about making a strong frame. The whole drilling system has to work together. If the feed system is poorly matched to the rotary head, if the air system cannot maintain the required conditions, or if the carrier is not stable enough, the drilling tool cannot perform as expected.

At HKLOONG Heavy Industry Technology, our manufacturing approach covers equipment R&D, precision manufacturing, quality testing, customized modification, and global distribution. I look at the drill rig as a complete working system rather than a collection of individual components.

The first area I pay attention to is the main structural frame. It needs to withstand repeated vibration, feed loads, rotary torque, and movement across uneven working areas. Welding quality and dimensional control therefore matter during production.

The drilling mechanism is another critical area. The feed structure must provide stable movement of the drill string, while the rotary system must deliver controlled rotation. The relationship between feed force, rotation, percussion, and air supply has a direct effect on drilling performance.

I also pay attention to service access. Drilling is a demanding job, and wear parts eventually need inspection or replacement. Easy access to maintenance points can reduce unnecessary downtime and help technicians complete routine checks more efficiently.

Before delivery, quality testing should cover machine operation, hydraulic functions, drilling-system movement, controls, structural condition, and other relevant performance checks. For customized projects, I also consider the customer's rock conditions, drilling diameter, working angle, transportation requirements, climate, and expected workload before final configuration.

7. Why Choose Our SWDE165B Integrated DTH Drill Rig?

I know that buying a rock drilling rig is not simply a machine purchase. It affects drilling productivity, labor planning, fuel use, maintenance, consumables, and the schedule of the entire project. That is why I focus on practical value rather than simply listing technical terms.

• Product-focused engineering: We approach the machine from the actual drilling task, not just from individual component specifications.

• Flexible configuration: Drilling requirements can vary from one project to another, so configuration can be discussed according to working conditions and customer requirements.

• Integrated production capability: HKLOONG combines R&D, manufacturing, quality testing, customization, and technical service.

• Hard-rock drilling capability: The DTH working principle is well suited to hard and very hard rock applications where direct downhole percussion is useful.

• Productivity-oriented design: The 138–180 mm drilling range and up to 36 m maximum depth provide a practical operating range for many surface drilling projects.

• Global project support: We consider overseas working conditions, operating habits, local requirements, and service needs when discussing equipment configurations.

Most importantly, I do not recommend choosing a drilling rig from one specification alone. The right choice depends on rock hardness, abrasiveness, hole diameter, required depth, drilling angle, blast design, working altitude, climate, compressor conditions, transport limits, and expected daily production.

8. SWDE165B Integrated DTH Drill Rig FAQ

What is an integrated DTH drill rig?

An integrated DTH drill rig combines the drilling mechanism, power system, air system, carrier, controls, and other major systems into one mobile machine. It is designed for surface drilling and is especially useful for rock drilling and blasting applications.

What drilling diameter does the SWDE165B support?

The SWDE165B has a published drilling diameter range of 138–180 mm. The actual tool configuration should be selected according to the required hole diameter, rock conditions, and drilling plan.

How deep can the SWDE165B drill?

The published maximum drilling depth is 36 m. Actual drilling depth can vary depending on geological conditions, drill pipe arrangement, hole diameter, drilling tools, air supply, and operating conditions.

What is the difference between DTH drilling and cutting drilling?

DTH drilling uses a pneumatic hammer close to the drill bit to create repeated impact and break rock. Cutting drilling relies more on rotary cutting action. DTH is particularly useful for hard rock, while cutting can be useful in softer formations. A system that can select the suitable method gives the operator more flexibility when geological conditions change.

Can the SWDE165B drill inclined holes?

Yes. Published SWDE165B information describes the machine as suitable for vertical, inclined, and horizontal blasting holes, subject to the actual drilling configuration and site conditions.

Is the SWDE165B suitable for mining and quarrying?

Yes. The machine is designed for surface rock drilling and blasting-related work. Mining, quarrying, road construction, and similar projects can benefit from its DTH drilling system, useful hole-size range, and multi-angle drilling capability.

How can I reduce drilling costs?

I normally start with the complete drilling cycle rather than looking only at penetration speed. Correct bit selection, suitable air supply, controlled feed pressure, proper rotation, regular maintenance, and reduced idle time can all influence the cost per drilled meter. A faster machine is not automatically cheaper if it consumes more fuel or wears drilling tools too quickly.

Can the configuration be customized?

Configuration should be discussed according to the customer's project. Important factors include required hole diameter, drilling depth, geological conditions, drilling angle, climate, transportation limits, dust-control requirements, and local operating conditions. HKLOONG can evaluate these factors when preparing a suitable equipment configuration.

Final Thoughts: A Practical DTH Solution for Demanding Rock Work

For me, the value of the SWDE165B Integrated DTH Drill Rig comes from its combination of drilling range, depth capability, DTH technology, multi-angle operation, and the ability to adapt the drilling method to different rock conditions. With a 138–180 mm drilling diameter and maximum drilling depth of 36 m, it is designed for demanding surface drilling and blasting work where productivity matters.

The most important point is still the actual jobsite. Rock strength, abrasiveness, hole design, drilling depth, air supply, tool selection, and operator experience all affect results. When these factors are properly matched, an integrated DTH drill rig can help shorten drilling cycles, improve work efficiency, control construction energy use, and reduce the cost of each completed meter.

At HKLOONG Heavy Industry Technology, I approach drilling equipment from this practical perspective. We combine equipment R&D, precision manufacturing, quality testing, customized modification, and global distribution to provide machinery for demanding heavy-duty applications. If you are planning a mining, quarrying, construction blasting, or hard-rock drilling project, the SWDE165B is a model worth evaluating against your actual geological and production requirements.
